3. To unlatch the seat
from the oor, pull
up on the release lever
labeled 2,
located at the rear of
the seat, and lift
the rear of the seat up
off the oor.
4. Squeeze the release lever, located in the lower
middle to unlatch the seat from the oor, while
pulling the seat out.
5. While holding the rear of the seat up, roll the seat
out of the vehicle.Replacing the 50/50 Split Bench Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
1-14

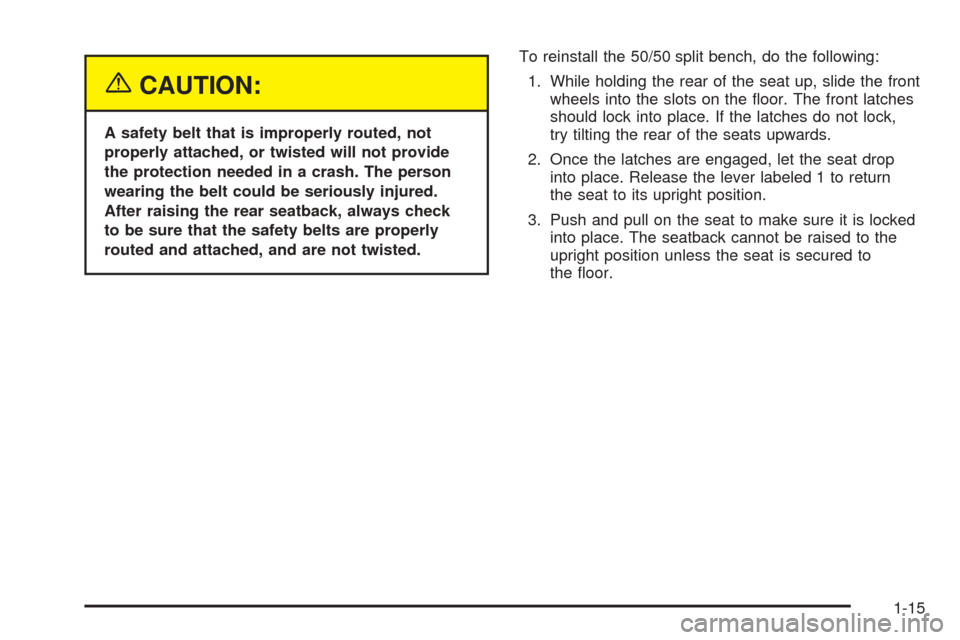

{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To reinstall the 50/50 split bench, do the following:
1. While holding the rear of the seat up, slide the front
wheels into the slots on the oor. The front latches
should lock into place. If the latches do not lock,
try tilting the rear of the seats upwards.
2. Once the latches are engaged, let the seat drop
into place. Release the lever labeled 1 to return
the seat to its upright position.
3. Push and pull on the seat to make sure it is locked
into place. The seatback cannot be raised to the
upright position unless the seat is secured to
the oor.
1-15

Bench Seat
If your vehicle has a full bench seat, the seatback can
be folded and the seat can be tilted or removed from the
vehicle.
Folding the Seatback
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.To fold the seatback on the bench seat, do the following:
1. Pull up on the release
lever, labeled 1,
located on the rear of
the seatback and
push the seatback
forward.
2. To return the seat to an upright position, pull up on
the release lever labeled 1 and then pull up on the
seatback until the seatback locks into the upright
position.
Push and pull on the seatback to check that it is locked
into place.
1-16

Tilting the Bench Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
If the support rod is not properly engaged, the
folded third row seat could come loose in a
sudden stop or crash. That could cause injury
to people and damage to your vehicle. Always
be sure the support rod is properly engaged
when the third row seat is folded forward.Once the third seatback has been folded down, the
entire seat can be tilted forward to create a at
load oor. To do this, do the following:
1. Enter the rear cargo area of the vehicle.
2. Make sure the head restraints have been lowered
completely.
3. With the seat folded,
unlatch the seat from
the oor by pulling
up on the lever located
under the carrying
handle at the rear of
the seat labeled 2.
4. Lift the rear of the seat up, off the oor. You will not
be able to unlatch the seat from the oor unless the
seatback is folded down.
1-17

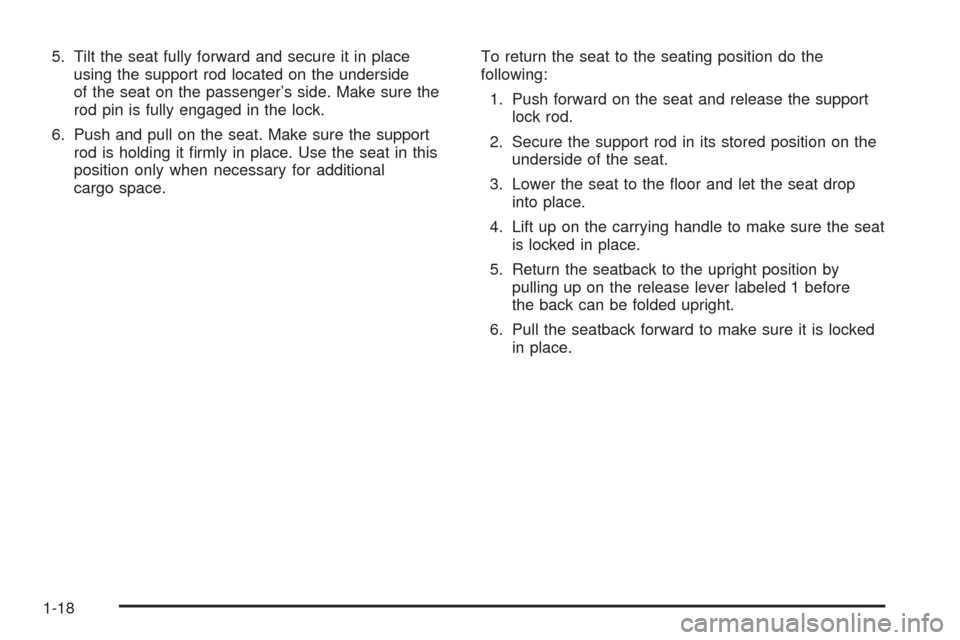

5. Tilt the seat fully forward and secure it in place
using the support rod located on the underside
of the seat on the passenger’s side. Make sure the
rod pin is fully engaged in the lock.
6. Push and pull on the seat. Make sure the support
rod is holding it rmly in place. Use the seat in this
position only when necessary for additional
cargo space.To return the seat to the seating position do the
following:
1. Push forward on the seat and release the support
lock rod.
2. Secure the support rod in its stored position on the
underside of the seat.
3. Lower the seat to the oor and let the seat drop
into place.
4. Lift up on the carrying handle to make sure the seat
is locked in place.
5. Return the seatback to the upright position by
pulling up on the release lever labeled 1 before
the back can be folded upright.
6. Pull the seatback forward to make sure it is locked
in place.
1-18

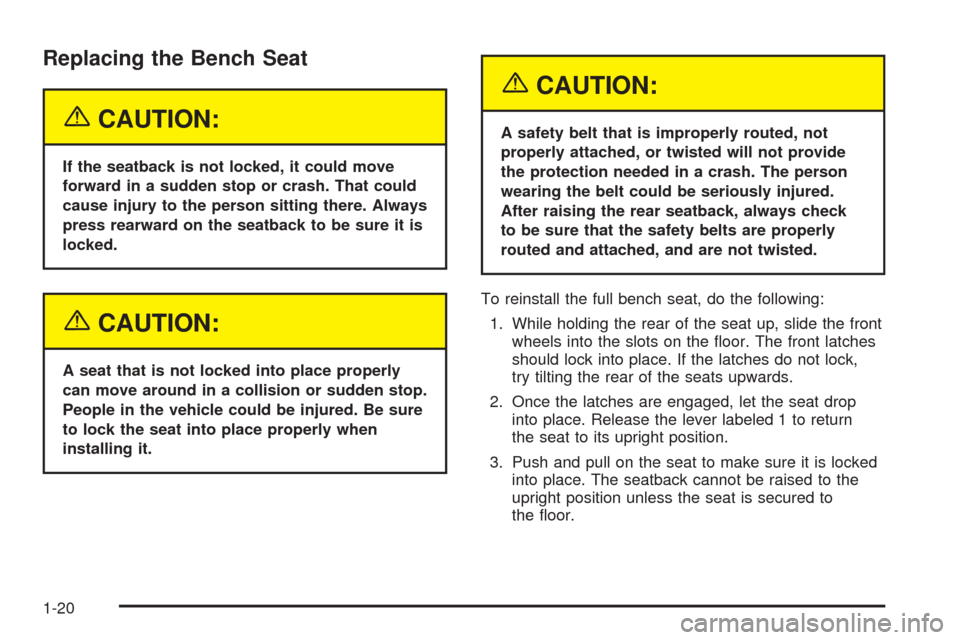

Replacing the Bench Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
To reinstall the full bench seat, do the following:
1. While holding the rear of the seat up, slide the front
wheels into the slots on the oor. The front latches
should lock into place. If the latches do not lock,
try tilting the rear of the seats upwards.
2. Once the latches are engaged, let the seat drop
into place. Release the lever labeled 1 to return
the seat to its upright position.
3. Push and pull on the seat to make sure it is locked
into place. The seatback cannot be raised to the
upright position unless the seat is secured to
the oor.
1-20

Bucket Seats
If your vehicle has bucket seats, the seatbacks can be
reclined and the seats can be folded to give you
more cargo room.
Reclining the Seatbacks
On the extended models with bucket seats, the
seatbacks can be reclined. To adjust the seatback do
the following:
1. Pull forward the lever located at the base of
the seat.
2. Release the lever to lock the seatback where you
want it. If you pull the lever without pushing on the
seatback, the seatback will go to an upright
position.
Folding the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
The seatbacks on the bucket seats may be folded
forward to give you more cargo space.
On extended models with rear bucket seats, the head
restraints need to be removed in order to fold the
rear seats. To do this follow these directions:
1. Lift the head restraints up until they stop.
2. Press in the button on the side of the head restraint
guide cap and lift up on the head restraint.
3. Do the same for the other cap.
1-21

Driver Position
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here is how to wear
it properly.
1. Close and lock the door.
2. Adjust the seat so you can sit up straight. To see
how, see “Seats” in the Index.
3. Pick up the latch plate and pull the belt across you.
Do not let it get twisted.
The shoulder belt may lock if you pull the belt
across you very quickly. If this happens, let the belt
go back slightly to unlock it. Then pull the belt
across you more slowly.4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate to make sure it is secure.
If the belt is not long enough, seeSafety Belt
Extender on page 1-43.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To make the lap part tight, pull down on the buckle
end of the belt as you pull up on the shoulder belt.
1-29
