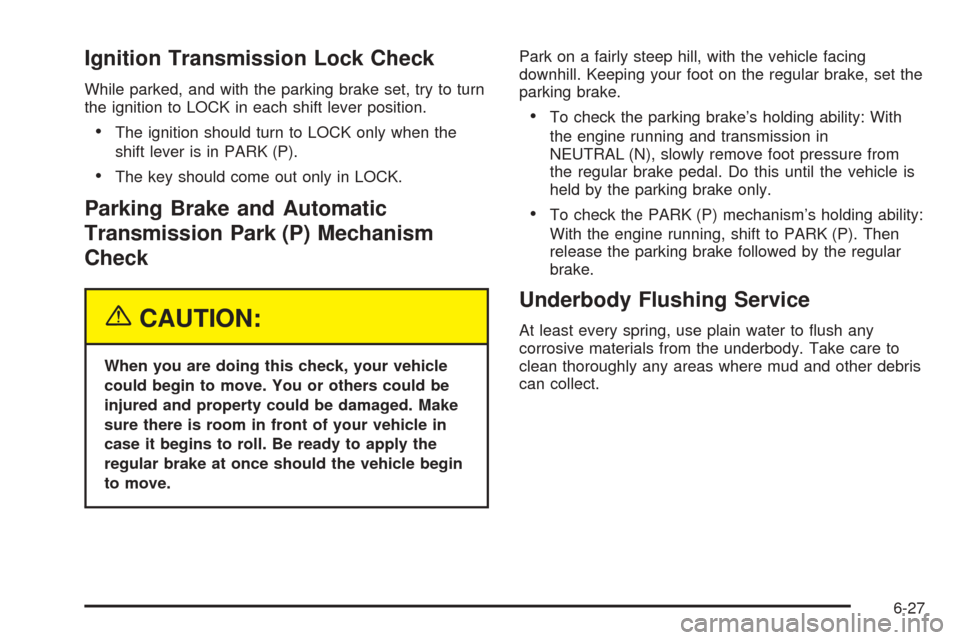

Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition to LOCK in each shift lever position.
The ignition should turn to LOCK only when the
shift lever is in PARK (P).
The key should come out only in LOCK.
Parking Brake and Automatic
Transmission Park (P) Mechanism
Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle begin
to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.
To check the parking brake’s holding ability: With
the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle is
held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-27

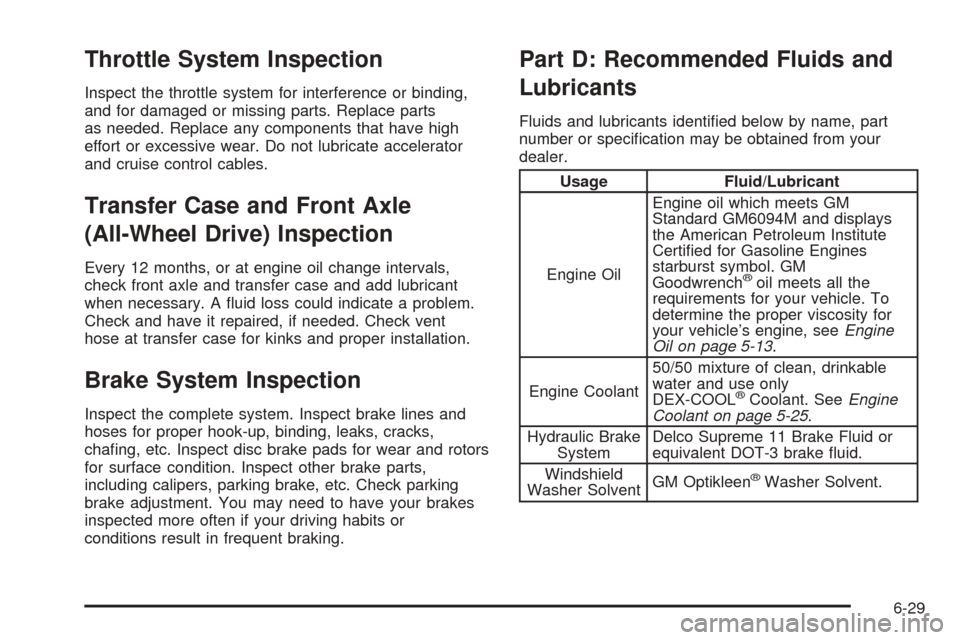

Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts
as needed. Replace any components that have high
effort or excessive wear. Do not lubricate accelerator
and cruise control cables.
Transfer Case and Front Axle
(All-Wheel Drive) Inspection
Every 12 months, or at engine oil change intervals,
check front axle and transfer case and add lubricant
when necessary. A uid loss could indicate a problem.
Check and have it repaired, if needed. Check vent
hose at transfer case for kinks and proper installation.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
cha ng, etc. Inspect disc brake pads for wear and rotors
for surface condition. Inspect other brake parts,
including calipers, parking brake, etc. Check parking
brake adjustment. You may need to have your brakes
inspected more often if your driving habits or
conditions result in frequent braking.
Part D: Recommended Fluids and
Lubricants
Fluids and lubricants identi ed below by name, part
number or speci cation may be obtained from your
dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certi ed for Gasoline Engines
starburst symbol. GM
Goodwrench
®oil meets all the
requirements for your vehicle. To
determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil on page 5-13.
Engine Coolant50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. SeeEngine
Coolant on page 5-25.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
6-29

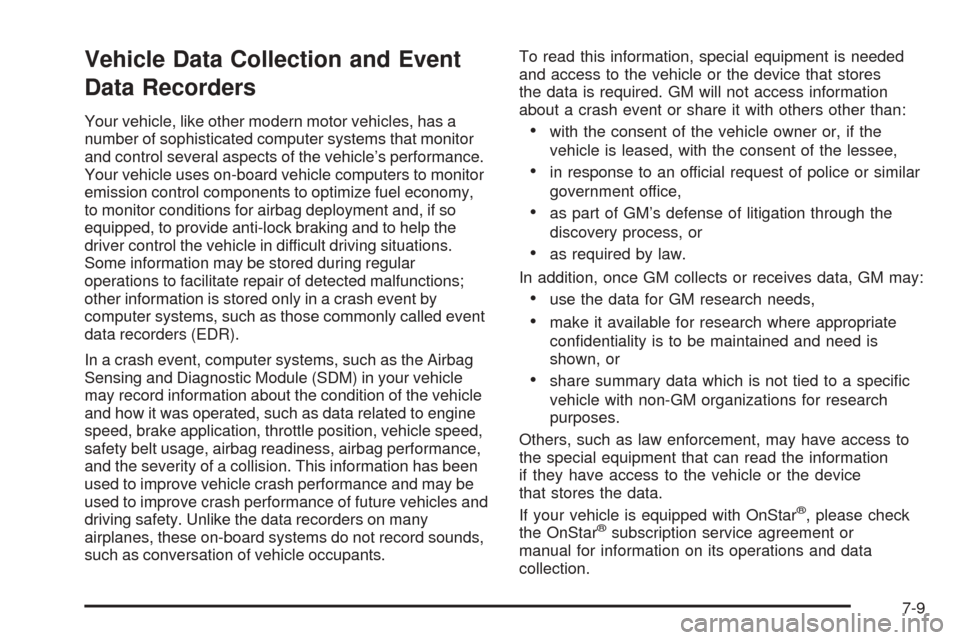

Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s performance.
Your vehicle uses on-board vehicle computers to monitor
emission control components to optimize fuel economy,
to monitor conditions for airbag deployment and, if so
equipped, to provide anti-lock braking and to help the
driver control the vehicle in difficult driving situations.
Some information may be stored during regular
operations to facilitate repair of detected malfunctions;
other information is stored only in a crash event by
computer systems, such as those commonly called event
data recorders (EDR).
In a crash event, computer systems, such as the Airbag
Sensing and Diagnostic Module (SDM) in your vehicle
may record information about the condition of the vehicle
and how it was operated, such as data related to engine
speed, brake application, throttle position, vehicle speed,
safety belt usage, airbag readiness, airbag performance,
and the severity of a collision. This information has been
used to improve vehicle crash performance and may be
used to improve crash performance of future vehicles and
driving safety. Unlike the data recorders on many
airplanes, these on-board systems do not record sounds,
such as conversation of vehicle occupants.To read this information, special equipment is needed
and access to the vehicle or the device that stores
the data is required. GM will not access information
about a crash event or share it with others other than:with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee,
in response to an official request of police or similar
government office,
as part of GM’s defense of litigation through the
discovery process, or
as required by law.
In addition, once GM collects or receives data, GM may:
use the data for GM research needs,
make it available for research where appropriate
con dentiality is to be maintained and need is
shown, or
share summary data which is not tied to a speci c
vehicle with non-GM organizations for research
purposes.
Others, such as law enforcement, may have access to
the special equipment that can read the information
if they have access to the vehicle or the device
that stores the data.
If your vehicle is equipped with OnStar
®, please check
the OnStar®subscription service agreement or
manual for information on its operations and data
collection.
7-9

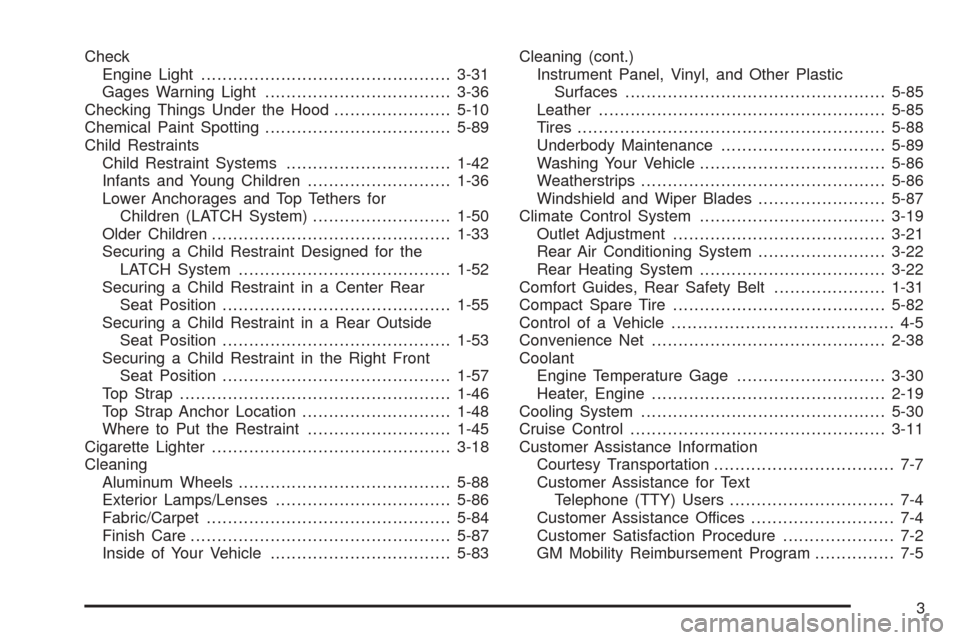

Check
Engine Light...............................................3-31
Gages Warning Light...................................3-36
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-89
Child Restraints
Child Restraint Systems...............................1-42
Infants and Young Children...........................1-36
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-50
Older Children.............................................1-33
Securing a Child Restraint Designed for the
LATCH System........................................1-52
Securing a Child Restraint in a Center Rear
Seat Position...........................................1-55
Securing a Child Restraint in a Rear Outside
Seat Position...........................................1-53
Securing a Child Restraint in the Right Front
Seat Position...........................................1-57
Top Strap...................................................1-46
Top Strap Anchor Location............................1-48
Where to Put the Restraint...........................1-45
Cigarette Lighter.............................................3-18
Cleaning
Aluminum Wheels........................................5-88
Exterior Lamps/Lenses.................................5-86
Fabric/Carpet..............................................5-84
Finish Care.................................................5-87
Inside of Your Vehicle..................................5-83Cleaning (cont.)
Instrument Panel, Vinyl, and Other Plastic
Surfaces.................................................5-85
Leather......................................................5-85
Tires..........................................................5-88
Underbody Maintenance...............................5-89
Washing Your Vehicle...................................5-86
Weatherstrips..............................................5-86
Windshield and Wiper Blades........................5-87
Climate Control System...................................3-19
Outlet Adjustment........................................3-21
Rear Air Conditioning System........................3-22
Rear Heating System...................................3-22
Comfort Guides, Rear Safety Belt.....................1-31
Compact Spare Tire........................................5-82
Control of a Vehicle.......................................... 4-5
Convenience Net............................................2-38
Coolant
Engine Temperature Gage............................3-30
Heater, Engine............................................2-19
Cooling System..............................................5-30
Cruise Control................................................3-11
Customer Assistance Information
Courtesy Transportation.................................. 7-7
Customer Assistance for Text
Telephone (TTY) Users............................... 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
3
Customer Assistance Information (cont.)
Reporting Safety Defects to General Motors....7-11
Reporting Safety Defects to the
Canadian Government..............................7-10
Reporting Safety Defects to the
United States Government.........................7-10
Roadside Assistance Program......................... 7-5
Service Publications Ordering Information........7-11
D
Daytime Running Lamps..................................3-15
Defensive Driving............................................. 4-2
Doing Your Own Service Work........................... 5-4
Dome Lamps.................................................3-17
Door
Locks.......................................................... 2-6
Power Door Locks......................................... 2-7
Programmable Automatic Door Locks............... 2-7
Rear Doors.................................................2-11
Sliding Side Door.......................................... 2-8
Driver
Position, Safety Belt.....................................1-19
Driver Information Center (DIC).........................3-38
Driving
At Night.....................................................4-13
City...........................................................4-18
Defensive..................................................... 4-2
Drunken....................................................... 4-2Driving (cont.)
Freeway.....................................................4-19
Hill and Mountain Roads..............................4-21
In Rain and on Wet Roads...........................4-15
Rocking Your Vehicle to Get it Out.................4-28
Winter........................................................4-23
E
Electrical System
Add-On Equipment......................................5-92
Fuses and Circuit Breakers...........................5-93
Headlamp Wiring.........................................5-92
Instrument Panel Fuse Block.........................5-93
Power Windows and Other Power Options......5-92
Underhood Fuse Block.................................5-96
Windshield Wiper Fuses...............................5-92
Engine
Air Cleaner/Filter.........................................5-21
Battery.......................................................5-40
Check and Service Engine Soon Light............3-31
Coolant......................................................5-25
Coolant Heater............................................2-19
Coolant Temperature Gage...........................3-30
Cooling System Inspection............................6-28
Cover........................................................5-17
Engine Compartment Overview......................5-12
Exhaust.....................................................2-26
Fan Noise..................................................5-34
4
G
Gage
Check Gages Warning Light..........................3-36
Engine Coolant Temperature.........................3-30
Fuel..........................................................3-37
Oil Pressure...............................................3-34
Speedometer..............................................3-26
Voltmeter Gage...........................................3-28
Garage Door Opener.......................................2-29
Gasoline
Octane........................................................ 5-5
Speci cations............................................... 5-5
GM Mobility Reimbursement Program.................. 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-5
Headlamp Wiring............................................5-92
Headlamps
Automatic Headlamp System.........................3-16
Bulb Replacement.......................................5-48
Daytime Running Lamps...............................3-15
Flash-to-Pass............................................... 3-9
Front Turn Signal and Parking Lamps.............5-52
Halogen Bulbs............................................5-48
Headlamps and Sidemarker Lamps................5-48Headlamps (cont.)
High/Low Beam Changer................................ 3-9
On Reminder..............................................3-15
Headlamps and Sidemarker Lamps...................5-48
Heater...........................................................3-19
Highbeam On Light.........................................3-35
Highway Hypnosis...........................................4-21
Hill and Mountain Roads..................................4-21
HomeLink
®Wireless Control System.................2-29
HomeLink®Wireless Control
System Operation........................................2-30
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-19
I
Ignition Positions.............................................2-17
Infants and Young Children, Restraints...............1-36
In ation -- Tire Pressure..................................5-61
Inspection
Brake System.............................................6-29
Engine Cooling System................................6-28
Exhaust System..........................................6-28
Fuel System...............................................6-28
Part C - Periodic Maintenance.......................6-28
6

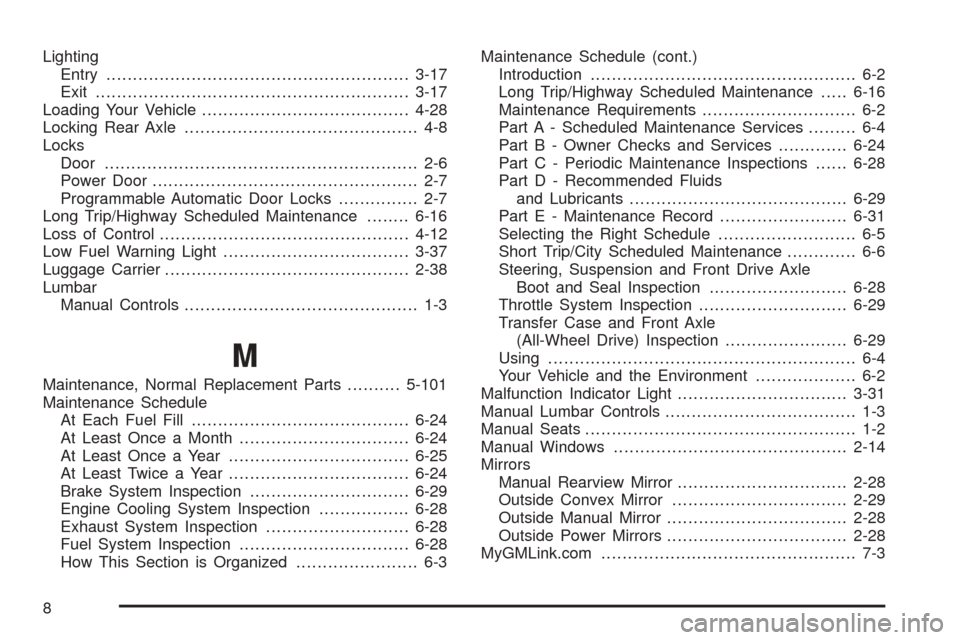

Lighting
Entry.........................................................3-17
Exit...........................................................3-17
Loading Your Vehicle.......................................4-28
Locking Rear Axle............................................ 4-8
Locks
Door........................................................... 2-6
Power Door.................................................. 2-7
Programmable Automatic Door Locks............... 2-7
Long Trip/Highway Scheduled Maintenance........6-16
Loss of Control...............................................4-12
Low Fuel Warning Light...................................3-37
Luggage Carrier..............................................2-38
Lumbar
Manual Controls............................................ 1-3
M
Maintenance, Normal Replacement Parts..........5-101
Maintenance Schedule
At Each Fuel Fill.........................................6-24
At Least Once a Month................................6-24
At Least Once a Year..................................6-25
At Least Twice a Year..................................6-24
Brake System Inspection..............................6-29
Engine Cooling System Inspection.................6-28
Exhaust System Inspection...........................6-28
Fuel System Inspection................................6-28
How This Section is Organized....................... 6-3Maintenance Schedule (cont.)
Introduction.................................................. 6-2
Long Trip/Highway Scheduled Maintenance.....6-16
Maintenance Requirements............................. 6-2
Part A - Scheduled Maintenance Services......... 6-4
Part B - Owner Checks and Services.............6-24
Part C - Periodic Maintenance Inspections......6-28
Part D - Recommended Fluids
and Lubricants.........................................6-29
Part E - Maintenance Record........................6-31
Selecting the Right Schedule.......................... 6-5
Short Trip/City Scheduled Maintenance............. 6-6
Steering, Suspension and Front Drive Axle
Boot and Seal Inspection..........................6-28
Throttle System Inspection............................6-29
Transfer Case and Front Axle
(All-Wheel Drive) Inspection.......................6-29
Using.......................................................... 6-4
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-31
Manual Lumbar Controls.................................... 1-3
Manual Seats................................................... 1-2
Manual Windows............................................2-14
Mirrors
Manual Rearview Mirror................................2-28
Outside Convex Mirror.................................2-29
Outside Manual Mirror..................................2-28
Outside Power Mirrors..................................2-28
MyGMLink.com................................................ 7-3
8

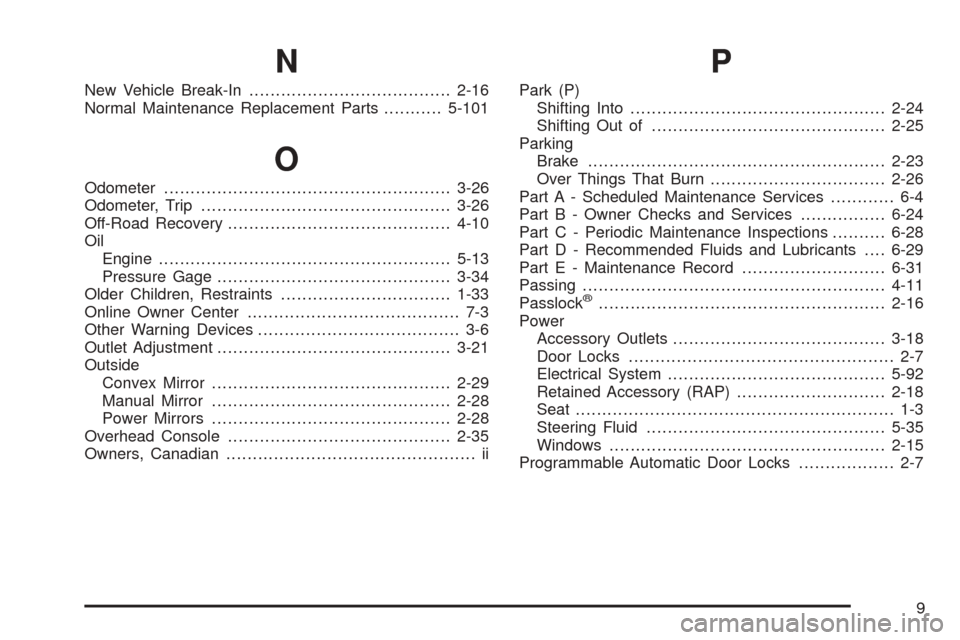

N
New Vehicle Break-In......................................2-16
Normal Maintenance Replacement Parts...........5-101
O
Odometer......................................................3-26
Odometer, Trip...............................................3-26
Off-Road Recovery..........................................4-10
Oil
Engine.......................................................5-13
Pressure Gage............................................3-34
Older Children, Restraints................................1-33
Online Owner Center........................................ 7-3
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-21
Outside
Convex Mirror.............................................2-29
Manual Mirror.............................................2-28
Power Mirrors.............................................2-28
Overhead Console..........................................2-35
Owners, Canadian............................................... ii
P
Park (P)
Shifting Into................................................2-24
Shifting Out of............................................2-25
Parking
Brake........................................................2-23
Over Things That Burn.................................2-26
Part A - Scheduled Maintenance Services............ 6-4
Part B - Owner Checks and Services................6-24
Part C - Periodic Maintenance Inspections..........6-28
Part D - Recommended Fluids and Lubricants....6-29
Part E - Maintenance Record...........................6-31
Passing.........................................................4-11
Passlock
®......................................................2-16
Power
Accessory Outlets........................................3-18
Door Locks.................................................. 2-7
Electrical System.........................................5-92
Retained Accessory (RAP)............................2-18
Seat............................................................ 1-3
Steering Fluid.............................................5-35
Windows....................................................2-15
Programmable Automatic Door Locks.................. 2-7
9
