A 50/50 mixture of clean, drinkable water and
DEX-COOL®coolant will:
Give freezing protection down to−34°F (−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as they
should.
Notice:Using coolant other than DEX-COOL
®may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs rst. Any repairs
would not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your vehicle.
What to Use
Use a mixture of one-half clean, drinkable water and
one-half DEX-COOL®coolant which will not damage
aluminum parts. If you use this coolant mixture, you do
not need to add anything else.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can boil
before the proper coolant mixture will. Your
vehicle’s coolant warning system is set for the
proper coolant mixture. With plain water or the
wrong mixture, your engine could get too hot
but you would not get the overheat warning.
Your engine could catch re and you or others
could be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.
Notice:If you use an improper coolant mixture,
your engine could overheat and be badly damaged.
The repair cost would not be covered by your
warranty. Too much water in the mixture can freeze
and crack the engine, radiator, heater core and
other parts.
If you have to add coolant more than once or twice a
year, have your dealer check your cooling system.
Notice:If you use the proper coolant, you do not
have to add extra inhibitors or additives which claim
to improve the system. These can be harmful.
5-24

When the engine is cold, the coolant level should be at
or slightly above the FULL COLD/FROID line on the
side of the coolant surge tank. If it is not, you may have
a leak at the pressure cap or in the radiator hoses,
heater hoses, radiator, water pump or somewhere else
in the cooling system.
{CAUTION:
Heater and radiator hoses, and other engine
parts, can be very hot. Do not touch them. If
you do, you can be burned.
Do not run the engine if there is a leak. If you
run the engine, it could lose all coolant. That
could cause an engine re, and you could be
burned. Get any leak xed before you drive the
vehicle.
If there seems to be no leak, with the engine on, check
to see if the electric engine cooling fans are running.
If the engine is overheating, both fans should be
running. If they are not, your vehicle needs service.Notice:Engine damage from running your engine
without coolant is not covered by your warranty. See
Overheated Engine Protection Operating Mode on
page 5-28for information on driving to a safe place
in an emergency.
Notice:Using coolant other than DEX-COOL
®may
cause premature engine, heater core or radiator
corrosion. In addition, the engine coolant may
require changing sooner, at 30,000 miles (50 000 km)
or 24 months, whichever occurs rst. Any repairs
would not be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your vehicle.
5-30

3. Fill the coolant surge tank with the proper mixture,
to slightly above the FULL COLD/FROID line on the
side of the coolant surge tank.4. With the coolant surge tank pressure cap off, start
the engine and let it run until you can feel the upper
radiator hose getting hot. The upper radiator
hose is the largest of the hoses which comes out of
the radiator, on the passenger’s side of the
vehicle. Watch out for the engine cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower, add
more of the proper mixture to the coolant surge tank
until the level reaches the FULL COLD/FROID
line on the side of the coolant surge tank.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
Start the engine and allow it to warm up. If the Check
Coolant Level message does not appear on the
Driver Information Center, the coolant is at the proper ll
level. If a Check Coolant Level message does appear,
repeat Steps 1 to 3 then reinstall the pressure cap,
or see your GM dealer.
5-33

Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer.
High Intensity Discharge (HID)
Lighting
{CAUTION:
The low beam high intensity discharge lighting
system operates at a very high voltage. If you
try to service any of the system components,
you could be seriously injured. Have your
dealer or a qualied technician service them.
Your vehicle may have HID headlamps. After your
vehicle’s HID headlamp bulb has been replaced, you
may notice that the beam is a slightly different
shade than it was originally. This is normal.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for wear
or cracking. SeeOwner Checks and Services on
page 6-8.
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, seeNormal
Maintenance Replacement Parts on page 6-13.
To replace the wiper blade assembly, do the following:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them off
again when the wipers are in the out-wipe position.
The driver’s side blade will be straight up and
down on the windshield.
3. Pull the windshield wiper assembly away from the
windshield.
5-49

Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-58.
Windshield Wiper Fuses
The windshield wiper motor is protected by an internal
circuit breaker. If the wiper motor overheats due to
heavy snow, the wipers will stop until the motor cools
and will then restart.
Power Windows and Other Power
Options
Circuit breakers protect the power windows and power
seats. When the current load is too heavy, the circuit
breaker opens and closes, protecting the circuit until the
problem is xed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating. If a fuse blows, see your dealer
for service immediately.
If you ever have a problem on the road and don’t have
a spare fuse, you can “borrow” one that has the
same amperage. Pick some feature of your vehicle that
you can get along without – like the radio or cigarette
lighter – and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
The fuses are located in three fuse blocks, one located
in the engine compartment on the passenger’s side
and the other two under the rear seat.
5-94

Audio System(s) (cont.)
Theft-Deterrent Feature...............................3-111
Understanding Radio Reception...................3-113
XM™ Satellite Radio Antenna System...........3-114
Automatic Transmission
Fluid..........................................................5-22
Operation...................................................2-25
B
Battery..........................................................5-39
Exterior Lighting Battery Saver......................3-19
Before Leaving on a Long Trip.........................4-36
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-8
Panic Assist................................................4-11
Parking......................................................2-28
System Warning Light..................................3-38
Brake Pedal, Throttle.......................................2-23
Brakes..........................................................5-36
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-20
Bulb Replacement...........................................5-49
High Intensity Discharge (HID) Lighting...........5-49
Buying New Tires...........................................5-64
C
California Fuel.................................................. 5-6
Canadian Owners................................................ ii
Capacities and Specications..........................5-103
Carbon Monoxide...................2-12, 2-33, 4-39, 4-52
Care of
Safety Belts................................................5-88
Your CD and DVD Player...........................3-113
Your CDs and DVDs..................................3-113
Cargo Cover..................................................2-49
Cargo Management System.............................2-49
Cell Phone Storage Area.................................2-47
Center Console Storage Area...........................2-47
Chains, Tire...................................................5-68
Charging System Light....................................3-38
Check
Engine Light...............................................3-42
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-91
Child Restraints
Child Restraint Systems...............................1-34
Infants and Young Children...........................1-30
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-40
Older Children.............................................1-28
Securing a Child Restraint Designed for the
LATCH System........................................1-42
2

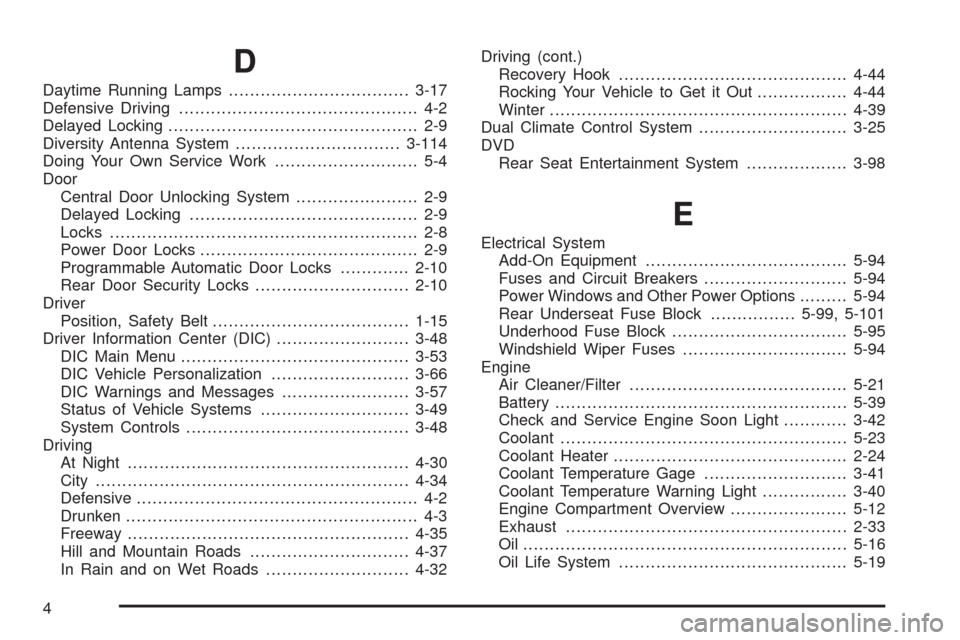

D
Daytime Running Lamps..................................3-17
Defensive Driving............................................. 4-2
Delayed Locking............................................... 2-9
Diversity Antenna System...............................3-114
Doing Your Own Service Work........................... 5-4
Door
Central Door Unlocking System....................... 2-9
Delayed Locking........................................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Driver
Position, Safety Belt.....................................1-15
Driver Information Center (DIC).........................3-48
DIC Main Menu...........................................3-53
DIC Vehicle Personalization..........................3-66
DIC Warnings and Messages........................3-57
Status of Vehicle Systems............................3-49
System Controls..........................................3-48
Driving
At Night.....................................................4-30
City...........................................................4-34
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-35
Hill and Mountain Roads..............................4-37
In Rain and on Wet Roads...........................4-32Driving (cont.)
Recovery Hook...........................................4-44
Rocking Your Vehicle to Get it Out.................4-44
Winter........................................................4-39
Dual Climate Control System............................3-25
DVD
Rear Seat Entertainment System...................3-98
E
Electrical System
Add-On Equipment......................................5-94
Fuses and Circuit Breakers...........................5-94
Power Windows and Other Power Options.........5-94
Rear Underseat Fuse Block................5-99, 5-101
Underhood Fuse Block.................................5-95
Windshield Wiper Fuses...............................5-94
Engine
Air Cleaner/Filter.........................................5-21
Battery.......................................................5-39
Check and Service Engine Soon Light............3-42
Coolant......................................................5-23
Coolant Heater............................................2-24
Coolant Temperature Gage...........................3-41
Coolant Temperature Warning Light................3-40
Engine Compartment Overview......................5-12
Exhaust.....................................................2-33
Oil .............................................................5-16
Oil Life System...........................................5-19
4

Oil
Engine.......................................................5-16
Pressure Light.............................................3-45
Oil, Engine Oil Life System..............................5-19
Older Children, Restraints................................1-28
Online Owner Center........................................ 7-4
OnStar
®System, see OnStar®Manual...............2-40
Operating Your All-Wheel-Drive Vehicle Off
Paved Roads..............................................4-17
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-30
Outside
Automatic Dimming Mirror.............................2-39
Convex Mirror.............................................2-39
Curb View Assist Mirror................................2-39
Power Heated Mirrors..................................2-38
Overheated Engine Protection Operating Mode . . . 5-28
Owner Checks and Services.............................. 6-8
Owners, Canadian............................................... ii
P
Panic Brake Assist..........................................4-11
Parade Dimming.............................................3-20
Park Aid........................................................3-20Park (P)
Shifting Into................................................2-30
Shifting Out of............................................2-32
Parking
Assist........................................................3-20
Brake........................................................2-28
Over Things That Burn.................................2-33
Passenger Compartment Air Filter.....................3-32
Passing.........................................................4-14
Power
Accessory Outlets........................................3-23
Door Locks.................................................. 2-9
Electrical System.........................................5-94
Lumbar Controls........................................... 1-3
Retained Accessory (RAP)............................2-22
Seat............................................................ 1-2
Steering Fluid.............................................5-34
Windows....................................................2-14
Pretensioners, Safety Belt................................1-27
Programmable Automatic Door Locks.................2-10Q
Questions and Answers About Safety Belts.........1-14
9
