DIC Vehicle Personalization
Your vehicle is equipped with personalization that allows
you to program certain features to a preferred setting
for up to two people. The number of programmable
features varies depending upon which model of
the vehicle is purchased.
On all vehicles, features such as climate control
settings, radio preset settings, exterior lighting at unlock,
remote lock and unlock conrmation, and automatic
door locks have already been programmed for
your convenience.
Some vehicles are equipped with additional features
that can be programmed including the seat and outside
rearview mirror position.
If your vehicle is equipped with the ability to program
additional personalization features, the driver’s
preferences are recalled by pressing the unlock button
on the remote keyless entry transmitter, 1 or 2, or
by pressing the appropriate memory button, 1 or 2,
located on the driver’s door. Certain features can
be programmed not to recall until the key is placed in
the ignition. To change feature preferences, see
“Entering the Personalization Menu” following.
Entering the Personalization Menu
To enter the feature programming mode, use the
following procedure:
1. Turn the ignition to ON, but do not start the engine.
Make sure the vehicle is in PARK (P).
2. If your vehicle has memory settings, press the
appropriate memory button, 1 or 2, located on
the driver’s door armrest. The DIC display will show
either Driver 1 or 2 depending on which button
was selected.
3. Press the TUNE/SEL knob once to access the main
menu of the DIC.
4. Turn the TUNE/SEL knob until SETUP is highlighted.
5. Press the TUNE/SEL knob once to access the
SETUP menu.
6. Scroll to the feature you want to change, and press
the TUNE/SEL knob to turn the feature on or off.
If the feature is turned on, a check mark will appear
next to the feature name.
If none of the personalization items are turned on,
turn on the personalization menu by pressing the
TUNE/SEL knob. The list of features will then appear,
and you can repeat Step 6.
3-66

Mirror to Curb in Reverse
If your vehicle has the optional memory package, you
will have this feature. When this feature is turned on, the
passenger’s outside rearview mirror will move
downward so you can view the curb when the shift lever
is shifted into REVERSE (R). The mirror will return to
the last known driving position when the shift lever
is moved out of REVERSE (R). SeeOutside Curb View
Assist Mirror on page 2-39for more information.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory, it was
programmed to Mode 2. The mode to which the
vehicle was programmed may have been changed since
it left the factory.To program the vehicle to a different mode, use the
following procedure:
1. Enter the personalization portion of the SETUP
menu following the instructions listed previously.
2. Scroll to MIRROR TO CURB IN REV using the
TUNE/SEL knob to highlight it.
3. Press the TUNE/SEL knob to switch back and forth
between on and off.
When the mode is turned on, a check mark will
appear next to the feature name.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-78

Relays Usage
SPARE Not Used
REV LAMP
RELAY MICROISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
Fuses Usage
L FRT HTD
SEAT MODDriver’s Heated Seat Module
MEM/ADAPT
SEATDriver’s Power Seat Switch, Memory
Seat Module
THEFTUniversal Garage Door Opener,
Intrusion Sensor, Diversity Antenna
Module
REVERSE
LAMPISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
SPARE Not Used
POSITION
LAMPTaillamp Assemblies, Front Position
Lamp Assemblies
SPARE Not Used
ELC COMP ELC Compressor, ELC Solenoid
AUDIO Radio, OnStar Module
FFS SW Flip Fold Seat Switch
REAR DR MOD Rear Door Modules
Fuses Usage
FFSM Flip Fold Seat Module
DRIVER
DR MODDriver’s Door Module
BASSTaillamps, Center High-Mounted
Stop Lamp, Flasher Module, ABS
Module, Trailer Lamps
HDLP
LEVELINGHeadlamp Leveling System Chassis
Sensors (Export Only)
SPARE Not Used
CCP CCP (Climate Control Panel)
IGN 3Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
J Cases Usage
AMP Audio Amplier
ELC ELC Compressor
Circuit
BreakersUsage
SEAT C/BPower Seat Switches, Memory Seat
Module
5-100

Relays Usage
REAR FOG
LAMP
RLY MICRORear Fog Lamps (Export Only)
FUEL PUMP
MOTOR
RLY MICROFuel Pump Motor
Fuses Usage
INTERIOR
LAMPHush Panel Lamps, Puddle Lamps,
Overhead Courtesy Lamp Assembly
RT FRT
DR MODPassenger’s Door Module
RIMRIM (Rear Integration Module),
Ignition Switch, Key Lock Cylinder
REAR FOG
LAMPRear Fog Lamps (Export Only)
SUSPNTN Suspension Module
VICSTV Tuner Assembly, VICS (Vehicle
Information Communication System)
Module
SPARE Not Used
POWER
SOUNDERPower Sounder, Inclination Sensor
AFTERBOIL Afterboil Heater Pump
Fuses Usage
CANISTER
VENTCanister Vent Solenoid
FUEL
PUMP MTRFuel Pump Motor
REAR HVAC Rear Climate Control System
R FRT HTD
SEAT MODPassenger’s Side Heated Seat
Module
REAR HATCH Rear Hatch Latch
AIR BAG SDM (Sensing Diagnostic Module)
IGN 1Shifter, Power Sounder, Rear
Parking Aid, Rearview Mirror, RIM
SPARE Not Used
SPARE Not Used
J Cases Usage
SUNROOF MOD Power Sunroof Module
REAR DEFOG Rear Window Defogger Element
Circuit
BreakersUsage
DR MOD
PWR C/BDoor Modules
5-102

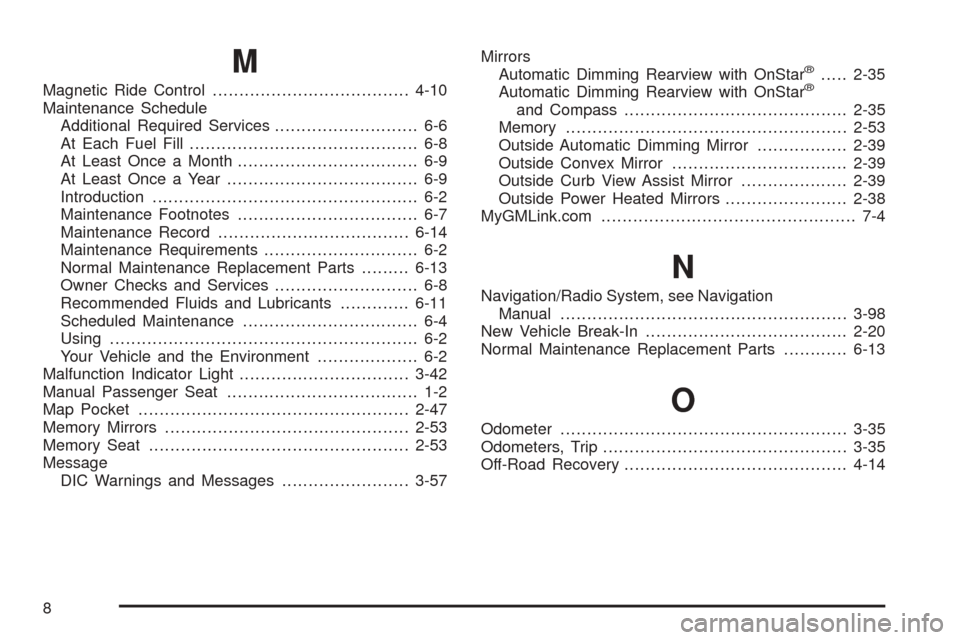

M
Magnetic Ride Control.....................................4-10
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-8
At Least Once a Month.................................. 6-9
At Least Once a Year.................................... 6-9
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-14
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-13
Owner Checks and Services........................... 6-8
Recommended Fluids and Lubricants.............6-11
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-42
Manual Passenger Seat.................................... 1-2
Map Pocket...................................................2-47
Memory Mirrors..............................................2-53
Memory Seat.................................................2-53
Message
DIC Warnings and Messages........................3-57Mirrors
Automatic Dimming Rearview with OnStar
®.....2-35
Automatic Dimming Rearview with OnStar®
and Compass..........................................2-35
Memory.....................................................2-53
Outside Automatic Dimming Mirror.................2-39
Outside Convex Mirror.................................2-39
Outside Curb View Assist Mirror....................2-39
Outside Power Heated Mirrors.......................2-38
MyGMLink.com................................................ 7-4
N
Navigation/Radio System, see Navigation
Manual......................................................3-98
New Vehicle Break-In......................................2-20
Normal Maintenance Replacement Parts............6-13
O
Odometer......................................................3-35
Odometers, Trip..............................................3-35
Off-Road Recovery..........................................4-14
8

R
Radios..........................................................3-80
Care of Your CD and DVD Player................3-113
Care of Your CDs and DVDs.......................3-113
Navigation/Radio System, see Navigation
Manual...................................................3-98
Radio with CD............................................3-81
Setting the Time..........................................3-80
Theft-Deterrent..........................................3-111
Understanding Reception............................3-113
Reading Lamps..............................................3-20
Rear Air Conditioning System...........................3-31
Rear Axle......................................................5-47
Limited-Slip.................................................4-10
Rear Door Security Locks................................2-10
Rear Safety Belt Comfort Guides......................1-25
Rear Seat Entertainment System.......................3-98
Rear Seat Operation......................................... 1-8
Rear Seat Passengers, Safety Belts..................1-22
Rearview Mirror, Automatic Dimming with
OnStar
®.....................................................2-35
Rearview Mirror, Automatic Dimming with
OnStar
®and Compass.................................2-35
Reclining Seatbacks.......................................... 1-5
Recommended Fluids and Lubricants.................6-11
Recovery Hook...............................................4-44
Recreational Vehicle Towing.............................4-50
Remote Keyless Entry System............................ 2-5Remote Keyless Entry System, Operation............ 2-6
Removing the Flat Tire and Installing the
Spare Tire..................................................5-73
Removing the Spare Tire and Tools...................5-71
Reporting Safety Defects
Canadian Government..................................7-12
General Motors...........................................7-12
United States Government............................7-11
Restraint System Check
Checking the Restraint Systems....................1-58
Replacing Restraint System Parts After
a Crash..................................................1-59
Retained Accessory Power (RAP)......................2-22
Right Front Passenger Position, Safety Belts......1-22
Roadside
Service........................................................ 7-6
Rocking Your Vehicle to Get it Out....................4-44
Running the Engine While Parked.....................2-34
S
Safety Belt
Pretensioners..............................................1-27
Reminder Light............................................3-36
Safety Belts
Care of......................................................5-88
Driver Position............................................1-15
How to Wear Safety Belts Properly................1-15
10
