2005 CADILLAC ESCALADE ESV tires

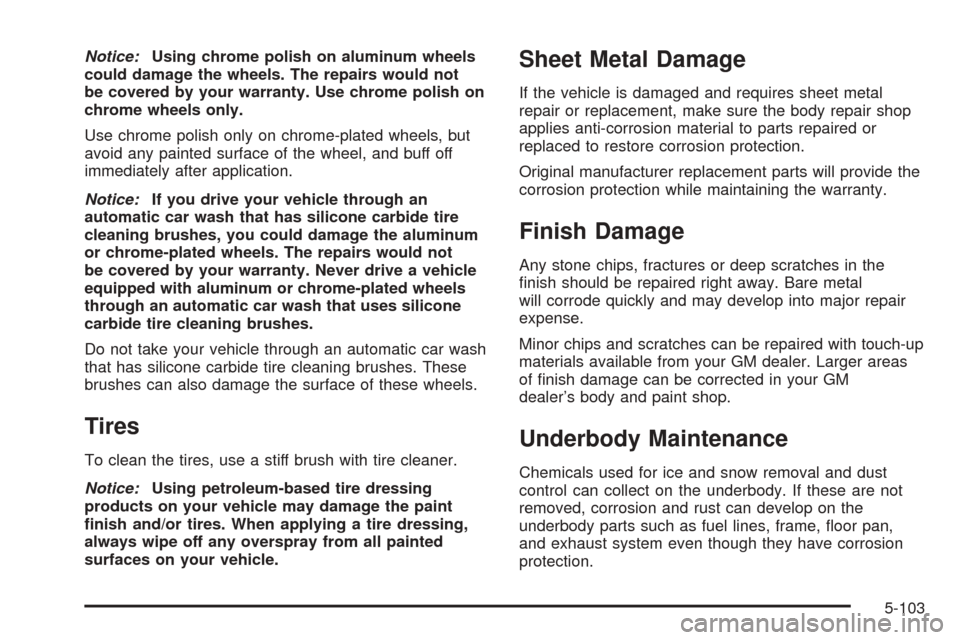

Notice:Using chrome polish on aluminum wheels
could damage the wheels. The repairs would not
be covered by your warranty. Use chrome polish on
chrome wheels only.
Use chrome polish only on chrome-plated wheels, but
avoid any painted surface of the wheel, and buff off
immediately after application.
Notice:If you drive your vehicle through an
automatic car wash that has silicone carbide tire
cleaning brushes, you could damage the aluminum
or chrome-plated wheels. The repairs would not
be covered by your warranty. Never drive a vehicle
equipped with aluminum or chrome-plated wheels
through an automatic car wash that uses silicone
carbide tire cleaning brushes.
Do not take your vehicle through an automatic car wash
that has silicone carbide tire cleaning brushes. These
brushes can also damage the surface of these wheels.
Tires
To clean the tires, use a stiff brush with tire cleaner.
Notice:Using petroleum-based tire dressing
products on your vehicle may damage the paint
nish and/or tires. When applying a tire dressing,
always wipe off any overspray from all painted
surfaces on your vehicle.
Sheet Metal Damage
If the vehicle is damaged and requires sheet metal
repair or replacement, make sure the body repair shop
applies anti-corrosion material to parts repaired or
replaced to restore corrosion protection.
Original manufacturer replacement parts will provide the
corrosion protection while maintaining the warranty.
Finish Damage
Any stone chips, fractures or deep scratches in the
nish should be repaired right away. Bare metal
will corrode quickly and may develop into major repair
expense.
Minor chips and scratches can be repaired with touch-up
materials available from your GM dealer. Larger areas
of nish damage can be corrected in your GM
dealer’s body and paint shop.
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these are not
removed, corrosion and rust can develop on the
underbody parts such as fuel lines, frame, oor pan,
and exhaust system even though they have corrosion
protection.
5-103

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-13. Reset oil life
system. SeeEngine Oil Life System on page 5-16.An Emission Control
Service.••
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If necessary,
replace lter. SeeEngine Air Cleaner/Filter on page 5-18.See footnote (k).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 5-69and “Tire Wear Inspection” inAt Least Once a Month on
page 6-11.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
6-6

At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make sure they
are inated to the correct pressures. Do not forget to
check the spare tire. SeeTires on page 5-59for further
details. Check to make sure the spare tire is stored
securely. SeeChanging a Flat Tire on page 5-77.
Tire Wear Inspection
Tire rotation may be required for high mileage highway
drivers prior to the Engine Oil Life System service
notication. Check the tires for wear and, if necessary,
rotate the tires. SeeTire Inspection and Rotation on
page 5-69.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-25.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in PARK (P) or NEUTRAL (N). If
the vehicle starts in any other position, contact your
GM Goodwrench
®dealer for service.
6-11

A
Accessory Power Outlets.................................3-21
Adding Equipment to Your Airbag-Equipped
Vehicle.......................................................1-84
Additives, Fuel................................................. 5-7
Add-On Electrical Equipment...........................5-106
Adjustable Throttle and Brake Pedal..................2-20
Air Cleaner/Filter, Engine.................................5-18
Air Conditioning..............................................3-22
Airbag
Passenger Status Indicator...........................3-35
Readiness Light..........................................3-34
Airbag Sensing and Diagnostic Module (SDM)...... 7-9
Airbag System................................................1-70
Adding Equipment to Your Airbag-Equipped
Vehicle...................................................1-84
How Does an Airbag Restrain?......................1-77
Passenger Sensing System...........................1-80
Servicing Your Airbag-Equipped Vehicle..........1-84
What Makes an Airbag Inate?......................1-77
What Will You See After an Airbag Inates?....1-78
When Should an Airbag Inate?....................1-75
Where Are the Airbags?...............................1-73
All-Wheel Drive...............................................5-45
All-Wheel Drive (AWD) System.........................2-24
Analog Clock..................................................3-22
Antenna, Diversity Antenna System..................3-104Antenna, XM™ Satellite Radio
Antenna System........................................3-105
Anti-Lock Brake System (ABS)........................... 4-6
Anti-Lock Brake, System Warning Light..............3-39
Appearance Care............................................5-97
Aluminum or Chrome-Plated Wheels.............5-102
Care of Safety Belts...................................5-100
Chemical Paint Spotting..............................5-104
Cleaning Exterior Lamps/Lenses..................5-101
Fabric/Carpet..............................................5-98
Finish Care...............................................5-101
Finish Damage..........................................5-103
Glass Surfaces..........................................5-100
Instrument Panel........................................5-100
Interior Plastic Components.........................5-100
Leather......................................................5-99
Sheet Metal Damage..................................5-103
Speaker Covers.........................................5-100
Tires........................................................5-103
Underbody Maintenance.............................5-103
Vehicle Care/Appearance Materials...............5-104
Vinyl..........................................................5-99
Washing Your Vehicle.................................5-101
Weatherstrips............................................5-101
Windshield, Backglass, and Wiper Blades......5-102
Wood Panels............................................5-100
Ashtrays........................................................3-21
1

Audio System(s).............................................3-69
Audio Steering Wheel Controls....................3-101
Care of Your Cassette Tape Player...............3-103
Care of Your CD and DVD Player................3-104
Care of Your CDs and DVDs.......................3-104
CD Changer...............................................3-98
Chime Level Adjustment.............................3-105
Diversity Antenna System............................3-104
Navigation/Radio System, see Navigation
Manual...................................................3-84
Radio with Cassette and CD.........................3-70
Rear Seat Audio (RSA)................................3-96
Setting the Time..........................................3-70
Theft-Deterrent Feature...............................3-101
Understanding Radio Reception...................3-102
XM™ Satellite Radio Antenna System...........3-105
Automatic Headlamp System............................3-15
Automatic Transmission
Fluid..........................................................5-21
Operation...................................................2-22
B
Battery..........................................................5-39
Run-Down Protection...................................3-18
Before Leaving on a Long Trip.........................4-35
Bench Seat....................................................1-18
Bench Seat Split (50/50)..................................1-13
Bench Seat, Split (60/40).................................1-10Brake
Anti-Lock Brake System (ABS)........................ 4-6
Emergencies................................................ 4-8
Parking......................................................2-25
System Warning Light..................................3-38
Brake Pedal, Throttle.......................................2-20
Brakes..........................................................5-36
Braking........................................................... 4-5
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-18
Bucket Seats, Rear.........................................1-23
Bulb Replacement...........................................5-51
Front Turn Signal, Sidemarker and Daytime
Running Lamps........................................5-56
Halogen Bulbs............................................5-52
Headlamp Aiming........................................5-48
Headlamps.................................................5-52
High Intensity Discharge (HID) Lighting...........5-51
Replacement Bulbs......................................5-58
Taillamps, Turn Signal, Sidemarker, Stoplamps,
and Back-Up Lamps.................................5-57
Buying New Tires...........................................5-71C
California Fuel.................................................. 5-6
Canadian Owners................................................ ii
Capacities and Specications..........................5-117
Carbon Monoxide...................2-13, 2-28, 4-38, 4-50
2

Care of
Safety Belts..............................................5-100
Your Cassette Tape Player..........................3-103
Your CD and DVD Player...........................3-104
Your CDs and DVDs..................................3-104
Cargo Cover..................................................2-43
CD Changer...................................................3-98
Center Console Storage Area...........................2-41
Center Passenger Position, Safety Belts.............1-40
Chains, Tire...................................................5-76
Charging System Light....................................3-37
Check
Engine Light...............................................3-43
Checking Things Under the Hood......................5-10
Chemical Paint Spotting.................................5-104
Child Restraints
Child Restraint Systems...............................1-53
Infants and Young Children...........................1-49
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-61
Older Children.............................................1-47
Securing a Child Restraint Designed for the
LATCH System........................................1-63
Securing a Child Restraint in a Center Rear
Seat Position...........................................1-65
Securing a Child Restraint in a Rear Outside
Seat Position...........................................1-63
Securing a Child Restraint in the Right Front
Seat Position...........................................1-67Child Restraints (cont.)
Top Strap...................................................1-57
Top Strap Anchor Location............................1-59
Where to Put the Restraint...........................1-56
Chime Level Adjustment.................................3-105
Cigarette Lighter.............................................3-21
Cleaning
Aluminum or Chrome-Plated Wheels.............5-102
Exterior Lamps/Lenses................................5-101
Fabric/Carpet..............................................5-98
Finish Care...............................................5-101
Glass Surfaces..........................................5-100
Instrument Panel........................................5-100
Interior Plastic Components.........................5-100
Leather......................................................5-99
Speaker Covers.........................................5-100
Tires........................................................5-103
Underbody Maintenance.............................5-103
Vinyl..........................................................5-99
Washing Your Vehicle.................................5-101
Weatherstrips............................................5-101
Windshield, Backglass, and Wiper Blades......5-102
Wood Panels............................................5-100
Climate Control System
Dual Automatic............................................3-22
Outlet Adjustment........................................3-28
Rear..........................................................3-29
Clock............................................................3-22
Comfort Guides, Rear Safety Belt.....................1-44
3

Tires.............................................................5-59
Aluminum or Chrome-Plated Wheels,
Cleaning...............................................5-102
Buying New Tires........................................5-71
Chains.......................................................5-76
Changing a Flat Tire....................................5-77
Cleaning...................................................5-103
If a Tire Goes Flat.......................................5-76
Ination -- Tire Pressure...............................5-65
Inspection and Rotation................................5-69
Installing the Spare Tire................................5-83
Pressure Monitor System..............................5-67
Removing the Flat Tire.................................5-83
Removing the Spare Tire and Tools...............5-79
Secondary Latch System..............................5-89
Spare Tire..................................................5-97
Storing a Flat or Spare Tire and Tools............5-92
Tire Sidewall Labelling..................................5-60
Tire Terminology and Denitions....................5-63
Uniform Tire Quality Grading.........................5-73
Wheel Alignment and Tire Balance.................5-74
Wheel Replacement.....................................5-74
When It Is Time for New Tires......................5-71
Top Strap......................................................1-57
Top Strap Anchor Location...............................1-59Tow/Haul Mode...............................................2-24
Tow/Haul Mode Light.......................................3-48
Towing
Recreational Vehicle.....................................4-49
Towing a Trailer..........................................4-50
Your Vehicle...............................................4-49
Traction
Off Light.....................................................3-40
Road Sensing Suspension.............................. 4-8
StabiliTrak
®System....................................... 4-8
Trailer
Recommendations.......................................4-50
Transmission
Fluid, Automatic...........................................5-21
Temperature Gage.......................................3-41
Transmission Operation, Automatic....................2-22
Turn and Lane-Change Signals.......................... 3-7
Turn Signal/Multifunction Lever........................... 3-7
U
Ultrasonic Rear Parking Assist (URPA)...............3-18
Understanding Radio Reception.......................3-102
Uniform Tire Quality Grading............................5-73
13
