Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlet(s). Turn off
the radios and all lamps that are not needed. This
will avoid sparks and help save both batteries.
And it could save the radio!
4. Open the hood on the other vehicle and locate the
positive (+) and negative (−) terminal locations on
that vehicle.
You will not need to access your battery for jump
starting. Your vehicle has a remote positive (+) jump
starting terminal for that purpose. The terminal is
located under a tethered cap at the front of the
underhood fuse and relay center. SeeEngine
Compartment Overview on page 5-12for more
information on location.Pull up on the cap to
access the remote
positive (+) terminal. You
should always use the
remote positive (+) terminal
instead of the positive (+)
terminal on the battery.
{CAUTION:
An electric fan can start up even when the
engine is not running and can injure you. Keep
hands, clothing and tools away from any
underhood electric fan.
5-43

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers,
and fusible thermal links.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical
size and rating.
If you ever have a problem on the road and do not have
a spare fuse, you can borrow one that has the same
amperage. Just pick a feature of your vehicle that
you can get along without – like the radio or cigarette
lighter - and use its fuse, if it is the right amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the oor
console fuse block and the underhood fuse and relay
center.
Floor Console Fuse Block
The oor console fuse block is located to the left of the
glove box near the oor. Pull the door open to access
the fuse block.
5-105

Fuse Usage
1 Empty
2 Steering Wheel Radio Controls
3 Power Door Locks
4 Empty
5 Empty
6 Empty
7 Empty
8 Empty
9 Empty
10Turn Signal and Hazard Lamp
Flashers
Fuse Usage
11 Power Seats
12Electronic Level Control (ELC)
Compressor
13 Liftgate and Endgate
14 Rear Auxiliary Power Outlet
15Electronic Level Control (ELC)
Compressor Relay and Height
Sensor
16 Heated Mirrors
17 Power Mirrors
18 Ignition 1 Module
19 Turn Signal Switch
21 Rear Defogger
22 Air Bag Module
24 TCC Switch
25 HVAC Blower Motor
26HVAC Mode and Temperature
Motors and Head-Up Display
28 Not Used
29 Windshield Wipers and Washer
30Instrument Panel Cluster, Body
Control Module (BCM),
PASS-Key
®III
31 Park Lock Ignition Key Solenoid
32 Rear Window Wiper/Washer
5-106

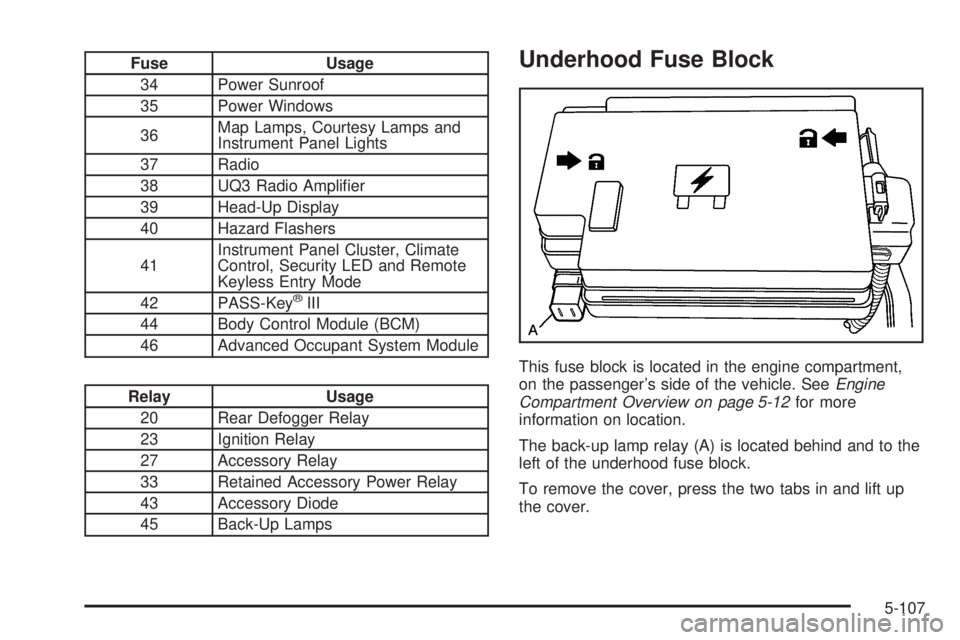

Fuse Usage
34 Power Sunroof
35 Power Windows
36Map Lamps, Courtesy Lamps and
Instrument Panel Lights
37 Radio
38 UQ3 Radio Amplier
39 Head-Up Display
40 Hazard Flashers
41Instrument Panel Cluster, Climate
Control, Security LED and Remote
Keyless Entry Mode
42 PASS-Key
®III
44 Body Control Module (BCM)
46 Advanced Occupant System Module
Relay Usage
20 Rear Defogger Relay
23 Ignition Relay
27 Accessory Relay
33 Retained Accessory Power Relay
43 Accessory Diode
45 Back-Up Lamps
Underhood Fuse Block
This fuse block is located in the engine compartment,
on the passenger’s side of the vehicle. SeeEngine
Compartment Overview on page 5-12for more
information on location.
The back-up lamp relay (A) is located behind and to the
left of the underhood fuse block.
To remove the cover, press the two tabs in and lift up
the cover.
5-107

Fuse Usage
1 Fuel Pump
2 Air Conditioning Compressor Clutch
3 Horn
4Engine Controls-Emissions and
Sensors
5Power Control Module
(PCM)-Battery Power
6Anti-Lock Brakes (ABS) Control
Module
7 Transaxle Solenoids
Fuse Usage
9Anti-lock Brake System (ABS)
Solenoid Valves
10 Oxygen Sensors-Emissions Control
11 Fuel Injectors
13 Engine Controls
14 Daytime Running Lamps (DRL)
15 Passenger’s Low-Beam Headlamp
17 Driver’s Low-Beam Headlamp
18 Driver’s High-Beam Headlamp
19 Ignition Switch Battery Power
20 Parking Lamps
23 Passenger’s High-Beam Headlamp
24 Vent Solenoids
25 DVD
26 Front Fog Lamps
27Ignition Relay, Neutral Start Switch,
Powertrain Control Module (PCM)
28 Body Control Module-Battery Power
29S Band, Remote Digital Radio
Receiver
30 All-Wheel Drive (AWD) Module
31 Cruise Control
32 Front Power Outlets/Lights, OnStar
®
3400 V6 Engine
5-108

Fuse Usage
33Automatic Transaxle Shift Lock
Control System
34 Starter Solenoid Battery Fuse
35 Anti-lock Brake System (ABS) Motor
38 Engine Cooling Fan 2
39 Engine Cooling Fan 1
40Main Battery Fuse for Retained
Accessory Power Relay and
Accessory Relay
41Main Battery Fuse for Heated Seats,
Air
44Main Battery Fuse for Power
Outlets, Level Control, Power Seats
and Mirrors and Body Computer
46Main Battery Fuse for Climate
Control Blower and Ignition 3 Relay
47Main Battery Fuse for Ignition
Switch, Radio, Heads-Up Display,
Remote Keyless Entry (RKE),
Instrument Cluster, Air Conditioning
and Body Computer
70
§Diode for Air Conditioning
Compressor Clutch
Relay Usage
49 Horn
50 Fuel Pump
51 Air Conditioning Clutch
52 Daytime Running Lamps (DRL)
53 Low-Beam Headlamps
54 Parking Lamps
55 High-Beam Headlamps
56 Fog Lamps
57 Starter Relay
58 Cooling Fan
59 Ignition 1 Relay
60 Cooling Fan 2
61 Cooling Fan 1
5-109

Fuse Usage
1 Fuel Pump
2 Air Conditioning Compressor Clutch
3 Horn
4 Anti-lock Brake System (ABS)
5 Engine Control Module (ECM)
6 Powertrain Relay
7 Powertrain Sensors
8 Transmission Control Module (TCM)
9Anti-lock Brake System (ABS)
Solenoids Valves
Fuse Usage
10 Oxygen Sensor/MAF Sensor
11 Fuel Injectors (Even)
13 Fuel Injectors (Odd)
14 Daytime Running Lamps (DRL)
15 Passenger’s Low-Beam Headlamp
16 Transmission
17 Driver’s Low-Beam Headlamp
18 Driver’s High-Beam Headlamp
19 Ignition Switch Battery Power
20 Parking Lamps
21 Engine Control Module (ECM)
23 Passenger’s High-Beam Headlamp
24 Vent Solenoids
25 DVD
26 Front Fog Lamps
27 Ignition Relay
28 Body Control Module (BCM)
29 S Band
30 All-Wheel Drive (AWD) Module
31 Cruise Control
32 Front Power Outlets/Lights, OnStar
®
33Automatic Transaxle Shift Lock
Control System
34 Starter Solenoid Battery Fuse 3.6L V6 Engine
5-110

Fuse Usage
35 Anti-lock Brake System (ABS) Motor
38 Engine Cooling Fan 2
39 Engine Cooling Fan 1
40Main Battery Fuse for Retained
Accessory Power Relay and
Accessory Relay
41Main Battery Fuse for Heated Seats,
Air Conditioning, Defogger
44Main Battery Fuse for Power
Outlets, Level Control, Power Seats,
Mirrors, and Body Computer
46Main Battery Fuse for Climate
Control Blower and Ignition 3 Relay
47Main Battery Fuse for Ignition
Switch, Radio, Heads-Up Display
(HUD), Remote Keyless Entry
(RKE), Instrument Cluster, Air
Conditioning, and Body Computer
70
§Diode for Air Conditioning
Compressor Clutch
§71Diode for Ignition
Relay Usage
49 Horn
50 Fuel Pump
51 Air Conditioning Clutch
52 Daytime Running Lamps (DRL)
53 Low-Beam Headlamps
54 Parking Lamps
55 High-Beam Headlamps
56 Fog Lamps
57 Starter Relay
58 Cooling Fan S/P
59 Powertrain
60 Cooling Fan 2
61 Cooling Fan 1
62 Ignition
5-111
