2005 BUICK RANDEZVOUS keyless

DIC Vehicle Personalization
The DIC is used to program the choices of two drivers.
The drivers are recognized as DRIVER 1 or DRIVER 2 in
the DIC display. You will let the DIC know which driver
you are by using your remote keyless entry transmitter.
Each remote keyless entry transmitter was
pre-programmed to belong to DRIVER 1 or DRIVER 2.
Each transmitter may be programmed differently for each
driver’s preferences (lights, doors, horn or activate the
programmed radio stations for driver 1 or driver 2) using
your remote keyless entry transmitter.
After you press the LOCK button on your transmitter
and the ignition key is in ON, the DIC will display
the identied driver number. The vehicle will also recall
the vehicle customization features that were last
programmed to correspond to your transmitter.
If you unlock your vehicle using your key instead of
your transmitter, the DIC will not change drivers
and your vehicle will recall the information from the last
transmitter used.
If your vehicle does not have a DIC, you do not have
available the vehicle customization features using
the remote keyless entry transmitter.
Entering Programming Mode
To program features, your vehicle must be in the
programming mode. Do the following:
1. Turn the ignition key to ON with the vehicle in
PARK (P).
2. Press and release the MODE button, scrolling
through the DIC messages, until
PERSONALIZATION PRESS SET TO BEGIN is
displayed.
3. Press the SET button and TO SELECT DRIVER
PRESS REMOTE LOCK will appear. Press the
LOCK button on the remote keyless entry
transmitter. This identies which remote keyless
entry transmitter is being programmed by displaying
PERSONALIZATION FOR DRIVER 1 or DRIVER 2.
3-66

Interior Lighting Delay
The interior lighting delay feature can be programmed to
one of the following modes:
OFF:This feature will not illuminate the interior of your
vehicle when all of the doors are closed.
ON:This feature will continue to illuminate the interior
lamps for 25 seconds after all doors have been
closed so that you can nd your ignition and buckle
your safety belt at night.
Interior lighting delay will not occur while the ignition is
in ON. After 25 seconds, the interior lamps will fade
out. The lamps will fade out before the 25 seconds if one
of the following occurs:
The ignition is turned to ON
All doors are locked using the remote keyless entry
transmitter
There is no occupant activity detected for an
illumination period of 25 secondsYour vehicle was originally programmed to ON. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until INTERIOR LIGHTING
DELAY appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Interior Lighting On
The interior lighting on feature can be programmed to
one of the following modes:
KEY OUT:The interior lamps will come on for about
25 seconds whenever you remove the key from
the ignition.
DOOR:The interior lamps will come on for about
25 seconds when any door is opened.
3-68

Interior lighting on will not occur while the ignition is in
ON. After 25 seconds, the interior lamps will fade
out. The lamps will fade out before the 25 seconds if
one of the following occurs:
The ignition is turned to ON
LOCK is pressed on the remote keyless entry
transmitter
There is no occupant activity detected for an
illumination period of 25 seconds
Your vehicle was originally programmed to DOOR. The
mode may have been changed since then. To
determine the current mode, or to change the mode, do
the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until INTERIOR LIGHTING
ON appears on the DIC.
3. Press the SET button until the arrow is before KEY
OUT or DOOR.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Auto Door Lock/Unlock
The doors will automatically lock when the vehicle is
shifted out of PARK (P). For automatic unlocking, you can
program your vehicle to one of the following modes:
OFF:When the shift lever is put in PARK (P), your
doors will not unlock automatically.
DRIVER:When the shift lever is put in PARK (P), only
your driver’s door will unlock.
ALL:When the shift lever is put in PARK (P), all doors
will unlock.
Your vehicle was originally programmed to ALL. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Make sure that the AUTO DOOR LOCK feature is
programmed to ON.
3. Press the MODE button until AUTO DOOR
UNLOCK appears on the DIC.
4. Press the SET button until the arrow is before OFF,
DRIVER or ALL.
3-69

If the auto door unlock feature has been programmed to
DRIVER or ALL, the automatic door unlock feature
can also be programmed to one of the following modes:
PARK:Unlock when the shift lever is put in PARK (P).
KEY OUT:Unlock when the ignition key is removed.
Your vehicle was originally programmed to PARK. The
mode may have been changed since then. To
determine the current mode, or to change the mode, do
the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Follow the instructions for programming AUTO
DOOR UNLOCK to DRIVER or ALL listed
previously.
3. Press the MODE button until AUTO DOOR
UNLOCK/PARK KEYOUT appears on the DIC.
4. Press the SET button until the arrow is before
PARK or KEY OUT.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Delayed Locking
The delayed locking feature can be programmed to one
of the following modes:
ON:Lock your vehicle using the power door lock switch
or the remote keyless entry transmitter while any door
is opened, you will hear three chimes and the doors will
not lock. Five seconds after the last door is closed,
all doors will lock.
Once delayed locking is programmed to ON, you can do
the following:
Cancel the delayed locking by pressing unlock
using the power door lock switch or by fully inserting
the key in the ignition
Override the delayed locking feature by pressing
lock immediately using the power door lock
switch
Let the delayed locking feature complete the locking
of the vehicle
OFF:The doors will always lock immediately when you
lock the doors using the power door lock switch or
press LOCK on the remote keyless entry transmitter.
3-70

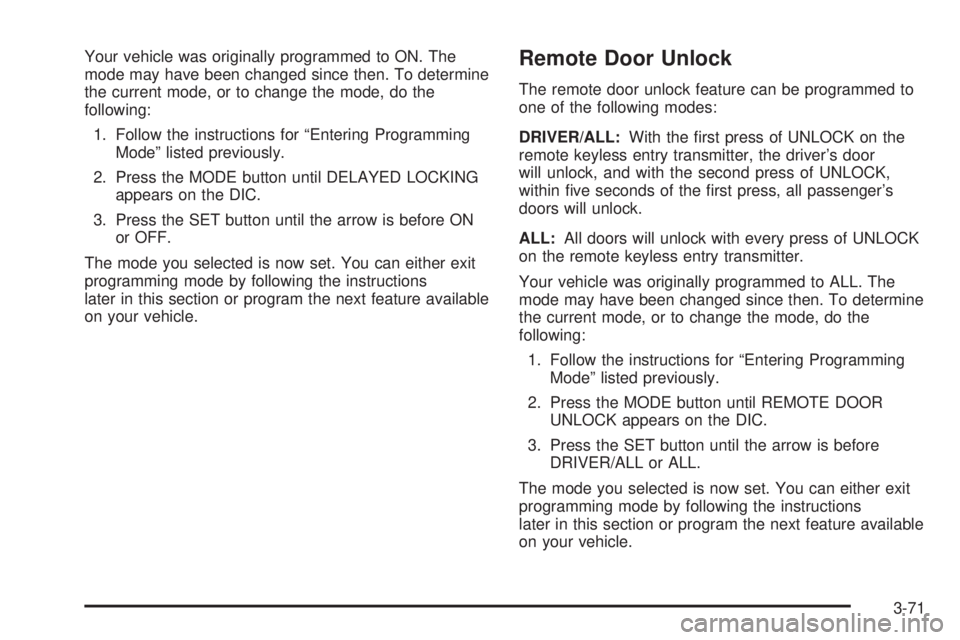

Your vehicle was originally programmed to ON. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until DELAYED LOCKING
appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.Remote Door Unlock
The remote door unlock feature can be programmed to
one of the following modes:
DRIVER/ALL:With the rst press of UNLOCK on the
remote keyless entry transmitter, the driver’s door
will unlock, and with the second press of UNLOCK,
within ve seconds of the rst press, all passenger’s
doors will unlock.
ALL:All doors will unlock with every press of UNLOCK
on the remote keyless entry transmitter.
Your vehicle was originally programmed to ALL. The
mode may have been changed since then. To determine
the current mode, or to change the mode, do the
following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until REMOTE DOOR
UNLOCK appears on the DIC.
3. Press the SET button until the arrow is before
DRIVER/ALL or ALL.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-71

Unlock Feedback
The unlock feedback feature can be programmed to one
of the following modes:
LIGHTS:This mode does the following:
During the day, when the ignition is in OFF and
UNLOCK on the remote keyless entry transmitter
is pressed, the headlamps and parking lamps
will ash.
During the night, when the ignition is in OFF, the
headlamps and parking lamps will be activated
for 30 seconds when UNLOCK is pressed on the
remote keyless entry transmitter. If you would like to
change the amount of time the lamps stay on,
change the headlamp exit delay feature.
OFF:The headlamps and parking lamps will not ash
when UNLOCK is pressed on the remote keyless
entry transmitter.Your vehicle was originally programmed to LIGHTS.
The mode may have been changed since then.
To determine the current mode, or to change the mode,
do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Follow the instructions for programming HEADLMP
EXIT DELAY earlier in this section, to make sure
which mode it is programmed to.
3. Press the MODE button until UNLOCK FEEDBACK
appears on the DIC.
4. Press the SET button until the arrow is before
LIGHTS or OFF.
5. Press the MODE button until you have determined
which mode you prefer, to follow with the
personalization.
The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
3-72

Lock Feedback
The lock feedback feature can be programmed to one
of the following modes:
OFF:When LOCK is pressed on the remote keyless
entry transmitter, the headlamps and parking lamps will
not ash and the horn will not sound.
LIGHTS:When LOCK is pressed on the remote
keyless entry transmitter, the headlamps and parking
lamps will ash briey.
LIGHTS and HORN:When LOCK is pressed a second
time on the remote keyless entry transmitter within
ve seconds, the headlamps and parking lamps
will ash briey and the horn will sound.
Your vehicle was originally programmed to LIGHTS and
HORN. The mode may have been changed since
then. To determine the current mode, or to change the
mode, do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until LOCK FEEDBACK
appears on the DIC.
3. Press the SET button until the arrow is before OFF,
LIGHTS or LIGHTS and HORN.The mode you selected is now set. You can either exit
programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Seat Recall
The seat recall feature can be programmed to one of
the following modes:
ON:The previously programmed memory seat position
will be recalled when the UNLOCK button is pressed
on the remote keyless entry transmitter.
OFF:No memory seat position will be recalled when
you press the UNLOCK button on the remote keyless
entry transmitter.
To determine the mode to which your vehicle is
programmed or to program your vehicle to a different
mode, do the following:
1. Follow the instructions for “Entering Programming
Mode” listed previously.
2. Press the MODE button until SEAT RECALL
appears on the DIC.
3. Press the SET button until the arrow is before ON
or OFF.
3-73

Fuse Usage
34 Power Sunroof
35 Power Windows
36Map Lamps, Courtesy Lamps and
Instrument Panel Lights
37 Radio
38 UQ3 Radio Amplier
39 Head-Up Display
40 Hazard Flashers
41Instrument Panel Cluster, Climate
Control, Security LED and Remote
Keyless Entry Mode
42 PASS-Key
®III
44 Body Control Module (BCM)
46 Advanced Occupant System Module
Relay Usage
20 Rear Defogger Relay
23 Ignition Relay
27 Accessory Relay
33 Retained Accessory Power Relay
43 Accessory Diode
45 Back-Up Lamps
Underhood Fuse Block
This fuse block is located in the engine compartment,
on the passenger’s side of the vehicle. SeeEngine
Compartment Overview on page 5-12for more
information on location.
The back-up lamp relay (A) is located behind and to the
left of the underhood fuse block.
To remove the cover, press the two tabs in and lift up
the cover.
5-107
