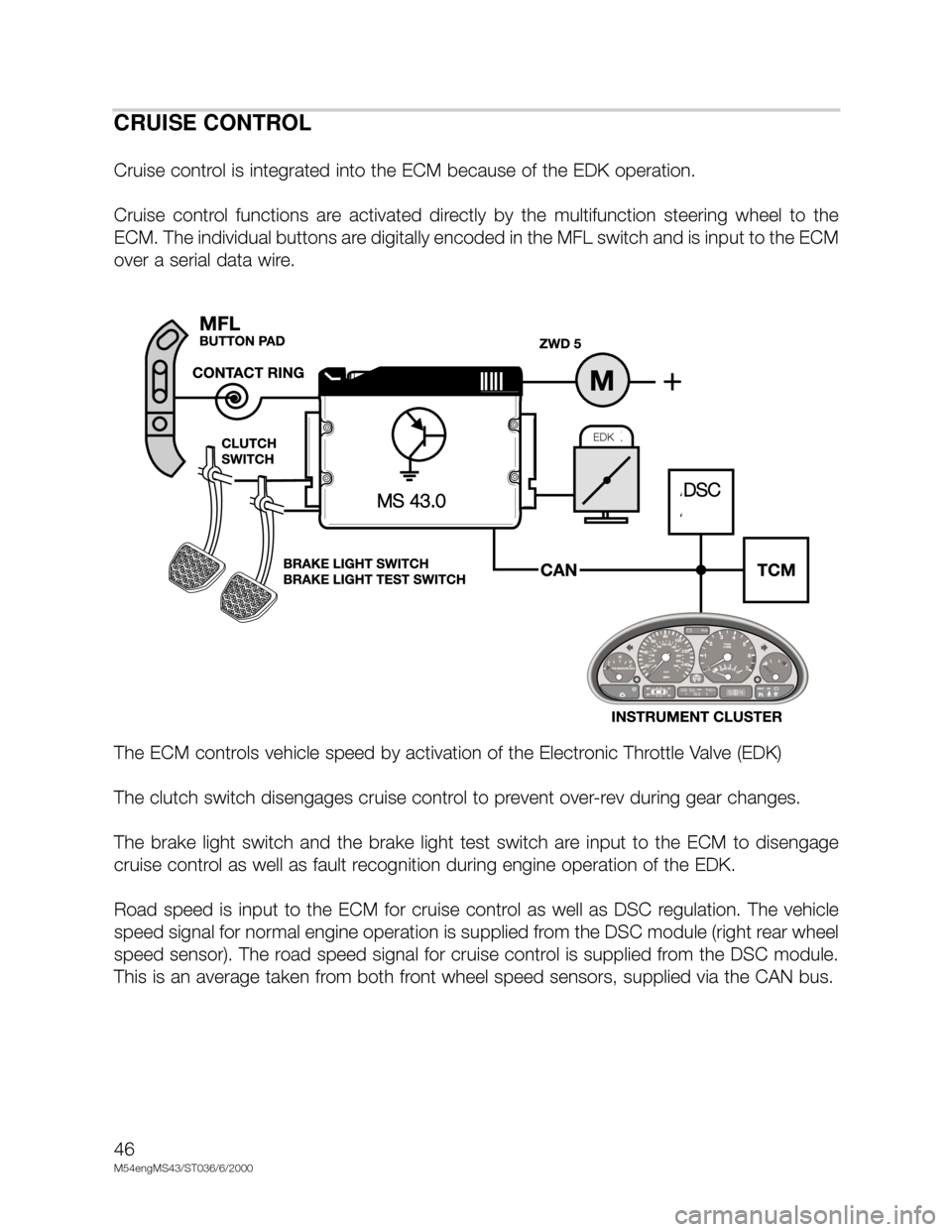

CRUISE CONTROL
Cruise control is integrated into the ECM because of the EDK operation.
Cruise control functions are activated directly by the multifunction steering wheel to the
ECM. The individual buttons are digitally encoded in the MFL switch and is input to the ECM
over a serial data wire.
The ECM controls vehicle speed by activation of the Electronic Throttle Valve (EDK)
The clutch switch disengages cruise control to prevent over-rev during gear changes.
The brake light switch and the brake light test switch are input to the ECM to disengage
cruise control as well as fault recognition during engine operation of the EDK.
Road speed is input to the ECM for cruise control as well as DSC regulation. The vehicle
speed signal for normal engine operation is supplied from the DSC module (right rear wheel
speed sensor). The road speed signal for cruise control is supplied from the DSC module.
This is an average taken from both front wheel speed sensors, supplied via the CAN bus.
DSCMS 43.0
EDK
48
M54engMS43/ST036/6/2000
REVIEW QUESTIONS
1. List the major changes to the Siemens MS 43.3 system from MS 42:
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
2. What type of signal does the Hall Sensor - PWG provide to ECM for throttle request?
_____________________________________________________________________________
3. What PWG signal is used if PWG has a plausibility error?
_____________________________________________________________________________
4. What is the purpose of the KL 87 main relay monitor in the ECM?
_____________________________________________________________________________
5. Why is the ignition left ON after KL 15 is switched OFF?
_____________________________________________________________________________
6. Describe the operation of the DM-TL system on MS 43.0.
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
7. Describe the operation of the turbulence - resonance manifold.
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
_____________________________________________________________________________
