43n
OverviewControlsMaintenanceRepairsDataIndex

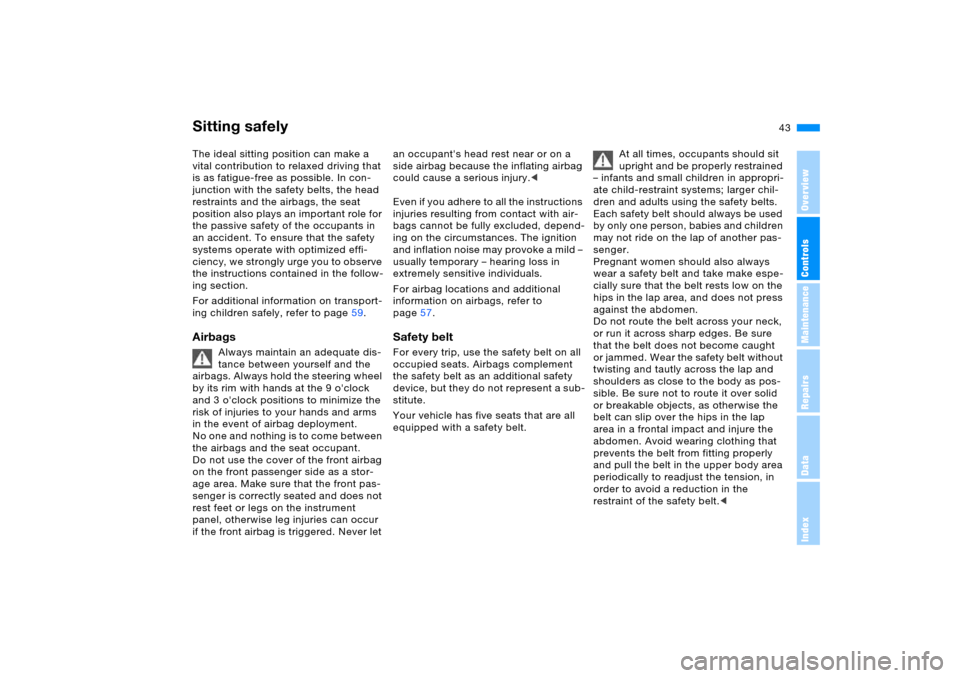

The ideal sitting position can make a
vital contribution to relaxed driving that
is as fatigue-free as possible. In con-
junction with the safety belts, the head
restraints and the airbags, the seat
position also plays an important role for
the passive safety of the occupants in
an accident. To ensure that the safety
systems operate with optimized effi-
ciency, we strongly urge you to observe
the instructions contained in the follow-
ing section.
For additional information on transport-
ing children safely, refer to page59.Airbags
Always maintain an adequate dis-
tance between yourself and the
airbags. Always hold the steering wheel
by its rim with hands at the 9 o'clock
and 3 o'clock positions to minimize the
risk of injuries to your hands and arms
in the event of airbag deployment.
No one and nothing is to come between
the airbags and the seat occupant.
Do not use the cover of the front airbag
on the front passenger side as a stor-
age area. Make sure that the front pas-
senger is correctly seated and does not
rest feet or legs on the instrument
panel, otherwise leg injuries can occur
if the front airbag is triggered. Never let
an occupant's head rest near or on a
side airbag because the inflating airbag
could cause a serious injury.<
Even if you adhere to all the instructions
injuries resulting from contact with air-
bags cannot be fully excluded, depend-
ing on the circumstances. The ignition
and inflation noise may provoke a mild –
usually temporary – hearing loss in
extremely sensitive individuals.
For airbag locations and additional
information on airbags, refer to
page57.Safety belt For every trip, use the safety belt on all
occupied seats. Airbags complement
the safety belt as an additional safety
device, but they do not represent a sub-
stitute.
Your vehicle has five seats that are all
equipped with a safety belt.At all times, occupants should sit
upright and be properly restrained
– infants and small children in appropri-
ate child-restraint systems; larger chil-
dren and adults using the safety belts.
Each safety belt should always be used
by only one person, babies and children
may not ride on the lap of another pas-
senger.
Pregnant women should also always
wear a safety belt and take make espe-
cially sure that the belt rests low on the
hips in the lap area, and does not press
against the abdomen.
Do not route the belt across your neck,
or run it across sharp edges. Be sure
that the belt does not become caught
or jammed. Wear the safety belt without
twisting and tautly across the lap and
shoulders as close to the body as pos-
sible. Be sure not to route it over solid
or breakable objects, as otherwise the
belt can slip over the hips in the lap
area in a frontal impact and injure the
abdomen. Avoid wearing clothing that
prevents the belt from fitting properly
and pull the belt in the upper body area
periodically to readjust the tension, in
order to avoid a reduction in the
restraint of the safety belt.<
Sitting safely
Everything from A to Z
195n
OverviewControlsMaintenanceRepairsDataIndex
Telephone119
Telephone provisions, refer
to Hands-free telephone
operation119
Telephone, refer to separate
Owner's Manual
Temperature
air conditioner108
automatic climate
control112
Temperature display
ice warning76
interior temperature112
outside
temperature76,83
setting the units76,83
Tempomat, refer to Cruise
control.74
Thigh support adjustment45
Third brake lamp
refer to Center brake
lamp162
replacing bulbs162
Three-point seat belt, refer to
Safety belts49
Tightening torque of lug
bolts168
Tilt alarm sensor
remote control31
switching off39Tilt function, passenger-side
mirror51
Time of arrival90
Timer, refer to Stopwatch86
Tire Identification
Number143
Tire inflation pressure,
producing141
Tire pressure monitoring,
refer to Flat Tire
Monitor101
Tire Quality Grading143
Tires
age143
breaking-in136
changing146,163
condition144
damage144
DOT Quality Grades143
flat163
inflation pressure141
size143
storage147
traction144
tread145
tread wear143
Uniform Tire Quality
Grading143
wear indicators, refer to
Tire tread145
winter tires146Tools, refer to Onboard tool
kit158
Torque
engine178
lug bolts168
Tow bar173
Tow fitting172
Tow sockets for tow
fitting173
Towing the vehicle172,173
with automatic
transmission173
Tow-rope174
Tow-starting172
Track width, refer to
Dimensions179
Traction144
Traction aid, refer to DSC
Dynamic Stability
Control95
Traction control, refer to
DSC Dynamic Stability
Control95
Transmission
automatic transmission
with Steptronic67
manual transmission66
Transmission fault, refer to
Malfunction69
Transmission lockout, refer
to P Park68Transport securing device,
refer to Securing
cargo132
Transporting children
safely59
Tread depth, refer to Tire
tread145
Tread wear143
Trip odometer76
Trip-distance counter, refer
to Trip odometer76
Trunk
opening from the inside35
opening from the
outside35
opening, with remote
control31
Trunk lamps, refer to Cargo
area lamps106
Trunk lid, refer to
Liftgate35
Tailgate36
Turn signals70
indicator lamp22
replacing bulbs160,161
Turn signals, side
replacing bulbs160
Turning circle, refer to
Dimensions179
TV function, refer to Owner's
Manual for Onboard
Computer
