38 To use the automatic function again, move the
selector lever to the right into position D.
Malfunction
The warning lamp lights up. A malfunc-
tion has occurred in the transmission
system. Avoid heavy loads.
While it will still remain possible to move the
selector lever to any desired position, the trans-
mission will revert to its default mode with only
a limited number of forward gears.
Have the system checked as soon as possible.
Information on towing and jump starting, refer
to page105.
Turn signals/headlamp
flasher
1High beams
2Headlamp flasher
3Turn signals
Atypically rapid flashing of the indicator
lamp indicates that a turn signal bulb has
gone out. After the ignition is switched off,
make sure that the roadside parking lamps have
not been left on.<
Signaling briefly
Press lever to resistance point and hold for as
long as you wish to signal.
Washer/wiper system/
rain sensor*
0Wipers retracted
1Intermittent or rain sensor operation
2Normal wiper speed
3Fast wipe
4Brief wipe
5Select interval time or set sensitivity of rain
sensor
Fold-out position
The right wiper is partially concealed by the
hood.
To move the wipers into a vertical position:
1.Switch on wipers in lever position 1.
2.When the wipers are approximately vertical,
move the ignition key to position 0.
For changing the wiper blades, refer to page95.
Fold the wipers back down onto the wind-
shield before you turn the ignition key to
p o s i t i o n 1 o r 2 a g a i n . I f y o u d o n o t , t h e y c o u l d b e
damaged.<
Intermittent mode
Not on vehicles with rain sensor.
You can set the wipe interval to four stages with
the serrated dial 5.
In addition, the wipe interval is varied automati-
cally depending on road speed.

Reference
At a glance
Controls
Driving tips
Mobility
53

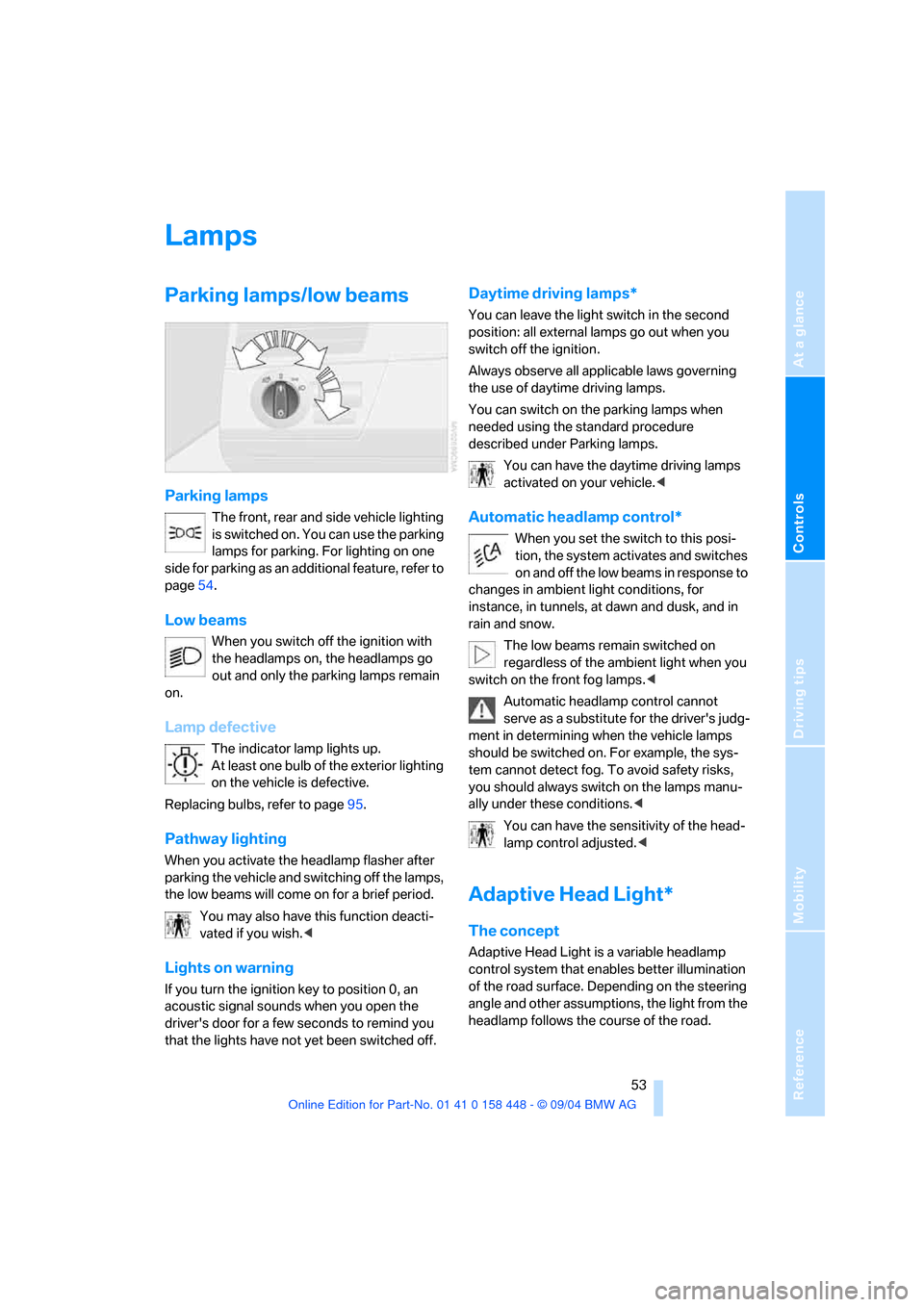

Lamps
Parking lamps/low beams
Parking lamps
The front, rear and side vehicle lighting
is switched on. You can use the parking
lamps for parking. For lighting on one
side for parking as an additional feature, refer to
page54.
Low beams
When you switch off the ignition with
the headlamps on, the headlamps go
out and only the parking lamps remain
on.
Lamp defective
The indicator lamp lights up.
At least one bulb of the exterior lighting
on the vehicle is defective.
Replacing bulbs, refer to page95.
Pathway lighting
When you activate the headlamp flasher after
parking the vehicle and switching off the lamps,
the low beams will come on for a brief period.
You may also have this function deacti-
vated if you wish.<
Lights on warning
If you turn the ignition key to position 0, an
acoustic signal sounds when you open the
driver's door for a few seconds to remind you
that the lights have not yet been switched off
.
Daytime driving lamps*
You can leave the light switch in the second
position: all external lamps go out when you
switch off the ignition.
Always observe all applicable laws governing
the use of daytime driving lamps.
You can switch on the parking lamps when
needed using the standard procedure
described under Parking lamps.
You can have the daytime driving lamps
activated on your vehicle.<
Automatic headlamp control*
When you set the switch to this posi-
tion, the system activates and switches
on and off the low beams in response to
changes in ambient light conditions, for
instance, in tunnels, at dawn and dusk, and in
rain and snow.
The low beams remain switched on
regardless of the ambient light when you
switch on the front fog lamps.<
Automatic headlamp control cannot
serve as a substitute for the driver's judg-
ment in determining when the vehicle lamps
should be switched on. For example, the sys-
tem cannot detect fog. To avoid safety risks,
you should always switch on the lamps manu-
ally under these conditions.<
You can have the sensitivity of the head-
lamp control adjusted.<
Adaptive Head Light*
The concept
Adaptive Head Light is a variable headlamp
control system that enables better illumination
of the road surface. Depending on the steering
angle and other assumptions, the light from the
headlamp follows the course of the road.

Replacing components
98 lead to personal injury should the bulb be dam-
aged.<
1.Pull the cover in front of the fog lamp for-
ward.
2.Loosen the screws, refer to arrow, and pull
out the headlamp.
3.Turn the lamp base at the back of the head-
lamp to the left and remove it.
4.Replace the bulb.
Tail lamps
21 watt bulb
1Turn signal
2Backup lamp
3Tail lamp/brake lamp
4Tail lamp/brake lamp
*
Replacing tail lamps
1.Open the flap in the side panel, refer to
page68.
2.To release the plug connection of the cable,
press the spring, refer to arrow1.
3.Lift the side panel somewhat.
4.To remove the back panel of the lamp,
release the retainer, refer to arrow2.5.Apply gentle pressure to the bulb fitting
while turning it to the left for removal and
replacement.
6.Install in the reverse order.
Lamps in the tailgate
Please contact your BMW Sports Activity
Vehicle Center.
License plate lamps
10 watt bulb
1.Press the lamp out to the side with a screw-
driver.
2.Remove the lamp and replace the bulb.
Tailgate lamp
5 Watt bulb
1.Pull off the bulb holder.
2.Replace the bulb.
LEDs light-emitting diodes
Light-emitting diodes installed behind translu-
cent lenses serve as the light source for many of
the controls and displays in your vehicle. These
light-emitting diodes are related to ordinary
lasers.

Reference
At a glance
Controls
Driving tips
Mobility
113
Everything from A to Z
Index
A
ABS Antilock Brake
System47
– indicator lamp12
Accessories, refer to For your
own safety6
Accident, refer to Receiving
assistance103
Activated-charcoal filter61
Adaptive Head Light53
Adding engine oil91
Adjusting seats24
– electric26
– mechanical25
– mechanical, sports seat25
Air, drying, refer to Air
conditioner57,60
Airbags51
– deactivating front passenger
side31,52
– indicator lamp for front
passenger airbags52
– sitting safely24
– warning lamp52
Air circulation, refer to Recir-
culated-air mode57,60
Air conditioner56,57
Air distribution
– air conditioner57
– automatic climate control60
Airing, refer to
Ventilation57,61
Air outlets, refer to
Ventilation57,61
Air pressure, refer to Tire
inflation pressure82
Air supply
– air conditioner57
– automatic climate control60
Air vents, refer to
Ventilation57,61AKI, refer to Fuel
specifications81
Alarm system22
– avoiding unintentional
alarms23
All-season tires, refer to
Special characteristics of
winter tires86
Anchorage points33
Antifreeze
– coolant91
– washer fluid90
Antilock Brake System
ABS47
– indicator lamp12
Anti-theft alarm system16
– refer to Alarm system22
Anti-trapping mechanism
– panorama glass sunroof21
– power windows20
Approved axle load, refer to
Weights112
Approved engine oils91
Approved gross vehicle
weight, refer to Weights112
Armrest
– front64
– rear64
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray65
AUC Automatic recirculated-
air control60
Automatic
– air distribution60
– air supply60
– climate control59,60
– headlamp control53
– recirculated-air control
AUC60Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic cruise control40
Automatic curb monitor29
Automatic transmission with
Steptronic36
– indicator lamp38
– interlock34
– selector lever interlock37
– shiftlock37
– towing105
– tow-starting106
AUTO program, refer to
Automatic air distribution
and supply60
Average fuel consumption44
– setting units44
Average speed45
– setting units44
Avoiding unintentional
alarms23
Axle loads, refer to
Weights112
B
Backrest, refer to Seats25
Backup lamps36
– refer to Tail lamps98
– replacing bulbs98
Bandages, refer to First-aid
kit104
Bar, towing105
Battery101
– indicator lamp12
– jump starting104
– power failure102
– remote control16
– warning lamp101
Belts, refer to Safety belts27
Beverage holder, refer to Cup
holders63

Everything from A to Z
114 Black ice, refer to Ice
warning44
Blower
– air conditioner57
– automatic climate control60
BMW maintenance system93
Bottle holder, refer to Cup
holders63
Brake fluid92
– level92
– warning lamp92
Brake Force Display50
Brake lamps
– Brake Force Display50
– indicator lamp, defective
lamp12,53
– replacing bulbs98
Brake pads
– breaking-in72
Brake pedal, refer to Safe
braking73
Brake rotors
– brake system72
– breaking-in72
Brakes73,92
– ABS73
– brake fluid92
– breaking in72
– handbrake35
– indicator/warning lamp11
Brake system92
– brake fluid92
– brake pads92
– breaking-in72
– disc brakes74
– warning lamp92
Brake wear warning
– brake pads92
– warning lamp92
Breakdown service, refer to
Receiving assistance103
Breaking-in72
Bulb replacement, refer to
Lamps and bulbs95
Buttons on steering wheel12
C
California law
– Event Data Recorders94
– Proposition 65 Warning6
Calling, refer to telephone
Owner's Manual
Can holder, refer to Cup
holders63
Capacities112
Capacity, cargo area112
Car care, refer to the Caring
for your vehicle brochure
Car-care products, refer to the
Caring for your vehicle
brochure
Care, refer to the Caring for
your vehicle brochure
Cargo, securing75
Cargo area67
– capacity112
– cover67
– emergency operation, refer
to Manual unlocking19
– floor cover69
– folding rear seat backrest67
– lashing eyes69
– lid, refer to Tailgate19
– opening, remote control17
– power socket69
Cargo loading74
– determining load limit74
– securing cargo75
– stowing cargo75
– vehicle74
Caring for artificial leather,
refer to the Caring for your
vehicle brochure
Caring for leather, refer to the
Caring for your vehicle
brochure
Caring for plastic, refer to the
Caring for your vehicle
brochure
Caring for the carpet, refer to
the Caring for your vehicle
brochureCaring for the vehicle finish,
refer to the Caring for your
vehicle brochure
Car keys, refer to Key set16
Car phone, refer to separate
Owner's Manual
Car phone preparation66
Car radio, refer to Owner's
Manual for Radio/Onboard
Computer
Car wash73
– refer to the Caring for your
vehicle brochure
Cassette operation, refer to
Owner's Manual for Radio/
Onboard Computer
Catalytic converter, refer to
Hot exhaust system73
CD operation, refer to Owner's
Manual for Radio/Onboard
Computer
Central locking system16
– interior18
Changes, technical, refer to
For your own safety6
Changing a wheel99
Changing gears
– automatic transmission with
Steptronic37
Changing wheels86
Charge-current indicator
lamp12,101
Charging battery101
Check Gas Cap, warning
lamp12,80
Checking oil level90
Child's seats, refer to Child-
restraint systems31
Child-restraint fixing system
LATCH33
Child-restraint systems31
Child-safety locks33
Chock99
Chrome parts, care, refer to
the Caring for your vehicle
brochure
Cigarette lighter65

Reference
At a glance
Controls
Driving tips
Mobility
117
Glove compartment64
Grills, refer to
Ventilation57,61
Gross vehicle weight, refer to
Weights112
Ground clearance76
H
Halogen lamps96
Handbrake35
– indicator lamp35
Hands-free microphone, refer
to Car phone preparation66
Hands-free system66
Hazard warning flashers10
HDC Hill Descent Control48
Head airbags51
Headlamp control,
automatic53
Headlamp flasher38
– indicator lamp12
Headlamps96
– care, refer to the Caring for
your vehicle brochure
– replacing bulbs95
Headlamp washer
reservoir90
– capacity, refer to Filling
capacities112
Headlamp washer system90
– headlamp washing39
– washer fluid90
Head Light, refer to Adaptive
Head Light53
Head restraints25
Heated mirrors29
Heated rear window
– air conditioner57
– automatic climate control61
Heated seats27
Heated steering wheel28
Heater
– rear window57,61
– windshield washer jets39Heating
– exterior mirror29
– seats27
– steering wheel28
Heating and ventilation56,59
Heavy cargo, refer to Cargo
loading74
Height, refer to
Dimensions111
Height adjustment
– seats25,26
– steering wheel28
High beams54
– headlight flasher54
– indicator lamp12
– replacing bulbs96
High Performance Synthetic
Oil91
Hill-climbing ability, refer to
Driving on poor roads76
Hill descent assistance, refer
to HDC Hill Descent
Control48
Hill Descent Control HDC48
Hills74
Holder for cups63
Hood88
Horn10
Hotel function16
Hot exhaust system73
Hydraulic brake assistant,
refer to DBC Dynamic Brake
Control47
Hydroplaning73
I
Ice warning44
Ignition34
Ignition key16
Ignition lock34
Imprint2
Index113Indicator/warning lamp
– airbags52
– alarm system22
– automatic transmission with
Steptronic38
– brakes92
– coolant temperature42
– DSC47
– engine temperature42
– Flat Tire Monitor50
– fog lamps54
– front passenger airbags52
– reserve42
– safety belt warning27
Indicator/warning lamps,
overview11
Individual settings, refer to
Vehicle Memory, Key
Memory30
Inflation pressure, refer to Tire
inflation pressure82
Inflation pressure monitoring,
refer to Flat Tire Monitor49
Inside rearview mirror,
automatic dimming
feature73
INSPECTION message43
Instrument cluster11
Instrument lighting54
Instrument panel, refer to
Cockpit10
Integrated universal remote
control62
Interior lamps55
– remote control17
Interior motion sensor23
– switching off17,23
Interior rearview mirror29
Interlock34
Intermittent operation,
wipers38
Interval indicator, Service43

Everything from A to Z
118
J
Jacking points100
Jumping, refer to Jump
starting104
Jump starting104
K
Key Memory30
Keys16
Kick-down37
L
Lamps and bulbs95
Lashing eyes, refer to
Securing cargo75
LATCH child-restraint fixing
system33
LEDs light-emitting diodes98
Length, refer to
Dimensions111
License plate lamp, replacing
bulbs98
Lifting handle, compact
wheel99
Light-alloy wheels, care, refer
to the Caring for your vehicle
brochure
Light-emitting diodes
LEDs98
Lighter65
Lighter socket65
Lighting of instruments54
Lights, refer to Parking lamps/
low beams53
Lights on warning53
Light switch53
Load, refer to Cargo
loading74
Lock buttons, doors, refer to
Locking19
Locking
– from inside18
– from outside16
Locking, vehicle
– from inside18
– from outside16Locking and unlocking doors
– from inside18
– from outside16
Low beams53
– automatic53
– indicator lamp, defective
lamp53
– replacing bulbs96
Lower back support, refer to
Lumbar support26
Lug bolts100
– torque101
Luggage compartment19
– capacity112
– cover, refer to Cargo area
cover67
– floor cover69
– increasing volume67
– opening/closing, refer to
Tailgate19
– opening from outside19
– opening with remote
control17
– refer to Cargo area67
– remote control17
Luggage compartment cover,
refer to Cargo area cover67
Luggage compartment lid,
refer to Tailgate19
Luggage compartment net,
refer to Partition net68
Luggage rack, refer to Roof-
mounted luggage rack76
Lug wrench99
Lumbar support26
M
Maintenance93
Maintenance system93
Malfunctions
– automatic transmission38
– door lock18
– fuel filler door80
– panorama glass sunroof22
– tailgate19Manual operation
– door lock18
– driver's door18
– fuel filler door80
– panorama glass sunroof22
– tailgate19
Manual transmission36
Master key16
– with remote control16
Maximum speed, with winter
tires86
Mechanical seats25
Memory, refer to
– Seat and mirror memory26
– Vehicle Memory, Key
Memory30
Microfilter
– air conditioner58
– automatic climate control61
Microphone, refer to Car
phone preparation66
Microphone for telephone66
Mini-Disc operation, refer to
Owner's Manual for Radio/
Onboard Computer
Mirrors28
– automatic curb monitor29
– mirror heating29
– mirror memory, refer to Seat
and mirror memory26
Multi-function steering wheel,
refer to Buttons on steering
wheel12
Multifunction switch
– turn signals/headlamp
flasher38
– washer/wiper system38N
Navigation system, refer to
Owner's Manual for
Onboard Computer/Radio
and Navigation System
Neck support, refer to Head
restraints25
Nets65
Non-smoker's equipment
package65

Reference
At a glance
Controls
Driving tips
Mobility
119
Nozzles, refer to
Ventilation57,61
Nylon rope, refer to Tow-
starting and towing105
O
OBD connector93
Octane rating, refer to Fuel
quality81
Odometer42
Oil
– approved engine oils91
– capacity112
– dipstick90
Oil change interval
– refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models
– refer to Service Interval
Display43
Oil consumption90
Oil grades91
Oil level90
– warning lamp90
Oil pressure90
– warning lamp90
Oil sensor90
– warning lamp90
OIL SERVICE43
Old batteries, refer to
Disposal101
Onboard computer, refer to
separate Owner's Manual
Onboard Diagnostics OBD
interface socket93
Onboard tool kit95
Opening and closing
– from inside18
– from outside16
– using the door lock18
– using the remote control16
Output, refer to Engine
data110Outside air
– air conditioner57
– automatic climate control60
Outside temperature display
– changing unit of measure44
– in computer44P
Panorama glass sunroof21
– automatic opening and
closing21
– closing with electrical
malfunction22
– comfort operation18
– comfort position21
– initializing21
– power failure21
– remote control17
Parcel shelf, refer to Cargo
area cover67
Park Distance Control PDC46
Parking aid, refer to PDC Park
Distance Control46
Parking brake, refer to
Handbrake35
Parking lamps53
– replacing bulbs97
Parking lamps/low beams53
Parking vehicle35
Partition net68
Parts and accessories, refer to
For your own safety6
Passenger-side mirror tilt
function29
Pathway lighting53
PDC Park Distance Control46
Plastic, refer to the Caring for
your vehicle brochure
Pollen, refer to
– Microfilter58
– Microfilter/activated
charcoal filter61
Portable phone, refer also to
separate Owner's Manual
Power failure
– battery102
– panorama glass sunroof21
– windows20Power seat adjustment26
Power socket65,69
Power windows20
– initializing20
– safety switch20
Pressure, tires82
Pressure monitoring, tires49
– Flat Tire Monitor49
Programming settings, refer
to Vehicle Memory, Key
Memory30
Protective function, panorama
glass sunroof21
Puncture, Flat Tire Monitor49
R
Radiator, refer to Coolant91
Radio, refer to Owner's
Manual for Radio/Onboard
Computer
Radio-control key, refer to
Master key with remote
control16
Radio navigation, refer to
separate Owner's Manual
Rain sensor39
Range, setting units44
Reading lamps
– front55
– rear55
Rear backrests, folding67
Rear seat back, folding67
Rearview mirrors, exterior28
Rear window defroster
– air conditioner57
– automatic climate control61
Rear window safety switch20
Rear window wiper39
– wiper blade replacement95
Recirculated-air mode
– air conditioner57
– automatic climate control60
Reflector, refer to Tail
lamps98
Refueling80
– fuel filler door80
Remaining distance, refer to
Cruising range45
