2005 BMW 7 SERIES check engine

Maintenance System
The BMW Maintenance System has been
devised with the following objectives: to
maximize vehicle safety, reliability, and resale
value by minimizing breakdowns resulting
from wear, and minimizing cost and inconven-
ience by computing maintenance intervals
based upon the specific manner in which
each individual vehicle is driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon
accumulated mileage. However, driving condi-
tions have a major influence on routine
maintenance requirements; distance traveled
is only one of the significant factors. A vehicle
driven for 50,000 miles of short trips in the
city with numerous cold starts, prolonged
periods of idling, stop-and-go driving, and
high engine speeds during acceleration
requires more frequent maintenance intervals
than a vehicle driven for 50,000 miles for long
distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led
to the development of the unique BMW
Condition Based Service System (CBS)
which computes the actual optimum mainte-
nance requirements based not only upon the
accumulated mileage, but taking into account
important factors such as high or low engine
speeds, short or long trip driving, and condi-
tion of the engine oil and brake pads.
The BMW Maintenance System
Condition Based Service CBS
CBS is a further development of the Service
Interval Indicator System. Sensors and
sophisticated algorithms take even more
detailed account of the various conditions of
vehicle use.
The remaining times for selected mainte-
nance tasks as well as any legally prescribed
dates are displayed to you individually:

Engine oil

Brakes – front and rear separately

Microfilter

Brake fluid

Spark plugs

Vehicle check

Required State Inspection(s)
CBS thus determines the current and future
maintenance requirements. This data can
also be read from the vehicle key by your
BMW Service Advisor and used to propose
the optimum scope of maintenance.
Have maintenance and repair work performed
by your BMW center. Make sure that the
maintenance work is stamped in this Service
and Warranty Information Statement. These
entries are the evidence of regular mainte-
nance of your vehicle and a requirement for
warranty claims.
2
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 2

Green lamps
No service is currently required.
You can request more detailed information on
every entry.
Turn the controller to scroll through the list,
then confirm the selected entry.
Confirm to exit the list.
The vehicle’s current service status is auto-
matically saved in the vehicle’s ignition key.
The Service Advisor at your BMW center has
a device called a key reader. When your
Service Advisor inserts your key into the key
reader, all pertinent vehicle and servicing
data will be available, and a customized
maintenance checklist is printed out based on
the specific operations called for by the
Condition Based Service.
The performance of certain subsequent
maintenance elements, as required by the
BMW New Vehicle Limited Warranty, will be
specified at intervals computed by the BMW
Service Interval Indicator as follows:
– Oil Service: Engine oil should be changed
with the engine at operating temperature.
Note: Change oil at least once a year.
All 2005 model year 7 Series are factory-
filled with BMW High Performance Synthetic
oils. At the time of the printing of this booklet,
the following oils are strongly recommended
and approved by BMW:
• BMW High Performance 5W-30 Synthetic
Oil (BMW part number 07 51 0 017 866)
• Mobil 1 5W-30
• Mobil 1 5W-40
BMW is evaluating various synthetic oils for
inclusion in our list of recommended engine
oils. For the most current list of synthetic oils,
please contact your BMW center, or call
BMW of North America, Inc. at 1-800-831-
1117. You can also obtain this information
from our website, www.bmwusa.com/.
It is recommended to check engine oil level
whenever fuel is added to the vehicle. If you
need to add oil between oil changes and are
unable to obtain BMW High Performance
Synthetic Oil, Mobil 1 or another special oil
on the list, use a synthetic oil with an API
rating of SH or higher.
The following maintenance elements must be
performed at the mileage/time stated (time
intervals begin from the vehicle’s production
date):
- Brake Fluid Service: Change brake fluid
every two years, or when specified by CBS.
- Oxygen Sensor Service: The oxygen
sensor deteriorates strictly on a mileage
basis and must therefore be replaced
every 100,000 miles to maximize vehicle
fuel economy and minimize exhaust pollu-
tion.
- Spark Plug Service: Replace at 100,000
miles, or when specified by CBS.
4
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 4

Maintenance summary
The Condition Based Service System (CBS)
will determine the requirement for perform-
ance of the maintenance services described
on this and the following page. These
services may be required either individually or
in conjunction with other maintenance
services.
Standard operations
Maintenance work
• Brief diagnostic test
• Verify Check Control messages
• Check indicator and warning lights
• Reset CBS display
Engine oil
Maintenance work
• Change the engine oil and oil filter. We
recommend BMW High Performance 5W-30
Synthetic Oil P/N 07 51 0 017 866.
• After every 3rd engine oil change:
Intake air cleaner: replace air filter element
(reduce replacement interval in dusty
operating conditions).
• Parking brake: check function
Microfilter
Maintenance work
• Automatic air conditioning:
Replace microfilter
Front brake
Maintenance work
• Replace brake pads, clean brake pad
contact points in calipers.
• Brake discs:
Check surface and thickness, if necessary
replace at extra charge*
Rear brake
Maintenance work
• Replace brake pads, clean brake pad
contact points in calipers.
• Brake discs:
Check surface and thickness, if necessary
replace at extra charge*
• Parking brake:
Check condition, brake lining thickness and
function, if necessary replace at extra charge*.
*Unless covered by Maintenance Program
Vehicle Check
Maintenance work
• Check operation of horn, headlight flasher
and hazard warning flashers.
• Check instrument and control lighting and
heater/air-conditioning blower.
• Check lighting system: turn signals, back-up,
license plate, interior (incl. map, reading
lights), glovebox, flashlight, luggage area
lights.
• Safety belts: check condition and function.
• Check windshield wiper and washer jet
positions.
• Body: check for corrosion (except cavities).
• Tires: check tread depth, wear pattern, outer
condition, inflation pressure (also spare tire).
If necessary, correct pressure (also spare)
• Battery: check state of charge (magic eye)
and charge if required.
• Power steering reservoir: Check fluid level.
• Visually inspect all SRS airbag units for torn
covers, obvious damage or attachment of
stickers.
• Rear-view mirrors
• Coolant: check fluid level and concentration.
• Windshield washer and intensive cleaning
system: check protection level, fluid level,
top if necessary.
6
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 6

Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
8

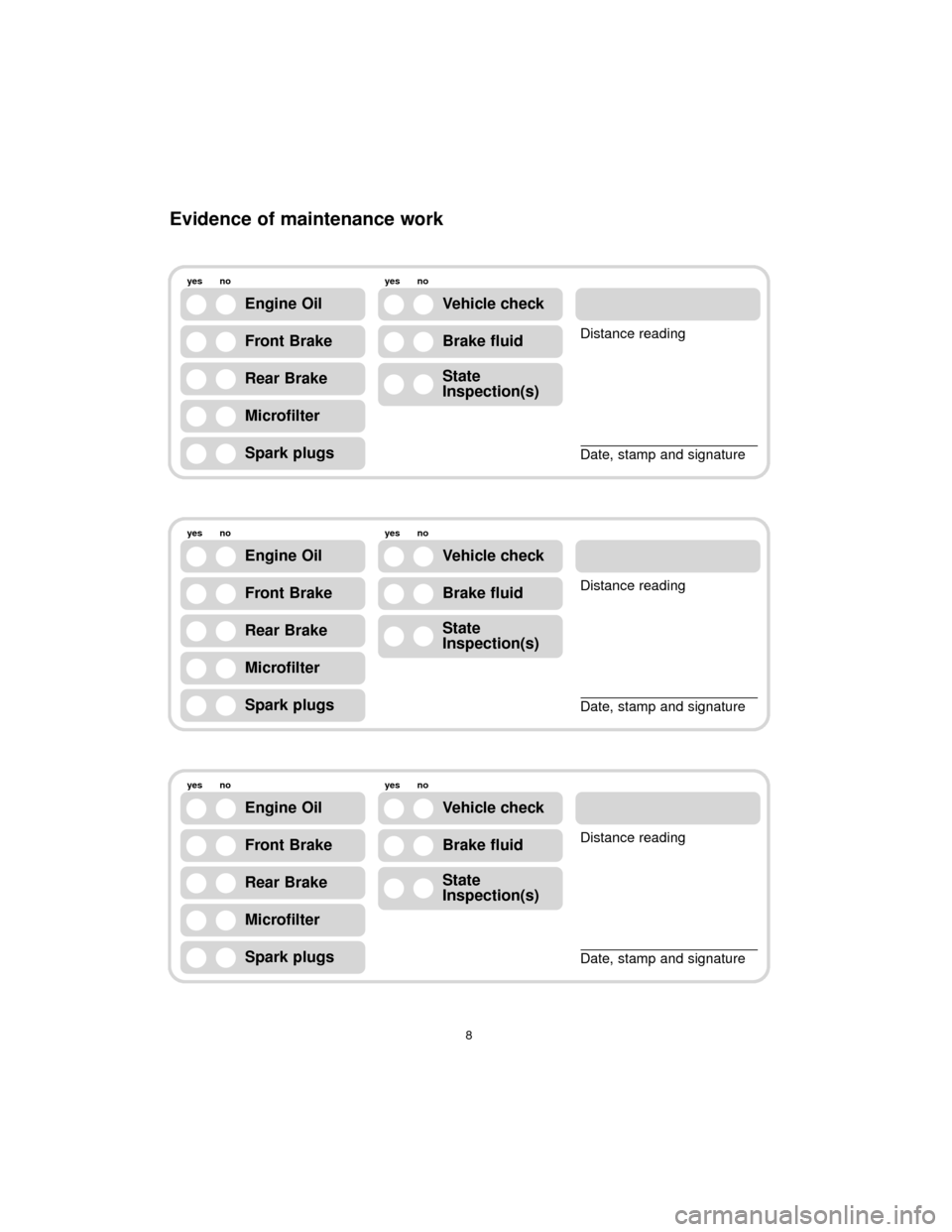

Evidence of maintenance work
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 8

9
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 9

Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
10
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 10

11
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 11

Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
Engine Oil
yes no
Vehicle check
Front BrakeBrake fluid
Rear Brake
Microfilter
State
Inspection(s)
Spark plugs
yes no
Distance reading
Date, stamp and signature
12
26245 2005 BMW 7 Series #EA.qxd 10/6/04 1:34 PM Page 12
