Contents

9

Passenger safety systems:

Airbags59
Transporting children safely62
Rollover protection system66
Vehicle Memory, Key
Memory68

Driving:

Ignition lock69
Starting the engine69
Switching off the engine71
Parking brake71
Manual transmission72
Sequential manual gearbox
SMG*73
Automatic transmission with
Steptronic*77
Turn signal indicator/Headlamp
flasher80
Washer/wiper system/Rain
sensor*81
Cruise control*82

Everything under control:

Odometer84
Tachometer84
Energy control84
Fuel gauge85
Engine coolant temperature
gauge85
Service interval display86
Check Control86
Clock87
Computer88

Technology for safety and
driving convenience:

Park Distance Control (PDC)*90
Dynamic Stability Control
(DSC)91
Flat Tire Monitor*92
Brake force display94

Lamps:

Parking lamps/Low beams95
Adaptive headlights*96
Instrument lighting96
High beams/Standing lamps97
Front fog lamps97
Interior lamps98

Controlling the climate for
pleasant driving:

Air conditioning100
Automatic climate control*104

Interior conveniences:

Glove compartment109
Integrated universal remote
control*110
Storage compartments112
Microphone*113
Ashtray, front*113
Ashtray, rear*114

Loading and transporting:

Ski bag*115
Cargo loading117
Roof-mounted luggage rack for
the hardtop*120

Controls and features

17
1Fuel gauge85
2Indicator lamp for turn signals20
3Speedometer
4Indicator and warning lamps18
to 20
5Tachometer and Energy Control84
6Engine coolant temperature
gauge85
7Indicator and warning lamps18
to 20
8Control button for

>

Clock87

>

Units of measure for exterior tem-
perature display 88
9Selector lever and program display
for automatic transmission/sequen-
tial manual gearbox SMG, transmis-
sion indicator lamp19, 73, 79
10 Display for

>

Trip odometer/Odometer84

>

Clock87

>

Service interval86

>

Computer88
11 Check Control86
12 Trip odometer, reset to zero84
13 Indicator and warning lamps18
to 20

Instrument cluster

OverviewControlsMaintenanceRepairsDataIndex

67
3. Keep pressing down on the protec-
tive bar – see arrow 1 – from on top
until you hear it click into place
4. Put the cover panel back in place
and press down firmly
5. Push the back panel of the head
restraint closed – see arrow 2.
Do the same for the second protective
bar. If you are not familiar with any of
the procedures, consult your BMW
center.
Have the rollover protection system
checked out by your BMW center after
it has been inadvertently triggered.
Do not move the convertible top
under any circumstances if the
rollover protection system has
extended.
Do not use the rear head restraints as
storage shelves.
Absolutely no modifications are to be
made to any of the rollover protection
system's individual components or any
of its wiring.
Only your BMW center is to carry out
any work on the rollover protection sys-
tem.
Work done on the system that is carried
out improperly could lead to failure in
an emergency or accidental activation.
Regarding having the system checked
to ensure long-term operation: be scru-
pulous in adhering to the Service inter-
val display for maintenance intervals.
Every 2 years at the latest, the rollover
protection system must be inspected at
a BMW center.<
Rollover protection system
OverviewControlsMaintenanceRepairsDataIndex

86
Service interval displayRemaining distance to next
serviceThe displays shown in the illustration
appear for a few seconds when the
ignition key is in position 1 or higher or
after the engine is started.
The next service due appears with the
message OIL SERVICE or
INSPECTION, together with the dis-
tance remaining in miles – in kilometers
in Canada – before the next scheduled
service.
The computer bases its calculations of
the remaining distance on the preced-
ing driving style.
A flashing message and a "–" in front of
the number mean that the service inter-
val has already been exceeded by the
distance shown on the display. Please
contact your BMW center for an
appointment.
Check ControlDisplayWhen the ignition key is in position 2,
the following information and/or condi-
tions are indicated using symbols until
the conditions have been corrected.
1Check the low and high beams as
well as the parking lamps
2Door open
3Luggage compartment lid open
4Check tail or brake lamps
When you open the driver's door after
having turned the ignition key to posi-
tion 0, you will hear an acoustic signal
for a few seconds to remind you that
the lamps have not been switched off.

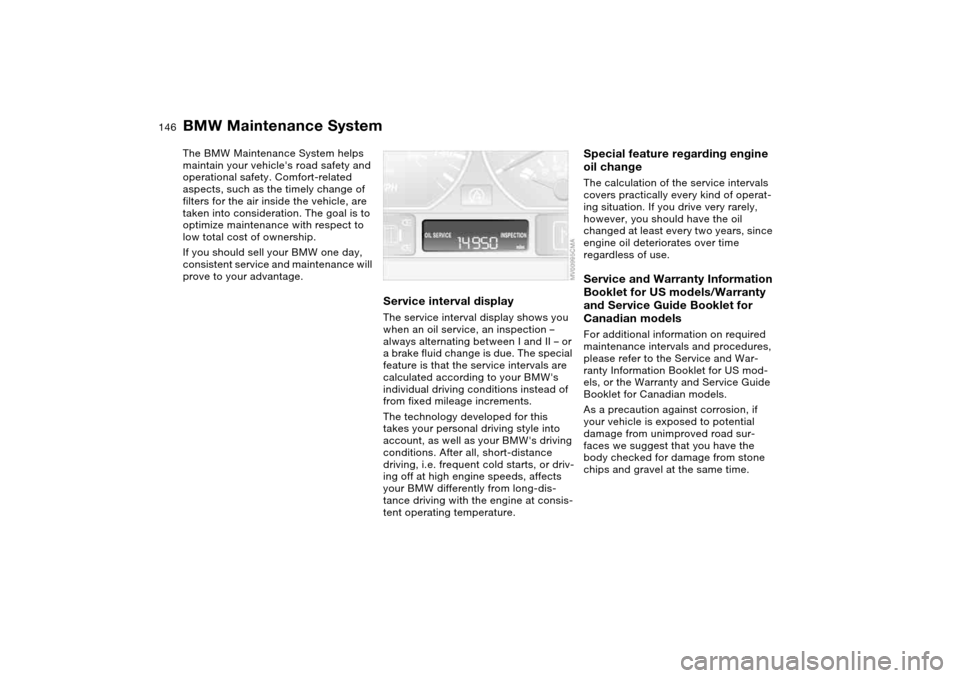

146Maintenance
BMW Maintenance SystemThe BMW Maintenance System helps
maintain your vehicle's road safety and
operational safety. Comfort-related
aspects, such as the timely change of
filters for the air inside the vehicle, are
taken into consideration. The goal is to
optimize maintenance with respect to
low total cost of ownership.
If you should sell your BMW one day,
consistent service and maintenance will
prove to your advantage.
Service interval displayThe service interval display shows you
when an oil service, an inspection –
always alternating between I and II – or
a brake fluid change is due. The special
feature is that the service intervals are
calculated according to your BMW's
individual driving conditions instead of
from fixed mileage increments.
The technology developed for this
takes your personal driving style into
account, as well as your BMW's driving
conditions. After all, short-distance
driving, i.e. frequent cold starts, or driv-
ing off at high engine speeds, affects
your BMW differently from long-dis-
tance driving with the engine at consis-
tent operating temperature.
Special feature regarding engine
oil changeThe calculation of the service intervals
covers practically every kind of operat-
ing situation. If you drive very rarely,
however, you should have the oil
changed at least every two years, since
engine oil deteriorates over time
regardless of use.Service and Warranty Information
Booklet for US models/Warranty
and Service Guide Booklet for
Canadian modelsFor additional information on required
maintenance intervals and procedures,
please refer to the Service and War-
ranty Information Booklet for US mod-
els, or the Warranty and Service Guide
Booklet for Canadian models.
As a precaution against corrosion, if
your vehicle is exposed to potential
damage from unimproved road sur-
faces we suggest that you have the
body checked for damage from stone
chips and gravel at the same time.

Everything from A to Z
181
Imprint 4
Indicator lamps 18
Indicator/warning lamp
airbags 18
alarm system 37
brakes 18, 19
Check Gas Cap 19
coolant 19, 85
DSC 19
Fasten safety belts 18
Flat Tire Monitor
18, 19, 93
reserve 85
rollover protection
system 19
Service Engine Soon 19
Individual air distribution 106
Individual settings, refer to
Vehicle Memory, Key
Memory 68
Inflation pressure monitor-
ing, refer to Flat Tire Moni-
tor 92
Inflation pressure, tires 130
INSPECTION 86
Instrument cluster 16
Instrument lighting 96
Instrument panel 14
Integrated universal remote
control 110
Interface socket for onboard
diagnostics (OBD) 148Interior lamps 98
remote control 30
Interior motion sensor 37
switching off 37
Interior rearview mirror 58
automatic dimming
feature 58
Interior temperature, adjust-
ment 102, 106
Interlock, refer to Steering
wheel lock 69
Intermittent mode, wipers 81
Interval display, service 86
J
Jack 157
Jacking points 158
Jump-starting 163
K
Key Memory 68
Keys 28
with remote control 28
Kickdown 74, 78
L
Lamp defect 153
Lamps and bulbs 153
Lashing down loads, refer to
Cargo loading 117
Lashing eyelets, refer to
Securing cargo 119Lashing fittings, refer to
Securing cargo 119
LATCH child-restraint
mounting system 64
Leather care, refer to the
Caring for your vehicle
brochure
Leaving the vehicle 71
LEDs light-emitting
diodes 157
Length, refer to
Dimensions 171
License plate lamp
bulb replacement 157
Light switch 95
Light-emitting diodes
(LEDs) 157
Lighter 113
LIGHTS ON warning 95
Lights, refer to Parking
lamps/Low beams 95
Load, determining the maxi-
mum 117
Load, refer to Cargo
loading 117
Loading
vehicle 117
Load-securing devices 119
Lock buttons on doors, refer
to Locking 32
Lock, steering wheel 69Locking
from inside 32
from outside 29, 31
Locking and unlocking
doors
from inside 32
from outside 29, 31
Low beams 95
automatic 95
bulb replacement 153
indicator lamp, defective
lamp 86
Lug bolts
key 158
torque 158
Luggage compartment
capacity 172
emergency operation,
refer to Manual
operation 33
enlarge volume 35
floor panel 35
lid 33
opening from outside 33
opening, remote
control 30
opening/closing, refer to
Luggage compartment
lid 33
remote control 30
volume 172
OverviewControlsMaintenanceRepairsDataIndex

Everything from A to ZLuggage compartment lid 33
emergency operation 33
emergency release 34
indicator lamp 86
opening from inside the
vehicle 33
opening from outside 33
remote control 30
securing separately 33
unlocking manually 33
Luggage compartment light-
ing 33
Luggage rack, refer to Roof-
mounted luggage rack 120
Lumbar support 52
M
Maintenance 86, 146
Maintenance system 146
Malfunction
convertible top 46
door lock 31
fuel filler door 23
Malfunction displays 86
Manual convertible top 39
closing 42
opening 40
operation 39Manual operation
door lock 31
driver's door 31
fuel filler door 23
luggage compartment
lid 33
power convertible top 46
Manual transmission 72
Master keys 28
MC operation, refer to the
Owner's Manual for
Radio/Onboard Computer
MD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Memory, refer to Seat and
mirror memory 55
Memory, refer to Vehicle
Memory, Key Memory 68
Microfilter
air conditioning 103
automatic climate
control 108
Microphone 113
Mini disc operation, refer to
the Owner's Manual for
Radio/Onboard Computer
Mirrors 57
heated 57
memory, refer to Seat and
mirror memory 55
Mobile Service 163Modifications, technical,
refer to For your own
safety 5
Multifunction steering
wheel 21
Multifunction switch
turn signal indicator/head-
lamp flasher 80, 81
N
Navigation system, refer to
the Owner's Manual for
Radio/Onboard Computer
Neck restraints, refer to
Head restraints 52
Nets 112
Nozzles, refer to Ventilation
100, 104
Nylon rope, refer to Towing
the vehicle 165
O
OBD interface socket 148
Odometer 84
Oil
additives, refer to Adding
engine oil 143
capacity 173
dipstick 142
quality 143
specified engine oils 143
viscosity 143Oil change intervals, refer
to Service interval
display 146
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 142
Oil dipstick 142
Oil filter change 173
Oil level
checking 142
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 86
Oil types 143
Old batteries, refer to Dis-
posal 161
Onboard computer 88
Onboard computer, refer to
the Owner's Manual for
Onboard Computer
Onboard tool kit 152
Opening and closing
from outside 29
from the inside 32
via the door lock 31
via the remote control 29
Outlets, ventilation 100, 104

Everything from A to ZSafety belt height adjust-
ment 54
Safety belts 54
seat-integrated safety belt
system 53
sitting safely 50
warning lamp 18
Safety systems, refer to
Antilock Brake
System 127
Dynamic Stability Control
(DSC) 91
Screwdriver, refer to
Onboard tool kit 152
Seat adjustment 51
BMW sports seat 51
power 51
Seat belt tensioner, refer to
Safety belts 54
Seat heating 57
Seat memory, refer to Seat
and mirror memory 55
Seat positions, storing 55
Seats 51
Securing cargo 119
Securing child-restraint sys-
tem 64
Securing the vehicle
from inside 32
from outside 29, 31Selector lever
automatic transmission 77
sequential manual gear-
box SMG 73
Selector lever lock, refer to
Shiftlock 73, 77
Selector lever positions
automatic transmission 77
sequential manual gear-
box SMG 73
Sequential manual gearbox
SMG 73
indicator lamp 19
Service and Warranty Infor-
mation Booklet 146
Service Engine Soon
warning lamp 19
Service interval display
86, 146
Shift paddles 74
Shifting gears
automatic transmission
with Steptronic 77
sequential manual gear-
box SMG 74
Shiftlock 73
Shiftlock, refer to Range
selection 77
Side airbags 59
Side turn signal indicators
bulb replacement 155Sitting safely
with airbags 50
with safety belts 50
Size 171
Ski bag 115
Slipstream deflector, refer to
Wind deflector 48
SMG sequential manual
gearbox 73
indicator lamp 19
Smokers' package, refer to
Ashtray 113
SOS, refer to Emergency
call 162
Space-saver spare tire
changing a wheel 157
Spare key 28
Spare tire 157
Spare wheel 160
Special oils 143
Specified oils 143
Speed gauge, refer to
Speedometer 16
Speedometer 16
SPORT button 76
Sport program
automatic transmission
with Steptronic 78
Sports seat 51
Stability control, refer to
Dynamic Stability Control
(DSC) 91Standing lamps 97
Starting difficulties
jump-starting 163
temperature 69
Starting help DSC 91
Starting the engine 69
Starting, refer to Starting the
engine 69
Status of the Owner's Man-
ual 5
Steering wheel lock 69
Steering wheel, adjusting 58
Steptronic, refer to Manual
operation 78
Storage compartments 112
Storage nets 112
Storing seat positions, refer
to Seat and mirror
memory 55
Storing tires 137
Surface ice, refer to Ice
warning 88
Switches, refer to
Cockpit 14
Switching off
engine 71
Symbols 4
Synthetic oils 143
T
Tachometer 84
