2005 BMW 325XI SPORTS WAGON turn signal bulb

144

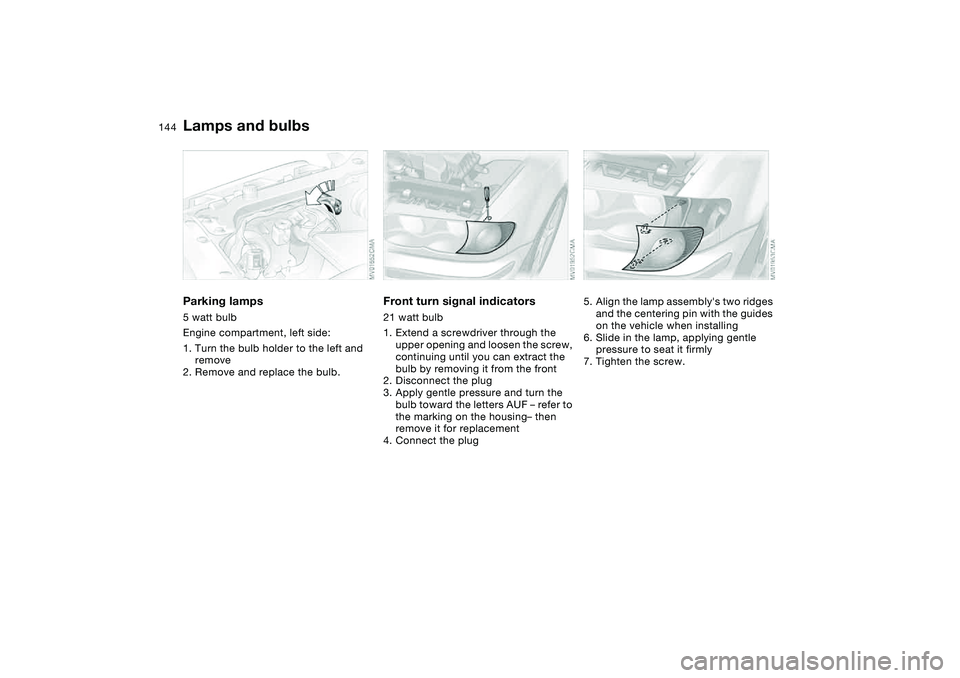

Parking lamps5 watt bulb
Engine compartment, left side:
1. Turn the bulb holder to the left and
remove
2. Remove and replace the bulb.
Front turn signal indicators21 watt bulb
1. Extend a screwdriver through the
upper opening and loosen the screw,
continuing until you can extract the
bulb by removing it from the front
2. Disconnect the plug
3. Apply gentle pressure and turn the
bulb toward the letters AUF – refer to
the marking on the housing– then
remove it for replacement
4. Connect the plug
5. Align the lamp assembly's two ridges
and the centering pin with the guides
on the vehicle when installing
6. Slide in the lamp, applying gentle
pressure to seat it firmly
7. Tighten the screw.
Lamps and bulbs

145

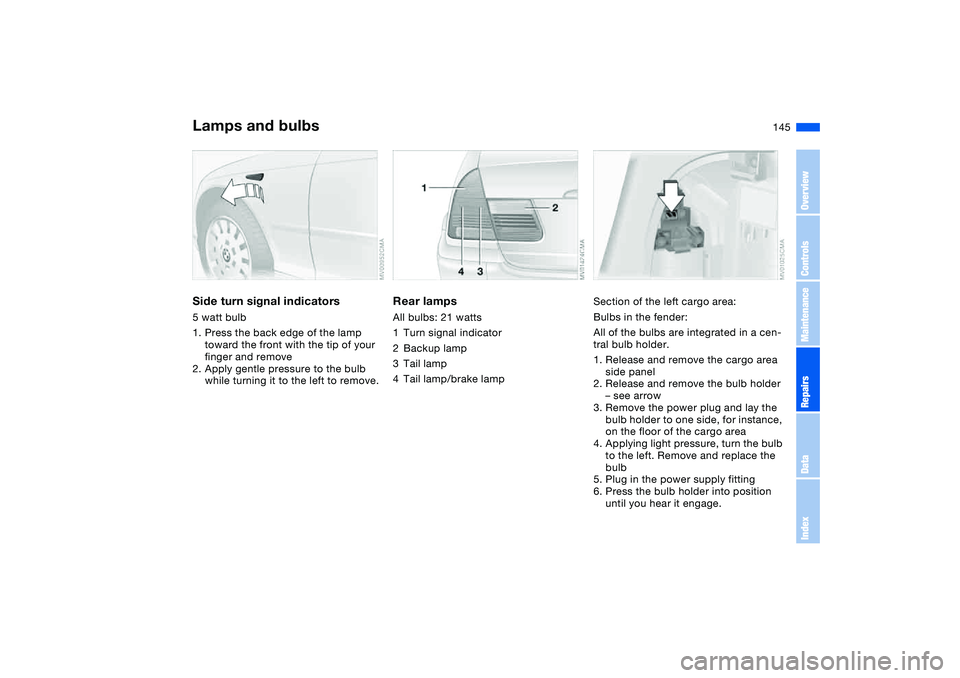

Side turn signal indicators5 watt bulb
1. Press the back edge of the lamp
toward the front with the tip of your
finger and remove
2. Apply gentle pressure to the bulb
while turning it to the left to remove.
Rear lampsAll bulbs: 21 watts
1Turn signal indicator
2Backup lamp
3Tail lamp
4Tail lamp/brake lamp
Section of the left cargo area:
Bulbs in the fender:
All of the bulbs are integrated in a cen-
tral bulb holder.
1. Release and remove the cargo area
side panel
2. Release and remove the bulb holder
– see arrow
3. Remove the power plug and lay the
bulb holder to one side, for instance,
on the floor of the cargo area
4. Applying light pressure, turn the bulb
to the left. Remove and replace the
bulb
5. Plug in the power supply fitting
6. Press the bulb holder into position
until you hear it engage.
Lamps and bulbs
OverviewControlsMaintenanceRepairsDataIndex

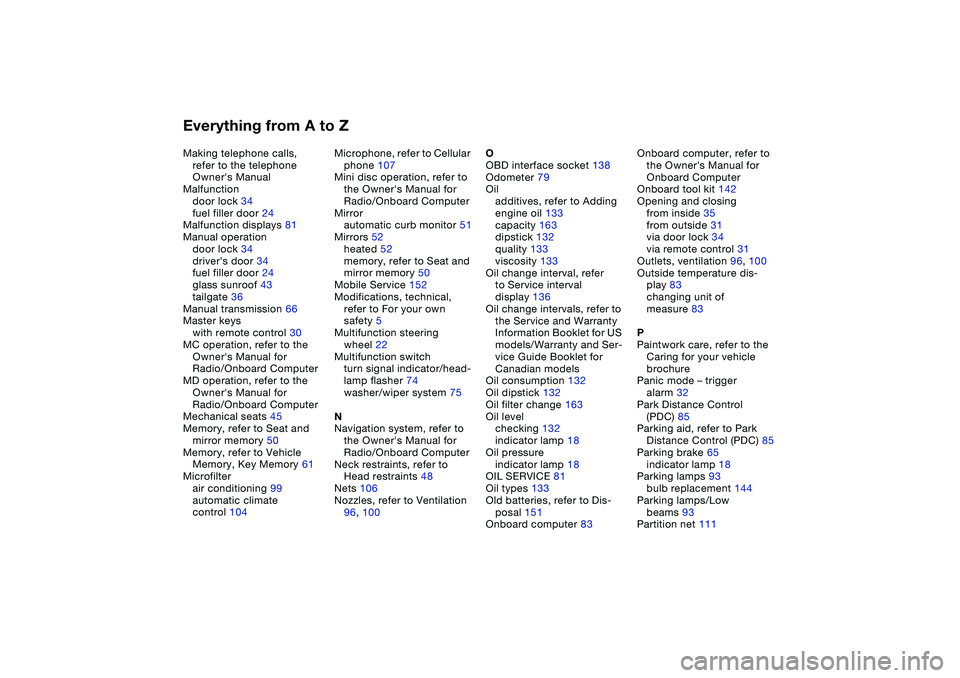

Everything from A to ZMaking telephone calls,
refer to the telephone
Owner's Manual
Malfunction
door lock 34
fuel filler door 24
Malfunction displays 81
Manual operation
door lock 34
driver's door 34
fuel filler door 24
glass sunroof 43
tailgate 36
Manual transmission 66
Master keys
with remote control 30
MC operation, refer to the
Owner's Manual for
Radio/Onboard Computer
MD operation, refer to the
Owner's Manual for
Radio/Onboard Computer
Mechanical seats 45
Memory, refer to Seat and
mirror memory 50
Memory, refer to Vehicle
Memory, Key Memory 61
Microfilter
air conditioning 99
automatic climate
control 104Microphone, refer to Cellular
phone 107
Mini disc operation, refer to
the Owner's Manual for
Radio/Onboard Computer
Mirror
automatic curb monitor 51
Mirrors 52
heated 52
memory, refer to Seat and
mirror memory 50
Mobile Service 152
Modifications, technical,
refer to For your own
safety 5
Multifunction steering
wheel 22
Multifunction switch
turn signal indicator/head-
lamp flasher 74
washer/wiper system 75
N
Navigation system, refer to
the Owner's Manual for
Radio/Onboard Computer
Neck restraints, refer to
Head restraints 48
Nets 106
Nozzles, refer to Ventilation
96, 100O
OBD interface socket 138
Odometer 79
Oil
additives, refer to Adding
engine oil 133
capacity 163
dipstick 132
quality 133
viscosity 133
Oil change interval, refer
to Service interval
display 136
Oil change intervals, refer to
the Service and Warranty
Information Booklet for US
models/Warranty and Ser-
vice Guide Booklet for
Canadian models
Oil consumption 132
Oil dipstick 132
Oil filter change 163
Oil level
checking 132
indicator lamp 18
Oil pressure
indicator lamp 18
OIL SERVICE 81
Oil types 133
Old batteries, refer to Dis-
posal 151
Onboard computer 83Onboard computer, refer to
the Owner's Manual for
Onboard Computer
Onboard tool kit 142
Opening and closing
from inside 35
from outside 31
via door lock 34
via remote control 31
Outlets, ventilation 96, 100
Outside temperature dis-
play 83
changing unit of
measure 83
P
Paintwork care, refer to the
Caring for your vehicle
brochure
Panic mode – trigger
alarm 32
Park Distance Control
(PDC) 85
Parking aid, refer to Park
Distance Control (PDC) 85
Parking brake 65
indicator lamp 18
Parking lamps 93
bulb replacement 144
Parking lamps/Low
beams 93
Partition net 111

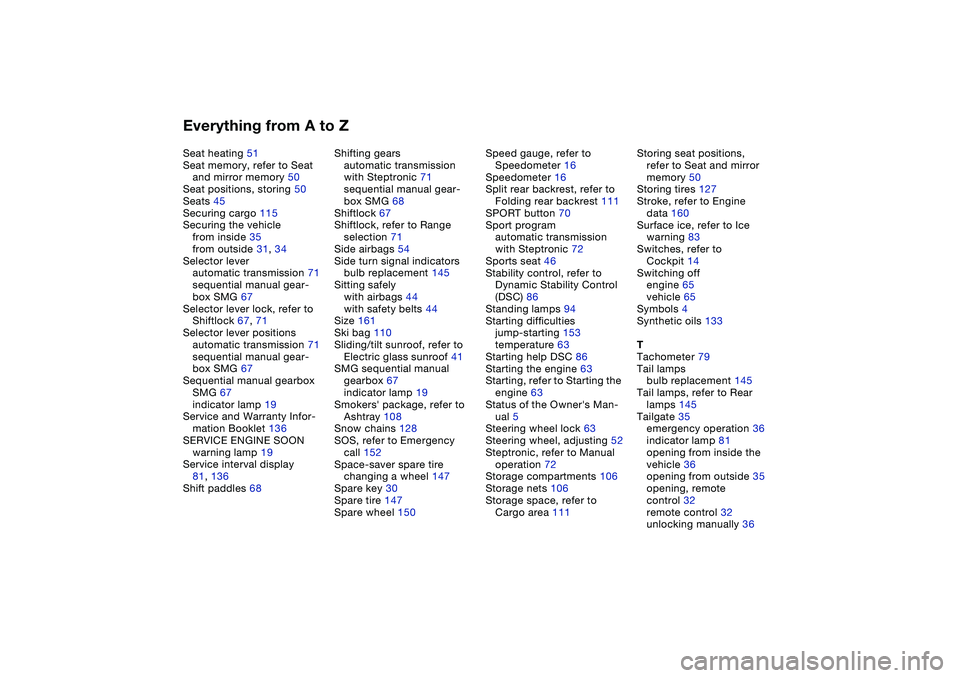

Everything from A to ZSeat heating 51
Seat memory, refer to Seat
and mirror memory 50
Seat positions, storing 50
Seats 45
Securing cargo 115
Securing the vehicle
from inside 35
from outside 31, 34
Selector lever
automatic transmission 71
sequential manual gear-
box SMG 67
Selector lever lock, refer to
Shiftlock 67, 71
Selector lever positions
automatic transmission 71
sequential manual gear-
box SMG 67
Sequential manual gearbox
SMG 67
indicator lamp 19
Service and Warranty Infor-
mation Booklet 136
SERVICE ENGINE SOON
warning lamp 19
Service interval display
81, 136
Shift paddles 68Shifting gears
automatic transmission
with Steptronic 71
sequential manual gear-
box SMG 68
Shiftlock 67
Shiftlock, refer to Range
selection 71
Side airbags 54
Side turn signal indicators
bulb replacement 145
Sitting safely
with airbags 44
with safety belts 44
Size 161
Ski bag 110
Sliding/tilt sunroof, refer to
Electric glass sunroof 41
SMG sequential manual
gearbox 67
indicator lamp 19
Smokers' package, refer to
Ashtray 108
Snow chains 128
SOS, refer to Emergency
call 152
Space-saver spare tire
changing a wheel 147
Spare key 30
Spare tire 147
Spare wheel 150Speed gauge, refer to
Speedometer 16
Speedometer 16
Split rear backrest, refer to
Folding rear backrest 111
SPORT button 70
Sport program
automatic transmission
with Steptronic 72
Sports seat 46
Stability control, refer to
Dynamic Stability Control
(DSC) 86
Standing lamps 94
Starting difficulties
jump-starting 153
temperature 63
Starting help DSC 86
Starting the engine 63
Starting, refer to Starting the
engine 63
Status of the Owner's Man-
ual 5
Steering wheel lock 63
Steering wheel, adjusting 52
Steptronic, refer to Manual
operation 72
Storage compartments 106
Storage nets 106
Storage space, refer to
Cargo area 111Storing seat positions,
refer to Seat and mirror
memory 50
Storing tires 127
Stroke, refer to Engine
data 160
Surface ice, refer to Ice
warning 83
Switches, refer to
Cockpit 14
Switching off
engine 65
vehicle 65
Symbols 4
Synthetic oils 133
T
Tachometer 79
Tail lamps
bulb replacement 145
Tail lamps, refer to Rear
lamps 145
Tailgate 35
emergency operation 36
indicator lamp 81
opening from inside the
vehicle 36
opening from outside 35
opening, remote
control 32
remote control 32
unlocking manually 36

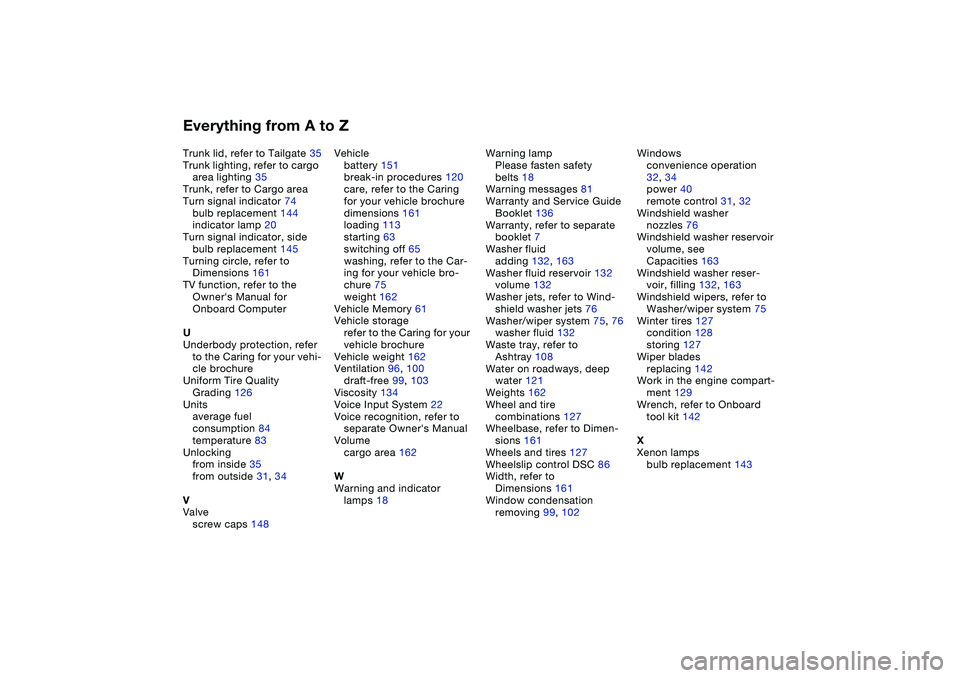

Everything from A to ZTrunk lid, refer to Tailgate 35
