2005 BMW 325I warning light

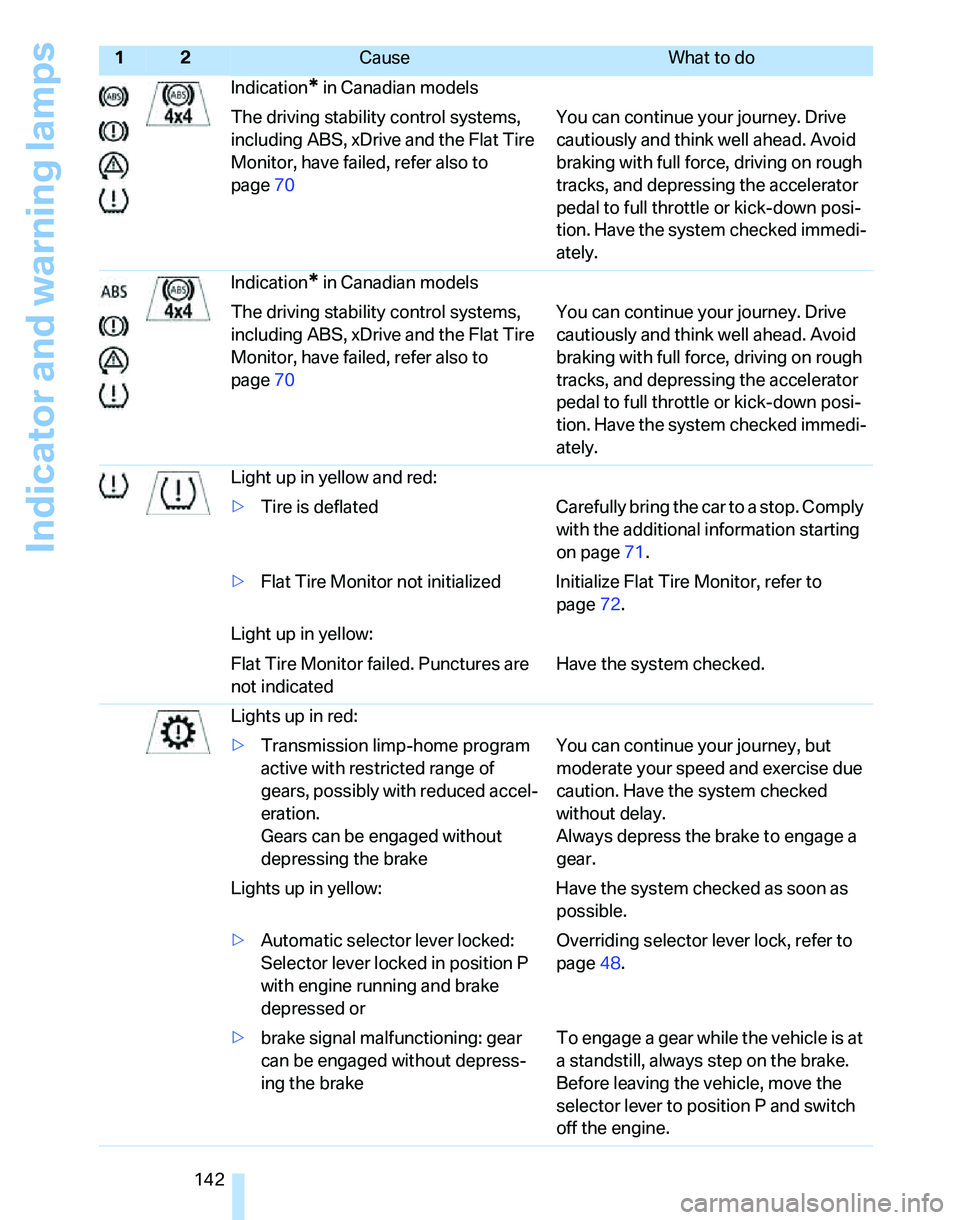

Indicator and warning lamps
142Indication
* in Canadian models
The driving stability control systems,
including ABS, xDrive and the Flat Tire
Monitor, have failed, refer also to
page70You can continue your journey. Drive
cautiously and think well ahead. Avoid
braking with full force, driving on rough
tracks, and depressing the accelerator
pedal to full throttle or kick-down posi-
tion. Have the system checked immedi-
ately.
Indication
* in Canadian models
The driving stability control systems,
including ABS, xDrive and the Flat Tire
Monitor, have failed, refer also to
page70You can continue your journey. Drive
cautiously and think well ahead. Avoid
braking with full force, driving on rough
tracks, and depressing the accelerator
pedal to full throttle or kick-down posi-
tion. Have the system checked immedi-
ately.
Light up in yellow and red:
>Tire is deflated Carefully bring the car to a stop. Comply
with the additional information starting
on page71.
>Flat Tire Monitor not initialized Initialize Flat Tire Monitor, refer to
page72.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicatedHave the system checked.
Lights up in red:
>Transmission limp-home program
active with restricted range of
gears, possibly with reduced accel-
eration.
Gears can be engaged without
depressing the brakeYou can continue your journey, but
moderate your speed and exercise due
caution. Have the system checked
without delay.
Always depress the brake to engage a
gear.
Lights up in yellow: Have the system checked as soon as
possible.
>Automatic selector lever locked:
Selector lever locked in position P
with engine running and brake
depressed orOverriding selector lever lock, refer to
page48.
>brake signal malfunctioning: gear
can be engaged without depress-
ing the brakeTo engage a gear while the vehicle is at
a standstill, always step on the brake.
Before leaving the vehicle, move the
selector lever to position P and switch
off the engine.
12Cause What to do

Indicator and warning lamps
144Engine speed too high Select a higher gear if the driving situa-
tion permits you to do so.
Active cruise control deactivated:
>Driving stability control systems are
active or
>handbrake is applied or
>the vehicle has not achieved a
speed of 20 mph or 30 km/h or
>engaged gear not suitable for the
speed being driven orKeep a safe distance.
>radar sensor dirty Clean the radar sensor, refer to
page56.
Active cruise control failed Keep a safe distance.
Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw adjust-
ment system checked.
Adaptive Head Light failed
Coolant level too low Add coolant immediately, refer to
page121.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your jour-
ney. Contact your BMW Center.
Engine oil level too low Add engine oil immediately; refer to
page119 for more information.
12Cause What to do

Everything from A to Z
152
Everything from A to Z
Index
A
ABS Antilock Brake
System68
ACC, refer to Active cruise
control53
Acceleration assistant with
the sequential manual
gearbox SMG47
Accessories, refer to The
individual vehicle5
Activated-charcoal filter for
automatic climate control85
Active cruise control53
– indicator lamps56
– malfunction57
– selecting distance55
– sensor56
Active steering73
– warning lamp73
Adapter for spare key18
Adaptive Head Light77
Additives
– coolant121
Adjusting temperature inside
the car, refer to Air
conditioner81
Adjusting temperature inside
the car, refer to Automatic
climate control83
Airbags74
– sitting safely31
– warning lamp75
Air conditioner80
Air conditioning mode
– air conditioner81
– automatic climate control83
– ventilation82,85
Air distribution
– automatic84
– individual81
– manual81
Air flow rate81,84Airing, refer to
Ventilation82,85
Air outlets, refer to Air
vents80
Air pressure, tires108
Air recirculation, refer to
Recirculated-air
mode81,84
Air supply
– air conditioner81
– automatic climate control83
– ventilation82,85
Air vents80
AKI, refer to Fuel
specifications
106
Alarm system24
– avoiding unintentional
alarms25
– interior motion sensor25
– switching off an alarm25
– tilt alarm sensor25
All-season tires, refer to
Winter tires117
Ambient air, refer to
Recirculated-air
mode81,84
Antifreeze
– coolant121
– washer fluid50
Anti-theft alarm system, refer
to Alarm system24
Anti-theft system19
Anti-trapping mechanism
– glass sunroof, electric29
– windows28
Approved axle loads, refer to
Weights150
Approved gross vehicle
weight, refer to Weights150
Armrest, refer to Center
armrest89Ashtray
– front91
– rear91
Assistance systems, refer to
Dynamic Stability Control
DSC68
AUC Automatic recirculated-
air control84
Audio device, external90
Automatic
– air distribution84
– air flow rate84
– cruise control51,53
– headlamp control76
Automatic climate control80
– automatic air distribution84
Automatic curb monitor37
Automatic recirculated-air
control AUC84
Automatic transmission with
Steptronic47
– interlock47
– overriding selector lever
lock48
– shiftlock47
– sport program48
AUTO program for automatic
climate control84
AUX-IN
– port90
Average fuel consumption60
– setting the units62
Average speed60
Avoiding unintentional
alarms25
Axle loads, refer to
Weights150
B
Backrests, refer to Seats31
Backrest width adjustment33

Reference
At a glance
Controls
Driving tips
Mobility
153
Back seats
– refer to Rear seats
Backup lamps
– replacing bulbs128
Backup lamps, refer to Tail
lamps127
Band-aids, refer to First-aid
pouch131
Bar, refer to Tow-starting,
towing away134
Battery129
– charging129
– disposal27,129
– jump starting132
– temporary power failure129
Battery renewal
– remote control27
Being towed133
Belts, refer to Safety belts36
Belt tensioner, refer to Safety
belts36
Beverage holders, refer to
Cup holders90
Black ice, refer to Outside
temperature warning59
Blower, refer to Air flow
rate81,84
BMW Homepage4
BMW Maintenance
System123
BMW webpage4
Bottle holders, refer to Cup
holders90
Brake assist, refer to Dynamic
Brake Control68
Brake fluid121
– level too low121
– warning lamp121,122
Brake fluid, refer to Service
requirements63
Brake Force Display73
Brake hydraulics, refer to
Brakes121
Brake lamps
– Brake Force Display73
– replacing bulbs128
Brake pads, breaking in98Brake rotors100
– brakes98
– breaking in98
Brakes
– ABS68
– BMW Maintenance
System123
– brake fluid121
– brake pads122
– breaking in98
– handbrake44
– service requirements63
Brakes, refer to Braking
safely99
Brake system98
– BMW Maintenance
System123
– brake fluid121
– brake pads122
– breaking in98
– disc brakes100
Breakdown services, refer to
Roadside Assistance131
Breaking in
– sequential manual gearbox
SMG98
Breaking in the clutch98
Breaking in the differential98
Break-in period98
Bulb changing, refer to Lamps
and bulbs125
Burned fuel
– refer to Average
consumption60
Button for starting engine42
Buttons on steering wheel11
C
California Proposition 65
warning6
Can holders, refer to Cup
holders90
Capacities151
Capacity of luggage
compartment150
Car battery, refer to Vehicle
battery129Car care, refer to Caring for
your vehicle brochure
Car-care products, refer to
Caring for your vehicle
brochure
Care, refer to Caring for your
vehicle brochure
Cargo, securing101
Cargo loading
– stowing cargo101
– vehicle100
Caring for artificial leather,
refer to Caring for your
vehicle brochure
Caring for leather, refer to
Caring for your vehicle
brochure
Caring for light-alloy wheels,
refer to Caring for your
vehicle brochure
Caring for plastic, refer to
Caring for your vehicle
brochure
Caring for the carpet, refer to
Caring for your vehicle
brochure
Caring for the vehicle finish,
refer to Caring for your
vehicle brochure
Car jack
– jacking points129
Car key, refer to Integrated
key/remote control18
Car phone
– installation location, refer to
Center armrest89
– refer to separate Owner's
Manual
Car wash100
– also refer to Caring for your
vehicle brochure
Catalytic converter, refer to
Hot exhaust system98
CBS Condition Based
Service123
Center armrest89
Center brake lamp
– replacing bulbs128

Reference
At a glance
Controls
Driving tips
Mobility
155
Directional indicators, refer to
Turn signals48
Displacement, refer to Engine
data148
Display lighting, refer to
Instrument lighting78
Displays
– instrument cluster12
Displays and controls10
Disposal
– coolant121
– remote control battery27
– vehicle battery129
Distance control, refer to
Active cruise control53
Distance remaining to service,
refer to Service
requirements63
Distance warning, refer to
PDC Park Distance
Control67
Door key, refer to Integrated
key/remote control18
Door lock22
Door locking, confirmation
signals21
Doors, emergency
operation22
DOT Quality Grades114
Draft-free ventilation82,85
Drinks holders, refer to Cup
holders90
Drive mode46
Drive-off assistant71
Driving lamps, refer to Parking
lamps/low beams76
Driving notes98
Driving stability control
systems68
Driving through water99
Driving tips, refer to Driving
notes98
Dry air, refer to Cooling
function85
DSC Dynamic Stability
Control68
DTC Dynamic Traction
Control68
– indicator lamps68Dynamic Driving Control46
Dynamic Traction Control
DTC
– indicator lamps69
E
EBV Electronic brake-force
distribution68
Electrical malfunction
– door lock22
– fuel filler door106
– glass sunroof29
– panorama glass roof29
Electric seat adjustment32
Electronic brake-force
distribution68
Electronic oil level check119
Emergency call131
Emergency operation, refer to
Closing manually
– glass sunroof29
– panorama glass roof29
Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door106
– transmission lock, automatic
transmission48
Emergency release
– luggage compartment lid
from inside24
Emergency services, refer to
Roadside Assistance131
Emissions test, refer to
Service requirements63
Energy-conscious driving,
refer to Energy Control60
Energy Control60
Engine
– breaking in98
– data148
– overheated, refer to Coolant
temperature59
– speed148
– starting43
– starting, convenient
access25
– switching off43Engine compartment119
Engine coolant, refer to
Coolant121
Engine oil
– adding120
– BMW Maintenance
System123
– checking level119
– intervals between changes,
refer to Service
requirements63
Engine output, refer to Engine
data148
Engine speed148
Engine starting, refer to
Starting the engine43
Environmentally friendly
driving, refer to Energy
Control60
Error messages, refer to
Check Control65
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control68
Event data recorders124
Exhaust system, refer to Hot
exhaust system98
Exterior mirrors37
– adjusting37
– automatic dimming
feature99
– automatic heating37
External audio device90
Eyes
– for tow-starting and towing
away133
– for tying down loads101
F
Failure messages, refer to
Check Control65
Failure of an electrical
consumer129
False alarm, refer to Avoiding
unintentional alarms25
Fastening safety belts, refer to
Safety belts36

Everything from A to Z
156 Filter
– refer to Microfilter/activated-
charcoal filter for automatic
climate control85
– refer to Microfilter for air
conditioner82
First aid pouch131
Fixture for remote control,
refer to Ignition lock42
Flashlight, refer to
Rechargeable flashlight89
Flash when locking/
unlocking21
Flat
– Run-Flat Tires116
Flat Tire Monitor FTM71
– indicating a flat tire72
– initializing the system72
– malfunction73
– snow chains72,117
– system limits72
Flat tires, refer to Tire
condition115
Fog lamps78
– indicator lamp78,136
Footbrake, refer to Braking
safely99
Footwell lamps79
For your own safety5
Front airbags74
Front seat adjustment31
FTM, refer to Flat Tire
Monitor71
Fuel106
– display60
– high-quality brands106
– quality106
– specifications106
– tank capacity151
Fuel clock, refer to Fuel
gauge60
Fuel consumption, refer to
Average fuel
consumption60
Fuel display, refer to Fuel
gauge60
Fuel filler door106
– releasing in the event of
electrical malfunction106Fuses129
G
Garage door opener, refer to
Integrated universal remote
control86
Gasoline, refer to Required
fuel106
Gasoline display, refer to Fuel
gauge60
Gasoline engine, checking oil
level119
Gear indicator
– automatic transmission with
Steptronic47
– sequential manual gearbox
SMG45
Gearshift lever
– automatic transmission with
Steptronic47
– manual transmission44
– sequential manual gearbox
SMG45
Gearshifts
– with automatic
transmission47
– with manual transmission44
– with the sequential manual
gearbox SMG45
General driving notes98
Glass sunroof, electric28
– anti-trapping mechanism29
– closing after electrical
malfunction29
– convenient operation20,22
– opening, closing29
– operation with convenient
access26
– raising29
– remote control20
Glove compartment89
– rechargeable flashlight89
Grills, refer to Air vents80
Gross vehicle weight, refer to
Weights150
H
Halogen lamps
– replacing bulbs126
Handbrake44
– indicator lamp44
– manual release22
Hand lamp, refer to
Rechargeable flashlight89
Hands-free system14
Hazard warning flashers14
Head airbags74
Headlamp control,
automatic76
Headlamp cover126
Headlamp flasher48
– indicator lamp11,14,136
Headlamps
– care, refer to Caring for your
vehicle brochure
– replacing bulbs126
Head restraints33
– sitting safely31
Heated
– mirrors37
– rear window81,85
– seats34
Heating80
– mirrors37
– rear window81,85
– seats34
Heating while at a standstill,
refer to Using residual
heat84
Heavy loads, refer to Stowing
cargo101
Height, refer to
Dimensions149
Height adjustment
– seats32
– steering wheel38
High beams78
– headlamp flasher78
– indicator lamp136
– replacing bulbs126
High water, refer to Driving
through water99
Hills99
Holders for cups90

Reference
At a glance
Controls
Driving tips
Mobility
157
Homepage4
Hood118
Horn10
Hot exhaust system98
Hydraulic brake assist, refer to
Dynamic Brake Control68
Hydroplaning99
I
Ice warning59
Ignition42
– switched off42
– switched on42
Ignition key, refer to
Integrated key/remote
control18
Ignition key position 1, refer to
Radio readiness42
Ignition key position 2, refer to
Ignition on42
Ignition lock42
Indicator and warning
lamps13,136
Individual air distribution81
Individual settings, refer to
Personal Profile19
Initializing
– compass, refer to
Calibrating88
– Flat Tire Monitor FTM72
– glass sunroof29
Instrument cluster12
Instrument lighting78
Instrument panel, refer to
Cockpit10
Integrated key18
Integrated universal remote
control86
Interior lamps79
– remote control20
Interior motion sensor25
Interior rearview mirror37
– automatic dimming
feature99
Interior rearview mirror with
digital compass87
Interlock47Intermittent mode of the
wipers50
J
Jacking points129
Jumpering, refer to Jump
starting132
Jump starting132
K
Key, refer to Integrated key/
remote control18
Keyless Go, refer to
Convenient access25
Keyless opening and closing,
refer to Convenient
access25
Key Memory, refer to Personal
Profile19
Kick-down48
– automatic transmission with
Steptronic48
– sequential manual gearbox
SMG46
Knock control106
L
Lamps, refer to Parking lamps/
low beams76
Lamps and bulbs, replacing
bulbs125
Lap-and-shoulder safety
belt36
Lashing eyes, refer to
Securing cargo101
LATCH child-restraint fixing
system40
LEDs light-emitting
diodes125
Length, refer to
Dimensions149
License plate lamp, replacing
bulbs128
Light-emitting diodes
LEDs125
Lighter91Lighting
– instruments78
– lamps and bulbs125
– of the vehicle, refer to
Lamps76
Light switch76
Limit145
Loading
– securing cargo101
Load securing equipment,
refer to Securing cargo101
Lock buttons in the doors,
refer to Locking23
Locking
– adjusting confirmation
signal21
– from inside23
– from outside20
– without remote control, refer
to Convenient access25
Locking and unlocking doors
– from inside22
– from outside20
Low beams76
– automatic76
– replacing bulbs126
Lower back support, refer to
Lumbar support32
Luggage compartment
– capacity150
– convenient access26
– folding up the floor panel93
– lamp79
– opening from inside23
– opening from outside23
Luggage compartment lid23
– convenient access26
– unlocking with remote
control21
Luggage compartment lid,
refer to Tailgate23
Luggage compartment net,
refer to Securing cargo101
Luggage rack, refer to Roof-
mounted luggage rack101
Lumbar support32

Reference
At a glance
Controls
Driving tips
Mobility
159
Parts and accessories, refer to
The individual vehicle5
Passenger-side mirror tilt
function37
Pathway lighting76
PDC Park Distance Control67
Personal Profile19
Placing a call, refer to
telephone owner's manual
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control85
– refer to Microfilter for air
conditioner82
Power failure129
Power windows28
– safety switch28
Power windows, refer to
Windows27
Pressure, tires108
Pressure monitoring, tires71
– Flat Tire Monitor71
Protection function, refer to
Anti-trapping mechanism
– glass sunroof, electric29
– windows28
Providing medical assistance,
refer to First add pouch131
Puncture
– Flat Tire Monitor71
R
Radio key, refer to Integrated
key/Remote control18
Radio position, refer to Radio
readiness42
Radio readiness42
– switched off42
– switched on42
Rain sensor50
Reading lamps79
Rear lamps, refer to Tail
lamps127
– replacing bulbs128Rear seats
– adjusting head restraints34
– folding head restraint down
and up34
Rear turn signals
– replacing bulbs128
Rear ventilation85
Rearview mirror, refer to
Mirrors37
Rear window defroster81,85
Rear window roller blind, refer
to Roller sun blinds89
Rear window safety switch28
Rechargeable flashlight89
Recirculated-air mode81,84
Recirculation of air, refer to
Recirculated-air
mode81,84
Reclining seat, refer to
Backrest32
Refueling106
Releasing
– hood118
Remaining distance, refer to
Cruising range60
Remote control18
– battery renewal27
– convenient access25
– garage door opener86
– luggage compartment lid21
– malfunctions21,27
– service data123
Replacement remote
control18
Replacing bulbs, refer to
Lamps and bulbs125
Replacing tires, refer to New
wheels and tires116
Reporting an accident, refer to
Initiating an emergency
call131
Reporting safety defects6
Reserve warning, refer to Fuel
gauge60
Reservoir for washer
systems
50
Residual heat mode84Restraint systems
– for children39
– refer to Safety belts36
Reverse gear
– automatic transmission with
Steptronic48
– manual transmission45
– sequential manual gearbox
SMG45
Roadside Assistance131
Roadside parking lamps78
– replacing bulbs127
Roadworthiness test, refer to
Service requirements63
Roller blind
– sun blinds89
Roof load capacity150
Roof-mounted luggage
rack101
Rope, refer to Tow-starting,
towing away134
RSC Runflat System
Component, refer to Run-
Flat Tires116
Runflat System Component
RSC, refer to Run-Flat
Tires116
Run-Flat Tires116
– continuing driving with a
damaged tire72
– flat tire72
– new tires116
– replacing tires116
– tire pressures108
– winter tires117
Runflat Tyres, refer to Run-
Flat Tires116
S
Safety-belt height
adjustment36
Safety belts36
– damage36
– indicator lamp36
– reminder36
– sitting safely31
