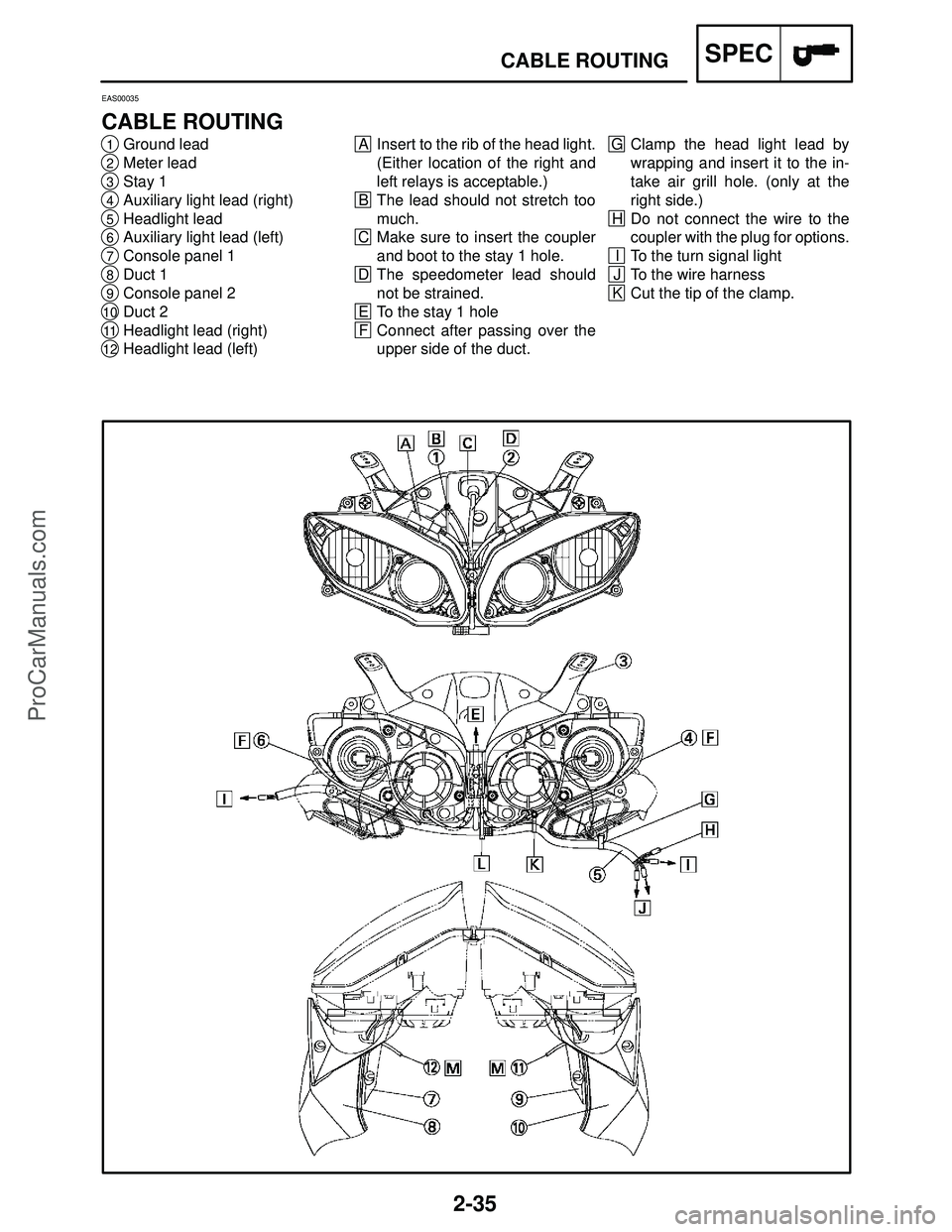

CABLE ROUTINGSPEC
G Clamp the head light lead by
wrapping and insert it to the in-
take air grill hole. (only at the
right side.)
H Do not connect the wire to the
coupler with the plug for options.
I To the turn signal light
J To the wire harness
K Cut the tip of the clamp.A Insert to the rib of the head light.
(Either location of the right and
left relays is acceptable.)
B The lead should not stretch too
much.
C Make sure to insert the coupler
and boot to the stay 1 hole.
D The speedometer lead should
not be strained.
E To the stay 1 hole
F Connect after passing over the
upper side of the duct.1Ground lead
2Meter lead
3Stay 1
4Auxiliary light lead (right)
5Headlight lead
6Auxiliary light lead (left)
7Console panel 1
8Duct 1
9Console panel 2
10Duct 2
11Headlight lead (right)
12Headlight lead (left)
