4 - 56
ENG

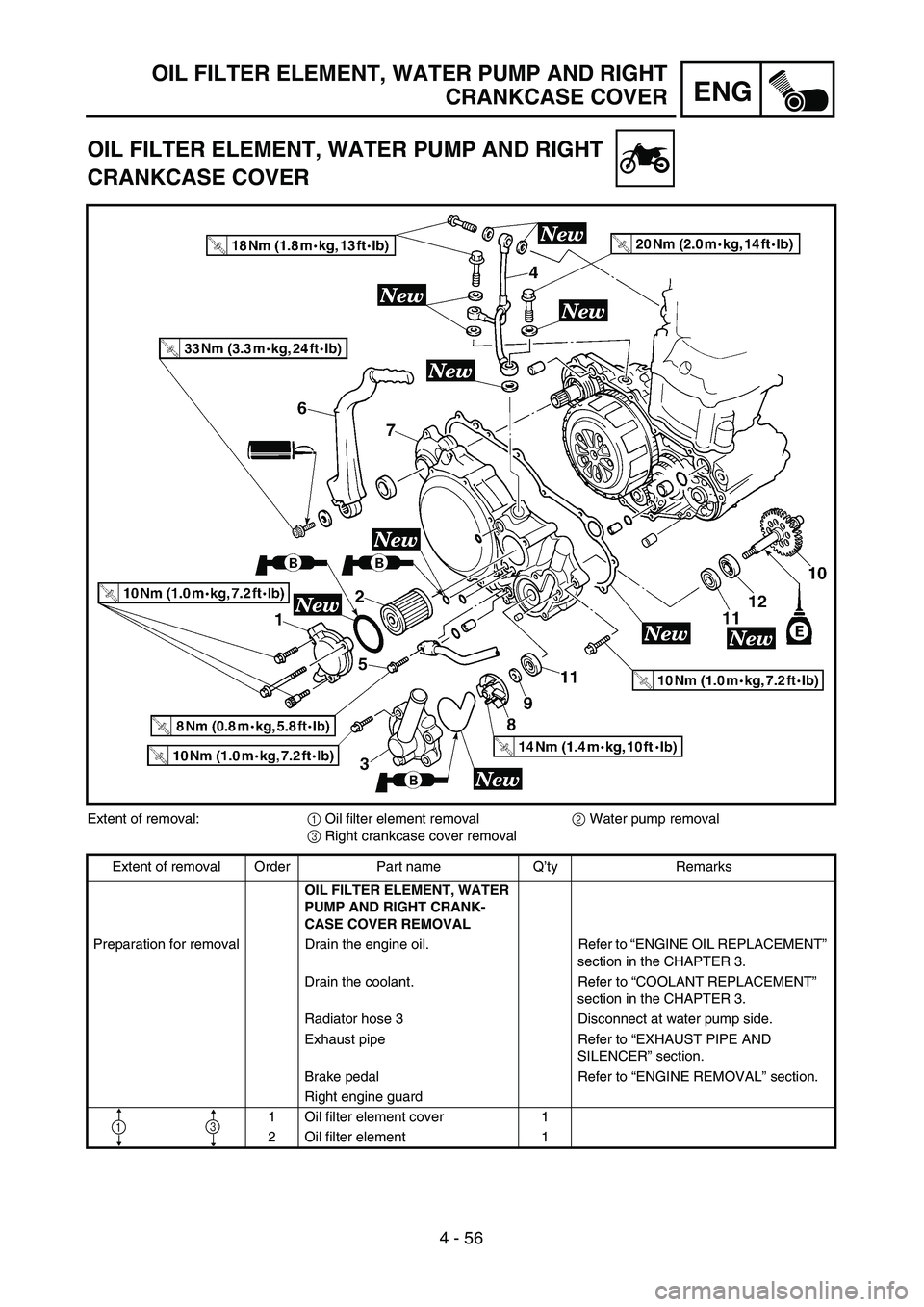

OIL FILTER ELEMENT, WATER PUMP AND RIGHT
CRANKCASE COVER
OIL FILTER ELEMENT, WATER PUMP AND RIGHT
CRANKCASE COVER
Extent of removal:1 Oil filter element removal2 Water pump removal
3 Right crankcase cover removal
Extent of removal Order Part name Q’ty Remarks
OIL FILTER ELEMENT, WATER
PUMP AND RIGHT CRANK-
CASE COVER REMOVAL
Preparation for removal Drain the engine oil. Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.
Drain the coolant. Refer to “COOLANT REPLACEMENT”
section in the CHAPTER 3.
Radiator hose 3 Disconnect at water pump side.
Exhaust pipe Refer to “EXHAUST PIPE AND
SILENCER” section.
Brake pedal Refer to “ENGINE REMOVAL” section.
Right engine guard
1 Oil filter element cover 1
2 Oil filter element 1
13
