2004 YAMAHA YZ250F engine

4 - 95
ENGCRANKCASE AND CRANKSHAFT
6. Tighten:
Hose guide 1
Clutch cable holder 2
Bolt (crankcase) 3
NOTE:
Tighten the crankcase tightening bolts in
stage, using a crisscross pattern.
T R..12 Nm (1.2 m · kg, 8.7 ft · lb)
7. Install:
Oil delivery pipe 2 1
O-ring 2
Bolt (oil delivery pipe 2) 3
NOTE:
Apply the lithium soap base grease on the O-
rings.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
8. Install:
Timing chain 1
Timing chain guide (intake side) 2
Bolt (timing chain guide) 3
9. Remove:
Sealant
Forced out on the cylinder mating sur-
face.
10. Apply:
Engine oil
To the crank pin, bearing and oil deliv-
ery hole.
11. Check:
Crankshaft and transmission operation.
Unsmooth operation → Repair.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)

4 - 96
ENGTRANSMISSION, SHIFT CAM AND SHIFT FORK
EC4H0000
TRANSMISSION, SHIFT CAM AND SHIFT FORK
Extent of removal:1 Shift fork, shift cam, main axle and drive axle removal
Extent of removal Order Part name Q’ty Remarks
TRANSMISSION, SHIFT CAM
AND SHIFT FORK REMOVAL
Preparation for removal Engine Refer to “ENGINE REMOVAL” section.
Separate the crankcase. Refer to “CRANKCASE AND CRANK-
SHAFT” section.
1 Main axle 1
Refer to “REMOVAL POINTS”. 2 Drive axle 1
3 Shift cam 1
4 Shift fork 3 1
5 Shift fork 2 1
6 Shift fork 1 1
7 Collar 1
1

4 - 100
ENGTRANSMISSION, SHIFT CAM AND SHIFT FORK
5. Install:
Shift fork 1 (L) 1
Shift fork 2 (C) 2
Shift fork 3 (R) 3
Shift cam 4
To main axle and drive axle.
NOTE:
Apply the molybdenum disulfide oil on the
shift fork grooves.
Mesh the shift fork #1 (L) with the 4th wheel
gear 5 and #3 (R) with the 5th wheel gear
7 on the drive axle.
Mesh the shift fork #2 (C) with the 3rd pinion
gear 6 on the main axle.
6. Install:
Transmission assembly 1
To left crankcase 2.
NOTE:
Apply the engine oil on the bearings and guide
bars.
7. Check:
Shifter operation
Transmission operation
Unsmooth operation → Repair.

5 - 1
CHAS

EC500000
CHASSIS
EC590000
FRONT WHEEL AND REAR WHEEL
EC598000
FRONT WHEEL
FRONT WHEEL AND REAR WHEEL
Extent of removal:
1
Front wheel removal
2
Wheel bearing removal
3
Brake disc removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
FRONT WHEEL REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING

Support the machine securely so there is no
danger of it falling over.
1 Brake hose cover 1
2 Bolt (brake hose holder) 2 Only loosening.
3 Bolt (axle holder) 4 Only loosening.
4 Nut (front wheel axle) 1
5 Front wheel axle 1
6 Front wheel 1
7 Collar 2
8 Oil seal 2
9 Bearing 2 Refer to “REMOVAL POINTS”.
10Brake disc
1
2
31
3

5 - 2
CHAS

EC598100
REAR WHEEL
Extent of removal:
1
Rear wheel removal
2
Wheel bearing removal
3
Brake disc removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removal
REAR WHEEL REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNING

Support the machine securely so there is no
danger of it falling over.
1 Nut (rear wheel axle) 1
2 Rear wheel axle 1
3 Drive chain puller 2
4 Rear wheel 1 Refer to “REMOVAL POINTS”.
5 Collar 2
6 Rear wheel sprocket 1
7 Oil seal 2
8 Circlip 1
9 Bearing 2 Refer to “REMOVAL POINTS”.
10Brake disc
1
2
31
3

FRONT WHEEL AND REAR WHEEL

5 - 10
CHASFRONT BRAKE AND REAR BRAKE

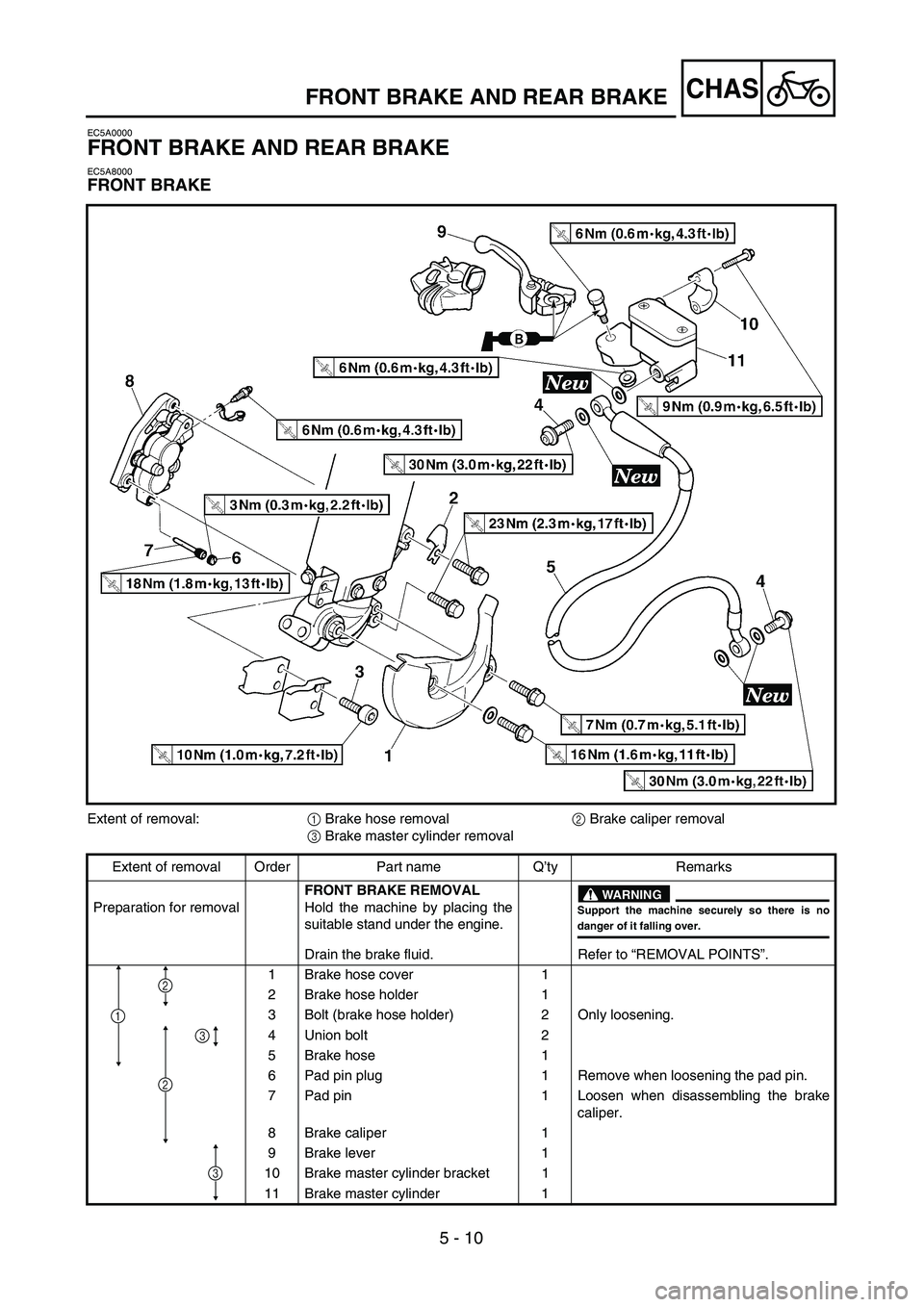

EC5A0000
FRONT BRAKE AND REAR BRAKE
EC5A8000
FRONT BRAKE
Extent of removal:1 Brake hose removal2 Brake caliper removal
3 Brake master cylinder removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalFRONT BRAKE REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNINGSupport the machine securely so there is nodanger of it falling over.
Drain the brake fluid. Refer to “REMOVAL POINTS”.
1 Brake hose cover 1
2 Brake hose holder 1
3 Bolt (brake hose holder) 2 Only loosening.
4 Union bolt 2
5 Brake hose 1
6 Pad pin plug 1 Remove when loosening the pad pin.
7 Pad pin 1 Loosen when disassembling the brake
caliper.
8 Brake caliper 1
9 Brake lever 1
10 Brake master cylinder bracket 1
11 Brake master cylinder 1
2
3
1
3
2

5 - 11
CHAS
EC5A8100
REAR BRAKE
Extent of removal:1 Brake master cylinder removal2 Brake hose removal
3 Brake caliper removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalREAR BRAKE REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNINGSupport the machine securely so there is nodanger of it falling over.
Rear wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Drain the brake fluid. Refer to “REMOVAL POINTS”.
1 Brake pedal 1
2 Brake master cylinder 1
3 Brake hose holder 2
4 Union bolt 2
5 Brake hose 1
6 Pad pin plug 1 Remove when loosening the pad pin.
7 Pad pin 1 Loosen when disassembling the brake
caliper.
8Brake caliper
1
3
1
321
FRONT BRAKE AND REAR BRAKE

5 - 26
CHASFRONT FORK
EC550000
FRONT FORK
Extent of removal:1 Front fork removal
Extent of removal Order Part name Q’ty Remarks
Preparation for removalFRONT FORK REMOVAL
Hold the machine by placing the
suitable stand under the engine.
WARNINGSupport the machine securely so there is nodanger of it falling over.
Front wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Front brake caliper Refer to “FRONT BRAKE AND REAR
BRAKE” section.
Number plate
Handlebar Refer to “HANDLEBAR” section.
1 Protector 1
2 Brake hose holder 2
3 Pinch bolt (upper bracket) 2 Only loosening.
4 Cap bolt 1Loosen when disassembling the front fork.
5 Pinch bolt (lower bracket) 2 Only loosening.
6 Front fork 1
1
