TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Multi-function display ......................3-5
Anti-theft alarm (optional) ...............3-7
Handlebar switches ........................3-7
Clutch lever .....................................3-9
Shift pedal .......................................3-9
Brake lever .....................................3-9
Brake pedal ..................................3-10
Fuel tank cap ................................3-10
Fuel ...............................................3-11
Catalytic converter ........................3-12
Seat ..............................................3-12
Storage compartment ...................3-13
Adjusting the shock absorber
assembly ...................................3-13
Sidestand ......................................3-14
Ignition circuit cut-off system ........3-15
PRE-OPERATION CHECKS..............4-1
Pre-operation check list ..................4-2OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing cowlings
and panels .................................. 6-5
Checking the spark plug ................. 6-7
Engine oil and oil filter element ...... 6-9
Coolant ......................................... 6-12
Replacing the air filter element and
cleaning the check hose ........... 6-15
Adjusting the engine idling
speed ........................................ 6-16
Adjusting the throttle cable free
play ........................................... 6-17
Tires .............................................. 6-17
Spoke wheels ............................... 6-19
Adjusting the clutch lever free
play ........................................... 6-20
Adjusting the rear brake light
switch ........................................ 6-21Checking the front and rear
brake pads ................................ 6-21
Checking the brake fluid level ...... 6-22
Drive chain slack .......................... 6-23
Lubricating the drive chain ........... 6-24
Checking and lubricating the
cables ....................................... 6-25
Checking and lubricating the
throttle grip and cable ............... 6-25
Checking and lubricating the
brake and clutch levers ............ 6-25
Lubricating the brake pedal ......... 6-26
Checking and lubricating the
sidestand .................................. 6-26
Checking the front fork ................. 6-27
Checking the steering .................. 6-27
Checking the wheel bearings ....... 6-28
Battery ......................................... 6-28
Replacing the fuses ..................... 6-30
Replacing the headlight bulb ....... 6-31
Replacing a turn signal light bulb
or the tail/brake light bulb ......... 6-32
Replacing an auxiliary light
bulb ........................................... 6-33
Supporting the motorcycle ........... 6-33
Front wheel .................................. 6-34
Rear wheel ................................... 6-35
Troubleshooting ........................... 6-37
Troubleshooting charts ................ 6-38

DESCRIPTION
2-3
2
EAU32240

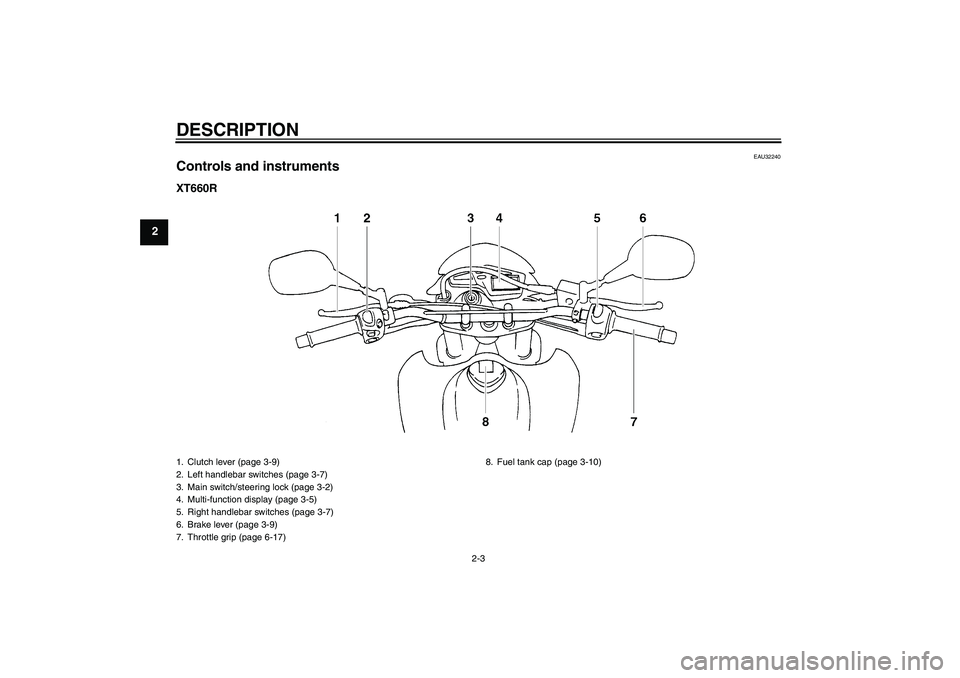

Controls and instrumentsXT660R1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Right handlebar switches (page 3-7)
6. Brake lever (page 3-9)
7. Throttle grip (page 6-17)8. Fuel tank cap (page 3-10)

DESCRIPTION
2-4
2 XT660X
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Main switch/steering lock (page 3-2)
4. Multi-function display (page 3-5)
5. Right handlebar switches (page 3-7)
6. Brake lever (page 3-9)
7. Throttle grip (page 6-17)
8. Fuel tank cap (page 3-10)

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
NOTE:This model is also equipped with a self-
diagnosis device for the immobilizer
system. If the immobilizer system is de-
fective, the indicator will start flashing
and the multi-function meter will display
an error code when the key is turned to
“ON”. (See “Self-diagnosis device” onpage 3-5 for details.)
EAUM1662
Multi-function display The multi-function display is equipped
with the following:

a speedometer (which shows the
riding speed)


an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)


a clock


a self-diagnosis device
NOTE:

Be sure to turn the key to “ON” be-
fore using the “SELECT” and “RE-
SET” buttons.


For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT”button for at least two seconds.
Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
If the fuel level warning light comes on
(see page 3-3), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
1. Multi-function display
2. Clock
3. Tripmeter 1
4. Odometer/fuel reserve tripmeter/tripmeter 2
5.“SELECT” button
6.“RESET” button
7. Speedometer

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3 from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter and
odometer modes in the following order:
F-TRIP → TRIP 1 → TRIP 2 → ODO →
F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second while the selected tripme-
ter is flashing. If you do not reset the
fuel reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
Turn the key to “ON”.
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button to fix
the hours, and the minute digits
will start flashing.4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button to fix
the minutes, and then release it to
start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the multi-function display
will indicate a two-digit error code (e.g.,
11, 12, 13).
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code (e.g., 51, 52, 53)
when the key is turned to “ON”.
NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12343
Handlebar switches Left1. Pass switch “”
2. Dimmer switch “/”
3. Turn signal switch “/”
4. Horn switch “”
5. Hazard switch “”

INDEX
AAir filter element and check hose,
replacing and cleaning ....................... 6-15
Anti-theft alarm (optional) ....................... 3-7
Auxiliary light bulb, replacing ................ 6-33BBattery .................................................. 6-28
Brake and clutch levers, checking
and lubricating .................................... 6-25
Brake fluid level, checking .................... 6-22
Brake lever ............................................. 3-9
Brake pedal .......................................... 3-10
Brake pedal, lubricating ........................ 6-26CCables, checking and lubricating .......... 6-25
Care ........................................................ 7-1
Catalytic converter ................................ 3-12
Clutch lever............................................. 3-9
Clutch lever free play, adjusting ........... 6-20
Coolant ................................................. 6-12
Coolant temperature warning light.......... 3-4
Cowlings and panels, removing and
installing ............................................... 6-5DDimmer switch ........................................ 3-8
Drive chain, lubricating ......................... 6-24
Drive chain slack .................................. 6-23EEngine break-in ...................................... 5-3
Engine idling speed .............................. 6-16
Engine oil and oil filter element............... 6-9
Engine stop switch.................................. 3-8
Engine trouble warning light ................... 3-4
FFront and rear brake pads, checking .... 6-21
Front fork, checking...............................6-27
Fuel ....................................................... 3-11
Fuel consumption, tips for reducing ........ 5-3
Fuel level warning light............................ 3-4
Fuel tank cap......................................... 3-10
Fuses, replacing .................................... 6-30HHandlebar switches ................................. 3-7
Hazard switch.......................................... 3-8
Headlight bulb, replacing....................... 6-31
High beam indicator light......................... 3-4
Horn switch ............................................. 3-8IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-15
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1MMain switch/steering lock ........................ 3-2
Model label .............................................. 9-2
Multi-function display...............................3-5NNeutral indicator light .............................. 3-3PParking ....................................................5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and lubrication
chart ......................................................6-2Pre-operation check list .......................... 4-2
RRear brake light switch, adjusting ......... 6-21SSafety information ................................... 1-1
Seat ...................................................... 3-12
Shifting .................................................... 5-2
Shift pedal ............................................... 3-9
Shock absorber assembly, adjusting .... 3-13
Sidestand .............................................. 3-14
Sidestand, checking and lubricating ..... 6-26
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Starting the engine.................................. 5-1
Start switch ............................................. 3-8
Steering, checking ................................ 6-27
Storage ................................................... 7-3
Storage compartment ........................... 3-13
Supporting the motorcycle .................... 6-33TThrottle cable free play, adjusting ......... 6-17
Throttle grip and cable, checking
and lubricating .................................... 6-25
Tires ...................................................... 6-17
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-37
Troubleshooting charts ......................... 6-38
Turn signal indicator light ........................ 3-3
Turn signal light bulb or tail/brake
light bulb, replacing............................. 6-32
Turn signal switch ................................... 3-8VVehicle identification number .................. 9-1
