Page 20 of 120
1-13
E
Do not attempt to modify this watercraft!
Modifications to your watercraft may
reduce safety and reliability, and render
the watercraft unsafe or illegal for use.
Attach the engine shut-off cord (lanyard)
to wrist and keep it free from the handle-
bars so that the engine stops if the opera-
tor falls off. After riding, remove the
engine shut-off cord from the watercraft to
avoid accidental starting or unauthorized
use by children or others.
Scan carefully for swimmers and stay
away from swimming areas. Swimmers
are hard to see and you could acciden-
tally hit someone in the water.
Avoid being hit by another boat! You
should always take the responsibility to
watch for traffic; other boaters may not be
watching for you. If they do not see you,
or you maneuver more quickly than other
boaters expect, you risk a collision.
Maintain a safe distance from other boats
or watercraft, and also watch for boats’ ski
ropes or fishing lines. Obey the “Safe
boating rules,” and be sure to check
behind you before making a turn. (See
Safe boating rules on page 1-17.)
EJU01382
Recommended equipment
The following items should be carried on
board your watercraft:
Sound-signaling device
You should carry a whistle or other sound-
signaling device that can be used to sig-
nal other boats.
Visual distress signals
It is recommended that an authority-
approved pyrotechnic device be stored in
a waterproof container on your watercraft.
A mirror can also be used as an emer-
gency signal. Contact your Yamaha
dealer for more information.
Watch
A watch is helpful so you will know how
long you have been operating.
Towline
A towline can be used to tow a disabled
watercraft in an emergency.
UF0M75.book Page 13 Thursday, May 29, 2003 9:53 AM
Page 36 of 120
2-11
E
EJU01130
Cooling water pilot outlet
This watercraft is equipped with a cooling
water pilot outlet.
When the engine is running, cooling
water is circulated in the engine, and then it
is discharged from the pilot outlet.
To check for proper operation of the cool-
ing system, check that water is being dis-
charged from the pilot outlet. If water is not
being discharged from the outlet, cooling
water may not be circulating in the engine.
When this occurs, stop the engine and check
for the cause. (See pages 2-13 and 5-4 for
further instructions.)
NOTE:@ If the cooling water passages are dry, it will
take about 20 seconds for the water to reach
the outlet after the engine is started.
@
EJU01021
Steering system
Your watercraft can be steered by turning
the handlebars 1 the same direction you
wish to travel.
When the handlebars are turned, the
angle of the jet thrust nozzle 2 is changed,
and the direction of the watercraft is
changed accordingly. Since the strength of
the jet thrust determines the speed and
direction of a turn, the throttle must always
be open when attempting a turn, except at
trolling speed.
UF0M75.book Page 11 Thursday, May 29, 2003 9:53 AM
Page 38 of 120
2-13
E
EJU01131
Engine overheat warning
system
This model is equipped with an engine
overheat warning system.
If the engine starts to overheat, the
engine speed will be limited to about
3,400 r/min.
When this occurs, check for water dis-
charge at the cooling water pilot outlet. If
there is no discharge of water, reduce the
engine speed and beach the watercraft, and
then check the intake grate and impeller for
clogging.
WARNING@ Before attempting to remove weeds or
debris from the intake grate or impeller,
shut the engine off and remove the clip
from the engine shut-off switch. Severe
injury or death could result from coming
in contact with the rotating parts of the
jet pump.
@
CAUTION:@ If you cannot locate and correct the
cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
higher speeds could result in severe
engine damage.
@
UF0M75.book Page 13 Thursday, May 29, 2003 9:53 AM
Page 39 of 120
2-14
E
EJU01132
Oil level warning lamp
If the oil remaining in the tank drops to
about 1.2 L (0.31 US gal, 0.26 Imp gal) or
the oil filter is clogged, the oil level warning
lamp begins to blink.
If the oil level warning lamp begins to
blink, refill with engine oil as soon as possi-
ble.
NOTE:@ The lamp will light up for 2 seconds after
starting the engine to check the lamp
operation.
If the warning lamp blinks with adequate
oil in the tank, check for a clogged oil fil-
ter.
@
UF0M75.book Page 14 Thursday, May 29, 2003 9:53 AM
Page 43 of 120
E
3
EJU01040
OPERATION
Fuel and oil ............................................... 3-1
Gasoline ................................................. 3-1
2-stroke engine oil .................................. 3-2
Filling the fuel tank ................................. 3-3
Filling the oil tank ................................... 3-4
Pre-operation checks .............................. 3-5
Pre-operation check list ......................... 3-5
Pre-operation check points .................... 3-6
Operation ................................................ 3-14
Engine break-in .................................... 3-14
Starting the engine ............................... 3-16
Stopping the engine ............................. 3-19
Leaving the watercraft ......................... 3-19
Operating your watercraft .................... 3-20
Getting to know your watercraft ........... 3-20
Learning to operate your watercraft .... 3-20
Riding watercraft with passengers ...... 3-21
Starting the watercraft .......................... 3-22
Boarding and starting in deep water ... 3-24
Capsized watercraft ............................. 3-27
Turning the watercraft .......................... 3-29
Stopping the watercraft ........................ 3-31
Beaching the watercraft ....................... 3-32
Docking the watercraft ......................... 3-32
Rough water operation ........................ 3-33
Post-operation checks ......................... 3-34
Transporting .......................................... 3-36
UF0M75.book Page 1 Thursday, May 29, 2003 9:53 AM
Page 48 of 120
3-5
E
EJU01346

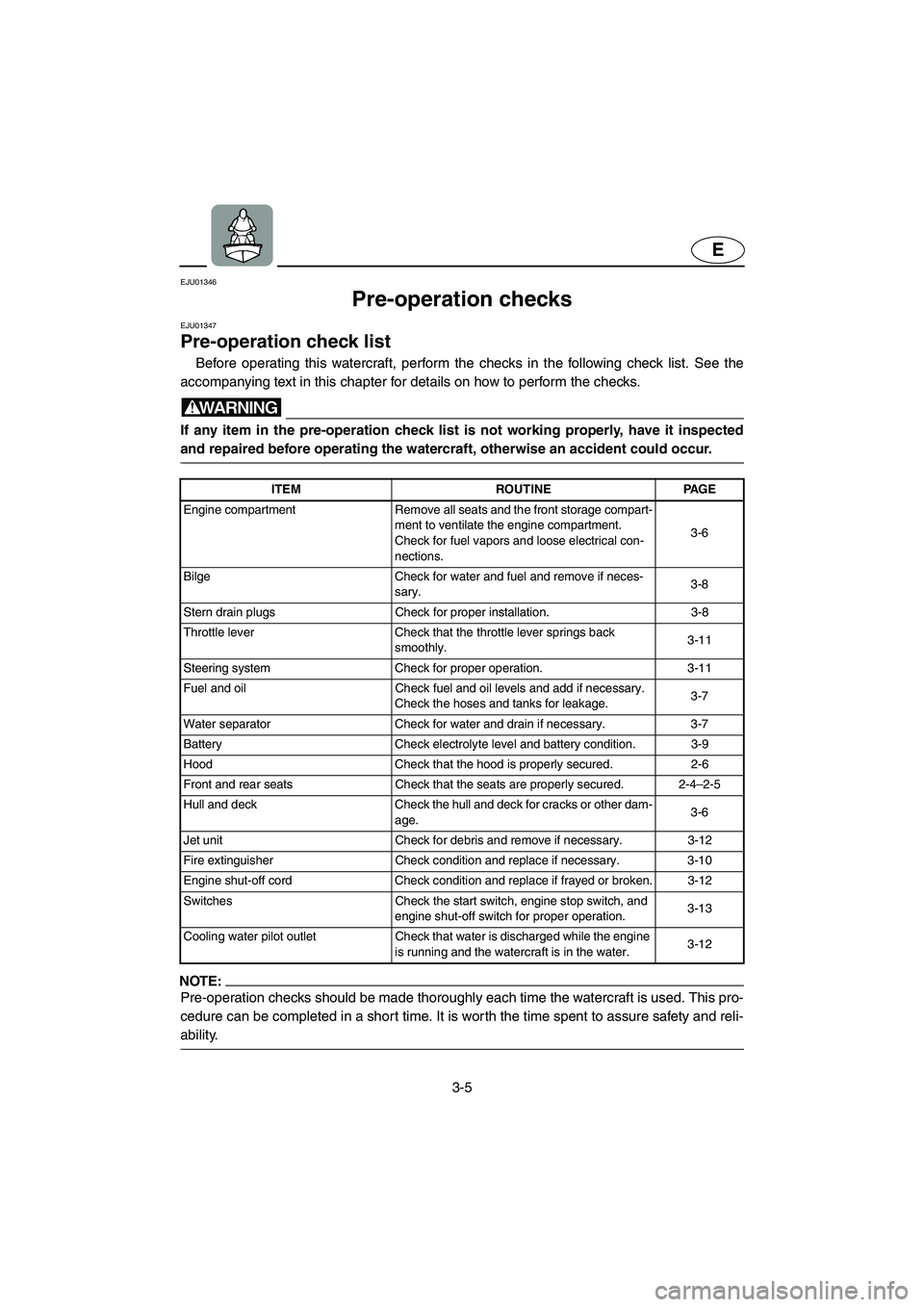

Pre-operation checks
EJU01347
Pre-operation check list
Before operating this watercraft, perform the checks in the following check list. See the
accompanying text in this chapter for details on how to perform the checks.
WARNING@ If any item in the pre-operation check list is not working properly, have it inspected
and repaired before operating the watercraft, otherwise an accident could occur.
@
NOTE:@ Pre-operation checks should be made thoroughly each time the watercraft is used. This pro-
cedure can be completed in a short time. It is worth the time spent to assure safety and reli-
ability.
@
ITEM ROUTINE PAGE
Engine compartment Remove all seats and the front storage compart-
ment to ventilate the engine compartment.
Check for fuel vapors and loose electrical con-
nections.3-6
Bilge Check for water and fuel and remove if neces-
sary.3-8
Stern drain plugs Check for proper installation. 3-8
Throttle lever Check that the throttle lever springs back
smoothly.3-11
Steering system Check for proper operation. 3-11
Fuel and oil Check fuel and oil levels and add if necessary.
Check the hoses and tanks for leakage.3-7
Water separator Check for water and drain if necessary. 3-7
Battery Check electrolyte level and battery condition. 3-9
Hood Check that the hood is properly secured. 2-6
Front and rear seats Check that the seats are properly secured. 2-4–2-5
Hull and deck Check the hull and deck for cracks or other dam-
age.3-6
Jet unit Check for debris and remove if necessary. 3-12
Fire extinguisher Check condition and replace if necessary. 3-10
Engine shut-off cord Check condition and replace if frayed or broken. 3-12
Switches Check the start switch, engine stop switch, and
engine shut-off switch for proper operation.3-13
Cooling water pilot outlet Check that water is discharged while the engine
is running and the watercraft is in the water.3-12
UF0M75.book Page 5 Thursday, May 29, 2003 9:53 AM
Page 49 of 120
3-6
E
EJU01048
Pre-operation check points
EJU01728
Engine compartment
Ventilate the engine compar tment before
each use.
To ventilate the engine compartment,
remove the front seat and front storage com-
partment. (See page 2-5 for front seat, and
2-15 for front storage compartment.) Allow
the engine compartment to remain open for
a few minutes to allow any fuel vapors to
escape. Also, check for loose electrical con-
nections.
WARNING@ Failure to ventilate the engine compart-
ment could result in fire or explosion. Do
not start the engine if there is a fuel leak
or a loose electrical connection.
@
EJU20570
Hull and deck
Check the hull and deck for cracks or
other damage. If any damage is found, have
a Yamaha dealer repair the watercraft.
UF0M75.book Page 6 Thursday, May 29, 2003 9:53 AM
Page 51 of 120
3-8
E
EJU10531
Bilge
Check for moisture and fuel residue in the
bilge.
Excessive water in the bilge can splash
into the carburetor and engine which could
cause engine damage.
To remove water from the bilge:
1. Remove the stern drain plugs.
2. Raise the bow of the watercraft until the
water drains.
3. After the water has drained, wipe the
bilge with dry rags to make sure that the
bilge is thoroughly dry.
4. Install the drain plugs.
EJU20581
Stern drain plug
Check the stern drain plugs for proper
installation.
CAUTION:@ Make sure that the stern drain plugs
are tightened securely before launch-
ing the watercraft. Otherwise, water
may flood the engine compartment
and cause the watercraft to submerge.
Clean any foreign materials, such as
dirt or sand, from the drain plug
threads before installing the drain
plugs. Otherwise, the drain plugs may
be damaged and water may enter the
engine compartment.
@
UF0M75.book Page 8 Thursday, May 29, 2003 9:53 AM
