2004 YAMAHA WOLVERINE 400 light

8-123 1. Headlight bulb holder cover
1. Cache de la fixation de l’ampoule de phare
1. Cubierta del portabombillas de la bombilla del faro
1. Headlight bulb holder
1. Fixation d’ampoule
1. Porta bombillas del faro
EBU13230
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the bulb holder cover at the rear of
the headlight by pulling it off.
2. Remove the headlight bulb holder by turning
it counterclockwise.
U5TE61.book Page 123 Tuesday, May 6, 2003 4:40 PM

8-125 1. Do not touch the glass part of the bulb.
1. Ne pas toucher le verre de l’ampoule.
1. No tocar la parte de cristal de la bombilla.
3. Remove the defective bulb by pushing it in
and turning it counterclockwise.
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _4. Insert a new headlight bulb into the bulb hold-
er, push it in, and then turn the bulb clockwise
until it stops.CAUTION:_ Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of the
bulb, and the bulb life will be adversely affect-
ed. Thoroughly clean off any dirt and finger-
prints on the headlight bulb using a cloth
moistened with alcohol or thinner. _5. Install the bulb holder by turning it clockwise.
6. Install the bulb holder cover at the rear of the
headlight.
U5TE61.book Page 125 Tuesday, May 6, 2003 4:40 PM

8-127 1. Headlight beam adjusting screw
1. Vis de réglage du faisceau de phare
1. Tornillo de ajuste de la luz del faro
EBU01089
Headlight beam adjustmentCAUTION:_ It is advisable to have a Yamaha dealer make
this adjustment. _To raise the beam, turn the adjusting screw in di-
rection
a.
To lower the beam, turn the adjusting screw in di-
rection
b.
EBU01105
Tail/brake light bulb replacement
If the tail/brake light bulb burns out, have a
Yamaha dealer replace it.
U5TE61.book Page 127 Tuesday, May 6, 2003 4:40 PM

8-129
EBU00413
Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U5TE61.book Page 129 Tuesday, May 6, 2003 4:40 PM

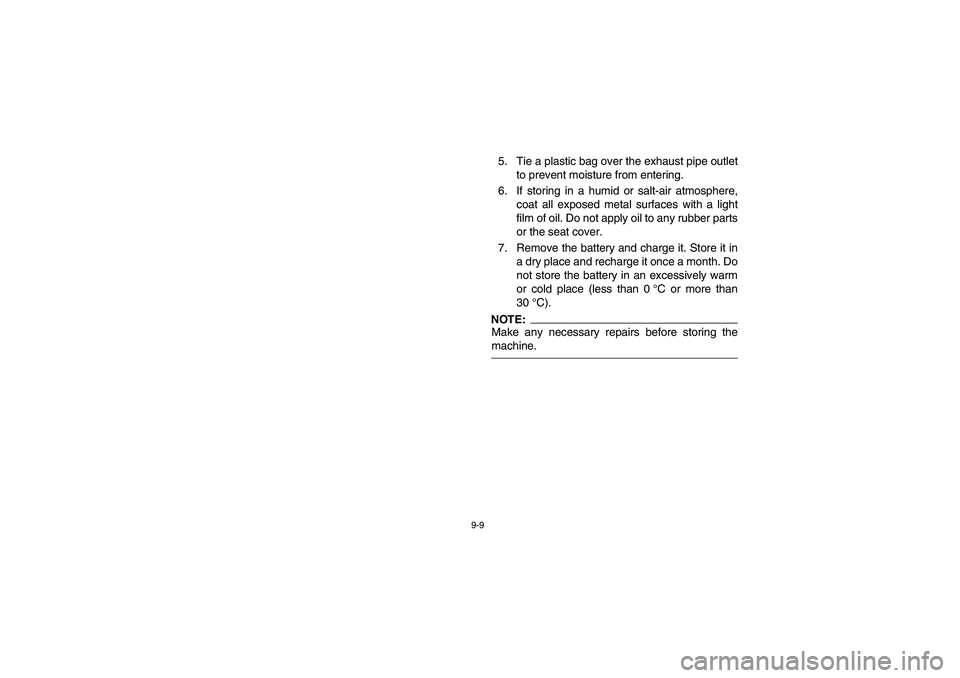

9-9
5. Tie a plastic bag over the exhaust pipe outlet
to prevent moisture from entering.
6. If storing in a humid or salt-air atmosphere,
coat all exposed metal surfaces with a light
film of oil. Do not apply oil to any rubber parts
or the seat cover.
7. Remove the battery and charge it. Store it in
a dry place and recharge it once a month. Do
not store the battery in an excessively warm
or cold place (less than 0°C or more than
30°C).NOTE:Make any necessary repairs before storing the
machine.
U5TE61.book Page 9 Tuesday, May 6, 2003 4:40 PM

10-5
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring / oil damper
Rear shock absorber Coil spring / oil damper
Wheel travel:
Front wheel travel 160 mm
Rear wheel travel 180 mm
Electrical:
Ignition system DC-C.D.I.
Generator system A.C. magneto
Battery type YTX14AH (For Europe)
YTX20L-BS (For Oceania)
Battery voltage, capacity 12 V, 12 Ah (For Europe)
12 V, 18 Ah (For Oceania)
Headlight type: Krypton bulbModel YFM400FA
U5TE61.book Page 5 Tuesday, May 6, 2003 4:40 PM

10-6
Bulb voltage, wattage
× quantity:
Headlight 12 V, 30/30 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Meter lighting 14 V, 3 W
× 1
Neutral indicator light 12 V, 1.7 W
× 1
Reverse indicator light 12 V, 1.7 W
× 1
Coolant temperature warning light 12 V, 1.7 W
× 1
Four-wheel-drive indicator light 12 V, 1.7 W
× 1
Fuse:
Main fuse 30 A
Headlight fuse 15 A
Ignition fuse 10 A
Auxiliary DC jack fuse 10 A
Four-wheel-drive fuse 3 A
Signaling system fuse 10 AModel YFM400FA
U5TE61.book Page 6 Tuesday, May 6, 2003 4:40 PM
