2004 YAMAHA KODIAK 450 engine

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ...................................... 4-3
Speedometer unit ................................. 4-9
Fuel gauge ......................................... 4-15
Handlebar switches ............................ 4-17
Throttle lever ...................................... 4-29
Speed limiter ...................................... 4-31
Front brake lever ................................ 4-33
Rear brake pedal and lever ................ 4-35
Drive select lever ................................ 4-37
Recoil starter ...................................... 4-37
1234
Fuel tank cap ..................................... 4-39
Fuel cock............................................ 4-41
Starter (choke) ................................... 4-43
Seat.................................................... 4-45
Storage compartment ........................ 4-47
Front carrier ....................................... 4-49
Rear carrier ........................................ 4-49
Front shock absorber adjustment ...... 4-51
Rear shock absorber adjustment ....... 4-55
Auxiliary DC jack ................................ 4-59
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Differential gear oil ............................. 5-19
Throttle lever ...................................... 5-19
Fittings and fasteners......................... 5-19
Lights ................................................. 5-21
Switches............................................. 5-21
Tires ................................................... 5-23
How to measure tire pressure ............ 5-27
Tire wear limit..................................... 5-29
5
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-17
Parking ................................................6-19
Parking on a slope ..............................6-21
Accessories and loading .....................6-23
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-15
Engine oil ............................................ 8-31
Final gear oil ....................................... 8-41
Differential gear oil.............................. 8-47
Cooling system ................................... 8-53
Changing the coolant.......................... 8-57
Axle boots ........................................... 8-63
Spark plug inspection ......................... 8-65
Air filter element cleaning ................... 8-71
Carburetor adjustment ........................ 8-81
Idle speed adjustment ........................ 8-83
Valve clearance adjustment ............... 8-85
Throttle lever adjustment .................... 8-87
Front brake pad inspection ................. 8-89
Rear brake pad inspection.................. 8-89
Inspecting the brake fluid level ........... 8-91
Brake fluid replacement ...................... 8-95
Front brake adjustment....................... 8-97
Rear brake lever adjustment .............. 8-99
Adjusting the rear brake light
switch ............................................. 8-103
Cable inspection and lubrication....... 8-105
8
U5ND60.book Page 2 Friday, May 10, 2002 12:10 PM

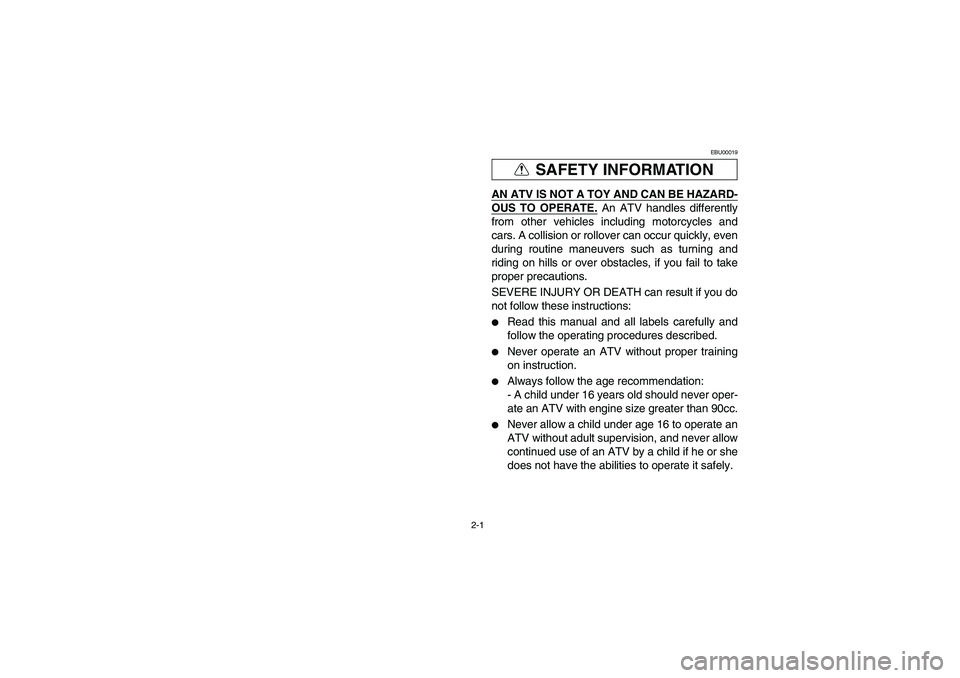

2-1
SAFETY INFORMATION
EBU00019
AN ATV IS NOT A TOY AND CAN BE HAZARD-OUS TO OPERATE.
An ATV handles differently
from other vehicles including motorcycles and
cars. A collision or rollover can occur quickly, even
during routine maneuvers such as turning and
riding on hills or over obstacles, if you fail to take
proper precautions.
SEVERE INJURY OR DEATH can result if you do
not follow these instructions:


Read this manual and all labels carefully and
follow the operating procedures described.


Never operate an ATV without proper training
on instruction.


Always follow the age recommendation:
- A child under 16 years old should never oper-
ate an ATV with engine size greater than 90cc.


Never allow a child under age 16 to operate an
ATV without adult supervision, and never allow
continued use of an ATV by a child if he or she
does not have the abilities to operate it safely.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

2-15
WARNING
_

Always turn off the engine when refueling.


Do not refuel right after the engine has
been running and is still very hot.


Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or while in the vicini-
ty of sparks, open flames, or other sources
of ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.


When transporting the machine in another
vehicle, be sure it is kept upright and that
the fuel cock is in the “OFF” position. Oth-
erwise, fuel may leak out of the carburetor
or fuel tank.


Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
_
U5ND60.book Page 15 Friday, May 10, 2002 12:10 PM

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Rear brake fluid reservoir
5. Radiator cap
6. Front spring preload
adjusting ring
7. V-belt case
8. Brake pedal
9. Front spring preload
adjusting ring
10. Fuel cock
11. Air filter case
12. Fuses
13. Tail/brake light14. V-belt cooling duct check
hose
15. Coolant reservoir
16. Oil filter cartridge
17. Engine oil dipstick
18. Rear brake lever
19. Left handlebar switches
20. Starter (choke)
21. Horn switch
22. Drive select lever
23. Speedometer unit
24. Main switch
25. Fuel tank cap
26. Auxiliary DC jack
27. Right handlebar switch
28. Throttle lever
29. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

4-1 1. Main switch
1. Contacteur à clé
1. Interruptor principal
EBU00040
CONTROL FUNCTIONS
EBU00942
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights and taillight come on when the light
switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
U5ND60.book Page 1 Friday, May 10, 2002 12:10 PM

4-5 1. Differencial gear lock indicator light “DIFF. LOCK”
2. Low-range indicator light “L”
3. High-range indicator light “H” 4. Neutral indicator light “N”
5. Reverse indicator light “R” 6. Park indicator light “P”
7. Differencial gear lock indicator “ ”
8. Coolant temperature warning light “ ”
1. Témoin de blocage du différentiel “DIFF. LOCK”
2 Témoin du rapport inférieur “L”
3. Témoin du rapport supérieur “H” 4. Témoin de point mort “N”
5. Témoin de marche arrière “R”
6. Témoin de stationnement “P”
7. Indicateur de blocage du différentiel “ ”
8. Témoin d’avertissement de la température du liquide de
refroidissement “ ”
1. Luz indicadora de bloqueo del diferencial “DIFF. LOCK”
2 Luz indicadora de margen bajo “L”
3. Luz indicadora de margen alto “H”
4. Luz de control de punto muerto “N”
5. Luz de control de marcha atrás “R”
6. Luz indicadora de estacionamiento “P”
7. Indicadora de bloqueo del diferencial “ ”
8. Luz de aviso de la temperatura del refrigerante “ ”
DIFF.
LOCKDIFF.
LOCK
DIFF.
LOCK
EBU00602
Reverse indicator light “R”
This indicator light comes on when the transmis-
sion is in reverse.
EBU00609
Park indicator light “P”
This indicator light comes on when the drive select
lever is in the “P” (park) position.
EBU00860
Coolant temperature warning light “ ”
When the coolant temperature reaches a specified
level, this light comes on to warn that the coolant
temperature is too hot. If the light comes on during
operation, stop the engine as soon as it is safe to
do so and allow the engine to cool down for about
10 minutes.
E-4.fm Page 5 Tuesday, September 17, 2002 9:21 AM

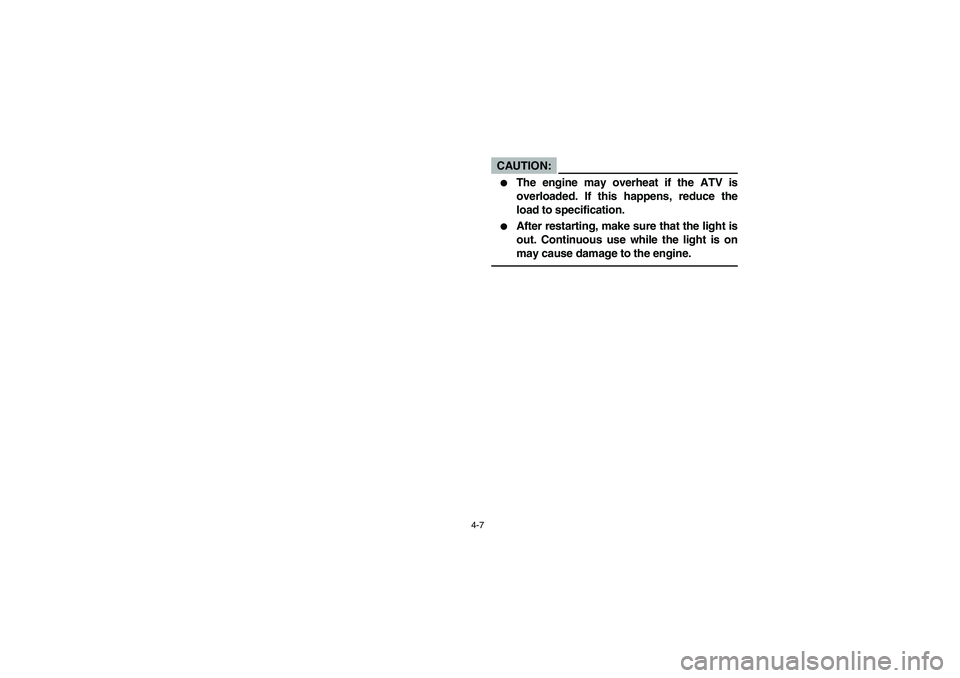

4-7
CAUTION:_

The engine may overheat if the ATV is
overloaded. If this happens, reduce the
load to specification.


After restarting, make sure that the light is
out. Continuous use while the light is on
may cause damage to the engine.
_
