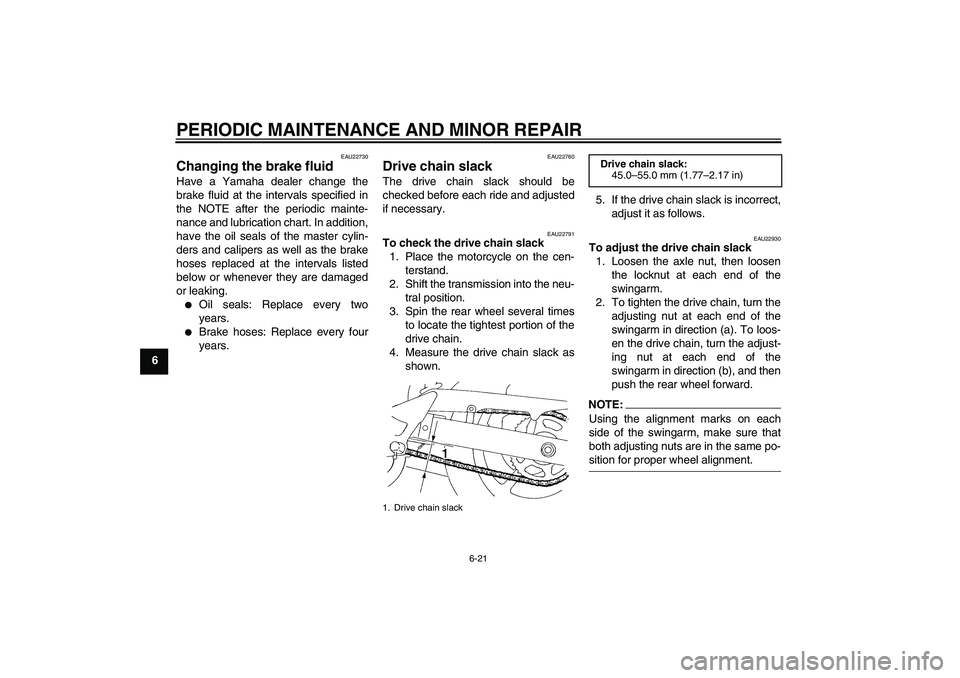

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU22730
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake hoses: Replace every four
years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22791
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.5. If the drive chain slack is incorrect,
adjust it as follows.
EAU22930
To adjust the drive chain slack
1. Loosen the axle nut, then loosen
the locknut at each end of the
swingarm.
2. To tighten the drive chain, turn the
adjusting nut at each end of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing nut at each end of the
swingarm in direction (b), and then
push the rear wheel forward.NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both adjusting nuts are in the same po-sition for proper wheel alignment.
1. Drive chain slack
Drive chain slack:
45.0–55.0 mm (1.77–2.17 in)
