Page 79 of 127
2 0 0 4
VOLVO V70
Chapter 8 - Maintenance/Servicing
pg. 117 Maintenance/Servicing
Fuses118
Replacing bulbs122
Paint touch up128
Washing the car129
Cleaning the upholstery130
Maintenance service, Warranty131
Fuel/emissions systems132
Drive belt, Coolant133
Emissions maintenance134
Washer fluid reservoir, Hoisting the car135
Opening the hood, Engine compartment136
Engine oil137
Power steering/Brake fluid reservoirs139
Battery maintenance140
Replacing wiper blades142
pg. 118 Fuses
ProCarManuals.com
Page 100 of 127
Volume: 7.9 US qts (7.5 liters)
Cooling system
Type: Positive pressure, closed system. The thermostat begins to open at 194 °F (90 °C)
Coolant: Volvo original coolant/antifreeze
Power steering fluid
ATF fluid
Volume: 0.95 US qts (0.9 liters)
Brake fluid
DOT 4+ boiling point >536°F(280°C), P/N 9437433
Volume: 0.64 US qts (0.6 liters)
Climate control system - refrigerant (R 134a)
Oil: PAG
Volume: 2.2 lbs (1,000 g) R134a
Fuel
Minimum octane requirement - AKI 87 (RON 91)
Fuel tank volume:
Front wheel drive models:18.5 US gal. (70 liters)
All Wheel Drive models: 19 US gal. (72 liters)
V70R: 18 US gal. (68 liters)
Washer fluid reservoir
Volume: 4.7 US qts (4.5 liters)
All specifications are subject to change without prior notice.
pg. 149 Fuel system, Distributor ignition system, Suspension
Fuel system
The engine is equipped with a multiport fuel injection system.
Distributor ignition system
Firing order: 1-2-4-5-3
Electronic ignition setting: Not adjustable
Spark plugs: Champion RC8PYP 8 (or equivalent)
ProCarManuals.com
Page 121 of 127

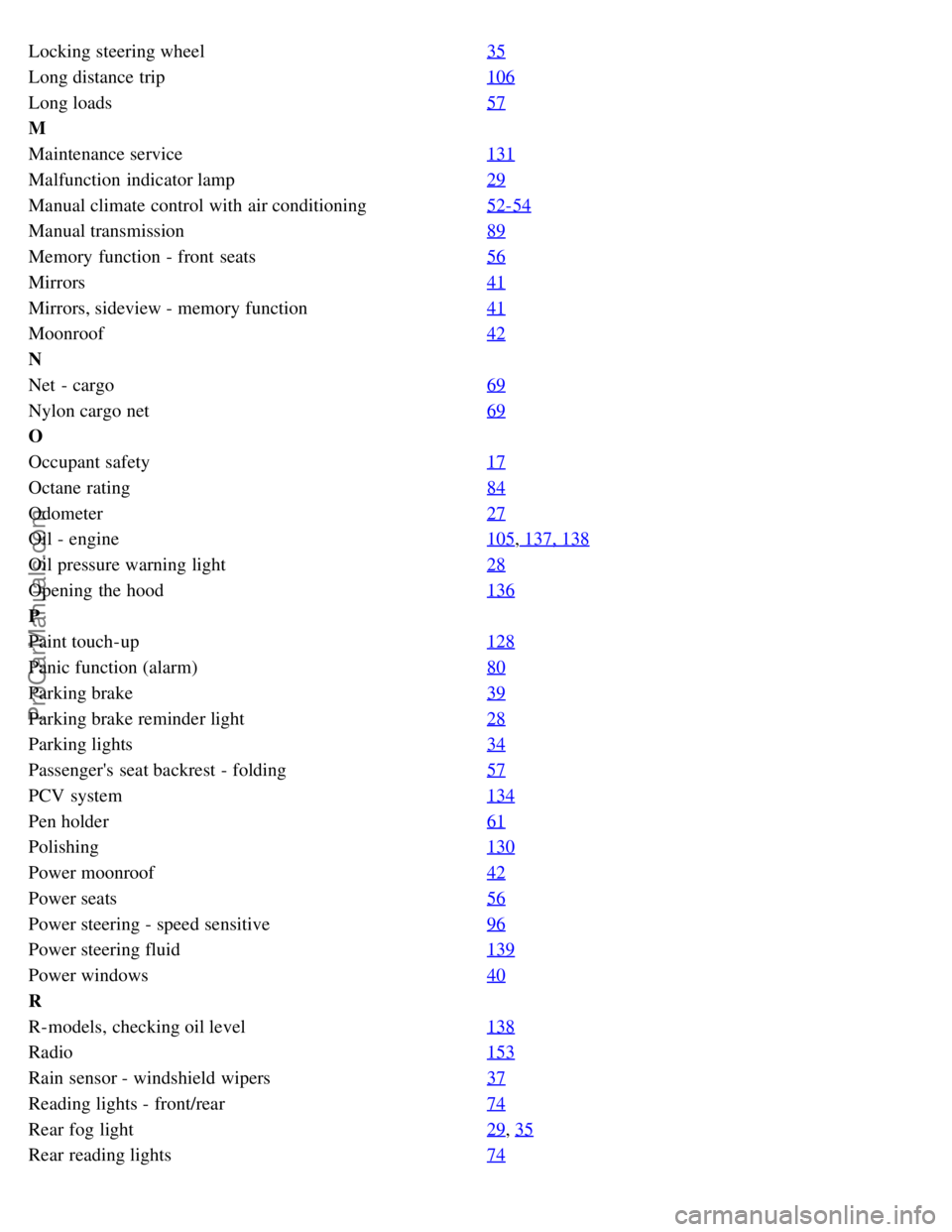

Locking steering wheel35
Long distance trip106
Long loads57
M
Maintenance service131
Malfunction indicator lamp29
Manual climate control with air conditioning52-54
Manual transmission89
Memory function - front seats56
Mirrors41
Mirrors, sideview - memory function41
Moonroof42
N
Net - cargo69
Nylon cargo net69
O
Occupant safety17
Octane rating84
Odometer27
Oil - engine105, 137, 138
Oil pressure warning light28
Opening the hood136
P
Paint touch-up128
Panic function (alarm)80
Parking brake39
Parking brake reminder light28
Parking lights34
Passenger's seat backrest - folding57
PCV system134
Pen holder61
Polishing130
Power moonroof42
Power seats56
Power steering - speed sensitive96
Power steering fluid139
Power windows40
R
R-models, checking oil level138
Radio153
Rain sensor - windshield wipers37
Reading lights - front/rear74
Rear fog light29, 35
Rear reading lights74
ProCarManuals.com
Page 126 of 127
the vehicle and others sharing the roadway. Avoiding distractions is part of that responsibility.
The following should be checked regularly: *
1 Washer fluid reservoir should be filled with water and solvent (wintertime: windshield washer anti-freeze). See
page 135.
2 Power steering - When cold, the level must not be above the COLD mark and when hot it must not be above the
HOT mark. Top up if the level drops to the ADD mark with ATF fluid. See page 139.
3 Coolant level should be between the expansion tank marks. Mixture: 50% anti-freeze and 50% water. See page 133.
4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx.
1.6 US qts (1.5 liters). See page 138.
5 Brake fluid - check, without removing the cap, that the level is above the MIN mark. Use brake fluid DOT 4+. See
page 139.
* Engine oil should be checked each time the car is refuelled.
Octane rating, see page 84.
Tire pressure, see label located on the inside of the fuel tank cover.
