2004 TOYOTA SIENNA ECO mode

04 SIENNA_U (L/O 0408)
188
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
Tw o −wheel drive models only—The “TRAC
OFF” indicator light will come on when the
“VSC” warning light comes on even if the
“TRAC OFF” switch is not pushed. The tire pressure warning system is de-
signed to provide warning when tire
pressure of any one of the tires is criti-
cally low while the vehicle is moving.
The low tire pressure warning light
comes on to inform you that such low
tire pressure may hamper driving.
This system is not designed to operate
when the vehicle is stopped. Therefore,
check the tire pressure regularly. The rec-
ommended cold tire pressure, tire size
and the vehicle capacity weight are on the
tire pressure label. (For instructions, see
“Checking tire inflation pressure” on page
463 in Section 7
−2.)
Installed tires should be of the specified
size. They should be of the same size
and construction. If tires other than the
specified size are used, or if tires of dif-
ferent sizes or constructions are mixed,
the tire pressure warning system will not
function properly.
LOW TIRE PRESSURE WARNING LIGHT
This light comes on when the ignition key
is turned to the “ON” position. It goes off
after a few seconds. This indicates that
the tire pressure warning system is func-
tioning properly.
If the low tire pressure warning light
comes on or blinks while driving, do
the following.
If the warning light comes on:
Vehicles with standard tires—
Adjust the tire pressure to the specified
level as soon as possible. (See “Tires”
on page 491 in Section 8.)
Tire pressure warning system

04 SIENNA_U (L/O 0408)
204
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Select the vehicle−to −vehicle distance con-
sidering traffic conditions. The approximate
vehicle −to −vehicle distance based on time
interval when driving at 88 km/h (55 mph)
is shown below:
LONG about 75 m (245 ft.)
. . . . . . . . . . .
MIDDLE about 50 m (165 ft.)
. . . . . . . . . .
SHORT about 30 m (100 ft.)
. . . . . . . . . .
If the vehicle speed is slower than 88
km/h (55 mph), the distance will be short-
er than the above.
During long downhill driving, the vehicle −
to −vehicle distance will be shorter than
the selected distance.
BRAKING CONTROL
Dynamic laser cruise control is not a colli-
sion avoidance system. If the approach
warning is activated, depress the brake
pedal to decelerate to ensure an appropri-
ate vehicle− to−vehicle distance.
If you are getting closer to the vehicle
ahead at a relatively higher speed than
that of the vehicle ahead or if engine
braking cannot be applied properly, brak-
ing control is automatically activated. At
this time, the display flashes. Braking control is operating only when the
vehicle
−to −vehicle distance control mode
is selected and your vehicle speed ex-
ceeds about 40 km/h (25 mph). If the
speed decreases below about 40 km/h (25
mph), braking control will cease, requiring
the manual application of brakes.
CAUTION
Braking control will not ensure that
your vehicle will reduce speed ap-
propriately. You must depress the
brake pedal to slow down, ensuring
collision avoidance or that sufficient
vehicletovehicle distance is main-
tained.
APPROACH WARNING
While you are cruising in the vehicle −to −
vehicle distance control mode, if the ve-
hicle ahead decelerates abruptly or if
another vehicle cuts in ahead of you, in-
adequate braking will make your vehicle
become closer to the vehicle ahead of you
and the display will flash and beep.

04 SIENNA_U (L/O 0408)
208
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

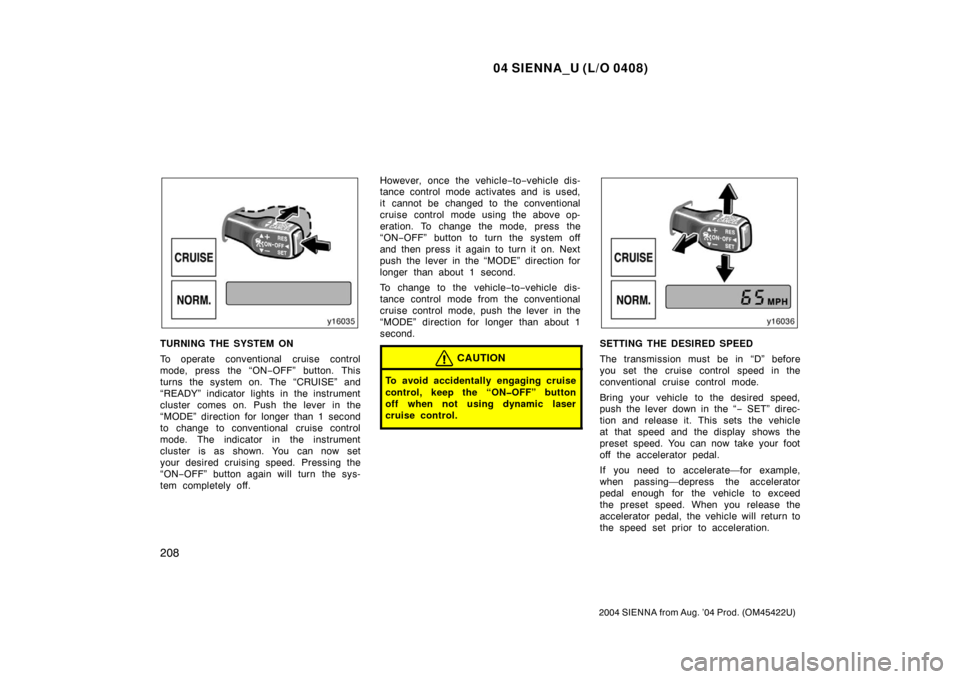

TURNING THE SYSTEM ON
To operate conventional cruise control
mode, press the “ON−OFF” button. This
turns the system on. The “CRUISE” and
“READY” indicator lights in the instrument
cluster comes on. Push the lever in the
“MODE” direction for longer than 1 second
to change to conventional cruise control
mode. The indicator in the instrument
cluster is as shown. You can now set
your desired cruising speed. Pressing the
“ON −OFF” button again will turn the sys-
tem completely off. However, once the vehicle
−to −vehicle dis-
tance control mode activates and is used,
it cannot be changed to the conventional
cruise control mode using the above op-
eration. To change the mode, press the
“ON −OFF” button to turn the system off
and then press it again to turn it on. Next
push the lever in the “MODE” direction for
longer than about 1 second.
To change to the vehicle− to−vehicle dis-
tance control mode from the conventional
cruise control mode, push the lever in the
“MODE” direction for longer than about 1
second.
CAUTION
To avoid accidentally engaging cruise
control, keep the “ONOFF” button
off when not using dynamic laser
cruise control.
SETTING THE DESIRED SPEED
The transmission must be in “D” before
you set the cruise control speed in the
conventional cruise control mode.
Bring your vehicle to the desired speed,
push the lever down in the “ − SET” direc-
tion and release it. This sets the vehicle
at that speed and the display shows the
preset speed. You can now take your foot
off the accelerator pedal.
If you need to accelerate—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the preset speed. When you release the
accelerator pedal, the vehicle will return to
the speed set prior to acceleration.

04 SIENNA_U (L/O 0408)
209
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
You cannot set a desired speed if the
master warning light comes on, the alarm
sounds and the display indicates the
warning code “E3”. If this code appears
on the display, see “CONVENTIONAL
CRUISE CONTROL MODE FAILURE
WARNING” on page 210.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by doing
any of the following:a. Pulling the lever in the “CANCEL” direction.
b. Depressing the brake pedal. c. Pressing the “ON −OFF” button.
In the following cases, the preset speed
automatically cancels out: a. The vehicle speed falls below about 40km/h (25 mph).
b. If the vehicle speed drops 16 km/h (10 mph) below the preset speed, the pre-
set speed will also automatically be
cancelled.
c. The slip indicator light blinks and an alarm sounds. (This occurs when the
vehicle is about to skid.)
If cancelled by a. or b., the preset speed
data is cleared and you must set the
speed from the beginning. If the preset speed automatically cancels
out for other than the above reasons, do
not operate the cruise control. Although it
is no problem to continue driving, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be increased 1.6 km/h (1 mph) each time
by pushing the lever up in the “+ RES”
direction quickly within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
When the difference between the actual
vehicle speed and the set speed is less
than 5 km/h (3 mph), the set speed can
be lowered 1.6 km/h (1 mph) each time
by pushing the lever down in the “ − SET”
direction quickly within 0.6 seconds.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
Even if you downshift from “D” to “4” in
the conventional cruise control mode, en-
gine braking will not be enabled because
this mode is not cancelled. To decrease
the vehicle’s speed, reset to a slower
speed with the cruise control lever or de-
press the brake pedal. If you use the
brake pedal, cruise control is cancelled.

04 SIENNA_U (L/O 0408)
218
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
Ty p e 1−2—
BAS: Adjusts low −pitched tones. The dis-
play ranges from −5 to 5.
MID: Adjusts mid −pitched tones. The dis-
play ranges from −5 to 5.
TRE: Adjusts high −pitched tones. The dis-
play ranges from −5 to 5.
FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
SURROUND: Turn on or off the surround
function. “SURROUND ON” or “SUR-
ROUND OFF” will appear on the display.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played. Vehicles with rear seat entertainment sys-
tem—
The “DISC” button may also be used to
operate a DVD player when a disc is
loaded in the DVD player. Pressing the
“DISC” button changes between the CD
player and DVD player. When the DVD
player is in operation, “AUX” appears on
the display.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (up −side
down). Clean the disc and re −insert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc.
“ERROR 3”: There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Over−current. Ask your
Toyota dealer to inspect. “CD OPEN”:
The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
With compact disc changer only—
Use these buttons to select the disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.

04 SIENNA_U (L/O 0408)
220
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To scan the preset stations:
Push and hold “” or “” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. The radio will find
the next station up or down the station
band, stay there for 5 seconds, and then
scan again to the next station. To stop
scanning, push this button again.
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. “SCAN” will appear
on the display and the player will scan up
or down all the tracks on the disc you are
listening to. To stop scanning, push this
button again. If the player scanned all the
tracks on the disc, it will stop scanning.
The discs in the compact disc changer
can be scanned up only. With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push “
” side of the “SCAN” button until
you hear a beep. “
·SCAN” will appear
on the display and the player will scan up
the first track of the next disc. To stop
scanning, push this button again. If the
player has scanned all the di scs, it will
stop scanning.
SEEK·TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “ ” or “ ” side of the
“SEEK·TRACK” button. Do this again to
find the station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play. When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the
“SEEK·TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
push the down side of the button one
time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK·TRACK” button.

04 SIENNA_U (L/O 0408)
225
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
DolbyB NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1”, “FM2” or
“FM TYPE” will appear on the display.
This system allows you to set twelve FM
and six RDS stations, three for each of
the preset button. If the RDS is off or
RDS stations are not preset to the preset
buttons, “FM TYPE” will not appear on the
display. LOAD
This button is used to load the compact
discs in the compact disc player. This
player can store up to six discs.
To load one compact disc only, quickly
push and release the button, then insert
a compact disc. After the disc is loaded,
the shutter of the slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds.
To load multiple compact discs, push and
hold the button (until you hear a beep
when the audio system is on). When the
indicators on both sides of the slot turn
green, insert the first compact disc. After
the disc is loaded, the shutter of the slot
will close. After a few seconds, the shut-
ter will automatically open again and the
indicators will turn green so the next disc
can be inserted. The same process can
be applied for loading the rest of the
discs. If the player is full of discs, “DISC
FULL” will appear on the display.
If no compact disc is inserted, the shutter
will close after 15 seconds.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again.

04 SIENNA_U (L/O 0408)
226
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The “RDS” button turns the RDS on and
off. This button is operational except in
AM mode.
To turn on the RDS, push and hold this
button until you hear a beep and “RDS”
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and “RDS SEARCH” will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, “NO
RDS ST” will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “ ” or “ ” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. The radio will find
the next station up or down the station
band, stay there for 5 seconds, and then
scan again to the next station. To stop
scanning, push this button again.
