2004 TOYOTA SIENNA key

04 SIENNA_U (L/O 0408)
35
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If the battery is disconnected or run
down, the power sliding door system may
not work after you reconnect, replace or
recharge the battery. In any of these
cases, close the sliding doors completely
by hand to normalize the power sliding
door system.
If the power sliding door system does not
operate properly after the above proce-
dure, there may be a problem in the sys-
tem. Contact your Toyota dealer.
To open the back door, push the back
door opener and raise the door.
The back door can be opened when the
vehicle is stopped.
The back door can be locked or unlocked
in the following ways.
Operate the power door lock switch.
(See “Front doors” on page 21 in this
Section.)
Operate the wireless remote control.
(See “Wireless remote control” on page
14 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver’s door. (See “Front
doors” on page 21 in this Section.)
When all the side doors and back door
are unlocked simultaneously with a key,
the front personal lights and ignition
switch light will come on and remain on
for about 15 seconds before fading out.
(For details, see “Front personal lights” on
page 156 and “Ignition switch light” on
page 158 in Section 1 −4.)
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 430 in Section 4.
If the battery is disconnected or run
down, the back door will be automatically
locked after you reconnect, replace or re-
charge the battery. Be careful not to lock
your keys in the vehicle.
Back door

04 SIENNA_U (L/O 0408)
37
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
CAUTION
Do not leave small children or pets
unattended in your vehicle. They
could operate the power back door,
and anyone around the back door
could be injured. Turn off the power
back door system when the power
back door is not in use.
When jacking up the vehicle, turn
off the power back door system and
close the back door completely.
NOTICE
When your vehicle goes through an
automatic car wash, make sure the
power back door system is off.
To open the back door, push the back
door opener and raise the door.
The back door can be opened when the
vehicle is stopped.
The back door can be locked or unlocked
in the following ways.
Operate the power door lock switch.
(See “Front doors” on page 21 in this
Section.)
Operate the wireless remote control.
(See “Wireless remote control” on page
14 in this Section.)
All the side doors and back door are
locked and unlocked simultaneously
with the driver’s door. (See “Front
doors” on page 21 in this Section.)When all the side doors and back door
are unlocked simultaneously with a key,
the front personal lights and ignition
switch light will come on and remain on
for about 15 seconds before fading out.
(For details, see “Front personal lights” on
page 156 and “Ignition switch light” on
page 158 in Section 1
−4.)
If the back door opener does not operate,
see “If you cannot operate back door
opener” on page 430 in Section 4.
If the battery is disconnected or run
down, the back door will be automatically
locked after you reconnect, replace or re-
charge the battery. Be careful not to lock
your keys in the vehicle.
—Manual operation

04 SIENNA_U (L/O 0408)
40
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Opening operation can be performed by
the switch under the following condi-
tions:
The back door is unlocked.
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully−
closed position and half −opened posi-
tion.
When the ignition key is in the “ON”
position, the transmission selector lever
must be in “P”.
Closing operation can be performed by
the switch under the following condi-
tions:
The power back door system is on.
(The “BACK DOOR OFF” switch is
pushed out.)
The back door is between in the fully −
opened position and half −opened posi-
tion.
The time of pushing the switches for oper-
ating the back door can be changed. For
details, contact your Toyota dealer. OPERATING WITH THE WIRELESS
REMOTE CONTROL TRANSMITTER
To open or close the door, push the
“
” switch on the wireless remote
control transmitter about one second.
(Only when the power back door sys-
tem is on.) For details, see “Wireless
remote control” on page 14 in this Sec-
tion.
ASSISTS CLOSING BY HAND
When the power back door system is on
(the “BACK DOOR OFF” switch is pushed
out), if you move the back door about
10—15 cm (4—6 in.) from its fully −opened
position, the back door will automatically
and completely close.
When the power back door system is off,
the back door can be closed manually.
The assisting function when closing the
back door can be disabled and the assist-
ing function when opening the back door
can be added. For details, contact your
Toyota dealer.
JAM PROTECTION FUNCTION
If anything with sufficient resistance ob-
structs the power back door while it is
closing or opening, the back door will au-
tomatically reverse to the opposite direc-
tion.
If the jam protection function operates
continuously at the closing operation more
than 2 times, the back door will be
stopped at that position.

04 SIENNA_U (L/O 0408)
42
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If the battery is disconnected or run
down, the back door will be automatically
locked and the power back door system
may not work after you reconnect, replace
or recharge the battery. In any of these
cases, normalize the power back door
system by following proc edure.
1. Unlock the back door with the key, remote control transmitter or power
door lock switch.
2. Close the back door completely by hand.
If the power back door system does not
operate properly after the above proce-
dure, there may be a problem in the sys-
tem. Contact your Toyota dealer.
The windows can be operated with the
switch on each front door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, the front door windows and sliding
door windows work for 43 seconds even
after the ignition switch is turned off. It
stops working when either front door is

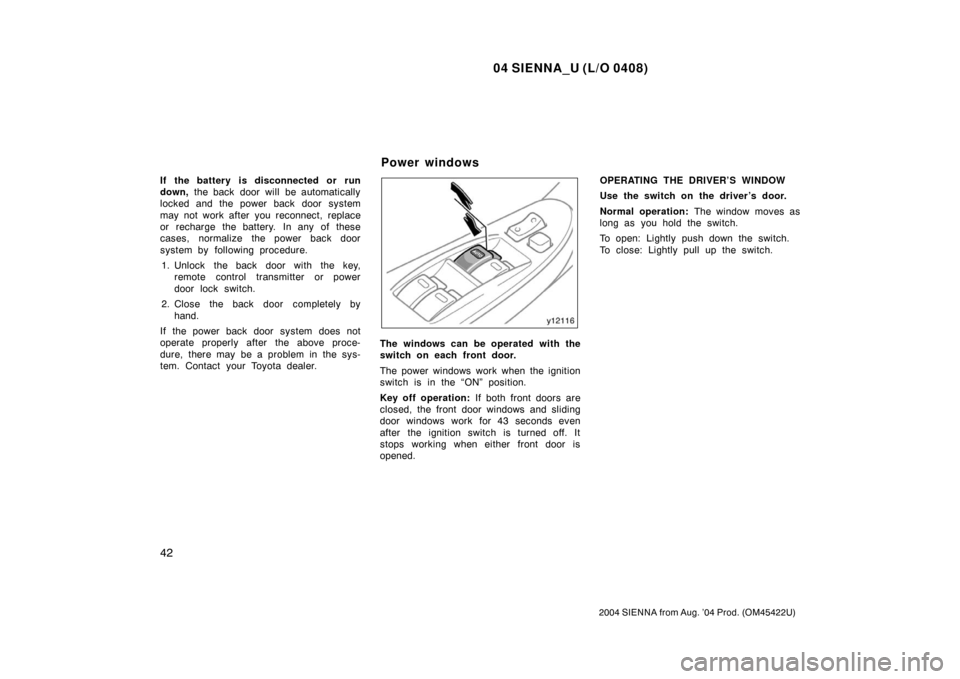

opened. OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation:
The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
Power windows

04 SIENNA_U (L/O 0408)
45
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
The sliding door window cannot be oper-

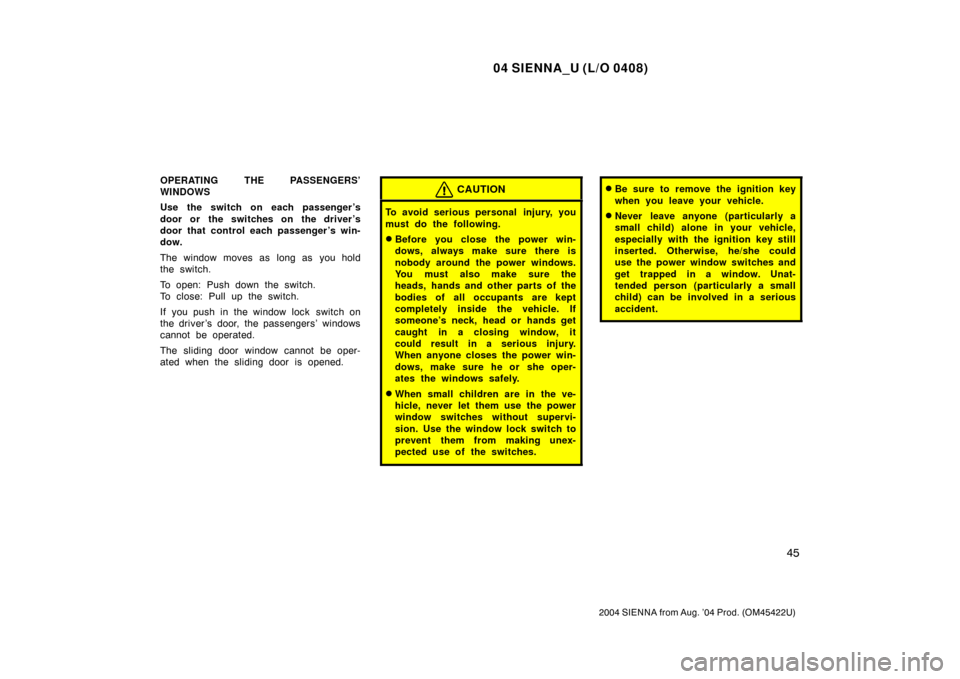

ated when the sliding door is opened.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

04 SIENNA_U (L/O 0408)
46
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.The quarter windows can be operated
with the “REAR VENT” switch on the
instrument panel.
The power quarter windows work when the
ignition switch is in the “ON” position.
To open: Push the switch on the upper
side.
To close: Push the switch on the lower
side.
Both the left and right rear quarter win-
dows move as long as you hold the
switch.Key off operation:
If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power quarter
windows, always make sure there is
nobody around the power quarter
windows. You must also make sure
the heads, hands and other parts of
the bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
quarter window switches without
supervision.
Manual quarter windows Power quarter windows

04 SIENNA_U (L/O 0408)
47
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

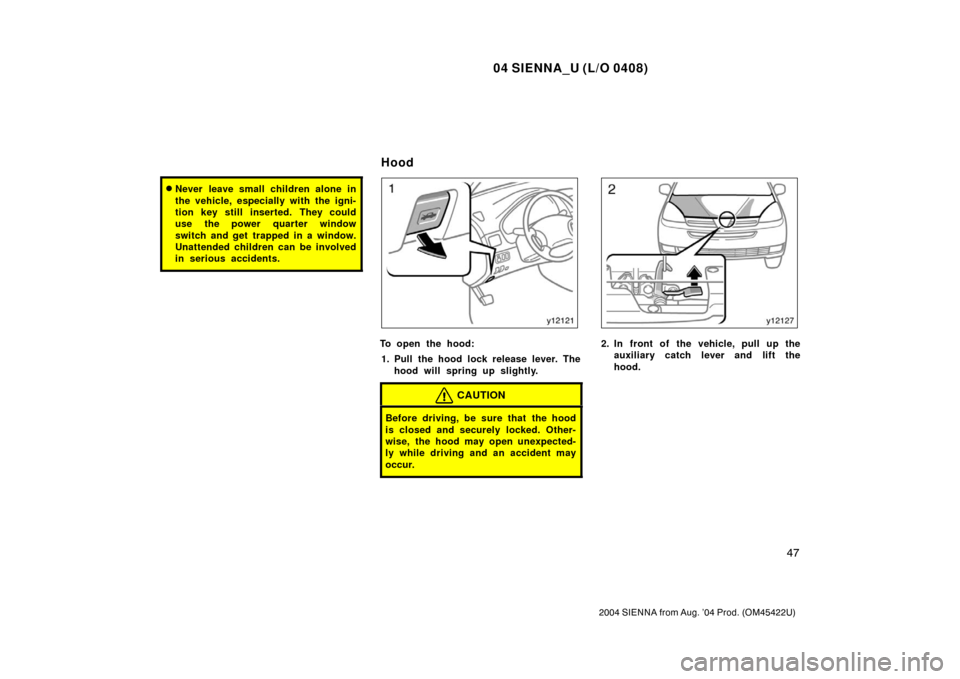

Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power quarter window
switch and get trapped in a window.
Unattended children can be involved
in serious accidents.
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

04 SIENNA_U (L/O 0408)
49
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 13 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
CANCELING THE SYSTEM
The system can be canceled by the fol-
lowing ways:Any of the side doors or the back door
is unlocked with the key or wireless
remote control transmitter.
Turn the ignition key to “ON” position.
If the parking lights and tail lights come
on for 2 seconds when the system is
canceled, the system has been alarmed.
Check to see if there is any abnormality
with your vehicle. WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:
If any of the side doors or back door
is unlocked or opened without the key
or wireless remote control transmitter,
or if the hood is forcibly opened.
If the battery terminal is disconnected
and then reconnected.
If the ignition is hotwired.
The indicator light will come on when the
system is activated.
If the alarm has been activated and any
of the side doors or back door is un-
locked, all the side doors and back door
will re −lock automatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
