TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 279 in Section 7−3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers

’04 MATRIX_U (L/O 0307)
280
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Parking, front
side marker and
front turn signal
lights
1157NA27/8C
Stop/tail and rear
side marker
lights
744321/5D
Rear turn signal
lights—21E
Back −up lights92116D
High mounted
stop light92116D
License plate
light—5D
Light bulbsBulb
No.WTy p e
Interior lights—8D
Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)

’04 MATRIX_U (L/O 0307)
281
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
1. Open the hood. Turn the bulb basecounterclockwise to the front of the
vehicle as shown.2. Unplug the connector.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights (low beam)

’04 MATRIX_U (L/O 0307)
282
2004 MATRIX from Oct. ’03 Prod. (OM12861U)

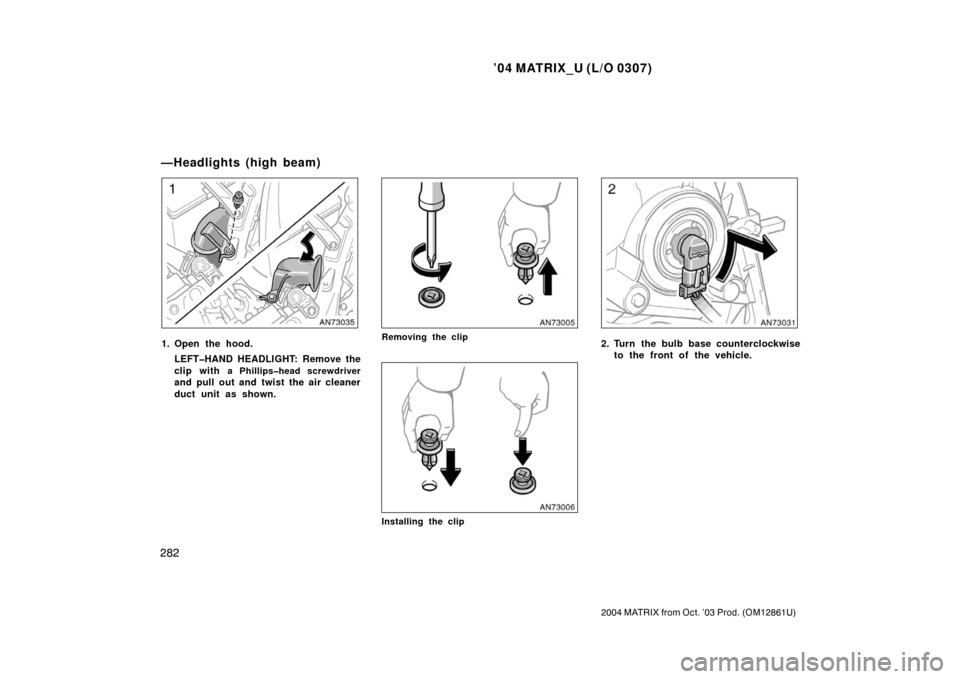

1. Open the hood.LEFTHAND HEADLIGHT: Remove the
clip with
a Phillipshead screwdriver
and pull out and twist the air cleaner
duct unit as shown.
Removing the clip
Installing the clip
2. Turn the bulb base counterclockwiseto the front of the vehicle.
—Headlights (high beam)
