The seat belt pretensioner system mainly
consists of the following components and
their locations are shown in the illustra-
tion.1. Front airbag sensors
2. SRS warning light
3. Seat belt pretensioner assemblies
4. Airbag sensor assembly
The seat belt pretensioners are controlled
by the airbag sensor assembly. The airbag
sensor assembly consists of a safing sen-
sor and airbag sensor. When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non
−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole

’04 MATRIX_U (L/O 0307)
47
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
the handicapped, consult with your
Toyota dealer. It may dangerously in-
terfere with the SRS front airbags op-
eration.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags are operat-
ing properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, driver ’s seat
position sensor, driver ’s seat belt buckle
switch, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 91 in Section 1 −6.)

’04 MATRIX_U (L/O 0307)
52
2004 MATRIX from Oct. ’03 Prod. (OM12861U)

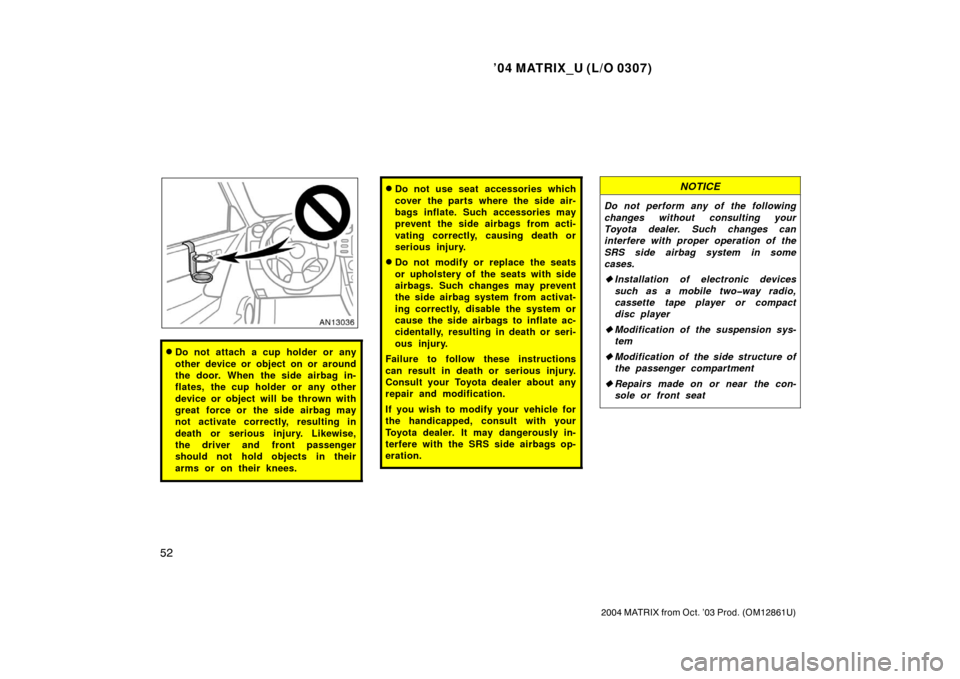

Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
the handicapped, consult with your
Toyota dealer. It may dangerously in-
terfere with the SRS side airbags op-
eration.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat

’04 MATRIX_U (L/O 0307)
11 0
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Type 1: AM·FM radio/compact disc playerType 2: AM·FM radio/cassette player/com-
pact disc playerType 3: AM·FM radio/compact disc player
with changer
Reference

’04 MATRIX_U (L/O 0307)
111
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
This Section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR/VOL” or “PWR” to turn the
audio system on and off.
You can turn on each player by inserting
a cassette tape or compact disc.
The audio system will change to the radio
mode when a cassette or a compact disc
is ejected during play.
SWITCHING BETWEEN FUNCTIONS
Push “AM/FM”, “CD/AUX” or “CD/TAPE” if
the system is already on but you want to
switch from one function to another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
Using your audio system—
—Some basics

’04 MATRIX_U (L/O 0307)
11 2
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
YOUR COMPACT DISC PLAYER
(type 1 and 2)
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.YOUR COMPACT DISC PLAYER WITH
CHANGER (type 3)
When you insert a disc, push the “LOAD”
button, wait for the load/eject status light
to turn green, then gently push the disc
in with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 of the
next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE

Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’04 MATRIX_U (L/O 0307)
11 4
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button:1. Tune in the desired station. (See “TUNE” or “SEEK” or “SCAN”.)
If you desire to select the equalization
that best suits the type of station se-
lected. (See “EQ”.)
2. Push and hold the preset button until you hear a beep—this will set the sta-
tion and EQ setting to the button. The
preset number will appear on the dis-
play.
3. Repeat the above steps for each but- ton.
To tune to a preset station: Push the but-
ton for the station you want. The button
number and station frequency will appear
on the display.
RDS stations will be preset to the buttons
when any of RDS stations is received in
the FM mode. To preset a program type to a button:
1. Push the “AM/FM” button to select “FM1” or “FM2”.
2. Push “PROG TYPE” button to activate the program type mode. “P −TYPE” will
appear on the display.
3. Turn the select knob to select the de- sired program type.
4. Push and hold the preset button until you hear a beep—this will set the pro-
gram type to the preset button.
5. Repeat the above steps for each but- ton.
To tune to a station with a desired pro-
gram type: While in a program type mode,
push the preset button for the program
type you want. The program type will ap-
pear on the display and the radio will tune
the station with strongest signal and the
desired program type.
Each button can store one AM and two
FM stations, and two RDS program types.
(The display will show “AM”, “FM1” or
“FM2” when you push the “AM/FM” but-
ton.) (Eject button)
Push the compact disc eject button to
eject a compact disc.
If the disc is not removed after 25 sec-
onds, the disc will be automatically pulled
back into the receiver.
/ (Reverse/Fast forward buttons)
Push and hold the “
” button to fast
forward within a track. “FDW >>” and
elapsed time will appear on the display.
Push and hold the “
” button to reverse
within a track. “REW <<” and elapsed
time will appear on the display.
When you release the button, the compact
disc player will resume playing.
AM/FM
Push the “AM/FM” button to switch be-
tween the AM and FM band. “AM”, “FM1”
or “FM2” will appear on the display.
Also, push this button to switch from the
compact disc operation to the radio.

’04 MATRIX_U (L/O 0307)
11 5
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Alternate Frequency
To turn the AF mode on, push and hold
the “AM/FM” button until you hear a beep.
“AF ON” will appear on the display.
When reception condition worsen, the au-
dio system will select the RDS station
which has the same PI (Program Identifi-
cation) code.
To turn the AF mode off, push and hold
the “AM/FM” button again until you hear
a beep. “AF OFF” will appear on the dis-
play.
BAL/FADE (Sound balance adjustment
function)
This button is used to adjust the sound
balance between the front and rear, and
the right and left speakers.
For front/rear adjustment, push the “BAL/
FADE” button repeatedly until “FAD” ap-
pears on the display. Then turn the
“TUNE/SELECT” knob to adjust the front/
rear balance.
For left/right adjustment, push the “BAL/
FADE” button repeatedly until “BAL” ap-
pears on the display. Then turn the
“TUNE/SELECT” knob to adjust the left/
right balance.To return to the middle position balances,
push and hold the “BAL/FADE” button for
two seconds.
CD/AUX (Compact Disc/Auxiliary)
Push the “CD/AUX” button to switch from
radio to compact disc operation. A disc
must already be loaded in the player.
Error codes
If the player malfunctions, your audio sys-
tem will display the following error mes-
sages.
“CHECK CD”:
The road is too rough. The disc should
play when the road is smoother.
The disc is dirty, scratched, wet or
upside down.
The air is very humid. If so, wait about
an hour and try again.
If the disc is not playing correctly, for any
other reason, try a known good compact
disc.
“PLAYER ERROR”: There is trouble in-
side the system. Eject the disc. Set the
disc again.
If malfunction is not rectified, take your
vehicle to your Toyota dealer. EQ (Equalizer)
Your audio system can store five different
EQ settings so that you will not need to
readjust it every time you listen to a dif-
ferent program.
To use a preset setting:
Push the “EQ” button repeatedly until the
EQ number you want to use appears on
the display.
To change a preset EQ setting:
1. Use the “TONE” button and the “TUNE/SELECT” knob to select the
desired equalization. (For details, see
“TONE”.)
2. Push and hold the “EQ” button until “SELECT EQ #” appears on the dis-
play.
3. Push the “EQ” button repeatedly or turn the “TUNE/SELECT” knob to select
the desired preset EQ number.
4. Push and hold the “EQ” button until “EQ SAVED” appears on the display
and you hear a beep. This EQ setting
is saved to that number.
HR/MIN (Hours/minutes adjustment)
These buttons are used to adjust the
clock time. (For details, see “Clock” on
page 154 in Section 1 −10.)
