The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogged up in the rain. However,
if there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (low)900651A
Headlights (high)900560B
Front fog lights900651A
Parking, front
side marker and
front turn signal
lights
1157NA27/8C
Stop/tail and rear
side marker
lights
744321/5D
Rear turn signal
lights—21E
Back −up lights92116D
High mounted
stop light92116D
License plate
light—5D
Light bulbsBulb
No.WTy p e
Interior lights—8D
Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)

’04 MATRIX_U (L/O 0307)
284
2004 MATRIX from Oct. ’03 Prod. (OM12861U)

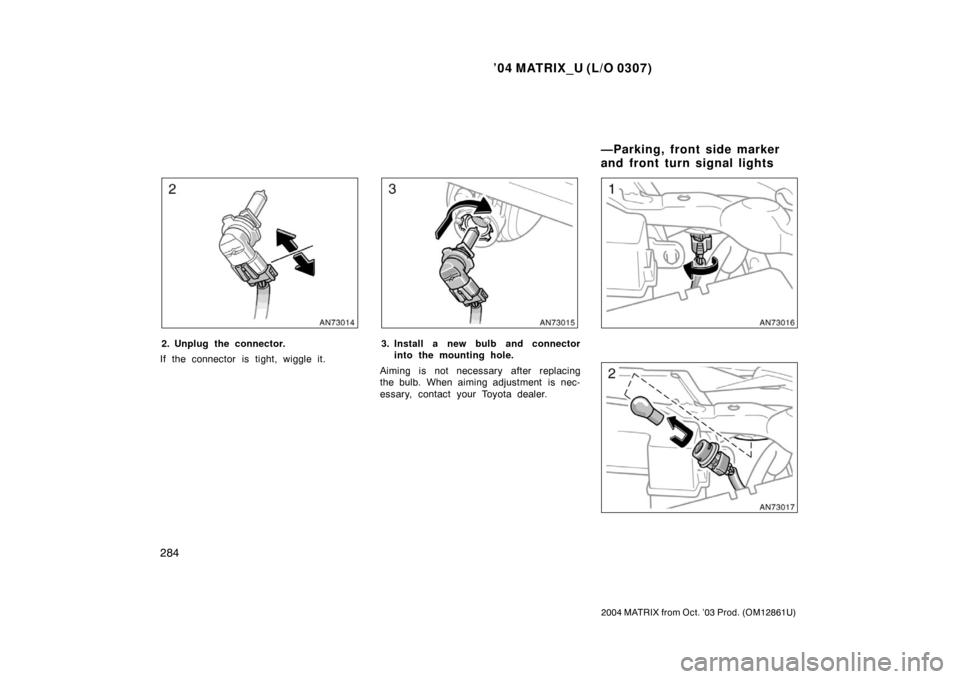

2. Unplug the connector.
If the connector is tight, wiggle it.3. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Parking, front side marker
and front turn signal lights

’04 MATRIX_U (L/O 0307)
285
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips with a Phillipshead
screwdriver and remove the cover.
—Stop/tail, rear side marker,
rear turn signal and backup
lights—High mounted stoplight

’04 MATRIX_U (L/O 0307)
295
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Engine compartment
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse 8. DOME 15 A:
Car audio system, navi-
gation system, clock, personal lights,
interior lights, open door warning light,
wireless remote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers ,
turn signal lights
11. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALTS 5 A: Charging system
13. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
14. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights
16. OBD 7.5 A: On−board diagnosis sys-
tem
17. WIPER 25 A: Windshield wipers
18. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
Fuses
