2004 TOYOTA ECHO service indicator

42004 ECHO from Aug. ’03 Prod. (OM52526U)
SU11015
1. Service reminder indicators and
indicator lights
2. Speedometer3. Fuel gauge
4. Odometer and two trip meters5. Trip meter reset knob
Instrument cluster overview
Ty p e A

52004 ECHO from Aug. ’03 Prod. (OM52526U)
SU11014
1. Service reminder indicators and
indicator lights
2. Speedometer3. Fuel gauge
4. Odometer and two trip meters5. Trip meter reset knob Ty p e B

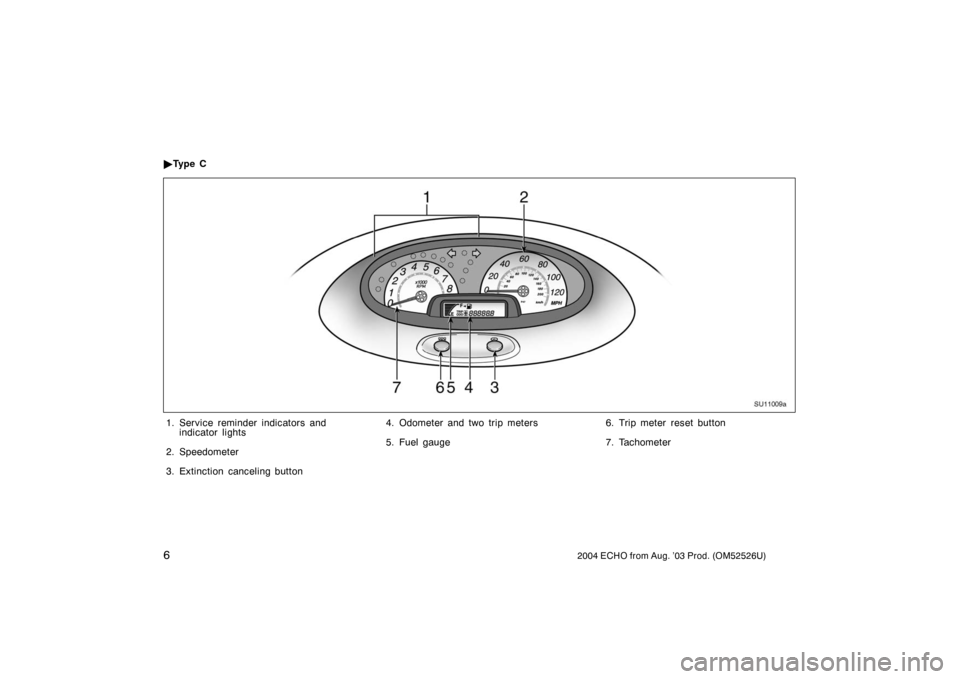

62004 ECHO from Aug. ’03 Prod. (OM52526U)
SU11009a
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Extinction canceling button4. Odometer and two trip meters
5. Fuel gauge6. Trip meter reset button
7. Tachometer Ty p e C

72004 ECHO from Aug. ’03 Prod. (OM52526U)
Indicator symbols on the instrument panel
orBrake system warning light∗
1
Driver ’s seat belt reminder light∗
1
Discharge warning light∗
1
Malfunction indicator lamp∗
1
Low engine oil pressure warning light∗
1
Anti-lock brake system warning light∗
1
SRS warning light∗
1
Low windshield washer fluid level warning light∗
1
Low fuel level warning light∗
1
(Type A)
Turn signal indicator lights
Headlight high beam indicator light
Overdrive−off indicator light
Low engine coolant temperature indicator light
(in blue)∗
2
High engine coolant temperature warning light
(in red)∗
1
Front passenger ’s seat belt reminder light∗
1
Open door warning light∗
1
or
Low fuel level indicator light∗
1
(Type B)
∗
1: For details, see “Service reminder indicators and warning
buzzers” on page 90 in Section 1−6.
∗
2: For details, see “Engine coolant temperature indicator and
warning light” on page 87 in Section 1−6.

422004 ECHO from Aug. ’03 Prod. (OM52526U)
When the seat belt pretensioners are acti-
vated, an operating noise may be heard
and a small amount of non−toxic gas may
be released. This does not indicate that
a fire is occurring. This gas is normally
harmless.
Once the seat belt pretensioners have
been activated, the seat belt retractors
remain locked.
CAUTION
Do not modify, remove, strike or open
the seat belt pretensioner assemblies,
airbag sensor or surrounding area or
wiring. Failure to follow these instruc-
tions may prevent the seat belt pre-
tensioners from activating correctly,
cause sudden operation of the system
or disable the system, which could
result in death or serious injury. Con-
sult your Toyota dealer about any re-
pair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
Repairs on or near the front seat
belt retractor assemblies
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure or con-
sole
SP13504
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the seat belt pretensioners are
operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, door side air-
bag sensors, seat belt pretensioner as-
semblies, inflators, warning light,
interconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 90.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.

492004 ECHO from Aug. ’03 Prod. (OM52526U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
SP13504
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side airbag sensors, door side
airbag sensors, seat belt pretensioner
assemblies, inflators, warning light,
interconnecting wiring and power sources.
(For details, see “Service reminder
indicators and warning buzzers” on page
90.)If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.

552004 ECHO from Aug. ’03 Prod. (OM52526U)
SP13504
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags are operat-
ing properly.
This warning light system monitors the
airbag sensor assembly, front airbag
sensors, side airbag sensors, door side
airbag sensors, seat belt pretensioner
assemblies, inflators, warning light,
interconnecting wiring and power sources.
(For details, see “Service reminder
indicators and warning buzzers” on page
90.)If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
SU13128
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags have
been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.

852004 ECHO from Aug. ’03 Prod. (OM52526U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Gauges, Meters and Service reminder indicators
Fuel gauge86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine coolant temperature indicator and warning light87 . . . . . . . . . .
Tachometer88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and two trip meters89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers90 . . . . . . . . . . . . . . .
SECTION 1 6
