’04 AVALON U (L/O 0408)
107
2004 AVALON from Aug. ’04 Prod. (OM41412U)

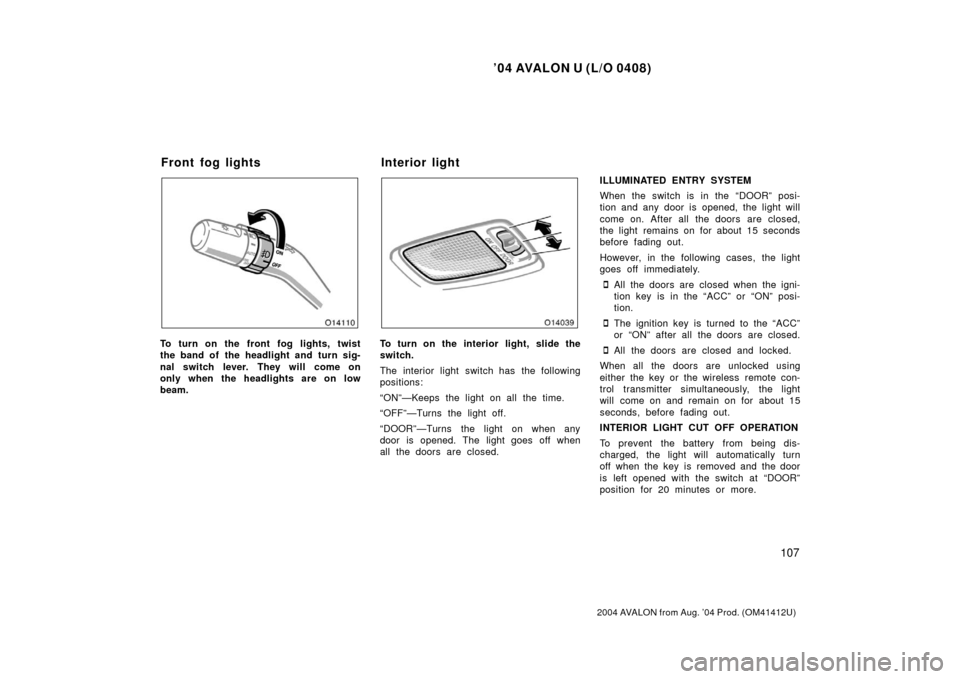

To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
door is opened. The light goes off when
all the doors are closed.ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any door is opened, the light will
come on. After all the doors are closed,
the light remains on for about 15 seconds
before fading out.
However, in the following cases, the light
goes off immediately.
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to the “ACC”
or “ON” after all the doors are closed.
All the doors are closed and locked.
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the light
will come on and remain on for about 15
seconds, before fading out.
INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery from being dis-
charged, the light will automatically turn
off when the key is removed and the door
is left opened with the switch at “DOOR”
position for 20 minutes or more.
Front fog lights Interior light

’04 AVALON U (L/O 0408)
124
2004 AVALON from Aug. ’04 Prod. (OM41412U)
(g) Low Fuel Level Warning Light
This light comes on when the fuel level
in the tank becomes nearly empty. Fill up
the tank as soon as possible.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
warning light may come on earlier than
usual.
(h) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
lock brake system and the brake assist
system work properly, the light turns off
after a few seconds. Thereafter, if the
system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system, the brake assist
system, the traction control system and
the vehicle stability control system do not
operate, but the brake system still oper-
ates conventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.If either of the following conditions oc-
curs, this indicates a malfunction some-
where in the components monitored by
the warning light system. Contact your
Toyota dealer as soon as possible to
service the vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or remains on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the brake system warn-
ing light, immediately stop your ve-
hicle at a safe place and contact your
Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
(i) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(j) Rear Light Failure Warning Light
If this light comes on when the headlight
switch is turned on, it indicates that one
or more of the tail lights are burned out.
If it comes on when the brake pedal is
depressed, one or more stop lights are
burned out.
Have defective bulbs replaced as soon as
possible.
(k) SRS Warning Light
This light will come on when the igni-
tion key is turned to the “ON” position.
After about 6 seconds, the light will go
off. This means the system of the air-
bags and front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side airbag sensors, driver ’s seat
position sensor, driver ’s seat belt buckle
switch, front seat belt pretensioner assem-
blies, inflators, warning light, interconnect-
ing wiring and power sources.

’04 AVALON U (L/O 0408)
163
2004 AVALON from Aug. ’04 Prod. (OM41412U)
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
SRCH (Search)
This feature is available only in RDS
mode.
This button allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type (see
“” for details on program
types).
By pushing this button, RDS is turned on
if it was off (“RDS” will display). The radio
is switched to FM type mode. During the
program type search, “SEARCHING....” will
show on the display. Also at this time,
“FM” and “TYPE” will appear on the dis-
play to indicate that the preset buttons are
for program type.
After searching for all available RDS sta-
tions, the radio will activate the previously
used program type. If the previously used
program type is not available, or if the
radio has not yet performed a program
type search, the radio will activate the
first available program type, in alphabeti-
cal order, that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons. If more than 6 stations of a program type
are found, the radio will create a second
bank of presets, such as “Rock 1” and
“Rock 2”. These are accessible through
the “” button. If more than
12 stations are found, the radio will load
the 12 strongest stations signal of the
program type into the presets.
After the search is complete, the radio will
display the number of RDS stations found
for 3 seconds: for example, “Found 19
RDS.” The radio will then display the se-
lected program type for 3 seconds: for
example, “ROCK”. After the program type
has been displayed for 3 seconds, the
radio will display the program type name
for 3 seconds. After that, the radio will
display the program service name.
Day mode (headlights off): The radio will
only display the number of presets that
have a frequency for the selected program
type. For example, if program type Rock
is selected, and there are three rock sta-
tions, only preset numbers 1, 2 and 3 will
be displayed. The remaining preset num-
bers will not be displayed and the remain-
ing preset button(s) will have no function.
Night mode (headlights on): In addition to
the display described for day mode, the
radio will illuminate the jewels of the pre-
sets that have stations available. The re-
maining preset button(s) will have no func-
tion.
A type search in progress can be can-
celed by pushing the following buttons:
“SEEK”, “TUNE”, “SCAN”, “AM”, “FM”, any
preset button, “CD” (if CD mode is avail-
able), “TAPE” (if tape mode is available),
“RDS”, “SRCH”, “”,
“TRAF” or “LOAD”. If any of these buttons
is pressed, the search will be canceled
and the appropriate function started. In-
serting a tape will also cancel the search.
If no RDS stations are found, “FOUND 0
RDS” will display and the radio will return
to the previous FM mode and frequency.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.

’04 AVALON U (L/O 0408)
279
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” in
Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position.Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See Section 72 for additional
information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See Sec-
tion 72 for additional information.
When checking the tires, make sure
no nuts are missing, and check the
nuts for looseness. Tighten them if
necessary.

’04 AVALON U (L/O 0408)
303
2004 AVALON from Aug. ’04 Prod. (OM41412U)
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.
CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis. Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Do not use wheels other than the
manufacturer ’s recommended size, as
this may cause dangerous handling
characteristics resulting in loss of
control. Otherwise, an accident may
occur resulting in death or serious
injuries.
Replacing wheels

’04 AVALON U (L/O 0408)
309
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Ty p e AGood Blown
Ty p e B
Good
Good Blown
Blown
Ty p e C
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” in Section 71 for
locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
Section 8 for the functions controlled by
each circuit. Type A fuses can be pulled out by the
pullout tool. The location of the pullout
tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “RADIO”
or “A/C” fuse, which may be dispensable
for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’04 AVALON U (L/O 0408)
311
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(low beam)900651A
Headlights
(high beam)900560B
Front fog lights900651A
Front turn
signal/parking
lights
1157NA27/8C
Rear turn signal
lights—21D
Stop/tail lights744321/5E
Rear side
marker lights1943.8E
Backup lights92118E
Tail lights1685E
License plate
lights1685E
High mounted
stoplight92118E
Interior light—7F
Front personal
lights—7F
Light bulbsBulbNo.WTy p e
Rear personal
lights—5F
Vanity lights—2F
Glove box light—1.2E
Door courtesy
lights—6F
Trunk light—3F
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs

’04 AVALON U (L/O 0408)
312
2004 AVALON from Aug. ’04 Prod. (OM41412U)
1. Unplug the connector while depress-ing the lock release.
If the connector is tight, wiggle it.2. Turn the bulb and remove it.3. Install a new bulb and the connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
—Headlights
