Automatic operation—
To turn on or off the lights automatical-
ly, twist the headlight/turn signal lever
knob to the position 3 (“AUTO”) when
the ignition key is in the “ON” position.
The headlights and/or all of the lights in
position 1 automatically turn on or off de-
pending on the darkness of the surround-
ings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened with the ignition
key in the “ACC” or “LOCK” position.Position 2 or position 3 with the head-
lights on—
The lights automatically turn off after 30
seconds when any of the door or trunk lid
is opened and closed with the ignition key
in the “ACC” or “LOCK” position.
Vehicles with wireless remote control sys-
tem—The lights can be turned off immedi-
ately by pushing the “LOCK” switch on the
wireless remote control transmitter with all
the doors locked and the trunk lid closed.
If any of the door or trunk lid is kept
opened, the lights automatically turn off
after 20 minutes.
To turn on the lights again, turn the igni-
tion key to the “ON” position or actuate
the headlight switch. If you are going to
park for over one week, make sure the
headlight switch is off.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.

’04 AVALON U (L/O 0408)
108
2004 AVALON from Aug. ’04 Prod. (OM41412U)
With moon roof
Without moon roof

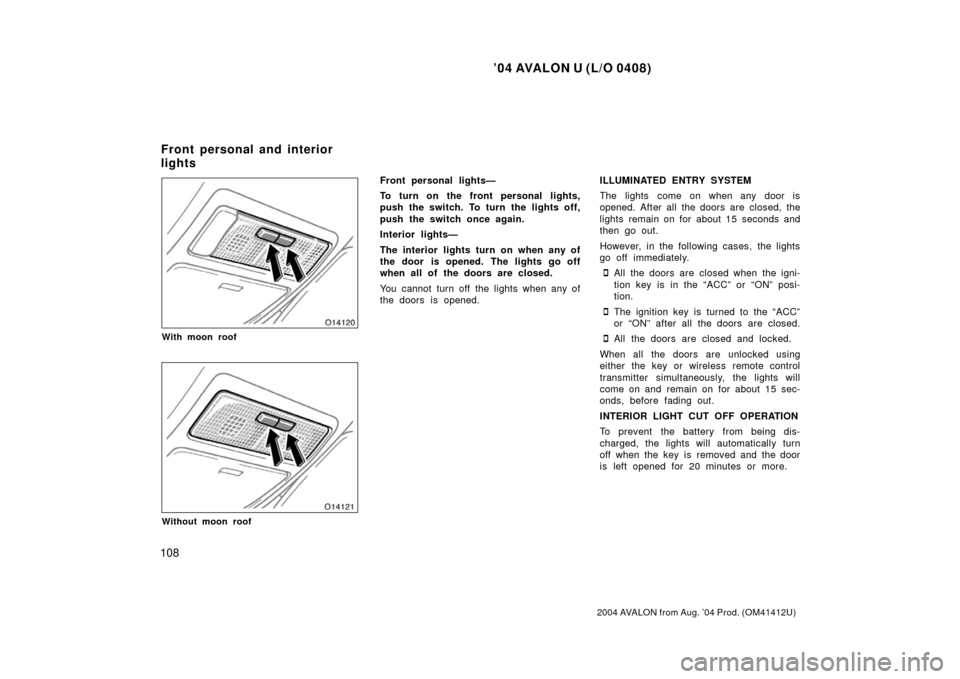

Front personal lights—
To turn on the front personal lights,
push the switch. To turn the lights off,
push the switch once again.
Interior lights—
The interior lights turn on when any of
the door is opened. The lights go off
when all of the doors are closed.
You cannot turn off the lights when any of
the doors is opened.ILLUMINATED ENTRY SYSTEM
The lights come on when any door is
opened. After all the doors are closed, the
lights remain on for about 15 seconds and
then go out.
However, in the following cases, the lights
go off immediately.
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to the “ACC”
or “ON” after all the doors are closed.
All the doors are closed and locked.
When all the doors are unlocked using
either the key or wireless remote control
transmitter simultaneously, the lights will
come on and remain on for about 15 sec-
onds, before fading out.
INTERIOR LIGHT CUT OFF OPERATION
To prevent the battery from being dis-
charged, the lights will automatically turn
off when the key is removed and the door
is left opened for 20 minutes or more.
Front personal and interior
lights

’04 AVALON U (L/O 0408)
109
2004 AVALON from Aug. ’04 Prod. (OM41412U)

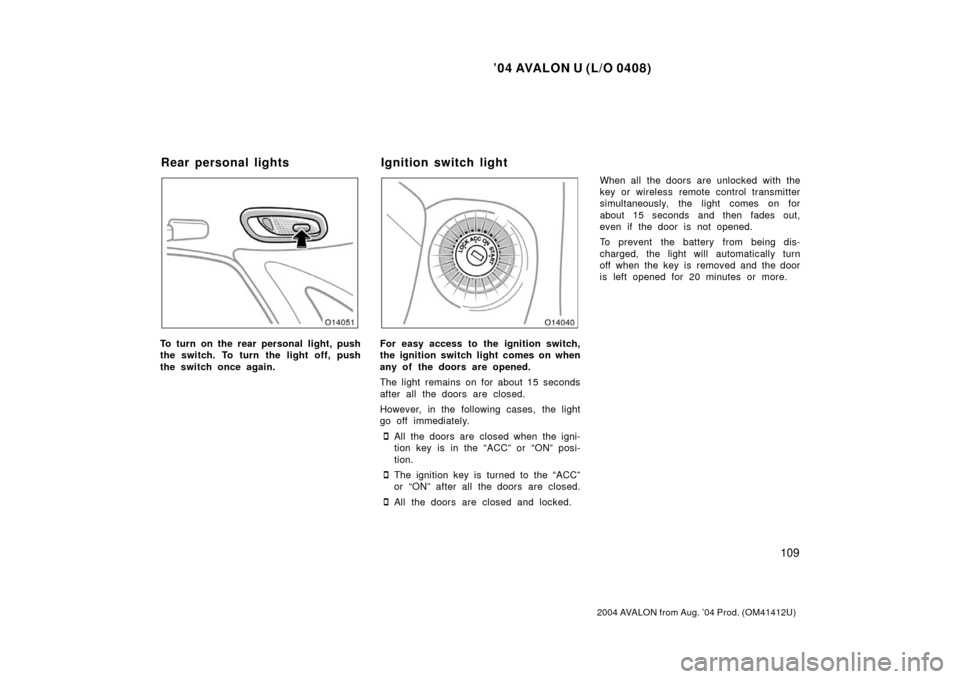

To turn on the rear personal light, push
the switch. To turn the light off, push
the switch once again.For easy access to the ignition switch,
the ignition switch light comes on when
any of the doors are opened.
The light remains on for about 15 seconds
after all the doors are closed.
However, in the following cases, the light
go off immediately.
All the doors are closed when the igni-
tion key is in the “ACC” or “ON” posi-
tion.
The ignition key is turned to the “ACC”
or “ON” after all the doors are closed.
All the doors are closed and locked.When all the doors are unlocked with the
key or wireless remote control transmitter
simultaneously, the light comes on for
about 15 seconds and then fades out,
even if the door is not opened.
To prevent the battery from being dis-
charged, the light will automatically turn
off when the key is removed and the door
is left opened for 20 minutes or more.
Rear personal lights
Ignition switch light

’04 AVALON U (L/O 0408)
250
2004 AVALON from Aug. ’04 Prod. (OM41412U)
IN CASE OF AN EMERGENCY
In case of an emergency
If your vehicle will not start251
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 254
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
If you have a flat tire 255
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle becomes stuck 263
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission selector lever 266
. . . . . . . .
If you lose your keys 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 268
. . . . . . . . . . . . .
