2004 TOYOTA AVALON rear view mirror

’04 AVALON U (L/O 0408)
96
2004 AVALON from Aug. ’04 Prod. (OM41412U)

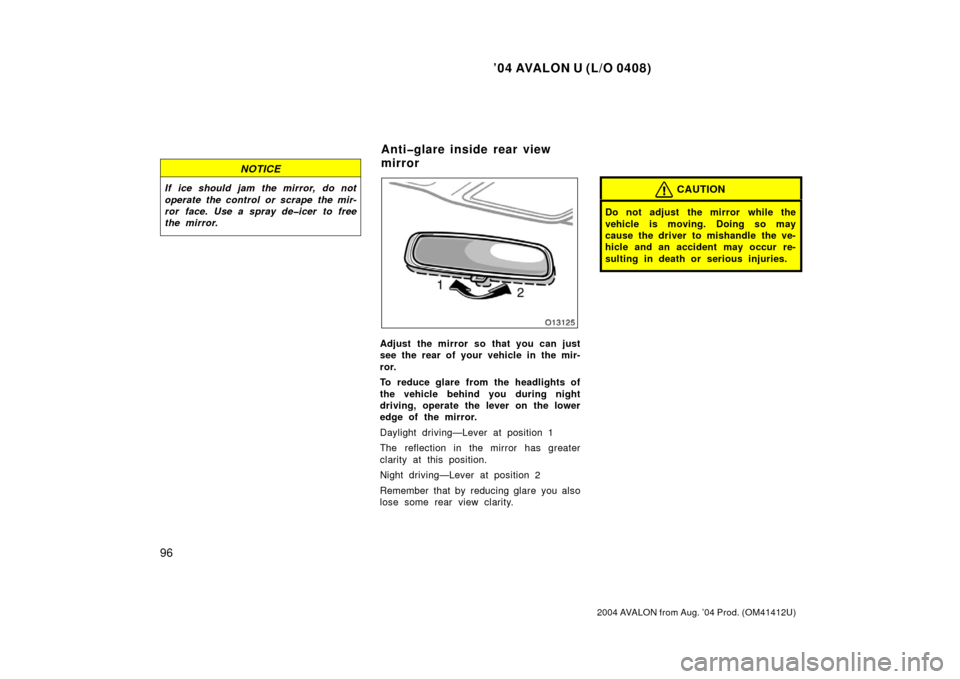

NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Antiglare inside rear view
mirror

’04 AVALON U (L/O 0408)
97
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the “AUTO” mode.
The “AUTO” indicator illuminates to show
you that the function is on.In “AUTO” mode, if the mirror detects light
from the headlights of the vehicle behind
you, the mirror surface darkens slightly to
reduce the reflected light.
When the inside rear view mirror surface
darkens the driver ’s side outside rear view
mirror surface also darkens.
To turn off the automatic function, press
the switch on the “OFF” side.
To turn on the automatic function again,
press the switch on the “AUTO” side.
Adjust it before driving so that the rear
view is optimized.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. It may cause the
driver to mishandle the vehicle and
an accident may occur resulting in
death or serious injuries.
To ensure correct functioning of an
antiglare mirror sensor located on the
back side of the mirror, do not touch
or cover the sensor with your finger or
a piece of cloth, etc.
Auto antiglare inside rear
view mirror

’04 AVALON U (L/O 0408)
100
2004 AVALON from Aug. ’04 Prod. (OM41412U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Instrument panel light control 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Interior light 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Front personal and interior lights 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear personal lights 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Ignition switch light 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Windshield wipers and washer 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shifting the windshield wiper position 11 2
. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror defoggers 11 3
. . . . . . . . . . .
SECTION 1 5

’04 AVALON U (L/O 0408)
11 3
2004 AVALON from Aug. ’04 Prod. (OM41412U)

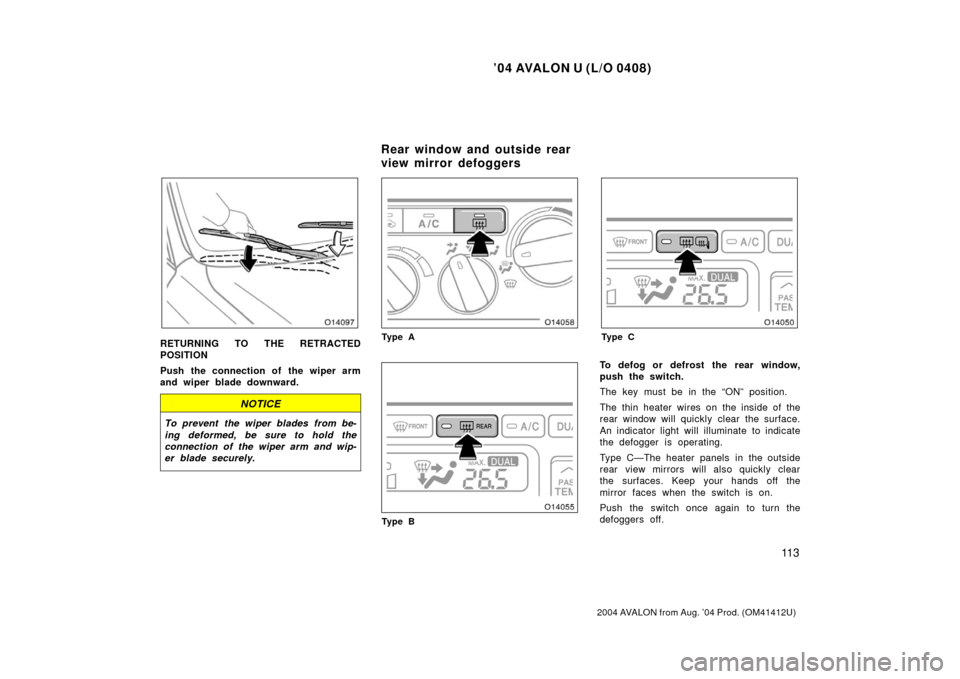

RETURNING TO THE RETRACTED
POSITION
Push the connection of the wiper arm
and wiper blade downward.
NOTICE
To prevent the wiper blades from be-
ing deformed, be sure to hold the
connection of the wiper arm and wip-
er blade securely.
Ty p e A
Ty p e B
Ty p e C
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator light will illuminate to indicate
the defogger is operating.
Type C—The heater panels in the outside
rear view mirrors will also quickly clear
the surfaces. Keep your hands off the
mirror faces when the switch is on.
Push the switch once again to turn the
defoggers off.
Rear window and outside rear
view mirror defoggers

’04 AVALON U (L/O 0408)
11 4
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
CAUTION
Type C—Since the mirror surfaces
can get hot, do not touch them when
the defogger switch is on.
Make sure you turn the defoggers off
when the surfaces are clear. Leaving the
defoggers on for a long time could cause
the battery to discharge, especially during
stopandgo driving. The defoggers are
not designed for drying rain water or for
melting snow.
On some models, if the outside rear view
mirrors are heavily coated with ice, use a
spray deicer before operating the switch.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.

’04 AVALON U (L/O 0408)
239
2004 AVALON from Aug. ’04 Prod. (OM41412U)
1. Check the area around the vehicle be-fore entering it.
2. Adjust seat position, seatback angle, seat cushion angle, head restraint
height and steering wheel angle.
3. Adjust the inside and outside rear view mirrors.
4. Lock all the doors.
5. Fasten seat belts. 1. Apply the parking brake firmly.
2. Turn off unnecessary lights and acces-
sories.
3. Put the selector lever in “P”. If you need to restart the engine while the
vehicle is moving, put the selector le-
ver in “N”. A starter safety device will
prevent the starter from operating if the
selector lever is in any drive position.
4. Depress the brake pedal and hold it to the floor until driving off. Before starting the engine, be sure to fol-
low the instructions in “(a) Before crank-
ing”.
Normal starting procedure
The multiport fuel injection system/sequen-
tial multiport fuel injection system in your
engine automatically controls the proper
airfuel mixture for starting. You can start
a cold or hot engine as follows:
With your foot off the accelerator pedal,
crank the engine by turning the key to
“START”. Release it when the engine
starts.
Engine should be warmed up by driving,
not in idle. For warming up, drive with
smoothly turning engine until engine cool-
ant temperature is within normal range.
If the engine stalls...
Simply restart it, using the correct proce-
dure given in normal starting.
If the engine will not start...
See “If your vehicle will not start” in Sec-
tion 4.
Before starting the engine
How to start the engine—
(a) Before cranking
(b) Starting the engine

’04 AVALON U (L/O 0408)
246
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Make sure the trailer cargo is securely
loaded so that it can not shift.
Check that your rear view mirrors con-
form to any applicable federal, state/
provincial or local regulations. If not,
install the rear view mirrors required
for towing purpose.
TRAILER TOWING TIPS
When towing a trailer, your vehicle will
handle differently than when not tow-
ing. The three main causes of vehicle
trailer accidents are driver error, exces-
sive speed and improper trailer loading.
Keep these in mind when towing:
Before starting out, check operation of
the lights and all vehicletrailer connec-
tions. After driving a short distance,
stop and recheck the lights and con-
nections. Before actually towing a trail-
er, practice turning, stopping and back-
ing with a trailer in an area away from
traffic until you learn the feel.
Backing with a trailer is difficult and
requires practice. Grip the bottom of
the steering wheel and move your hand
to the left to move the trailer to the
left. Move your hand to the right to
move the trailer to the right. (This pro-
cedure is generally opposite to that
when backing without a trailer.) Also,
just turn the steering wheel a little at
a time, avoiding sharp or prolonged
turning. Have someone guide you when
backing to reduce the risk of an acci-
dent.
Because stopping distance may be in-
creased, vehicletovehicle distance
should be increased when towing a
trailer. For each 16 km/h (10 mph) of
speed, allow at least one vehicle and
trailer length between you and the ve-
hicle ahead. Avoid sudden braking as
you may skid, resulting in jackknifing
and loss of control. This is especially
true on wet or slippery surfaces.
Avoid jerky starts or sudden accelera-
tion.
Avoid jerky steering and sharp turns.
The trailer could hit your vehicle in a
tight turn. Slow down before making a
turn to avoid the necessity of sudden
braking.
Remember that when making a turn,
the trailer wheels will be closer than
the vehicle wheels to the inside of the
turn. Therefore, compensate for this by
making a larger than normal turning
radius with your vehicle.
Crosswinds and rough roads will ad-
versely affect handling of your vehicle
and trailer, causing sway. Pay attention
to the rear from time to time to pre-
pare yourself for being passed by large
trucks or buses, which may cause your
vehicle and trailer to sway. If swaying
happens, firmly grip the steering wheel
and reduce speed immediately but
gradually. Never increase speed. Steer
straight ahead. If you make no extreme
correction with the steering or brakes,
the vehicle and trailer will stabilize.

’04 AVALON U (L/O 0408)
324
2004 AVALON from Aug. ’04 Prod. (OM41412U)
18. AM2 10 A: SRS airbag system, multi-
port fuel injection system/sequential
multiport fuel injection system, starter
system, charging system, air/fuel sen-
sor, fuel pump
19. EFI NO.2 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, air flow meter, oxygen
sensor, evaporative emission control
system, throttle positi oner control sys-
tem, engine control system
20. ABS NO.3 25 A: Antilock brake sys-
tem
21. ABS NO.2 25 A: Vehicle stability con-
trol system
22. EFI NO.1 15 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump
23. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
24. HEAD LH UPR 10 A: Lefthand head-
light (high beam), high beam indicator
light
25. HEAD RH UPR 10 A: Righthand
headlight (high beam)
26. ECUIG NO.1 5 A: Electric cooling
fans 27. ECUB 7.5 A:
Air conditioning system,
theft deterrent system, power seats,
meters, power windows (for driver and
front passenger), multiplex communica-
tion system
28. TAIL 10 A: Parking lights, license plate
lights, tail lights, rear side marker
lights, rear light failure warning light,
engine control system
29. SEAT HTR 20 A: Seat heaters
30. FR P/W 20 A: Power window (for front
passenger)
31. GAUGE NO.1 10 A: Vehicle stability
control system, rear window defogger,
cruise control system, shift lock sys-
tem, antilock brake system, auto anti
glare inside rear view mirror, automatic
light control system, power seats, rear
light failure warning light, automatic
transmission indicator lights, power out-
let, power window (for driver), brake
system warning light, electric moon
roof
32. HTR 10 A: Air conditioning system
33. FOG 15 A: Front fog lights
34. TURN 7.5 A: Turn signal lights
35. A/C 10 A: Air conditioning system
36. RADIO 15 A: Audio system, multiin-
formation display 37. PANEL 5 A:
Gauges and meters, audio
system, cigarette lighter, air c ondition-
ing system, emergency flasher, elec-
tronically controlled automatic transmis-
sion system, power rear view mirrors,
multiinformation display, glove box
light, instrument panel lights, instrument
panel light control, power outlet
38. FL P/W 25 A: Power window (for driv-
er)
39. PWR OUTLET NO.1 15 A: Power out-
let (ACC)
40. ECUACC 5 A: Audio system, power
rear view mirrors, multiinformation dis-
play, shift lock system, multiplex com-
munication system
41. SRSACC 10 A: SRS airbag system
42. MIR HTR 10 A: Outside rear view mir-
ror defoggers, engine control system
43. PWR OUTLET NO.2 15 A: Power out-
let (IG)
44. GAUGE NO.2 10 A: Backup lights
45. OBDII 7.5 A: Onboard diagnosis sys-
te

m
46. STOP 15 A: Stop lights, high mounted
stoplight, antilock brake system, shift
lock system, cruise control system, ve-
hicle stability control system, engine
control system
