Mirrors
Always check that the inside and outside mirrors are
properly adjusted before you start driving. „Inside mirror
1) Tab
The inside mirror has a day and night position. Pull the
tab at the bottom of the mirror toward you for the night
position. Push it away for the day position. The night
position reduces glare from headlights. „
Auto-dimming mirror/compass (if
equipped)
1) Left button
2) Auto dimming indicator
3) Photosensor
4) Right button
The auto-dimming mirror/compass has an anti-glare
feature which automatically reduces glare coming
from headlights of vehicles behind you. It also con-
tains a built-in compass. y By pressing and releasing the left button, the auto-
matic dimming function is toggled on or off. When the
automatic dimming function is on, the auto dimming in-
1HS3036BB
1
23 4
HS3037BB

3-32
Instruments and controls
dicator light (green) located to the right of the button
will illuminate.y
By pressing and releasing the right button, the com-
pass display is toggled on or off. When the compass is
on, an illuminated compass reading will appear in the
lower part of the mirror.
Even with the mirror in anti-glare mode, the mirror sur-
face turns bright if the transmission is shifted into re-
verse. This is to ensure good rearward visibility during reversing. T Photosensors
The mirror has a photosensor attached on both the
front and back sides. If the glare from the headlights of vehicles behind you strikes the mirror, these sensors
detect it and make the reflection surface of the mirror
dimmer to help prevent you from being blinded. For
this reason, use care not to cover the sensors with
stickers, or other similar items. Periodically wipe the
sensors clean using a piece of dry soft cotton cloth or
an applicator. T
Compass calibration
1. For optimum calibration, switch off all nonessential
electrical accessories (rear window defogger, heater/
air conditioning system, spotlight, etc.) and ensure all
doors are shut.
2. Drive to an open, level area away from large metal-
lic objects or structures and make certain the ignition
switch is in the “ON” position.
3. Press and hold the left button for 3 seconds then re-
lease, and the compass will enter the calibration
mode. “CAL” and direction will be displayed.
4. Drive slowly in a circle until “CAL” disappears from
the display (about two or three circles). The compass
is now calibrated.
5. Further calibration may be necessary should out-
side influences cause the mirror to read inaccurately.
You will know that this has occurred if your compass
begins to read in only limited directions. Should you
encounter this situation, return to step one of the
above procedure and recalibrate the mirror.
HS3038BA

4-12
Climate control
pressed, and is used in conjunction with the Temper-
ature control dial to maintain a constant, comfortable
climate within the passenger compartment.
The temperature can be set within a range of 65 to 85
°F (18 to 32 °C).
NOTE
The temperature is shown in units of Fahrenheit
for US model and in Centigrade for Canadian mod-el. „

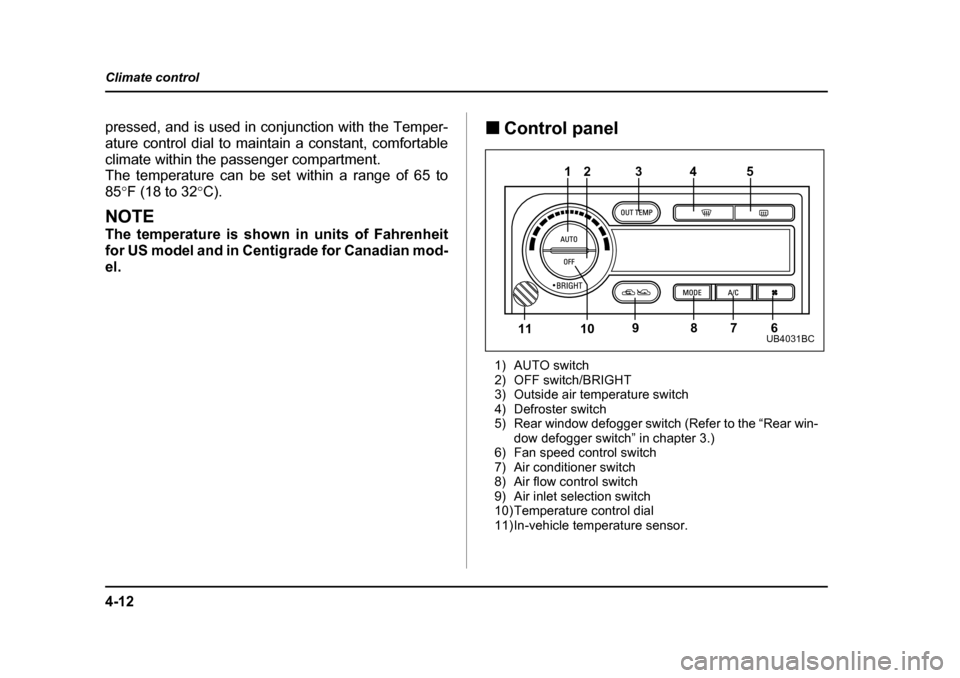

Control panel
1) AUTO switch
2) OFF switch/BRIGHT
3) Outside air temperature switch
4) Defroster switch
5) Rear window defogger switch (Refer to the “Rear win- dow defogger switch” in chapter 3.)
6) Fan speed control switch
7) Air conditioner switch
8) Air flow control switch
9) Air inlet selection switch
10) Temperature control dial
11)In-vehicle temperature sensor.
45
3
2
1
10 6
97 8
11
UB4031BC

4-18
Climate control
„
Temperature sensors
1) Sun-load sensor 1) In vehicle air temperature sensor
This Automatic Climate Control system employs the
several sensors. These are very delicate parts. There-
fore, if these sensors are damaged, it is possible that
the Automatic Climate Control system will not properly
control the air temperature in the passenger compart-
ment. To prevent possible damage to the sensors,
please observe the following:
– Do not allow anything to impact the sensors.
– Be careful not to let water contact the sensors.
– Do not cover the sensors.
The sensors are found at the following locations:
– Sun-load sensor (beside the windshield defroster
1
UB5024BB
1UB4034BB

4-19
Climate control
– CONTINUED –
grille)
– In-vehicle temperature sensor (beside the tempera-ture control dial.)
– Ambient sensor (at the under side of the bumper) Operating tips for heater and air con-
ditioner „
Cleaning ventilator grille
1) Ventilator inlet grill
Always keep the front ventilator inlet grille free of
snow, leaves, or other obstructions to ensure efficient
heating and defrosting. Since the condenser is located
in front of the radiator, this area should be kept clean
because cooling performance is impaired by any ac-
cumulation of insects and leaves on the condenser.
1
UB5019BC

10-3
Appearance care
– CONTINUED –
Mud and sand adhering to the underbody components
may accelerate their corrosion.
After driving off-road or muddy or sandy roads, wash
the mud and sand off the underbody.
Carefully flush the suspension and axle parts, as they
are particularly prone to mud and sand buildup. Do not
use a sharp-edged tool to remove caked mud.
NOTE
Be careful not to damage brake hoses, sensor har-
nesses, and other parts when washing suspen-
sion components. TUsing a warm water washer
y Keep a good distance of 12 in (30 cm) or more be-
tween the washer nozzle and the vehicle. y Do not wash the same area continuously.
y If a stain will not come out easily, wash by hand.
Some warm water washers are of the high tempera-
ture, high pressure type, and they can damage or de-
form the resin parts such as mouldings, or cause wa-
ter to leak into the vehicle. „ Waxing and polishing
Always wash and dry the vehicle before waxing and
polishing.
Use a good quality polish and wax and apply them ac- cording to the manufacturer’s instructions. Wax or pol-
ish when the painted surface is cool.
Be sure to polish and wax the chrome trim, as well as
the painted surfaces. Loss of wax on a painted surface
leads to loss of the original luster and also quickens
the deterioration of the surface. It is recommended
that a coat of wax be applied at least once a month, or
whenever the surface no longer repels water.
If the appearance of the paint has diminished to the
point where the luster or tone cannot be restored,
lightly polish the surface with a fine-grained com-
pound. Never polish just the affected area, but include
the surrounding area as well. Always polish in only
one direction. A No. 2000 grain compound is recom-
mended. Never use a coarse-grained compound.
Coarser grained compounds have a smaller grain-size
number and could damage the paint. After polishing
with a compound, coat with wax to restore the original
luster. Frequent polishing with a compound or an in-
correct polishing technique will result in removing the
paint layer and exposing the undercoat. When in
doubt, it is always best to contact your SUBARU deal-
er or an auto paint specialist.
NOTE
Be careful not to block the windshield washer noz-
zles with wax when waxing the vehicle.
