2004 SKODA OCTAVIA TOUR remote control

22CONTROLS AND EQUIPMENTMemory for driver’s seatThe memory of your driver’s seat offers the
possibility of storing your own individual
settings for the seat and exterior mirrors. It
is possible to store the individual settings
for up to three drivers in each case using
the memory button D. If another person
drives the car, it is then only necessary to
press button D for the seat and exterior
mirrors to be set automatically to the indi-
vidually programmed position. Memory button
D can be used to store and
retrieve the
- individual settings of the driver’s seat,
- Storing and retrieving exterior mirror settings (on left and right) for driving
forward , or exterior mirror setting (on
right) for reversing.
In addition, you can use the keys of the
remote control* to retrieve the stored set-
tings of a memory button.
The memory system can be switched off at
any time with the lock switch E. The seat
and the exterior mirrors can then only be
adjusted manually.
Storing seat and mirror settings for
driving forward
Switch the ignition on.

Adjust the seat - see pages 20 and 21.

Adjust both exterior mirrors - see page
16.

Press one of the memory buttons D and
hold the button for about three seconds until
an audible signal confirms that the settings
have been stored.
The settings are then stored under the
memory button selected.
Storing exterior mirror setting for
reversing*
Switch the ignition on.

Switch over operation of the exterior
mirror to position R.

Shift into reverse gear.

Position the exterior mirror on the right
into the desired setting - refer to p. 17.

Press one of the memory buttons D and
hold the button for about three seconds until
an audible signal confirms that the setting
has been stored.
The settings are stored under the selected
memory button.
Notes

We recommend beginning with the left-
hand button for the memory assignment
and allocating a memory button to each
additional driver.

Each new setting which is stored with the
same button cancels the previous setting.

Each time new settings are stored for the
seat and mirrors for driving forward, it is
also necessary to re-store the individual
setting of the right-hand exterior mirror for
reversing.

23
CONTROLS AND EQUIPMENT
Assigning remote control keys* to
the memory buttonsIf you wish to be able to retrieve the set-
tings stored in the memory using the remote
control key, you must assign the keys to a
particular memory button.
We recommend assigning one of the two
factory-supplied remote control keys to the
left-hand memory button and the other keys
to the middle button.
You can obtain an additional remote con-
trol key, if necessary, from your Škoda Dea-
ler and then assign it to the right-hand
memory button.Carry out the following procedure
to assign the remote control keys:After storing the settings of the driver’s seat
and mirrors, you have 10 seconds to as-
sign the remote control key to the corre-
sponding memory.

Withdraw the remote control key from
the ignition lock for this purpose.

Press the opening button of the remote
control key - see page 12 and hold the but-
ton for about one second until an audible
signal confirms the assignment has been
made.
The setting is stored under the memory
button you selected.
Notes

If the remote control key has already
been assigned to another memory button,
the „old“ assignment is cancelled.

If the remote control key is assigned to
a memory button which has already been
assigned to another key, the „old“ assign-
ment is also cancelled in this case.

The assignment of a remote control key
to a memory button is retained even if you
store new seat and mirror settings with this
button.
Retrieving seat and mirror settings
for driving forwardYou can retrieve the stored settings by us-
ing the memory buttons D as well as the
remote control*.
Retrieving with the memory buttons
For safety reasons, you are able to retrie-
ve the seat and memory settings only if the
ignition is switched off . You have two
possibilities for retrieving the settings in this
case:
„One-touch automatic memory“: With the
driver door opened, briefly press on the
desired memory button D. The seat and
exterior mirrors now move automatically
into the stored position.

24CONTROLS AND EQUIPMENT„Multi-touch memory retrieval“: With the
driver door opened or closed, continuous-
ly press the desired memory button D until
the seat and exterior mirrors have moved
into the stored position.
Note
If one of the memory buttons is once again
pressed during the automatic adjustment
of the seat and exterior mirrors, the retrie-
val process is interrupted. In this case,
again press the key which you pressed first
in order to continue the interrupted retrie-
val process. If, on the other hand, you press
one of the other two buttons, the seat and
mirrors will then move to the positions
stored with these buttons.
Retrieving with the remote control*
You can only retrieve the stored seat and
mirror settings if the ignition is switched
off and the driver door is closed:
Briefly press the opening button of the re-
mote control key - see page 9, and then
open the driver door.
The seat and the exterior mirrors now move
automatically into the stored positions.
Notes on use of the lock switch E
After the lock switch E is pressed (re-
leased), the memory system is permanently
switched off. You can now set the seat and
the exterior mirrors only manually. You can
switch on the memory system again by
once again pressing the lock switch E. If a
retrieval process was interrupted when this
switch was first pressed, the process is not
continued .

We recommend switching off the memo-
ry system with the lock switch E if the car is
to be driven for a short time by a person for
whom you do not wish to store the individual
seat and mirror settings.
Retrieving exterior mirror setting for re-
versing*
When reverse gear is engaged, switch over
operation of the exterior mirror settings to
position
R - refer to p. 17.

63
CONTROLS AND EQUIPMENT
Fog lights*The fog lights are switched on by pull-
ing the switch into position A.
The fog lights come on if the side lights,
low or main beam are switched on.Rear fog lightThe rear fog light is switched on by pull-
ing the switch into position B.
The rear fog light comes on if the low or
main beam is selected or if the front fog
lights are switched on (depends on the
national version). The rear fog light should
only be switched on if visibility is poor, be-
cause of the risk of dazzling a driver be-
hind.
Notes

The rear fog light is incorporated in the
rear light of the driver’s side.

The electrical system of the towing de-
vice fitted for certain countries is designed
to automatically switch off the rear fog light
of the car when towing a trailer fitted with a
rear fog light.
1 - Hazard warning system
2 - Rear window heater/Exte-
rior mirror heater
3 - ESP/TCS*
(The switch applies to the
ESP or TCS, depending on the sys-
tem fitted. See pages 64 and 65 for
further information on ESP and TCS.
4 - Thumbwheel for front seat heater*
5 - Remote fuel filler flap re- leased from driver’s seat*
1 - Hazard warning systemIf the hazard warning system is switched
on, all the turn signal lights of the car flash
at the same time. The warning light for the
turn signals and the warning light in the
switch also flash. The system operates
even if the ignition is switched off.2 - Rear window heaterThe heating operates only if the ignition is
switched on. When the heater is operating,
the warning light in the switch comes on.
After the rear window heater is switched on,
the heaters of the exterior mirrors are also
switched on on models fitted with power
windows.
The rear window heater switches off au-
tomatically after 20 minutes.
If you press the switch once again, the
rear window heater is switched on perma-
nently - the automatic deactivation is thus
deactivated.
As soon as the rear window is clear, switch off the heater. The reduced
current consumption improves your fuel consumption - see also page 118.
2

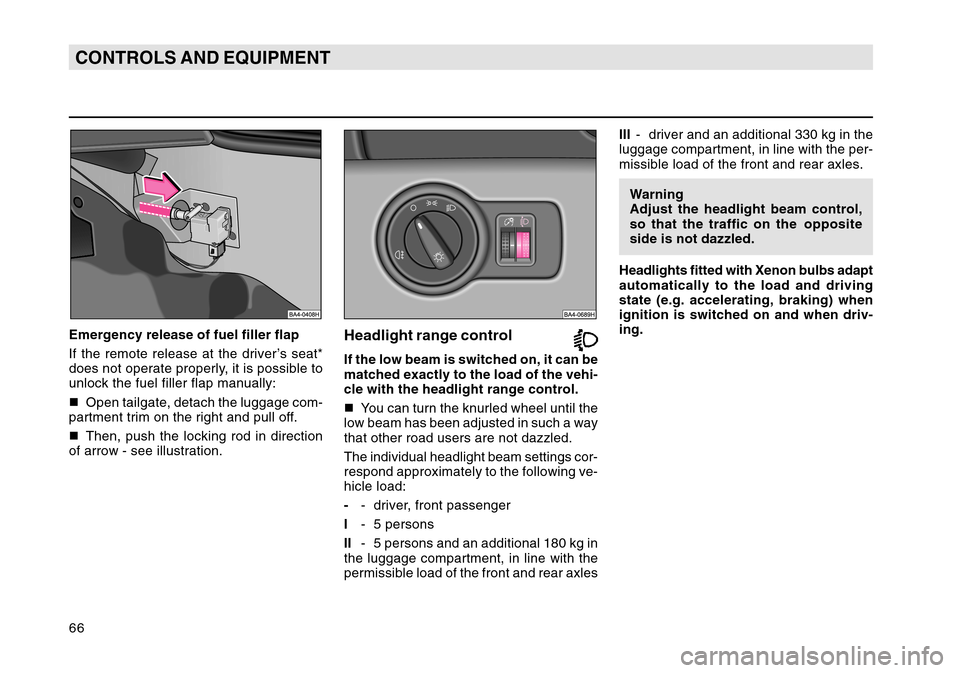

66CONTROLS AND EQUIPMENTEmergency release of fuel filler flap
If the remote release at the driver’s seat*
does not operate properly, it is possible to
unlock the fuel filler flap manually:

Open tailgate, detach the luggage com-
partment trim on the right and pull off.

Then, push the locking rod in direction
of arrow - see illustration.
Headlight range controlIf the low beam is switched on, it can be
matched exactly to the load of the vehi-
cle with the headlight range control.

You can turn the knurled wheel until the
low beam has been adjusted in such a way
that other road users are not dazzled.
The individual headlight beam settings cor-
respond approximately to the following ve-
hicle load:
- - driver, front passenger
I - 5 persons
II - 5 persons and an additional 180 kg in
the luggage compartment, in line with the
permissible load of the front and rear axles
III - driver and an additional 330 kg in the
luggage compartment, in line with the per-
missible load of the front and rear axles.
Warning
Adjust the headlight beam control,
so that the traffic on the opposite
side is not dazzled.
Headlights fitted with Xenon bulbs adapt
automatically to the load and driving
state (e.g. accelerating, braking) when
ignition is switched on and when driv-
ing.

168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.

184ALPHABETICAL INDEX
NNavigation system, 55
Net partition, 33
Net, 30
Noise, dust and pollen filter, 152
Note holder, 91OOil consumption, 119
On-board instruments, 48PPaint damage, 131
Parking light, 62
Parking light, 67
Parking ticket, 91
Pedals, 35
Pelvic belt, 101
Petrol engines, 45
Plastic and synthetic leather parts, 132
Polishing the car, 131
Power steering, 141
Preglow system (diesel), 43, 45, 57
Prewarming fuel, 129RReading light, 88
Rear-view mirror, 16
Recirculated air mode, 73, 76
Refuelling the car, 65, 127 Remote control, 12
- Replacing the code, 13
Replacement
- Brake fluid, 145
- Parts, 159
- Wheel, 163
- Oil, 141
- Fuses, 167
- Bulbs, 169
Rev counter, 48
Roof luggage rack system, 91
Roof luggage rack system, 91
Running in the car, 117
SSafe securing system, 9
Safety net, 30
Safety, 93
Seat belt tensioners, 102
Seat belt tensioners, 102
Seat belts, 98
Seat belts, 98
Seat heaters, 65
Seat height, 19
Seats, 19, 25, 94
Securing wheels, 166
Service Display, 49
Service interval, extended, 138
Shift pattern, 38
Shifting gears, 38 Side airbag, 109
Signals, acoustic, 46
Snow chains, 157
Socket 12 V, 89
Spare wheel, 162
Spark plugs, 150
Spectacle case, 91
Spectacles, 91
Speedometer, 49
Speedometer, 49
- Counter for distance driven, 49
Spray for tyre repair, 162
Steering wheel, 5, 43, 70
Storage compartments, 10, 87
Sun visors, 86
Support of pelvic belt, 20
Switch, 62
Switching from high beam to low beam, 67
TTaking care of your vehicle, 129
TCS, 60, 65
Technical changes, 160
Temperature display, 52
The first 1500 km, 117
Tool, 161
Top up with oil, 140
Towing a trailer, 124
Towing a vehicle, 178
Towing device, 124
