172DO-IT-YOURSELF

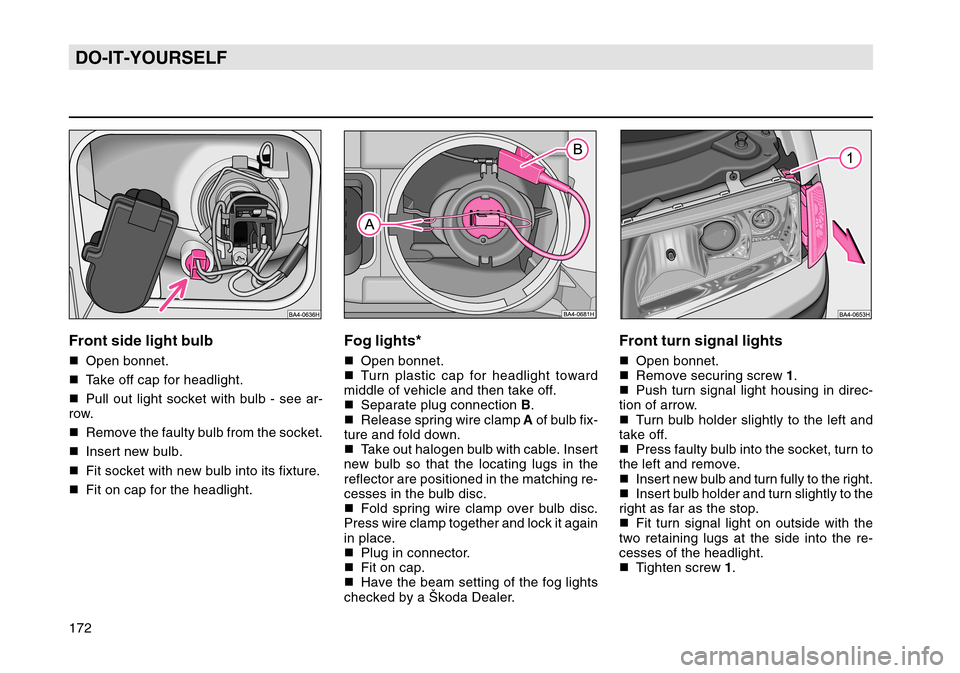

Front turn signal lights
Open bonnet.

Remove securing screw 1.

Push turn signal light housing in direc-
tion of arrow.

Turn bulb holder slightly to the left and
take off.

Press faulty bulb into the socket, turn to
the left and remove.

Insert new bulb and turn fully to the right.

Insert bulb holder and turn slightly to the
right as far as the stop.

Fit turn signal light on outside with the
two retaining lugs at the side into the re-
cesses of the headlight.

Tighten screw 1.
Front side light bulb
Open bonnet.

Take off cap for headlight.

Pull out light socket with bulb - see ar-
row.

Remove the faulty bulb from the socket.

Insert new bulb.

Fit socket with new bulb into its fixture.

Fit on cap for the headlight.
Fog lights*
Open bonnet.

Turn plastic cap for headlight toward
middle of vehicle and then take off.

Separate plug connection B.

Release spring wire clamp A of bulb fix-
ture and fold down.

Take out halogen bulb with cable. Insert
new bulb so that the locating lugs in the
reflector are positioned in the matching re-
cesses in the bulb disc.

Fold spring wire clamp over bulb disc.
Press wire clamp together and lock it again
in place.

Plug in connector.

Fit on cap.

Have the beam setting of the fog lights
checked by a Škoda Dealer.

183
