2004 SKODA OCTAVIA TOUR Windows

5
CONTROLS AND EQUIPMENT
Page
1 Exterior mirrors adjustable from inside* 172 Air vents73, 76, 833Lever for the multi-functional switch:
67, 68
Turn signal lights, main beam, parking light,
low beam, headlight flasher and cruise control*
4 Instrument cluster:
48, 56
Instruments and warning lights
5 Lever for windscreen wiper/ washer
50, 71with switch for multifunction display
6 Switch for heated rear window 637 Switch for ESP/TCS*638 Switch for hazard warning light system 639 Thumbwheel for seat heater*65
10 Remote fuel filler flap release from driver’s
65
seat*
11 Passenger airbag 10312 Storage compartment in the front doors -
13 Button for central locking and electrical
8, 15
power windows
14 Remote bonnet release 135
15 Switch for parking light, low beam, rear fog 62
light
and instrument lighting
66
Page
16
Storage compartment below the steering wheel
-
17 Horn, driver airbag* 10318 Lever for adjusting height of steering column19 Ignition lock 4320 Ashtrays90
21 Gearshift lever (manual gearbox), or
38, 39
Selector lever (automatic gearbox)
22 Handbrake 3623 Control for heating and air conditioning* 72, 75, 7924 Storage compartment -25 Radio
1)
-
26 Storage compartment on the front
87
passenger side

The arrangement of the controls and the styling of the dash
panel depend on the model version.

Equipment marked with * is fitted as standard only to certain
model versions or is available only for certain models as optional
equipment.

On right-hand drive vehicles the arrangement of the controls
and switches and the location of some items may vary. The sym-
bols on the controls and switches are the same as for left-hand
drive vehicles.
1)Cars with factory-fitted radio are supplied with a radio instruction lea\
flet.
43

10CONTROLS AND EQUIPMENTNote
If the car is locked and the Safe lock is
deactivated, it is possible to open the doors
from the inside as follows:

The door is unlocked by pulling the door
opening handle.

The door is opened by once again pul-
ling the handle.Convenience systemWhen unlocking and locking the car, it is
also possible to open and close the power
windows (only to close the sliding/tilting
roof) as follows:

Hold the key in the unlocking or locking
position until all the windows are opened
or closed. The opening or closing operati-
on is stopped immediately once the key is
released.
The rollback protection is not active if
the convenience system is used. Refer
to p. 16 for further information.
Warning

If the vehicle is locked from the
outside, make sure no persons or
animals are left behind. As locked
doors make outside emergency as-
sistance difficult, never leave chil-
dren or animals unattended in the
car.

Locking the doors will prevent their
opening unintentionally in excep-
tional circumstances (accident).
Locked doors also prevent unauthor-
ized access e.g. while waiting at traf-
fic lights. However, they do make it
more difficult for emergency workers
to provide assistance inside the car.

Check the locking process visu-
ally to ensure the locking knobs are
down.

The car is unlocked automatically
if the airbag system is activated.
Storage compartmentsAn overview
You will find the following storage facilities
in your vehicle:

Storage compartment on the front pas-
senger side - see page 87

Storage compartment below the steer-
ing wheel - see page 4

Storage compartment in the middle of
the dash panel - see page 4

Storage compartment in the door panel
- see page 4
Warning


Please do not place anything on top
of the dash panel. Such objects might
slide or fall down when driving (when
accelerating or cornering) and may
distract you from concentrating on the
traffic situation - risk of accident!

Use the storage compartments in
the door panels only for small items,
which do not project out of the com-
partment in order to avoid any inter-
ference with the proper operation of
the side airbags.

Ensure that when driving no ob-
jects from the centre console of from
other storage possibilities may get
into the footwell of the driver.
You would then no longer be able to
apply the brakes, operate the clutch
or accelerator - risk of accident!

15
CONTROLS AND EQUIPMENT
Power windows*
The switches for the individual windows are
located in the armrest of the driver door, of
the front passenger door and in the rear
doors*.
The power windows can also be operated
when the ignition is switched off.
If the ignition is switched off, the power win-
dows can continue to be operated for about
10 minutes, but not anymore if the door is
opened and closed.
The buttons in the rear doors* can be de-
activated using the safety switch* 1. The
windows should be closed in this case. Af-
ter this, it is only possible to operate the
windows in the rear doors with the switches
in the armrest. After the safety switch has
been pressed once again the rear switches
again operate.
Opening and closing windows by
means of buttons on the driver’s
doorOpening versions

The window is opened by applying slight
pressure to the relevant switch in the door.
The opening operation is stopped when the
switch is released.

The front windows are automatically
opened fully if the switch is pressed as far
as the stop.
The window stops immediately when the
switch is again pressed.
Closing

The window is closed by pulling up the
relevant switch slightly.
The closing operation is immediately
stopped when the switch is released.

The front windows are automatically fully
closed if the switch is pulled up as far as
the stop.
The window stops immediately if the switch
is pulled once again. Notes


The two switches for the rear windows
each have only one closing and one open-
ing position. The switch has to be pressed
and held during the entire closing or open-
ing operation.

It is only possible to automatically fully
open and close the two front windows us-
ing the switches in the driver’s door.

If the battery is re-connected, the top
position of the closed window has to be set
(system activated):
- Close all the windows with the conve- nience closing system.
- release the key
- After closing the window, hold the key in the closed position for a further 3 sec-
onds or so.

16CONTROLS AND EQUIPMENTDriving in winterIn winter, the closing operation of the win-
dow may be stopped because of the higher
friction resistance, caused for example by
ice, and the window then returns to its ini-
tial position.
In such a case, the window must be closed
in the following way:

Pull the switch (press switch at front
passenger door and at the rear doors) and
hold until the window is closed.

If closing is interrupted, repeat the op-
eration.Convenience operation of windowsWhen the car is unlocked and locked, it is
possible to open and close the power win-
dows (only to close the sliding/tilting roof),
as follows:

Hold the key in the lock in the opening
or closing position until all the windows are
opened or closed. The opening or closing
operation is interrupted immediately when
the key is released.
The rollback protection is not active if
the convenience system is used. Refer
to the following text for more detailed
information. Warning


The system is equipped with a
safety device to prevent injuries from
bruises. If, for example, a person’s
arm becomes jammed in the window
as it closes, the closing operation is
interrupted and the window opens
again a short distance. Despite this,
take care when closing the windows.
Persons may suffer injuries if the
windows are closed inattentively or
in an uncontrolled way.

No person should be left in the car
if it is locked from the outside. It is
not possible to open the windows
after about 10 minutes, or if the driv-
er’s door is opened and closed when
the ignition is switched off.

It is important to always pay atten-
tion when the windows are closing
to avoid anyone being injured.
Adjusting mirrorsThe rear-view mirrors should always be
adjusted properly before moving off so as
to ensure good vision to the rear.
Anti-dazzle inside mirror
The lever on the lower edge of the mirror
should be pointing forward when the basic
setting is made.
Pull lever to the rear to set the anti-dazzle
position.Rear-view mirrors

17
CONTROLS AND EQUIPMENT
Electrically adjustable exterior mir-
rors*are set by a rotary knob in the trim panel of
the driver’s door. The mirror is set to the
desired position by moving the rotary knob
in the desired direction with the ignition
switched on.
Position
Heating exterior mirror (applies only to mo-
dels with power windows)
Position L
- left-hand and right-hand mirrors at thesame time (applies to models with con-
venience system)
- left-hand mirror (applies to models wit- hout convenience system) Position R
Adjusting the right-hand mirror
If the electrical adjustment of the mirrors
fails, the mirrors can be adjusted by hand
by pressing on the edge of the surface of
the mirror.
Exterior mirror heating(applies only to models not fitted with power
windows)
When the ignition is switched on, the exte-
rior mirrors are heated provided the rear
window heater is also operating.
Note for using convex or aspherical ex-
terior mirrors:
Convex
exterior mirrors (curved outwards)
enlarge the field of view but they make ob-
jects look smaller.
These mirrors are only of limited use in
estimating how far away a following ve-
hicle is.
Aspherical exterior mirrors have a mirror
surface with different curvature. This wide-
angle mirror increases the field of view even
more so than conventional convex mirrors.
These mirrors are also only of limited
use in estimating how far away a follow-
ing vehicle is.
Warning
Use whenever possible the interior
rear mirror, for estimating the dis-
tance to the following vehicles.

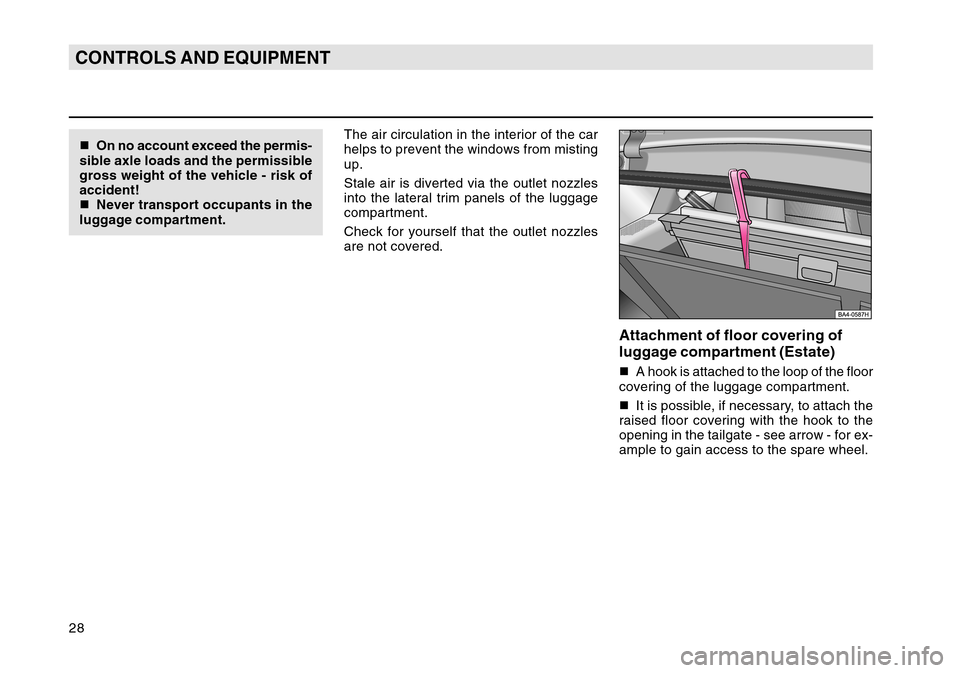

28CONTROLS AND EQUIPMENT
Attachment of floor covering of
luggage compartment (Estate)
A hook is attached to the loop of the floor
covering of the luggage compartment.

It is possible, if necessary, to attach the
raised floor covering with the hook to the
opening in the tailgate - see arrow - for ex-
ample to gain access to the spare wheel.


On no account exceed the permis-
sible axle loads and the permissible
gross weight of the vehicle - risk of
accident!

Never transport occupants in the
luggage compartment. The air circulation in the interior of the car
helps to prevent the windows from misting
up.
Stale air is diverted via the outlet nozzles
into the lateral trim panels of the luggage
compartment.
Check for yourself that the outlet nozzles
are not covered.

63
CONTROLS AND EQUIPMENT
Fog lights*The fog lights are switched on by pull-
ing the switch into position A.
The fog lights come on if the side lights,
low or main beam are switched on.Rear fog lightThe rear fog light is switched on by pull-
ing the switch into position B.
The rear fog light comes on if the low or
main beam is selected or if the front fog
lights are switched on (depends on the
national version). The rear fog light should
only be switched on if visibility is poor, be-
cause of the risk of dazzling a driver be-
hind.
Notes

The rear fog light is incorporated in the
rear light of the driver’s side.

The electrical system of the towing de-
vice fitted for certain countries is designed
to automatically switch off the rear fog light
of the car when towing a trailer fitted with a
rear fog light.
1 - Hazard warning system
2 - Rear window heater/Exte-
rior mirror heater
3 - ESP/TCS*
(The switch applies to the
ESP or TCS, depending on the sys-
tem fitted. See pages 64 and 65 for
further information on ESP and TCS.
4 - Thumbwheel for front seat heater*
5 - Remote fuel filler flap re- leased from driver’s seat*
1 - Hazard warning systemIf the hazard warning system is switched
on, all the turn signal lights of the car flash
at the same time. The warning light for the
turn signals and the warning light in the
switch also flash. The system operates
even if the ignition is switched off.2 - Rear window heaterThe heating operates only if the ignition is
switched on. When the heater is operating,
the warning light in the switch comes on.
After the rear window heater is switched on,
the heaters of the exterior mirrors are also
switched on on models fitted with power
windows.
The rear window heater switches off au-
tomatically after 20 minutes.
If you press the switch once again, the
rear window heater is switched on perma-
nently - the automatic deactivation is thus
deactivated.
As soon as the rear window is clear, switch off the heater. The reduced
current consumption improves your fuel consumption - see also page 118.
2

73
CONTROLS AND EQUIPMENT
Rotary control C - air distribution
The air distribution to the vents is regulated
with the rotary control.
Pushbutton D - recirculated air mode
The recirculated air mode in the car is
switched on by pressing the button D.
The symbol on the pushbutton comes on.
Switch off by once again pressing the
pushbutton.
We recommend the recirculated air
mode should only be selected for a short
time, however, as no fresh air is sup-
plied, the windows may mist up.
For safety reasons, it is not possible
to press pushbutton D if the rotary
control C is in the position .................or is close to this position.
Air ventsHeated or non-heated fresh air flows out of
all the vents depending on the position of
the rotary control A.
The air distribution to the vents is regulated
with the rotary control C.
The vents 3 and 4 can also be closed and
opened individually with the vertical thumb-
wheel:
Vent closed - vertical thumbwheel of air
outlet vent in position E and G
Vent open fully - vertical thumbwheel of air
outlet vent in position F.It is also possible to alter the direction of the
air flow with the horizontal and vertical
thumbwheels of the air outlet vents 3 and 4.
The rear footwell vents are regulated to-
gether with the vents 5.
On models with another type of dash panel,
the air vents are regulated in a similar way.Defrosting windscreen and side
windows
Rotary switch B to position 4

Rotary control A fully to the right
and C to .............................................
Close vents 3.

Warm air can be directed additionally to
the side windows through vents 4.
