54 9-3 ConvertibleAdvice on soft top
operation• Once you have raised the soft top and
before driving off, always check that the
soft top is properly engaged with the wind-
shield rail.
 Once you have folded the soft top and
before driving off, check that the soft top
cover is locked.
 Do not operate the soft top in tempera-
tures below 23°F (–5°C).
 Note that certain automatic car washes
can damage the soft top. This applies to
car washes that use mechanical feelers
bearing against the body. Saab advises
against washing the Convertible in an
automatic car wash.
 After rain or washing the car, allow the soft
top to dry completely before folding it.
Folding a wet or damp soft top can cause
water damage in the car and mildew to
form on the soft top. Roof racks and ski holders must not be
mounted on the soft top.
 On no account should anything be put into
the stowage space of the soft top (under
the soft top cover) since this could cause
an obstruction when the soft top is being
folded away.
 Do not place any objects on the covers
over the roll bars as this can hamper their
function.
 When operating the soft top, raise or fold
it fully until notified that operation is com-
plete by the SID. Do not leave the soft top
partially open/closed. If the soft top is left
in an intermediate position it will collapse
progressively after 20 seconds to prevent
overloading the drive system.
 Washing the soft top, see page 250.
WARNING
 Never touch the hinges and struts of
the soft top nor the upper rail of the
windshield while operating the soft
top.
 Do not operate the soft top while there
are bystanders close to the car.
ProCarManuals.com

171 Starting and driving
If you stop the car with reverse gear
engaged, the sound pulse will stop after
2 seconds. The sound pulses will return if
you continue to reverse. If the car rolls for-
ward while reverse is engaged, the system
is silenced.
When the distance to the object is less
than 1 ft. (30 cm), a continuous tone will
be heard.
When an object is approximately 3 ft.
(90 cm) from the car, the sound pulses
change character markedly (frequency
increases). A distance of about 3 ft. (90 cm)
is suitable if you wish to load or unload the
trunk.
If the distance between an object and a
corner sensor does not change for
3 seconds, for example if you are reversing
alongside a wall, the system will switch to
monitoring straight back. The system indi-
cates if the distance to the wall decreases
again.
If a trailer is hitched up and correctly con-
nected to the trailer contact by the tow bar,
the system is automatically deactivated.Reversing alongside a wall
If the distance between an object and a
corner sensor does not change for
2 seconds, for example if you are reversing
alongside a wall, the system will switch to
monitoring straight back. The system indi-
cates if the distance to the wall decreases
again.
Cars with trailer hitch
If the car has a ttrailer hitch and its wiring is
correctly connected to the car’s electrics,
the Saab Parking Assistance automatically
compensates for the protrusion of the tow
bar.
If a camper or trailer is hitched up and the
trailer hitch wiring is correctly connected to
the car’s electrics, the system is automati-
cally deactivated.You can temporarily deactivate the Saab
Parking Assistance as follows:
 Engage reverse and press the CLEAR
button on the SID control panel.
The system will be reactivated the next time
you engage reverse.
Error messages
If the system malfunctions, the following
message will appear on the SID:
If the system is subject to interference, the
following message will be shown on the
SID:
If this message appears, clean the sensors.
The sensors are located in the black trim on
the rear bumper
NOTICEThe sensors must be kept clean to func-
tion well. Ice, snow and dirt can affect
their sensitivity.
Large quantities of snow or dirt covering
the sensors can prevent the parking
assistance system from detecting any
objects.
Do not spray the sensors with a pressure
washer, as this can damage them.
Parking assistance
malfunction.
Contact Saab dealer.
Parking assistance sensor
interference.
ProCarManuals.com

185 Starting and driving

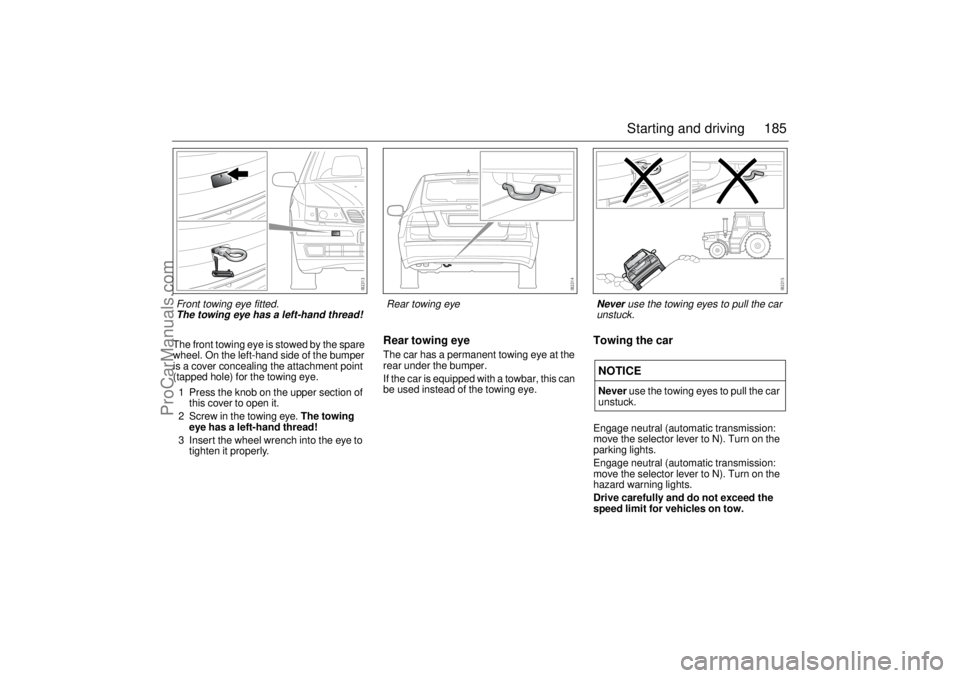

The front towing eye is stowed by the spare
wheel. On the left-hand side of the bumper
is a cover concealing the attachment point
(tapped hole) for the towing eye.
1 Press the knob on the upper section of
this cover to open it.
2 Screw in the towing eye. The towing
eye has a left-hand thread!
3 Insert the wheel wrench into the eye to
tighten it properly.
Rear towing eyeThe car has a permanent towing eye at the
rear under the bumper.
If the car is equipped with a towbar, this can
be used instead of the towing eye.
Towing the carEngage neutral (automatic transmission:
move the selector lever to N). Turn on the
parking lights.
Engage neutral (automatic transmission:
move the selector lever to N). Turn on the
hazard warning lights.
Drive carefully and do not exceed the
speed limit for vehicles on tow.NOTICENever use the towing eyes to pull the car
unstuck.
Front towing eye fitted.
The towing eye has a left-hand thread!
Rear towing eye
Never use the towing eyes to pull the car
unstuck.
ProCarManuals.com

246 Car careWhen the car has to be lifted, the jack must
be positioned at one of the four jacking
points (front or rear) under the sill members.
If a floor jack is used, the lifting plate must
be positioned under the normal jacking
points, see illustration. If the car is equipped
with a towbar, the jack can also be placed
under this.
1 Wind the jack up to a suitable height
before placing it under the jacking point.
Each jacking point is indicated by an
arrow on the sill (see illustration).
Make sure that the jack fully engages
the jacking point in the underside of the
sill member and that the entire foot of the
jack is steady and flat on the ground.
The jack must not stand on snow, ice or
similar.
Wind up the jack until it just begins to lift
the car.2 It is not necessary to remove the wheel
cover.
If, none the less, you wish to remove the
wheel cover, take hold of the outer edge
and pull it straight out.
Loosen the wheel bolts half a turn.
3 Wind the jack to raise the wheel clear of
the ground. Remove the wheel bolts and
lift off the wheel.4 Clean any rust or dirt from the contact
surfaces between the wheel and brake
disc. Do not wipe away the grease in the
wheel hub.
5 Add a thin layer of grease on the bolts
before fitting, see page 248. Fit the
wheel and screw in the bolts in the
sequence shown on page 248 (opposite
pairs).
Tighten the bolts enough for the bolts
and wheel to be seated correctly.
6 Lower the car and tighten the wheel
bolts to torque in sequence as shown on
the following page.
Tightening torque:
Light-alloy wheels: 80 ft.lb. (110 Nm).
Steel wheels: 80 ft.lb. (110 Nm).NOTICEApply the jack only to the jacking points
indicated on the body.
Jacking points
Marking of jacking points
ProCarManuals.com

269 Technical data
Maximum axle load:
Sport Sedan, front _________________ 2480 lbs. (1125 kg)
Sport Sedan, rear __________________ 2230 lbs. (1010 kg)
Convertible, front __________________ 2540 lbs. (1150 kg)
Convertible, rear ___________________ 2310 lbs. (1050 kg)
Weight distribution:
Curb weight + driver (150 lbs. (68 kg)),
front/rear (Sport Sedan and Convertible) approx. 60/40 %
GVW, front/rear (Sport Sedan and Con-
vertible) __________________________ approx. 50/50 %
Maximum roof load, Sport Sedan _______ 220 lbs. (100 kg)
Maximum load in trunk:
Sport Sedan ______________________ 175 lbs. (80 kg)
Convertible _______________________ 220 lbs. (100 kg)
The combined weight of occupants and
cargo should never exceed:
Sport Sedan ______________________ 925 lbs. (420 kg)
Convertible _______________________ 820 lbs. (372 kg)
Maximum combined weight of driver and
passengers ______________________
Sport Sedan (5x150 lbs.) ____________ 750 lbs. (340 kg)
Convertible (4x150 lbs.) _____________ 600 lbs. (272 kg)
WARNING
 The GVW and maximum axle loads must not be exceeded.
Note that if some accessories (e.g. towbar, CD changer) are
fitted, the available load capacity is reduced by the weight of
these.
 When carrying a load in the trunk, make sure that it is lashed
down securely, particularly when part or all of the rear seat is
folded down.
Trailer:
Trailer with brakes ___________________ Max. 3500 lbs.
(1588 kg)
Trailer without brakes ________________ Max. 1000 lbs.
(450 kg)
Recommended towball load ___________ 110–165 lbs.
(50–75 kg)
See also page 180.
Maximum theoretical towing speed, trailer
with brakes _______________________ 60 mph (100 km/h)
When towing a trailer, increase the pressure
of the rear tires by 20 kPa (3 psi).
The above speed and weight restrictions are those specified by
Saab Automobile AB.
Note that national restrictions may apply to trailer speeds and
weights (see page 178).
ProCarManuals.com

286 IndexPinch protection, sunroof
_________ 122
Plates and labels, location ________ 278
Polishing and waxing
____________ 251
Poly-V-belt
____________________ 205
Position lights ___________________ 91
Power steering fluid, checking
_____ 201
Power steering fluid, grade
________ 273
Pressure gauge
_________________ 80
Pressure, tires
__________________ 231
Profiles, customized settings
_______ 83
QQuality grading, tires
_____________ 235
Quick guide, remote control
________ 41
RRain sensor
_____________________ 96
Raising the soft top manually,
Convertible ____________________ 60
Reading lights, Convertible
_________ 70
Rear fog light
___________________ 93
Rear seats, folding down
_________ 134
Rear towing eye
________________ 185
Rear window heating
____________ 102
Rearview mirrors
________________ 128
Recirculation
___________________ 101
Recommendations for automatic
transmission, towing a trailer
_____ 179Recommendations for manual
gearbox, towing a trailer
_________ 180
Recommended fuel grades ________ 147
Recommended snow chains _______ 275
Refueling
______________________ 147
Remote control
__________________ 40
Remote locking malfunction
________ 42
Replacement, wheel
_____________ 236
Reporting safety defects __________ 265
Rev counter
_____________________ 78
Reversing lights
_________________ 94
Roll bars, Convertible
_____________ 68
Roll-over protection, Convertible
_____ 68
Roof lighting
___________________ 123
Roof lighting, changing
___________ 217
Running-in
_____________________ 151
SSAHR, head restraint
_____________ 20
SDM
_________________________ 266
SID
___________________________ 83
SPA __________________________ 170
Saab Information Display
__________ 83
Saab Parking Assistance _________ 170
Saab Trionic engine management
system
______________________ 194
Safety belts _____________________ 11
Seatbelts
_______________________ 11
Seatbelts in rear seat, Convertible
___ 67
Seatbelts, care
_________________ 248Seatbelts, checking
______________ 248
Seats
__________________________ 16
Securing a load
_________________ 137
Sentronic, manual gear selection
___ 158
Service costs
___________________ 263
Service information
______________ 264
Service intervals
________________ 262
Service record retention
__________ 263
Signalling, horn
_________________ 116
Ski hatch
______________________ 136
Spare wheel ___________________ 243
Speed ratings, tires
______________ 239
Speedometer
____________________ 79
Starting the engine
______________ 142
Steering wheel adjustment
________ 116
Steering wheel lock
______________ 142
Steps for determining correct load
limit
_________________________ 242
Storage compartments
___________ 126
Sun visor
______________________ 124
Sunroof
_______________________ 120
Switches _______________________ 91
TTCS
__________________________ 163
Technical data
__________________ 268
Textile carpeting, cleaning
_________ 249
Tie down eyes
__________________ 137
Tightening torque, wheels
_________ 247
Tire chains
_____________________ 237
ProCarManuals.com

287 Index
Tire date code
__________________ 243
Tire inspection and rotation
_______ 232
Tire markings
__________________ 239
Tire pressure monitoring, automatic
_ 229
Tire sidewall labeling
____________ 238
Tire sizes
_____________________ 275
Tire terminology and definitions
____ 240
Tire, changing
__________________ 245
Tire, spare
_____________________ 243
Tires
_________________________ 231
Tools and spare wheel
___________ 243
Touching up paintwork ___________ 251
Towbar
_______________________ 178
Towbar load
___________________ 180
Towing
_______________________ 184
Towing a trailer
_________________ 178
Towing the car _________________ 185
Traction Control System (TCS)
_____ 163
Transmission oil, checking
________ 198
Transmission oil, grade
___________ 272
Transmission, automatic __________ 153
Transmission, manual
____________ 152
Transporting the car
_____________ 186
Treadwear indicators ____________ 233
Trip computer
___________________ 84
Trip meter
______________________ 79
Troubleshooting, A/C and ACC
____ 255
Trunk lid, driving when open
_______ 183
Trunk lid, opening
________________ 43
Turbo gauge
____________________ 80
UUniform tire quality grading
________ 235
Upholstery care
_________________ 249
Upholstery, cleaning
_____________ 249
Useful tips on night driving
________ 184
Useful tips on starting
____________ 143
VVanity mirror
___________________ 124
Vehicle Data Collection
___________ 266
Vehicle identification number
______ 278
Vehicle recovery
________________ 186
WWarning labels
___________________ 7
Warning lights
___________________ 74
Warning triangle _________________ 94
Warnings and messages on SID,
Convertible
____________________ 63
Washer fluid ___________________ 206
Washer jets ____________________ 207
Washers
_______________________ 95
Washing ______________________ 250
Washing a Convertible
___________ 251
Waxing and polishing
____________ 251
Wear indicators, tires ____________ 233
Wheel replacement
______________ 236Wheels and tires, sizes
___________ 275
When it is time for new tires
_______ 233
Windshield washers
______________ 95
Windshield wipers
________________ 95
Wing mirrors
___________________ 128
Winter driving __________________ 175
Winter tires
____________________ 242
Wiper blades ___________________ 206
Wipers
_________________________ 95
ProCarManuals.com
