294
Minor Repairs Tightening torque
Tightening torque of the wheel bolts and wheel
nuts 118 ftlb. (160 Nm).
Security wheel boltsThe adapter (wrench socket) for the security
wheel bolts is located in the tool box.
To loosen or tighten the wheel bolt with anti-theft
protection, the adapter must be used between the
wheel bolt and the wheel bolt wrench.
fWhen positioning the wrench socket, ensure
that it engages fully in the teeth of the wheel
bolt.
Note on operation
fOn vehicles with 17 mm spacers on the rear
axle, the wheels are secured with steel nuts.
There is no anti-theft protection for the wheel
nuts.
fIf the wheels have to be removed at the work-
shop, please do not forget to hand over the
socket for the security wheel bolts along with
the car key.
Changing Wheels
Warning!
Failure to follow these instructions may result
in serious personal injury or death to you or
to bystanders.
Before changing the wheel
fIf you have a flat tire, move a safe distance off
the road. Turn the emergency flasher on and
use other warning devices to alert other
motorists.
fDo not park your vehicle where it may contact
dry grass, brush or other flammable materials.
The hot parts of the exhaust system could set
such materials on fire, thereby causing both
property damage and severe or fatal physical
injury.
fPassengers must not be in the vehicle when it
is jacked up.
fBefore you change a wheel, be sure the ground
is level and firm. If necessary, use a board
under the jack to ensure that the jack does not
sink into the ground.
fSet the parking brake and block the wheels
opposite the flat tire on the other side of the
vehicle.While operating the jack
fThe jack is only to be used for changing a
wheel. Do not use it as a support to work under
the car.
fThe car must be jacked up only at the illustra-
ted jacking points.Lifting at any other place
may damage the vehicle or may result in per-
sonal injury. Never jack the car up by the body
or the bumpers.
fFor safety reasons do not use tire inflating bot-
tles. Do not use commercially available sealant
bottles. Use only the tire inflating bottle
located in the luggage compartment.
10_Cayenne_21_KW17.book Seite 294 Donnerstag, 9. April 2009 3:33 15

298
Minor Repairs 5. Screw filler hose B onto the filler bottle.
The filler bottle is now open.
6. Unscrew valve cap from tire valve F.
7. Remove valve insert E from the tire valve with
valve turner D.
Keep the valve insert in a clean and dry place.
8. Remove plug C of the filler hose B.
9. Push filler hose onto the tire valve.
10.Hold filler bottle higher than the level of the tire
valve and press it together forcefully until the
bottle is completely emptied into the tire.
11.Pull filler hose off the tire valve.
12.Twist the valve insert firmly into the tire valve
using the valve turner.
13.Inflate the tire.
Set the prescribed tire pressure.
Please see the chapter “TIRE PRESSURES,
COLD (68 °F/20 °C)” on Page 354.
14.Screw valve cap onto the tire valve.
15.Check the tire pressure after driving for around
10 minutes.
If the tire pressure is less than 22 psi (1.5 bar),
do not continue driving.
If a value of more than 22 psi (1.5 bar) is indi-
cated, correct the pressure to the prescribed
value.
16.Please consult your authorized Porsche
dealer.The settings for Tire Pressure Monitoring must be
update on the multi-purpose display after filling the
tire with sealant.
Please see the chapter “SETTING TIRE SEALANT/
SEALING SET” on Page 140.
Car care instruction
After drying, any sealant that emerges can be
peeled off like a film.
Warning!
Risk of accident, resulting in serious
personal injury or death.
fHave the tire replaced by a specialist work-
shop as soon as possible.
fAvoid hard acceleration and high cornering
speeds.
fDo not exceed maximum speed of 50 mph
(80 km/h).
fPlease always observe the safety and opera-
ting instructions, which can be found in the
separate operating instructions for the sealant and on the compressor.
Lifting the Vehicle with a Lifting
Platform or Garage liftfThe car must be raised only at the illustrated
jacking points.
Please see the chapter “LIFTING THE VEHICLE
WITH A LIFTING PLATFORM OR GARAGE LIFT”
on Page 298.
Please see the chapter “RAISING VEHICLE
WITH THE JACK” on Page 192.
fLifting at any other place may damage the
vehicle or may result in personal injury.
Caution!
Serious personal injury or death and/or
serious damage to the engine or the vehicle
may occur, if you lift the vehicle improperly.
fNever lift the vehicle at any other place than
the jacking points.
fNever lift the vehicle by the engine, transmis-
sion or axles.
fDo not damage any sensitive components in the vicinity of the jacking points.
10_Cayenne_21_KW17.book Seite 298 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
299
A- Front jacking points platform lift
B- Front jacking point garage liftPlatform liftfBefore the car is driven on to a lifting platform,
it must be ensured that there is enough space
between the lifting platform and the vehicle.
C- Rear jacking points platform lift
D- Rear jacking point garage liftGarage liftA garage lift may be used only at the illustrated
jacking points.
Lifting at any other place may damage the vehicle
or may result in personal injury.
Lifting the vehicle with a jack
Danger!
Danger of serious personal injury or death.
The car may slip off the jack.
fMake sure that no one is in the vehicle when
jacking up and changing a wheel.
fNever jack up the vehicle when it is parked on
a surface that slopes up, down or to the side.
fUse the jack only to raise the car for wheel
changing.
fAlways place the car on stable supports if work
has to be carried out under the car.
The car jack is not suitable for this.
Danger of injury if the level-control system
operates during the wheel change.
fSet the car to jacking mode before raising the
car.
Please see the chapter “RAISING VEHICLE
WITH THE JACK” on Page 192.
Risk of injury and damage if the vehicle is not
secured.
fSecure the vehicle against rolling.
fPlease see the chapter “SECURING THE VEHICLE AGAINST ROLLING” on Page 295.
10_Cayenne_21_KW17.book Seite 299 Donnerstag, 9. April 2009 3:33 15

300
Minor Repairs Maintenance Note
The jacking point on the vehicle must be free of
dirt.
1. Slightly loosen the wheel bolts of the wheel to
be changed.
2. Only set up the jack at the rear jacking point
designed for the purpose. The jack foot must
be in contact over its whole area and must be
positioned directly below the head piece.
Use a suitable support if necessary.
3. Hold jack still and wind it up until its head
enters the jacking point on the vehicle.
Only jack vehicle up until the wheel to be
changed is completely off the ground.
4. After lowering the vehicle, remove the jack.
Front jacking pointAccess to the jacking points differ according to
the respective vehicle equipment.
Jacking points
fSet up jack only at the points provided A or C.
Rear jacking pointThe rear jacking point is accessible after removing
the covering cap B from the sill cover.
Removing covering cap:
fPull out covering cap B at the bottom at the
rear.
Inserting covering cap:
Insert the covering cap B in the bottom guides and
push in completely until you feel the upper lugs
snap into place.
10_Cayenne_21_KW17.book Seite 300 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
301
Vehicles with running board
Front jacking pointJacking points for vehicles with a running
board
fSet up jack only at the points provided D or E.
Vehicles with running board
Rear jacking pointVehicles with side member panels
Front jacking point
Jacking points for vehicles with side member
panels
The jacking points are accessible after removing
the plastic covering caps F or H from the side
member panels.
Removing covering cap:
1. Open covering cap F or H in the side member
panel to the front by means of the internal
handle recess and pull off (arrow).
10_Cayenne_21_KW17.book Seite 301 Donnerstag, 9. April 2009 3:33 15

302
Minor Repairs
Vehicles with side member panels
Rear jacking point2. Attach jack only at the points provided G or I .
Fitting covering cap:
fInsert the covering cap F or H completely in
the slots of the side member panel with both
centring lugs and fold back until it can be felt
to engage.
Wheel change1. Remove 1 or 2 wheel bolts (see corresponding
figure).
Caution!
Risk of damage to the brake discs.
fAlways screw in the assembly aids when changing a wheel.
Screw in one assembly aid on vehicles without PCCB2. Screw in assembly aids instead of wheel bolts.
10_Cayenne_21_KW17.book Seite 302 Donnerstag, 9. April 2009 3:33 15

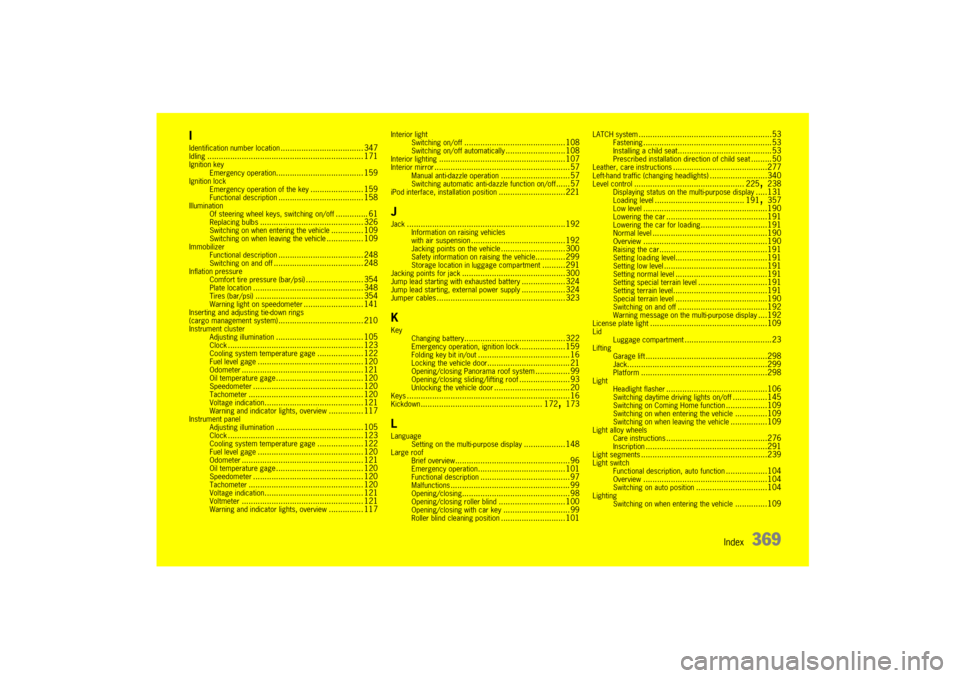

Index
