2004 Peugeot 206 Dag Owner's Manual

96
14-06-2004
97
14-06-2004
YOUR 206 IN DETAIL
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore
prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
If the system does not function
correctly, contact a PEUGEOT
dealer as soon as possible.
Confidential card
The conidential card contains the
identiication code necessary for any
work carried out by a PEUGEOT
dealer on the electronic immobiliser
system. This code is hidden by a
ilm, which should be removed only
if necessary.
Keep your card in a safe place,
never inside the vehicle. Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an emer-
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed. When purchasing a second-hand
vehicle:
- ensure that you are given the con-
idential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

96
14-06-2004
97
14-06-2004
YOUR 206 IN DETAIL
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore
prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
If the system does not function
correctly, contact a PEUGEOT
dealer as soon as possible.
Confidential card
The conidential card contains the
identiication code necessary for any
work carried out by a PEUGEOT
dealer on the electronic immobiliser
system. This code is hidden by a
ilm, which should be removed only
if necessary.
Keep your card in a safe place,
never inside the vehicle. Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock your vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an emer-
gency.
As a safety precaution (with chil-
dren on board), remove the ignition
key when you leave the vehicle,
even for a short time.
Do not repeatedly press the button
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed. When purchasing a second-hand
vehicle:
- ensure that you are given the con-
idential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

98
14-06-2004
99
14-06-2004
YOUR 206 IN DETAILCHILD SAFETY LOCK
On each rear door this prevents
opening of the door from the inside.
Turn switch 1 a quarter turn using the
ignition key.
THE DOORS
The front doors
The rear doors (206 SW)
Opening the doors from outside Opening the doors from inside
Locking from inside
Without central locking
To lock, press button
A. The button
locks the door in question.
The button on the driver's door locks
the door, the tailgate and the rear
screen (206 SW).
With central locking
To lock, press button A.
Locking one of the front doors locks
the front and rear doors, the tailgate
and the rear screen (206 SW).
On the rear doors, the button only
locks the door in question.
Unlocking from inside
To unlock, pull button A or operate
the handle. "Door open" warning
With the engine running
, you are
warned if a door is not shut properly
by an audible signal and a message
or graphic on the multifunction dis-
play, indicating the door in question.
When the vehicle is moving , if the
courtesy light button is in the "light-
ing on opening a door" position, the
courtesy light lashes.

98
14-06-2004
99
14-06-2004
YOUR 206 IN DETAIL

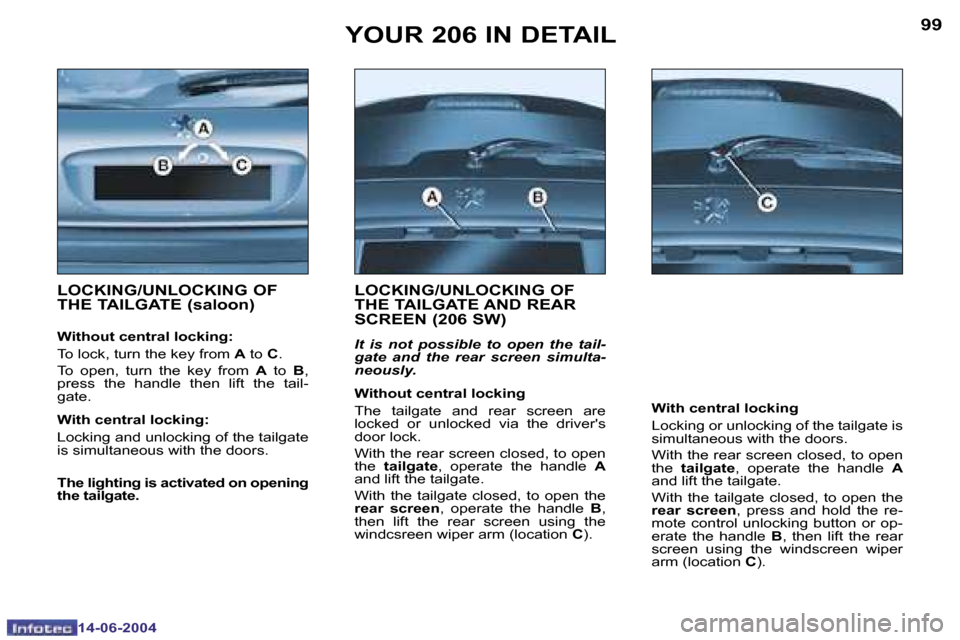

LOCKING/UNLOCKING OF
THE TAILGATE (saloon)
Without central locking:
To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tail-
gate.
With central locking:
Locking and unlocking of the tailgate
is simultaneous with the doors.
The lighting is activated on opening
the tailgate.
LOCKING/UNLOCKING OF
THE TAILGATE AND REAR
SCREEN (206 SW)
It is not possible to open the tail-
gate and the rear screen simulta-
neously.
Without central locking
The tailgate and rear screen are
locked or unlocked via the driver's
door lock.
With the rear screen closed, to open
the tailgate , operate the handle A
and lift the tailgate.
With the tailgate closed, to open the
rear screen , operate the handle B,
then lift the rear screen using the
windcsreen wiper arm (location C). With central locking
Locking or unlocking of the tailgate is
simultaneous with
the doors.
With the rear screen closed, to open
the tailgate , operate the handle A
and lift the tailgate.
With the tailgate closed, to open the
rear screen , press and hold the re-
mote control unlocking button or op-
erate the handle B, then lift the rear
screen using the windscreen wiper
arm (location C).

100
14-06-2004
101
14-06-2004
YOUR 206 IN DETAIL
The lighting is activated on open-
ing the tailgate or the rear screen.
Notes: the tailgate and the rear
screen lock automatically while driving
(above 6 mph (10 km/h)) and unlock
when one of the doors is opened.
When the rear windscreen wiper is
in a wiping position, the rear screen
can only be opened at the end of the
cycle.
Close the rear screen using the wind-
screen wiper arm or by pressing the
centre of the glass.
"Tailgate/rear screen open"
warning
With the engine running , if the tail-
gate or the rear screen is not properly
closed, you are warned by an audible
signal and a message or a diagram
on the multifunction display.
While driving , if the tailgate
or the rear screen is not
properly closed, the courtesy
light lashes if the button is in
this position.

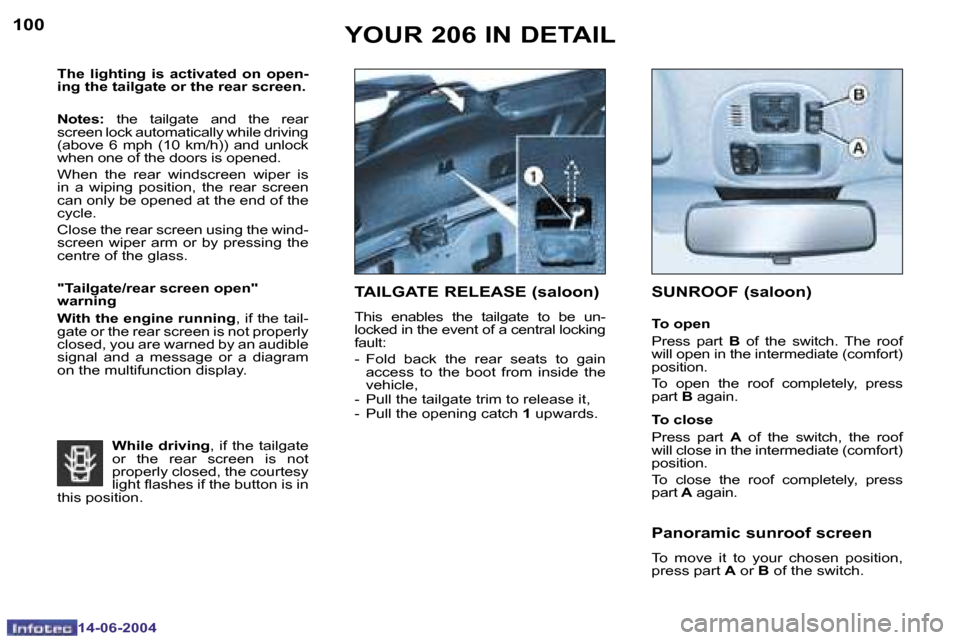

TAILGATE RELEASE (saloon)
This enables the tailgate to be un-
locked in the event of a central locking
fault:
- Fold back the rear seats to gain access to the boot from inside the
vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof
will open in the intermediate (comfort)
position.
To open the roof completely, press
part B again.
To close
Press part A of the switch, the roof
will close in the intermediate (comfort)
position.
To close the roof completely, press
part A again.
Panoramic sunroof screen
To move it to your chosen position,
press part A or B of the switch.

100
14-06-2004
101
14-06-2004
YOUR 206 IN DETAIL
The lighting is activated on open-
ing the tailgate or the rear screen.
Notes: the tailgate and the rear
screen lock automatically while driving
(above 6 mph (10 km/h)) and unlock
when one of the doors is opened.
When the rear windscreen wiper is
in a wiping position, the rear screen
can only be opened at the end of the
cycle.
Close the rear screen using the wind-
screen wiper arm or by pressing the
centre of the glass.
"Tailgate/rear screen open"
warning
With the engine running , if the tail-
gate or the rear screen is not properly
closed, you are warned by an audible
signal and a message or a diagram
on the multifunction display.
While driving , if the tailgate
or the rear screen is not
properly closed, the courtesy
light lashes if the button is in
this position.
TAILGATE RELEASE (saloon)
This enables the tailgate to be un-
locked in the event of a central locking
fault:
- Fold back the rear seats to gain access to the boot from inside the
vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof
will open in the intermediate (comfort)
position.
To open the roof completely, press
part B again.
To close
Press part A of the switch, the roof
will close in the intermediate (comfort)
position.
To close the roof completely, press
part A again.
Panoramic sunroof screen
To move it to your chosen position,
press part A or B of the switch.

100
14-06-2004
101
14-06-2004

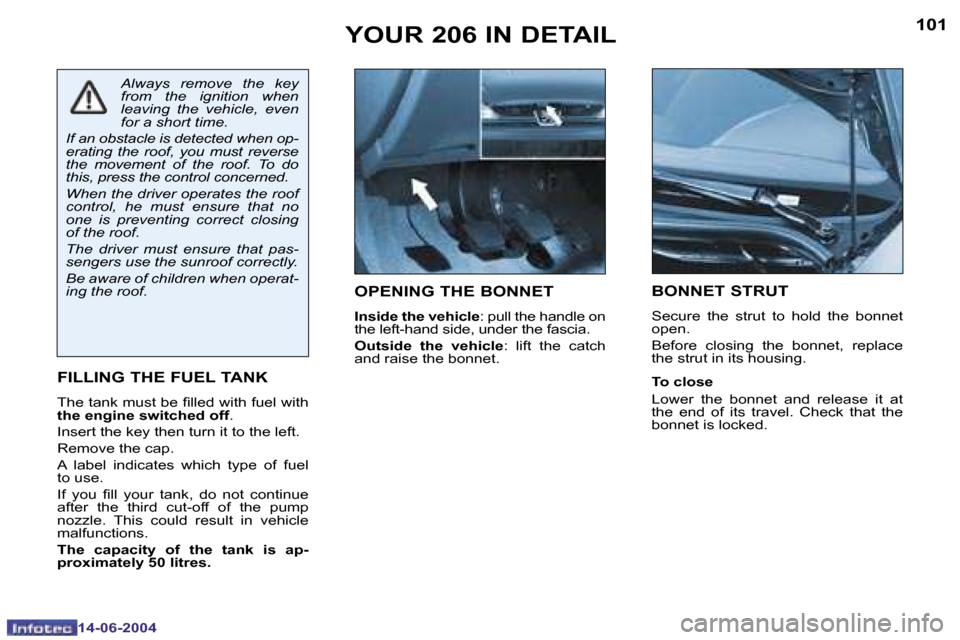

YOUR 206 IN DETAILOPENING THE BONNET
Inside the vehicle : pull the handle on
the left-hand side, under the fascia.
Outside the vehicle : lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Always remove the key
from the ignition when
leaving the vehicle, even
for a short time.
If an obstacle is detected when op-
erating the roof, you must reverse
the movement of the roof. To do
this, press the control concerned.
When the driver operates the roof
control, he must ensure that no
one is preventing correct closing
of the roof.
The driver must ensure that pas-
sengers use the sunroof correctly.
Be aware of children when operat-
ing the roof.
FILLING THE FUEL TANK
The tank must be illed with fuel with
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel
to use.
If you ill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is ap-
proximately 50 litres.

100
14-06-2004
101
14-06-2004
YOUR 206 IN DETAILOPENING THE BONNET
Inside the vehicle : pull the handle on
the left-hand side, under the fascia.
Outside the vehicle : lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Always remove the key
from the ignition when
leaving the vehicle, even
for a short time.
If an obstacle is detected when op-
erating the roof, you must reverse
the movement of the roof. To do
this, press the control concerned.
When the driver operates the roof
control, he must ensure that no
one is preventing correct closing
of the roof.
The driver must ensure that pas-
sengers use the sunroof correctly.
Be aware of children when operat-
ing the roof.
FILLING THE FUEL TANK
The tank must be illed with fuel with
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel
to use.
If you ill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is ap-
proximately 50 litres.
