Page 93 of 166
Related documentation
Cautionary Note regarding servicing of vehicles fitted with SRS airbags and/or seatbelts with
pre-tensioner systems.
Warnings:
1. Incorrect inspection or servicing of a component part of the SRS airbag system or seatbelt pre-tensioner system, or
a part relating to these systems, may cause accidental operation (deployment) of the SRS airbag or seatbelt pre-
tensioners, or may cause these systems to be disabled, leading in either case the risk of serious injury.
2. If parts may be affected by heat during painting operations, then those parts must be removed in advance. This
applies to the SRS-ECU, airbag modules (driver’s sear and front passenger’s seat), clock springs, front impact
sensors, side impact sensors, and pre-tensioner seatbelts.
• 93ºC or above : SRS-ECU, airbag modules (driver’s sear and front passenger’s seat), clock springs, front impact
sensors, side impact sensors
• 90ºC or above : Pre-tensioner seatbelts
3. The component parts of the SRS airbag system or seatbelt pre-tensioner system, and parts relating to these
systems, must always be inspected and serviced by a Mitsubishi dealer.
4. Service personnel must read the relevant service manuals (particularly, Section 52B – SRS Airbags) carefully and
thoroughly, before inspecting or servicing the component parts of the SRS airbag system or seatbelt pre-tensioner
system, and parts relating to these systems.
Title of Document No. Date of
IssueTitle of Document No. Date of
Issue
Body Manuals (Service Manual)
• Mirage, Lancer (supplement)
• Lancer Cedia
• Lancer Cedia (supplement)
• Lancer Evolution VII
(supplement)
• Lancer Cedia (supplement)
• Lancer (supplement)
• Lancer Evolution VIII MR
(supplement)1036F52
1036K50
1036K51
1036K52
1036K53
1036K54
1036K55Aug 1996
May 2000
July 2000
May 2001
Oct 2001
Feb 2003
Feb 2004
Electrical Wiring Diagrams
Service Manual
• Lancer Evolution VIII 1036K77 Jan 2003
New Vehicle Manuals
• Mirage, Lancer
• Mirage, Lancer
• Mirage, Lancer
• Mirage, Lancer
• Mirage
• Mirage, Lancer
• Lancer
• Lancer
• Lancer Cedia
• Lancer Cedia
• Lancer Evolution VII
• Lancer Cedia
• Lancer Cedia
• Lancer Evolution VII
• Lancer Cedia
• Lancer Evolution VIII
• Lancer
• Lancer
• Lancer Evolution VIII MR1036F30
1036F31
1036F32
1036F33
1036F34
1036F35
1036F36
1036F37
1036K30
1036K31
1036K32
1036K33
1036K34
1036K35
1036K36
1036K37
1036K38
1036K39
1036K40Oct 1995
Jan 1996
Aug 1996
Jul 1997
Jan 1998
Oct 1998
Jan 1999
Dec 1999
May 2000
July 2000
Jan 2001
May 2001
Oct 2001
Jan 2002
May 2002
Jan 2003
Feb 2003
Dec 2003
Feb 2004Engine Service Manual
• 4G6 Engine
• 4G6 Engine (supplement)1039G46
1039G63Jan 2001
Jan 2003
Service Manuals
• Lancer Cedia
• Lancer Cedia (supplement)
• Lancer Evolution VII
(supplement)
• Lancer Cedia (supplement)
• Lancer Cedia (supplement)
• Lancer Evolution VII
(supplement)
• Lancer Cedia (supplement)
• Lancer Evolution VIII
(supplement)
• Lancer (supplement)
• Lancer (supplement)
• Lancer Evolution VIII MR
(supplement)1036K00
1036K01
1036K02
1036K03
1036K04
1036K05
1036K06
1036K07
1036K08
1036K09
1036K10May 2000
July 2000
Jan 2001
May 2001
Oct 2001
Jan 2002
May 2002
Jan 2003
Feb 2003
Dec 2003
Feb 2004Transmission Service Manual
• W5M51 Manual Transmission
• W5M51 Manual Transmission
(supplement)
• W6MAA Manual Transmission1039M17
1039M22
1039M23Jan 2001
Jan 2003
Jan 2003
Page 101 of 166
WIRING DIAGRAMS - ENGINE TRANSMISSION1-2
ENGINE TRANSMISSION
M3010000400494
B-01 (1-black) Engine oil pressure switch
B-02 (1) Alternator
B-03 (4-grey) Alternator
B-04 (1) Starter
B-05 (1-black) Starter
B-06 (4-black) Throttle position sensorB-07 (2-black) Purge control solenoid valve
B-08 (7-black) Airflow sensor
B-12 (5-grey) Windscreen wiper motor
B-13X (1) Engine speed detection connector
B-14X (5) Starter relay
B-17X (4) Ignition coil relay
Connector
symbol -
B
-01
∫
-32
AC311230AB
Control harness
Battery harness
Page 102 of 166
WIRING DIAGRAMS - ENGINE TRANSMISSION1-3
B-19X (4) Engine control relay
B-20X (4) A/C compressor relay
B-21 (10-black) Junction between control harness and
battery harness
B-25 (4-black) O
2sensor
B-26 (2-black) Indicator 4
B-27 (2-black) Indicator 3
B-28 (2-black) Indicator 2
B-29 (2-black) Indicator 1(2-grey) Wastegate solenoid valve 1
B-31 (6-black) Junction between control harness and
transmission harness
(2-grey) Wastegate solenoid valve 2
Note : Boxed connector numbers indicate
connectors with changed names, or new,
additional connectors.
B-32
B-32
Earth cable
Transmission harness
AC311231AB
Page 103 of 166
WIRING DIAGRAMS - INSTRUMENT PANEL1-4
INSTRUMENT PANEL
C-01 (4) Register (vehicle not fitted with full auto
A/C)
C-02 (2-red) Front pass. seat airbag module (squib)
C-03 (7) Internal / external air changeover damper
motor
C-04 (7) Junction between instrument panel
harness and A/C harness (vehicle not
fitted with full auto A/C)
(13) Junction between instrument panel
harness and A/C harness (vehicle fitted
with full auto A/C)
C-05 (2) Air thermo sensor (vehicle fitted with full
auto A/C)
C-06 (13) J/C (5)
C-07 (22-grey) J/C (1)
C-08 (6) Air mix door motor and potentiometer
(vehicle with full auto A/C)
C-09 (2) Heater water temperature sensor (vehicle
with full auto A/C)
C-10 (5) Blower outlet changeover damper motor
& potentiometer (vehicle with full auto
A/C)C-13 (4) Clock
C-14 (4) Hazard switch
C-15 (6) Blower switch
(vehicle not fitted with full auto A/C)
C-16 (12-black) Heater control unit
(vehicle with heater) or A/C-ECU
(vehicle with manual A/C)
C-17 (20-black) A/C-ECU (vehicle with full auto A/C)
C-18 (16-black) A/C-ECU (vehicle with full auto A/C)
C-20 (22-blue) Junction between instrument panel
harness and control harness
C-21 (10-grey) Junction between instrument panel
harness and control harness
C-22 (25) Junction between instrument panel
harness and control harness
Connector
symbolFront passenger’s side
Instrument panel harness
Tweeter sub-harness
Front
harness (LH)
Front door
harness (LH)
Floor
harness (LH)
A/C harness
Control
harness
Page 105 of 166
WIRING DIAGRAMS - BOOT INTERIOR1-6
BOOT INTERIOR
F-01 (2) Boot interior light
F-02 (2-grey) High-mount stop light
F-05 (4) Rear wiper motor
F-06 (2) Rear speaker (RH)
F-07 (1) Demister (+)
F-10 (6-black) Rear combination light (RH)
F-11 (1) Book interior light switch
F-12 (2-grey) Licence plate light (RH)
F-13 (2-grey) Licence plate light (LH)
F-14 (2-grey) Junction between floor harness (LH) &
bumper harness
F-15 (6-black) Rear combination light (LH)
F-16 (2) Rear speaker (LH)
F-18 (1-black) Demister (-)
F-19 (2) Windscreen washer motorF-20 (2-green) Rear washer motor
F-21 (2-black) Electrical pump
F-22 (8-grey) Junction between floor harness (LH) and
4WD harness (vehicle with AYC)
F-23 (2-black) Directional valve (left) (vehicle with AYC)
F-24 (2-black) Directional valve (right) (vehicle with AYC)
F-25 (3-black) Proportional valve (for ACD)
F-26 (3-black) Proportional valve (for AYC) (vehicle with
AYC)
F-27 (3-black) Pressure sensor
(2) Spare connector
• Boxed connector numbers indicate newly added connectors.
F-28
Demister earth
Floor
harness (LH)
4WD
harnessBumper
harness
Floor harness
(RH)
Connector
symbol
Page 110 of 166
COMPONENT INSTALLATION POSITIONS - J/C3-3
•Windscreen wiper
& washer
•Indicator lights,
hazard warning
lights
•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer•Fog lights
•Full auto A/C
•Headlights
•Headlight levelling
system
•Manual A/C
•Cooling•Windscreen wiper
& washer
•Electric retractable
remote control
door mirror
•Cabin lights, boot
interior light,
ignition key
cylinder
illumination light,
door not properly
closed indictor light
•Heater
•Full auto A/C
•Manual A/C
•ABS
•ACD
Meter
gauge
Diagnosis
meterVehicle
speed
sensor
General
spare
connector
Power
window
•Windscreen
wiper
& washer
•Indicator lights,
hazard warning
lights•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer
•Fog lights
•Headlights•Ignition key
reminder buzzer
•Windscreen wiper
& washer
•Indicator lights,
hazard warning
lights
•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer•Electric windows
•Fog lights
•Headlights
•Rear wiper /
washer
•Windscreen
wiper &
washer
•Indicator
lights, hazard
warning lights
•Tail lights, side
lights, licence
plate lights,
lighting
monitor
warning
buzzer
•Fog lights
•Headlights
•Rear wiper /
washer
•Reversing light
•Rear wiper /
washer
Rear wiper /
washer
Reversing
lightDiagnosis
connector
J/B
General fuse
()5

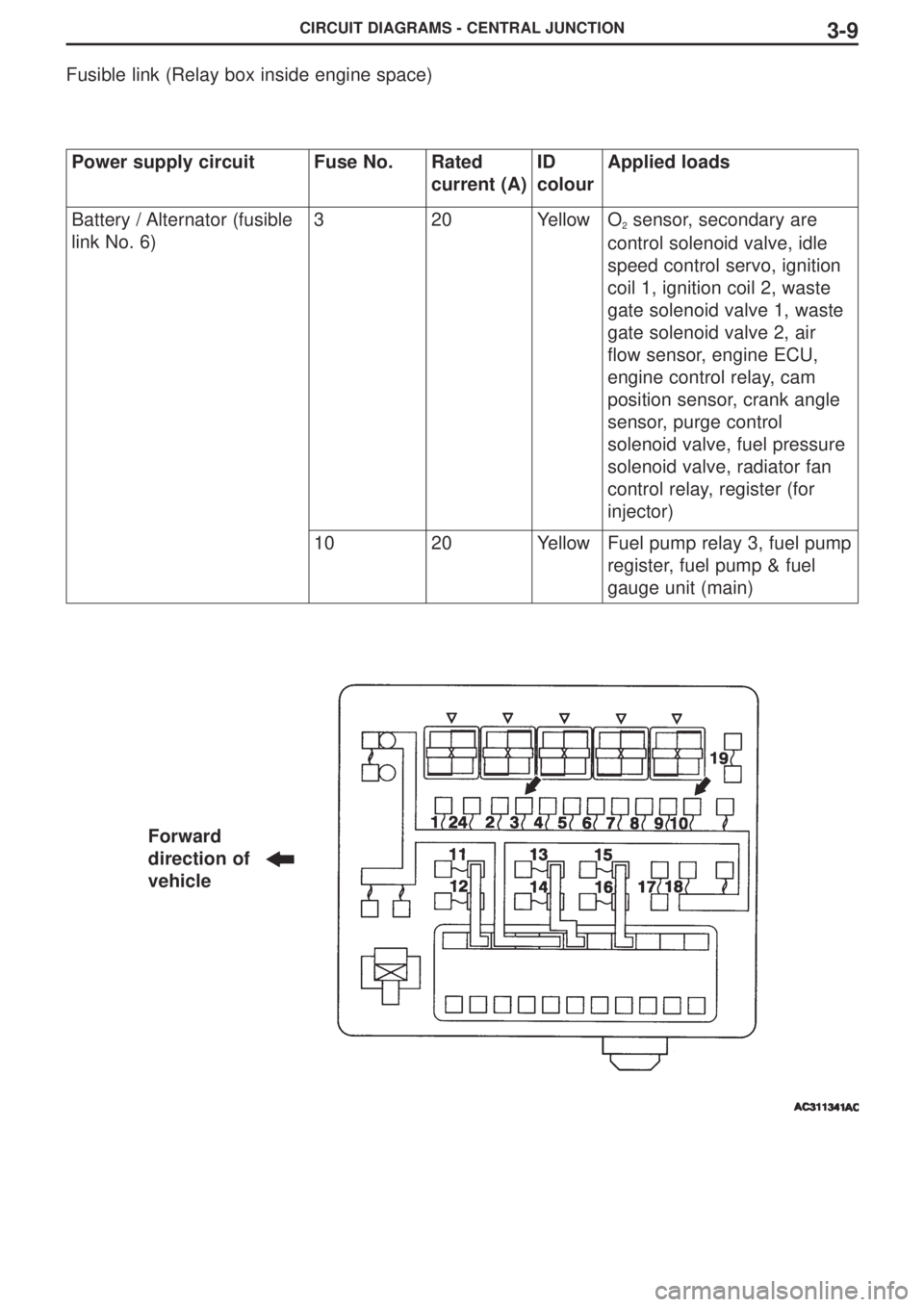

Page 116 of 166
CIRCUIT DIAGRAMS - CENTRAL JUNCTION3-9
Fusible link (Relay box inside engine space)
Power supply circuitFuse No.Rated
current (A)ID
colourApplied loads
Battery / Alternator (fusible
link No. 6)320YellowO2sensor, secondary are
control solenoid valve, idle
speed control servo, ignition
coil 1, ignition coil 2, waste
gate solenoid valve 1, waste
gate solenoid valve 2, air
flow sensor, engine ECU,
engine control relay, cam
position sensor, crank angle
sensor, purge control
solenoid valve, fuel pressure
solenoid valve, radiator fan
control relay, register (for
injector)
1020YellowFuel pump relay 3, fuel pump
register, fuel pump & fuel
gauge unit (main)
Forward
direction of
vehicle
Page 125 of 166
CIRCUIT DIAGRAMS - ENGINE CONTROL3-18
Engine Control (cont’d.)
Engine control relay
Air
processor
Engine
ECU
Throttle position
sensorWater temperature
sensor
Atmospheric
pressure sensor
Intake air
temperature
sensor
Cam shaft
position sensor
