2004 MINI Hardtop 2 Door washer fluid

CONTENTS

4
In the engine compartment:
Bonnet95
Engine compartment: MINI COOPER96
Engine compartment: MINI COOPER S97
Washer fluid98
Engine oil98
Coolant100
Brake fluid101
Maintenance and care:
MINI Maintenance System102
Caring for your vehicle103
Vehicle storage105
Laws and regulations:
OBD socket106
California Proposition 65 warning107

OWNER SERVICE PROCEDURES
Replacement procedures:
Onboard tool kit110
Windshield wiper blades110
Lamps and bulbs111
Repairing a flat tire116
Changing tires: MINI with space-saver
spare tire117
MINI Mobility System121
Battery124
Fuses125
Giving and receiving assistance:
Jump-starting126
Towing128
TECHNICAL DATA
Engine data132
Dimensions133
Weights134
Capacities135

51
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
WASHER/WIPER SYSTEMwindshield wipers are automatically con-
trolled depending on the amount of mois-
ture, including snow, on the windshield.
To activate the rain sensor:
From ignition key position 1:
Lever in position 1.
The wipers move over the windshield once.
To deactivate the rain sensor:
Put lever in position 0.
Switch the rain sensor off when pass-
ing through an automatic car wash.
Failure to do so could result in damage
caused by undesired wiper activation. switch automatically to intermittent wip-
ing.
You can have this function activated/
deactivated by your MINI Dealer. switch automatically to normal wiper
speed.
You can have this function activated/
deactivated by your MINI Dealer.<
Cleaning windshield and headlamps* The system sprays washer fluid against the
windshield. The wipers are automatically
activated for a brief period.
When the vehicle lighting is on, the head-
lamps are also cleaned at appropriate inter-
vals.
Do not use the washers if there is any
danger that the fluid will freeze on
the windshield. For this reason, use an anti-
freeze agent, refer to page 98
Do not use the washers when the reservoir
is empty, since this could cause damage to
the washing pump. automatically when the ignition key is in
position 2.
Rear window wiper6Intermittent operation:
Turn the cap to position 6.
The rear window wiper moves across the
window a number of times before
switching to intermittent operationCleaning rear window7Intermittent operation:
Turn the cap to position 7 and hold in
place
8In lever position 0:
Turn the cap to position 8 and hold in
place

96
ENGINE COMPARTMENT: MINI COOPER1Reservoir for windshield washer
system98
2Coolant expansion tank1003Engine oil filler neck99
4Battery124
5Brake fluid reservoir1016Reservoir for headlamp cleaning
system98
7Engine oil dipstick98

97
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
ENGINE COMPARTMENT: MINI COOPER S1Reservoir for windshield washer
system98
2Coolant expansion tank1003Engine oil filler neck99
4Auxiliary terminal for jump-
starting126
5Brake fluid reservoir1016Reservoir for headlamp cleaning
system98
7Engine oil dipstick98

98
WASHER FLUID ENGINE OILHeadlamp* and windshield washer
system The capacity of the headlamp washer sys-
tem is approx. 2.6 quarts / 2.5 liters, that of
the windshield washer system approx.
2.1 quarts / 2.0 liters.
Fill with water and, if required, with anti-
freeze, according to manufacturer's recom-
mendations.
We recommend that you mix the
washer fluid before adding it to the
reservoir.<
Antifreeze agent for the washer sys-
tems is flammable. Always keep it well
away from sparks and open flames, and store
it in tightly closed containers well out of the
reach of children. Always observe the instruc-
tions for use provided on the container.<
The illustration shows as an example the
dipstick of the MINI COOPER.Measuring the oil level1. Park the vehicle on a level surface
2. Switch the engine off after it has
reached normal operating temperature
3. Pull the dipstick out after approx.
5 minutes and wipe it off with a lint-free
cloth, paper towel, or similar material
4. Carefully push the dipstick all the way
into the guide tube and pull it out again.
The oil level must be between the two
marks on the dipstick.
As with fuel economy, oil consumption is
directly influenced by your driving style and
vehicle operating conditions.
The oil volume between the two notches –
MIN, MAX – on the dipstick corresponds to
approx. 1.1 quarts / 1 liter. Do not fill
beyond the upper notch on the dipstick.
Excess oil will damage the engine.

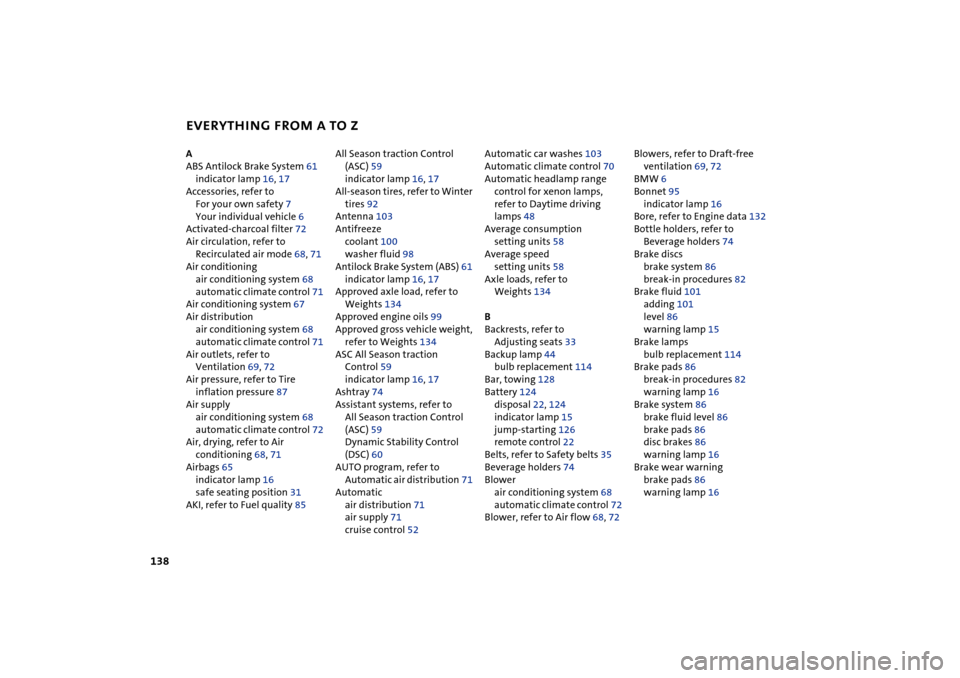

EVERYTHING FROM A TO Z
138
A
ABS Antilock Brake System 61
indicator lamp 16, 17
Accessories, refer to
For your own safety 7
Your individual vehicle 6
Activated-charcoal filter 72
Air circulation, refer to
Recirculated air mode 68, 71
Air conditioning
air conditioning system 68
automatic climate control 71
Air conditioning system 67
Air distribution
air conditioning system 68
automatic climate control 71
Air outlets, refer to
Ventilation 69, 72
Air pressure, refer to Tire
inflation pressure 87
Air supply
air conditioning system 68
automatic climate control 72
Air, drying, refer to Air
conditioning 68, 71
Airbags 65
indicator lamp 16
safe seating position 31
AKI, refer to Fuel quality 85 All Season traction Control
(ASC) 59
indicator lamp 16, 17
All-season tires, refer to Winter
tires 92
Antenna 103
Antifreeze
coolant 100
washer fluid 98
Antilock Brake System (ABS) 61
indicator lamp 16, 17
Approved axle load, refer to
Weights 134
Approved engine oils 99
Approved gross vehicle weight,
refer to Weights 134
ASC All Season traction
Control 59
indicator lamp 16, 17
Ashtray 74
Assistant systems, refer to
All Season traction Control
(ASC) 59
Dynamic Stability Control
(DSC) 60
AUTO program, refer to
Automatic air distribution 71
Automatic
air distribution 71
air supply 71
cruise control 52 Automatic car washes 103
Automatic climate control 70
Automatic headlamp range
control for xenon lamps,
refer to Daytime driving
lamps 48
Average consumption
setting units 58
Average speed
setting units 58
Axle loads, refer to
Weights 134
B
Backrests, refer to
Adjusting seats 33
Backup lamp 44
bulb replacement 114
Bar, towing 128
Battery 124
disposal 22, 124
indicator lamp 15
jump-starting 126
remote control 22
Belts, refer to Safety belts 35
Beverage holders 74
Blower
air conditioning system 68
automatic climate control 72
Blower, refer to Air flow 68, 72 Blowers, refer to Draft-free
ventilation 69, 72
BMW 6
Bonnet 95
indicator lamp 16
Bore, refer to Engine data 132
Bottle holders, refer to
Beverage holders 74
Brake discs
brake system 86
break-in procedures 82
Brake fluid 101
adding 101
level 86
warning lamp 15
Brake lamps
bulb replacement 114
Brake pads 86
break-in procedures 82
warning lamp 16
Brake system 86
brake fluid level 86
brake pads 86
disc brakes 86
warning lamp 16
Brake wear warning
brake pads 86
warning lamp 16

EVERYTHING FROM A TO Z
142
Gasoline, refer to Fuel
quality 85
Gear indicator 47
Gearshift lever
Continuously Variable
automatic Transmission
(CVT) 45
manual transmission 44
General driving notes 83
Glass sunroof, electric 29
convenience
operation 24, 25
pinch protection 30
Glove compartment 73
Glove compartment lamp
bulb replacement 116
Gross weight, refer to
Weights 134
H
Handbrake, refer to Parking
brake 43
Hazard warning flashers 12
Head airbags 65
Head restraints 33
Headlamp flasher 49
indicator lamp 17
Headlamp washer
cleaning headlamps 51
washer fluid 98 Headlamp washer reservoir 98
capacity, refer to
Capacities 135
Headlamps
bulb replacement 112
care 103
cleaning 51
Heated mirrors 36
Heated rear window
air conditioning system 68
automatic climate control 71
Heating 67
exterior mirrors 36
rear window 68, 71
seats 35
windshield 68, 71
Heavy load, refer to Loading
cargo 77
Height adjustment
seats 32
steering wheel 36
Height, refer to
Dimensions 133
Hex wrench 121
High beams 49
bulb replacement 112
headlamp flasher 49
indicator lamp 17 High Performance Synthetic
Oil, refer to Engine oil 99
alternative oils 99
capacity 135
recommended oils 99
specified oils 99
High temperatures 83
Holders for beverages 74
Horn 12
Hydroplaning 83
I
Ice warning 57
Identification mark
Run Flat tires 93
Ignition 41
Ignition key 22
Ignition lock 41
Illuminated vanity mirror 36
Illumination
of instruments 49
Imitation leather 104
Imprint 2
Index 138
Indicator and warning lamps,
overview 15 Indicator/warning lamp
airbags 65
ASC 59
brakes 101
coolant temperature 55
DSC 60
fasten safety belts 35
Flat Tire Monitor 63
fog lamps 49
reserve fuel capacity 54, 55
Individual air distribution 72
Individual settings, refer to
Vehicle Memory 37
Inflation pressure monitor,
refer to Flat Tire Monitor 62
Inflation pressure, tires 87
Inspection 56
Instrument cluster, refer to
Display elements 13
Instrument lighting 49
Instrument panel, refer to
Cockpit 12
Interior lamps 50
bulb replacement 115
Interior rearview mirror 36
automatic dimming 37
Interior temperature
settings 68, 71
Interlock, refer to Steering
locked 41

EVERYTHING FROM A TO Z
148
Washer fluid 98
Washer fluid reservoir, refer to
Capacities 135
Washer fluid reservoir, refer to
Washer/Wiper system 98
Washer systems 98
Washer/wiper system 50
Washing your vehicle 103
Water on roadways, deep
water 83
Wear indicators in the tires,
refer to Tire tread/Tire
damage 91
Weights 134
Wheel stud wrench
MINI Mobility System 121
space-saver spare tire 117
Wheelbase, refer to
Dimensions 133
Wheelslip control
All Season traction Control
(ASC) 59
Dynamic Stability Control
(DSC) 60
Width, refer to Dimensions 133
Window
convenience
operation 24, 25
Windscreen wipers
replacement 110, 111 Windshield heating
air conditioning system 68
automatic climate control 71
Windshield washer jets 51
Windshield washer reservoir 98
refer to Capacities 135
Windshield washer system
washer fluid 98
washer/wiper system 50
Windshield wiper blades
care 104
replacement 110, 111
Windshield wipers, refer to
Washer/wiper system 50
Windshield, cleaning 51
Winter tires
changing 117
storage 92
Winter tires, refer to Special
characteristics of winter
tires 92
Wood paneling 104
Work in the engine
compartment 95
Wrench, refer to Onboard tool
kit 110
X
Xenon lamps
bulb replacement 112
daytime driving lamps 48
