Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
44 15A* Front foglamps
45 2A* Brake pressure switch
(non-AdvanceTrac vehicles)
46 20A* High beams
47 — Horn relay
48 — Fuel pump relay
49 — High beam relay
50 — Front fog lamps relay
51 — Not used
52 — A/C clutch relay
53 — Trailer tow right turn relay
54 — Trailer tow left turn relay
55 — Blower motor relay
56 — Starter relay
57 — PCM relay
58 — Ignition relay
59 — Not used
60 — PCM diode
61 — A/C clutch diode
62 30A CB Power windows circuit breaker
* Mini Fuses ** Cartridge Fuses
Rear relay box
The relay box is located on the rear passenger side quarter trim panel.
See your dealer or a certified technician for service of this relay box.
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Roadside Emergencies
184

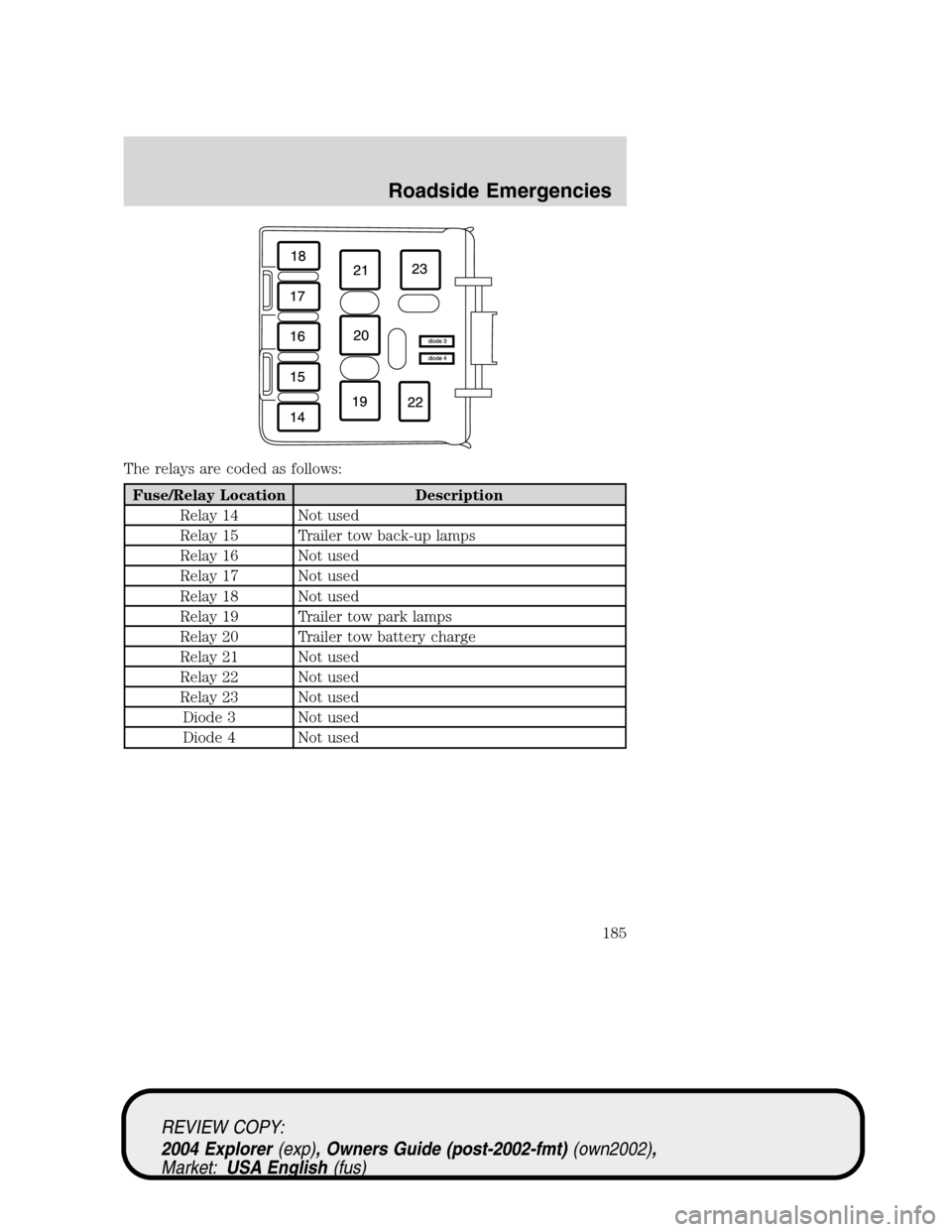

The relays are coded as follows:
Fuse/Relay Location Description
Relay 14 Not used
Relay 15 Trailer tow back-up lamps
Relay 16 Not used
Relay 17 Not used
Relay 18 Not used
Relay 19 Trailer tow park lamps
Relay 20 Trailer tow battery charge
Relay 21 Not used
Relay 22 Not used
Relay 23 Not used
Diode 3 Not used
Diode 4 Not used
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Roadside Emergencies
185
P
Parking brake ............................140
Parts (see Motorcraft parts) ....262
Pedals (see Power adjustable
foot pedals) .................................51
Power adjustable foot pedals .....51
Power distribution box
(see Fuses) ...............................181
Power door locks ........................79
Power point .................................48
Power Point
Cigar lighter ..............................48
Power steering ..........................143
fluid, checking and adding ....243
fluid, refill capacity ................263
fluid, specifications .........265, 267
Power Windows ...........................48
Preparing to drive
your vehicle ...............................144
R
Radio ......................................18, 21
Rear window defroster ...............32
Relays ................................176, 184
Remote entry system .................81
illuminated entry ......................85
opening the trunk .....................82
Reverse sensing system ...........149
Roadside assistance ..................173
Roof rack .....................................77
S
Safety Belt Maintenance ..........114
Safety belts (see Safety
restraints) ..........102, 105–108, 110Safety Canopy ...................120–121
Safety defects, reporting ..........208
Safety restraints ........102, 105–110
belt minder .............................111
extension assembly ................110
for adults .........................106–108
for children .............................123
safety belt maintenance .........114
warning light and
chime ...............................110–111
Safety seats for children ..........126
Seat belts (see
Safety restraints) ......................102
Seats ............................................92
child safety seats ....................126
front seats .................................93
heated ........................................96
memory seat .......................82, 95
Setting the clock
AM/FM/CD .................................18
AM/FM/In-dash 6 CD ................23
Snowplowing .................................7
Spark plugs,
specifications .....................262, 267
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................265, 267
Speed control ..............................51
Starting a flex fuel vehicle .......137
Starting your vehicle ........135, 137
jump starting ..........................195
Steering wheel
controls ......................................54
tilting .........................................44
T
Tilt steering wheel ......................44
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Index
278
