2004 Mercury Monterey headlamp

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 17
AM/FM stereo with CD 17
AM/FM stereo cassette with CD 20
Climate Controls 26
Manual heating and air conditioning 26
Rear window defroster 35
Lights 37
Headlamps 37
Turn signal control 41
Bulb replacement 43
Driver Controls 47
Windshield wiper/washer control 47
Steering wheel adjustment 48
Power windows 58
Mirrors 59
Speed control 61
Message center 70
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Table of Contents
Table of Contents
1

Door ajar:Displays which door or
the liftgate is open.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
Bulb warning:Displays which bulb
is burned out. Depress the RESET
control to clear.
High beams:Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the OFF/LOCK or ACC position and the driver’s door is
opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Turn signal warning chime:Sounds when the turn signal lever has
been activated to signal a turn and not turned off after the vehicle is
driven more than 0.8 km (1/2 mile).
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
14

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Note:Some vehicles may be equipped with aheadlamps on with
wipers feature.In order for this feature to work:
•the igniton must be in run and the front wipers must be on greater
than 10 seconds except during a mist wipe or while the wipers are on
to clear washer fluid during a wash condition.
•the headlamps and park lamps be turned off when the ignition is in off
or accessory position, or the front wipers are off for more than 30
seconds while the ambient light level is at daytime brightness.
Foglamp control
The foglamps can be turned on
when the headlamp control is pulled
toward you and is in any of the
following positions:
•Parking lamps
•Low beams
•Autolamps
PULL
P
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
Lights
37

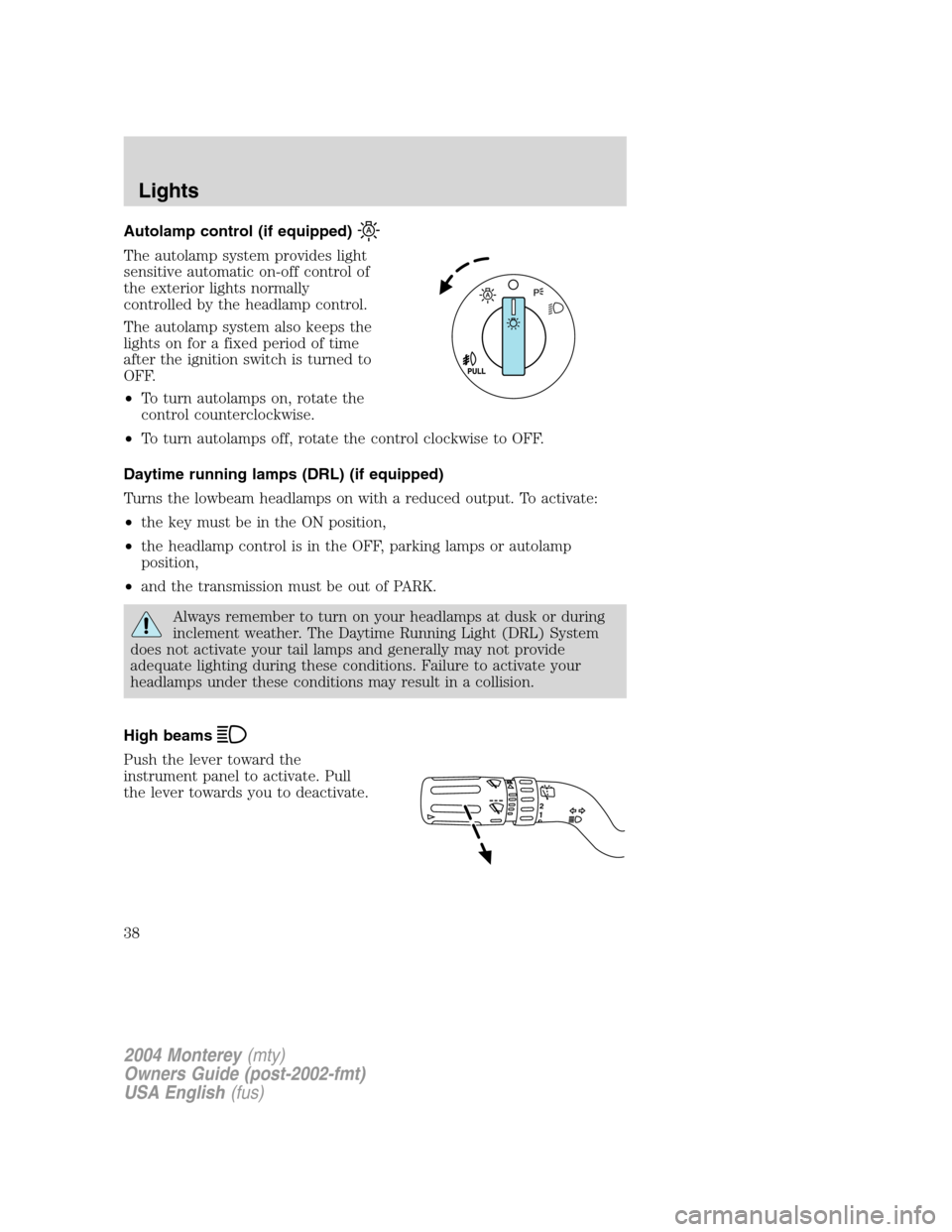

Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system also keeps the
lights on for a fixed period of time
after the ignition switch is turned to
OFF.
•To turn autolamps on, rotate the
control counterclockwise.
•To turn autolamps off, rotate the control clockwise to OFF.
Daytime running lamps (DRL) (if equipped)
Turns the lowbeam headlamps on with a reduced output. To activate:
•the key must be in the ON position,
•the headlamp control is in the OFF, parking lamps or autolamp
position,
•and the transmission must be out of PARK.
Always remember to turn on your headlamps at dusk or during
inclement weather. The Daytime Running Light (DRL) System
does not activate your tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
12
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
38

Flash to pass
Pull toward you slightly to activate
and release to deactivate.
Battery saver
The battery saver will shut off the exterior lamps and interior lamps,
except the hazard warning lamps if activated, 10 minutes after the ignition
control has been turned off. The battery saver will extend the time-out
period for courtesy lamps to 30 minutes if the liftgate is ajar or the dome
lamp is on via manual activation using the dome lamp switch or the
headlamp switch, whichever is provided. The system will not turn off the
parking lamps if the headlamp control is in the PARK position. For interior
lights, refer toIlluminated entryin theLocks and securitychapter.
PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel during headlight
and parklamp operation.
•Rotate the thumbwheel from left
to right to brighten the
instrument panel.
•
Rotate the thumbwheel from right
to left to dim the instrument panel.
Your vehicle also contains a feature called“sleeping baby mode”—in
which the dome lamps will remain off and only the lower lamps will
illuminate. This lighting mode can be activated by rotating the thumbwheel
to the first left detent position (as denoted by the half filled circle above).
Domelamp Control
The panel dimmer control also controls the domelamp operation.
•Rotate the thumbwheel fully to the right, past detent to activate the
domelamp.
•In order to turn off the domelamp, rotate the thumbwheel to the left.
The dome lamp will not illuminate if the control switch is in the OFF
position.
12
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39

AIMING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident the alignment of your headlamps
should be checked by a qualified service technician.
You will need one #2 Phillips screwdriver to make the adjustments.
Vertical aim adjustment
1. Park the vehicle on a level surface approximately 7.6 meters (25 feet)
from a vertical wall or screen directly in front of it.
•(1) Eight feet
•(2) Center height of lamp to
ground
•(3) Twenty five feet
•(4) Horizontal reference line
2. Measure the height from the center of your headlamp to the ground
and mark a 2.4 meter (8 foot) horizontal reference line on the vertical
wall or screen at this height (a piece of masking tape works well). The
center of the lamp is marked by a 0.5 mm circle on the headlamp lens.
3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood.
4. On the wall or screen you will
observe a light pattern with high
intensity flat segments at the top
edge of the pattern. If the flat edges
are not at the horizontal reference
line, the beam will need to be
adjusted.
5. Locate the vertical adjuster on
each headlamp, then use a No. 2
Phillips screwdriver to turn the adjuster either counterclockwise (to
adjust up) or clockwise (to adjust down) positioning the horizontal edge
of the high intensity light on the horizontal reference line.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
40

Cargo lamp
The cargo lamp will stay on if the
control is moved to the driver side
position. When the control is in the
middle position, the lamp will only
come on when a door is opened. If
the control is moved to the
passenger’s side position, the lamp
will not come on at all.
With the ignition key in the ACC or ON position, the rear cargo lamp can
be turned ON or OFF by sliding the control.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America and an
“E”for Europe to assure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Headlamps H13
Front park/turn lamps 3457 AK (amber)
Front side marker lamps 904NA (amber)
Fog lamps H1 LL
Rear license plate lamps W5WL
High-mount brake lamp LEDs (see dealer)
Rear tail/stop/turn lamps 3157K
Backup lamps 3156K
Dome lamp (first row) 10W sofitte
Cargo lamp 10W sofitte
Map lamps (second row) H6W
Dome lamp (third row) 10W sofitte
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
43

Function Trade Number
Map lamps (overhead console) 906
Stepwell lamp T-562
Front seat footwell 194
Front door mounted courtesy lamp 168
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your dealer.
Replacing headlamp bulbs
To remove the headlamp bulb:
1. Make sure headlamp switch is in the OFF position, then open the hood.
2. Remove the two retainer pins to
release the headlamp assembly and
pull headlamp assembly forward to
expose the back of the bulb.
3. Disconnect the electrical
connector from the bulb by pulling
rearward and unlock the bulb by
rotating it counterclockwise.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb only by its plastic base and do
not touch the glass. The oil from your hand could cause the bulb to
break the next time the headlamps are operated.
Install the new bulb(s) in reverse order.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
44
