2004 MERCEDES-BENZ G500 check engine

240 OperationWinter driving
Winter drivingBefore the onset of winter, have your vehi-
cle winterized at an authorized
Mercedes-Benz Light Truck Center. This
service includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing point temperatures
(page 339).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
the engine can be started even at low
ambient temperatures.


Tire change. Mercedes-Benz recom-
mend M+S rated radial-ply tires with a
minimum tread depth of approximately 1⁄6in (4 mm) on all four wheels for the
winter season.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum ef-
fectiveness of the ABS, ESP, EBB and
4-ETS in winter operation.
For safe handling, make sure all winter
tires mounted are of the same make and
have the same tread design.
Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your ve-
hicle, you must place a notice to this effect
where it will be seen by the driver. Such no-tices are available at your tire dealer or any
authorized Mercedes-Benz Light Truck
Center.
Block heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Warning!
G
Winter tires with a tread depth under
1⁄6in
(4 mm) must be replaced. They are no long-
er suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Light Truck Center.

254 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
;
(USA only)
3
(Canada only)The red brake warning lamp
comes on while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake
(page 44).

Also note the messages in the multi-
function display (
page 260).
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Light Truck Center.
Do not add brake fluid! This will not
solve the problem.

Also note the messages in the multi-
function display (
page 260).
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lap stays on.
Do not add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You could be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

255 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
;
(USA only)
3
(Canada only)
-
The red brake warning lamp and
the yellow ABS indicator lamp
come on when the engine is run-
ning and you hear a warning
sound for approximately five sec-
onds.
The EBB has detected a malfunction and has
switched off. You should be prepared for your
vehicle to perform differently than normal
when braking.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.

Also note the messages in the multi-
function display (
page 260).
Failure to follow these instructions in-
creases the risk of accidents.

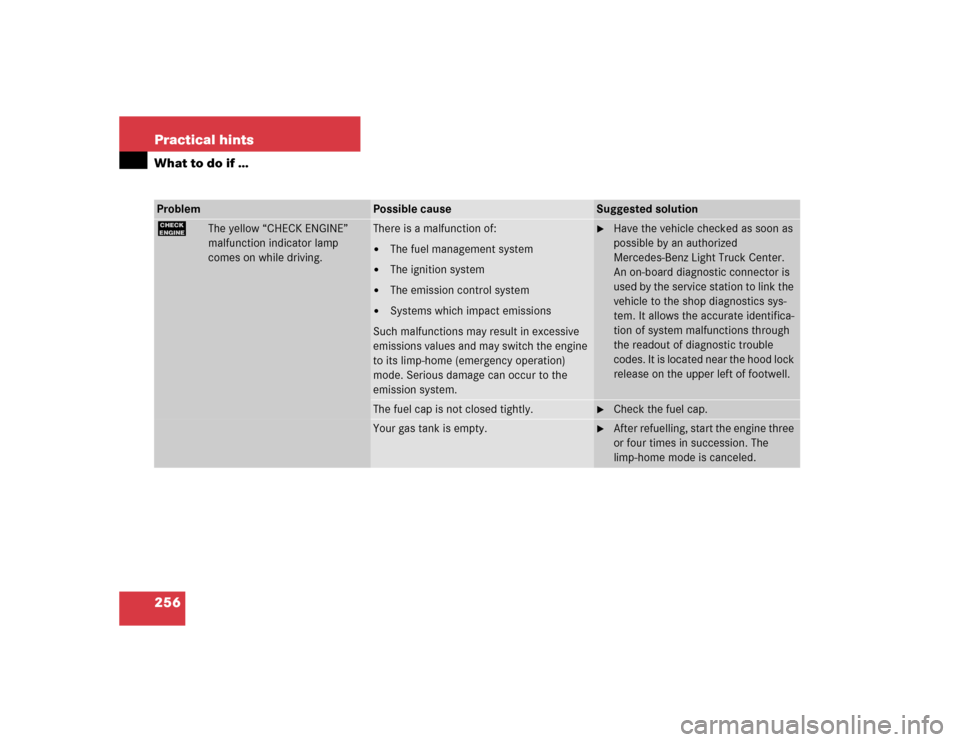

256 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE”
malfunction indicator lamp
comes on while driving.
There is a malfunction of:

The fuel management system


The ignition system


The emission control system


Systems which impact emissions
Such malfunctions may result in excessive
emissions values and may switch the engine
to its limp-home (emergency operation)
mode. Serious damage can occur to the
emission system.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Light Truck Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located near the hood lock
release on the upper left of footwell.
The fuel cap is not closed tightly.

Check the fuel cap.
Your gas tank is empty.

After refuelling, start the engine three
or four times in succession. The
limp-home mode is canceled.

258 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
<
The red seat belt non-usage
warning lamp illuminates briefly
after starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.
The yellow fuel tank reserve warning lamp
illuminates while driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station.

Also note the messages in the multi-
function display (
page 260).
The yellow fuel tank reserve warning lamp is
blinking.
The fuel cap is not closed tight.

Check the fuel cap.
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
device (ETD) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Light
Truck Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Light Truck Center immediately to have the
system checked; otherwise the SRS may not
be activated when needed in an accident.
This could result in serious or fatal injury, or
it might deploy unexpectedly and unneces-
sarily which could also result in an accident
and/or injury to you or to others.

263 Practical hints
What to do if …
Display
Display message
Possible cause
Possible solution
ESP
ESP
NOT AVAILABLE
The charging voltage has fallen below
10 volts and the ESP has switched off.

When the voltage is above this value
again, the ESP is operational again.

If necessary, have the generator (alter-
nator) and battery checked.
The ESP is deactivated because of a mal-
function or interrupted power supply. The
ABS and BAS might not be operational.
The system must be resynchronized.

Synchronize the ESP. With vehicle sta-
tionary and the engine running, turn
the steering wheel completely to the
left and then to the right to synchro-
nize the ESP.
If the ESP message does not go out:

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
Failure to follow these instructions in-
creases the risk of accident.
!When synchronizing the ESP, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

264 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
ESP
ESP
VISIT WORKSHOP!
The ESP is switched off due to a malfunc-
tion or an interruption in the power sup-
ply.
The brake system is still functioning nor-
mally but without ESP, ABS and BAS avail-
able.
If in addition the ABS is malfunctioning,
only partial engine output will be avail-
able.

Continue driving with added caution.

Have the system checked at an autho-
rized Mercedes-Benz Light Truck Cen-
ter as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.

265 Practical hints
What to do if …
Symbol messagesDisplay symbol
Display message
Possible cause
Possible solution
#
BATTERY/ALTERNATOR
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in serious engine damage not
covered by the Mercedes-Benz Limited
Warranty. Notify an authorized
Mercedes-Benz Light Truck Center.
If it is intact:

Turn off unnecessary electric consum-
ers.

Drive immediately to the nearest au-
thorized Mercedes-Benz Light Truck
Center.
UNDERVOLTAGE
ENGINE ON!
The battery has insufficient voltage.

Start the engine.
