2004 MERCEDES-BENZ G500 Owner's Manual

281 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
§
TC SHIFT
CANCELLED
The shift process in the transfer case was
canceled because of a malfunction.

Repeat the shift process (
page 145).
TC SHIFT CONDITIONS
NOT FULFILLED
You have not met the shift conditions for
a selection process in the transfer case.

Repeat the shift process (
page 145).
TRANSFER CASE
VISIT WORKSHOP!
The transfer case is malfunctioning.

Do not switch the transfer case on.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as possi-
ble.
K
CLOSE
SUNROOF!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop-up roof open.

Close the sliding/pop-up roof
(page 166).
J
CLOSE
SUNROOF!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop-up roof open.

Close the sliding/pop-up roof
(page 166).
L
TELE AID
DRIVE TO WORKSHOP!
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Light
Truck Center.
ì
FUNCTION
NOT AVAILABLE!
This display appears if button ì or
í on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.

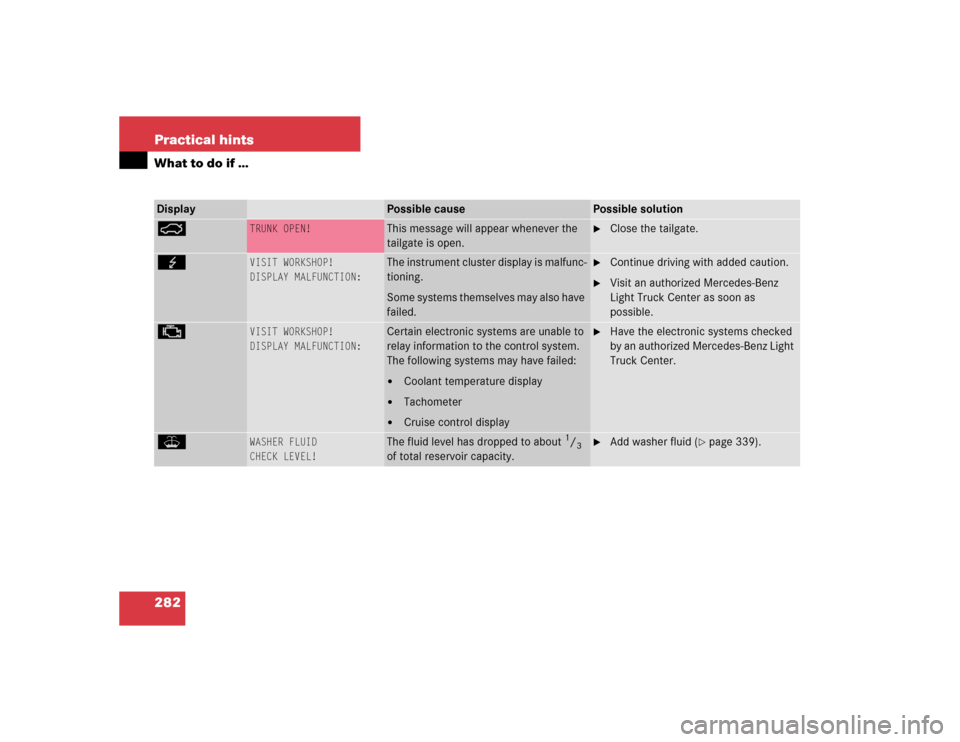

282 Practical hintsWhat to do if …Display
Possible cause
Possible solution
Ê
TRUNK OPEN!
This message will appear whenever the
tailgate is open.

Close the tailgate.
G
VISIT WORKSHOP!
DISPLAY MALFUNCTION:
The instrument cluster display is malfunc-
tioning.
Some systems themselves may also have
failed.

Continue driving with added caution.

Visit an authorized Mercedes-Benz
Light Truck Center as soon as
possible.
±
VISIT WORKSHOP!
DISPLAY MALFUNCTION:
Certain electronic systems are unable to
relay information to the control system.
The following systems may have failed:

Coolant temperature display


Tachometer


Cruise control display

Have the electronic systems checked
by an authorized Mercedes-Benz Light
Truck Center.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 339).

283 Practical hints
Where will I find ...?
Where will I find ...?
First aid kit
The first aid kit is stored in the storage
pocket in the front passenger door.
1First aid kit
Vehicle tool kit
The vehicle tool kit is stored under a cover
in the rear footwell.
1Cover
2Tab
Fold cover1 to the side.

Pull vehicle tool kit out using tab2.The following is included:


Vehicle tool kit


Wheel wrench


Vehicle jack
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.

284 Practical hintsWhere will I find ...?Vehicle jack
The vehicle jack is under the rear bench
seat.
1Cover
2Tab
3Vehicle jack
Fold the rear bench seat forward
(page 177).

Open cover1.

Open tab2 and remove vehicle
jack3.
Please also observe the safety guidelines
in the “Flat tire” section (
page 306)
when using the jack.
CD changer
The CD changer is located on the left side
of the cargo compartment.CD changer
Warning!
G
The jack is designed exclusively for jacking
up the vehicle under the axle housing. To
help avoid personal injury, use the jack only
to lift the vehicle during a wheel change.
Never get beneath the vehicle while it is sup-
ported by the jack. Keep hands and feet
away from the area under the lifted vehicle.
Always firmly set parking brake and block
wheels before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure the jack is posi-
tioned correctly under the axle housing. Al-
ways lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.
iFor CD changer instructions, see sepa-
rate COMAND operator’s manual.

285 Practical hints
Where will I find ...?
Spare wheel
The spare wheel is located under a cover
on the outside of the vehicle’s tailgate.
For information on rim and tire specifica-
tions, see (
page 329) and (
page 330).
Removing cover
1Cover ring
2Key
3Tab

Open lock for cover ring1 with
key2 for the spare wheel cover.

Fold tab3 downwards.
4Cover plate

Pull cover ring1 slightly outwards in
direction of arrows and remove.

Pull cover plate4 upward towards
you.5Catch
6Recess
iWhen replacing cover plate4, make
sure catch5 engages in recess6.
Make sure the lock faces downwards
when mounting cover ring1.
For safety reasons, check regularly that
the spare wheel is securely fastened.

286 Practical hintsWhere will I find ...?Removing the spare wheel
1Mounting screws
Unscrew mounting screws1.

Remove the spare wheel.For more information on changing the
wheel, see “Flat tire” (
page 306).
Warning!
G
Make sure no one is injured when removing
the spare wheel.
Grip wheel from the sides.
Keep hands from beneath the wheel.
iAfter changing the wheel, secure the
replaced wheel on the spare wheel car-
rier. Make sure the wheel cannot come
loose.
Cover the wheel with the cover plate.
Repair or replace damaged tire as soon
as possible and return spare tire as
original spare.

287 Practical hints
Unlocking/locking in an emergency
Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door and
the tailgate using the mechanical key.
The passenger door cannot be unlocked
manually.
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row and slide the mechanical key2
out of the housing.
Unlocking the driver’s door

Unlock the door with the mechanical
key. To do so, push the mechanical key
in the lock until it stops and turn it to
the left.Unlocking the tailgate
If you are unable to unlock the tailgate with
the SmartKey, open the tailgate with the
mechanical key as follows:
1Unlocking in an emergency
2Lock cylinder
3Handle

Insert the mechanical key into the tail-
gate lock.

Turn the mechanical key counterclock-
wise to position1 and hold it in this
position.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.


288 Practical hintsUnlocking/locking in an emergency
Press lock cylinder2 and pull on tail-
gate handle3.

Open the tailgate to the side.
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey, lock it with the mechanical
key as follows:
Close the passenger doors and the tail-
gate.

Press the central locking switch in the
cockpit (
page 92).

Check to see whether the locking
knobs on the passenger doors are still
visible. If necessary, push them down
manually.

Slide the mechanical key2 out of the
SmartKey.

Lock the driver’s door with the me-
chanical key.

Check if the tailgate is locked. If nec-
cessary lock the tailgate with the me-
chanical key.
Changing batteries in the SmartKey
If the batteries in the SmartKey are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
Warning!
G
The tailgate swings open to one side. Always
make sure there is sufficient clearance for
tailgate.iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
