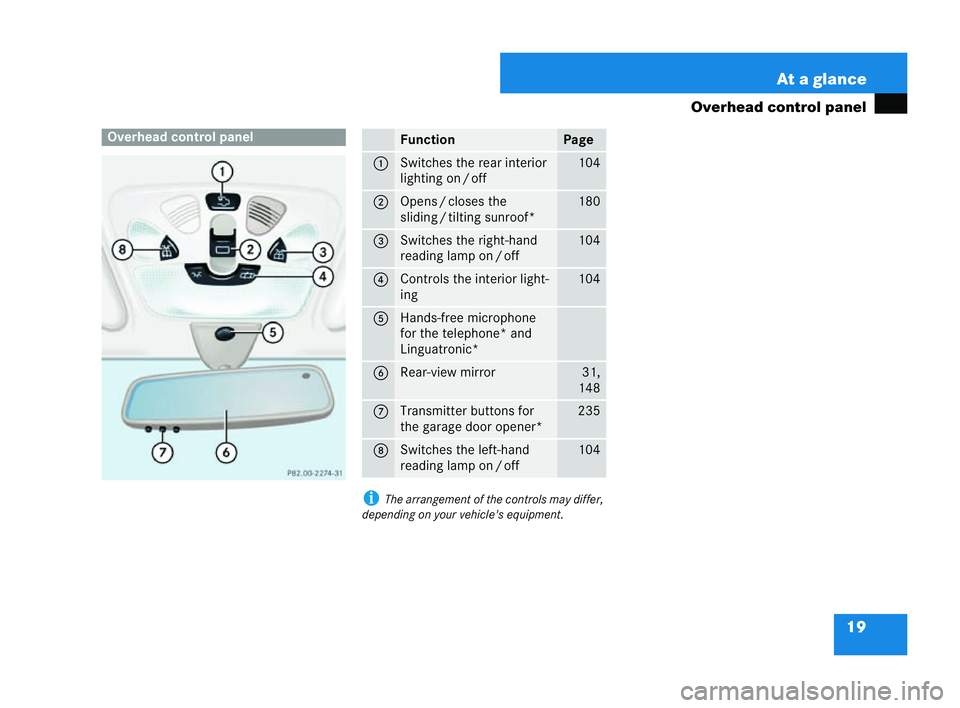

At a glance
Overh ead control panel
i The arrangement of the control sma y differ,
depending on your vehicle's equipment. Overhead control panel
P82.00-2274-31 Function Page
1 Switches the rear interior
lighting on
/off 104
2 Opens
/closes the
slidin g/tilting sunroof* 180
3 Switches the right-hand
reading lamp on
/off 104
4 Controls the interior light-
ing 104
5 Hands-free microphone
for the telephone* and
Linguatronic*
6 Rear-view mirror 31,
148 7 Tra
nsmitte r buttons for
the garage door opener* 235
8 Switches the
left-hand
reading lamp on /off 104209en_d2.boo Seite
19Diens tag, 25 .Mai 2004 7:26 19

31

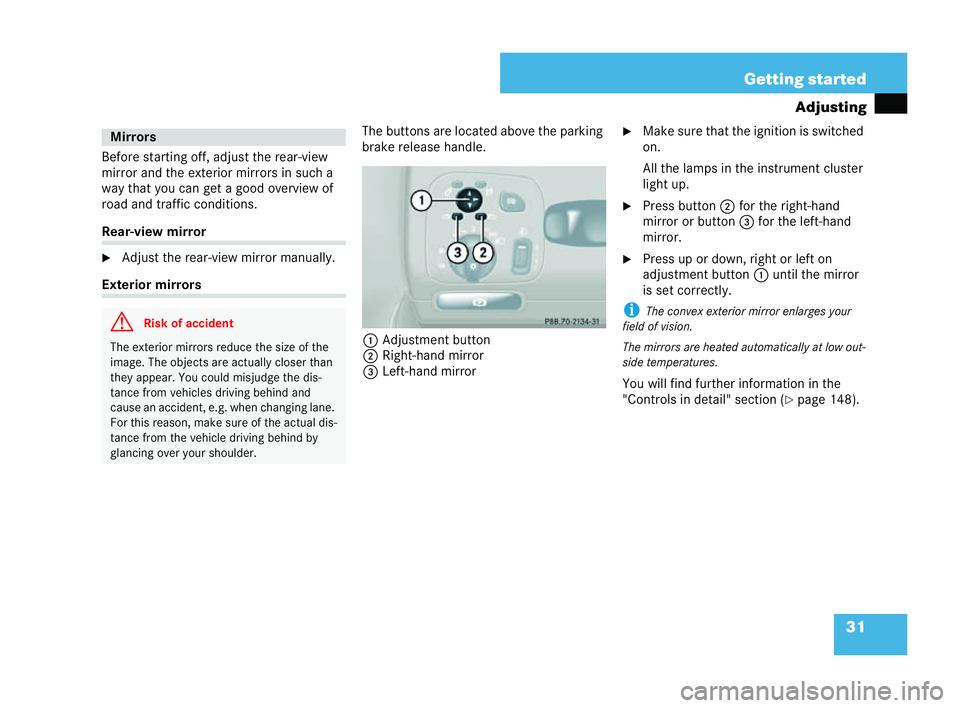

Getting started
Adjusting
Before starting off, adjust the rear-view
mirror and the exterior mirrors in such a
way that you can get a good overview of
road and traffic conditions. Rear-vie
wmi rror
6 Adjust the rear-view mirror manually. Exterior mirrors
The buttons are located above the parking
brake release handle.
1 Adjustment button
2 Right-hand mirror
3 Left-hand mirror 6
Make sure that the ignition is switched
on.
All the lamps in the instrument cluster
light up.
6 Press button 2for the right-hand
mirror or button 3for the left-hand
mirror.
6 Press up or down, right or left on
adjustment button 1until the mirror
is set correctly.
i The conve xexterior mirror enlarges your
field of vis ion.
The mirrors are heated automatically at low out-
si de temperatures.
You will find further information in the
"Controls in deta il" se ction (
=page 148). Mirrors
G
Risk of accident The
exterior mirrors reduce the size of the
image. The objects are actuallyclo ser than
they appear .You could misjudge the dis-
tance fro mvehicles driving behind and
ca use an accident, e.g. when changing lane.
For this reason, make sure of the actual dis-
tan cefrom the vehicle driving behind by
glanci ngover your shoulder. P88.70-2134-31209en_d2.boo Seite
31Diens tag, 25 .Mai 2004 7:26 19

74 Safety
An
ti-theft systems
An audible and visual alarmis triggered if
the vehicle is locked and movement is
detected inside the vehicle, e.g. if:
! somebody smashes one of the side
windows
! someone reaches inside the vehicle
! there is someone inthe vehicle
The button is located on the centre con-
sole.
1 Todeactivate the interior motion
sensor
2 Indicator lamp Priming the interior motion sensor
6
Close the side windows and sl iding /
tilting sunroof*.
The interior motion sensor cannot be
prime dif the sliding /tilting sunroof* is
open.
6 Lock your vehicle.
The interior motion sensor is primed
after approximately 30 seconds.
i Do not leave any items (e.g. mascots or coat
hangers) hanging from the rear-view mirror or on
the grab handles on the roof lining. They could
ot he rwise trigger a false alarm. De
activating the interior motion sensor
Deactivate the interior motion sensor if
people or ani mals are to remain in the
locked vehicle. This will prevent false
alarms.
6 Turn the key to position 0or 1in the
ignition lock, or remove it.
6 Press button 1.
The indicator lamp in button 2flashes
briefly.
i The interior motion sensor remains deacti-
vated unti lyou lo ckyour vehicle again. Interior motion sensor* (Coup
é)P 54.25-3808-31 neu209en_d2.boo Seite
74Diens tag, 25 .Mai 2004 7:26 19

75

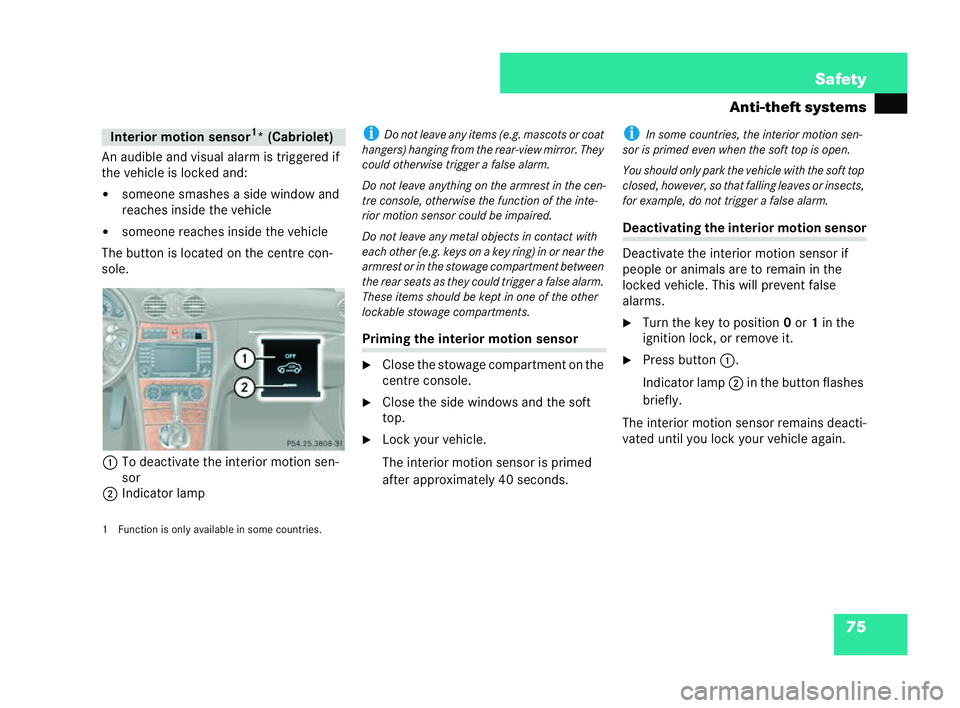

Safety
Anti-theft systems
An audible and visual alarm is triggered if
the veh icle is locked and:
! someone smashes a side window and
reaches inside the vehicle
! someone reaches inside the vehicle
The button islocated on the centre con-
sole.
1 To deactivate the interior motion sen-
sor
2 Indicator lamp
1F unction is only ava ilablein some countries. i
Donot leave any item s(e.g. masco ts orcoat
ha ngers) hanging from the rear-view mirror. They
co uld otherwise trigger afalse alarm.
Do not leave anything on the armre stinthe cen-
tr e console, otherwise the function of the inte-
ri or mo tionsensor could be impaired.
Do not leav eany metal objects in contact with
ea ch other (e.g. keys on a key ring) in or near the
ar mrest or in thest owage compartment between
th e rear seats as they could trigger a false alarm.
These items should be kept in one of the other
lo ckable stowage compartme nts. Primi
ngthe in terior motion sens or
6 Close the stowage compartment on the
centre consol e.
6 Close the side windows and the soft
top.
6 Lock your vehicle.
The interior motion sensor is primed
after approximately 40 seconds. i
In some countries, the interior motion sen-
so ris primed even when the soft top is ope n.
You should onlypark the vehicle with the soft top
cl osed, however, so that falling leaves or insects,
for example, do not trigger a false alarm. Dea
ctivat ing the interior motion sensor
Deactivate the interior motion sensor if
people or animals are to remain in the
locked vehicle. This will prevent false
ala rms.
6 Turn the key to position 0or 1in the
ignition lock, or remove it.
6 Press button 1.
Indicator lamp 2in th ebutton flashes
bri efly.
The interior motion sensor remains deacti-
vated until you lock you rvehicle again. Interior motion sen
sor1
* (Cabrio let) P 54.25-3808-31209en_d2.boo Seite
75Diens tag, 25 .Mai 2004 7:26 19

148 Controls in detail

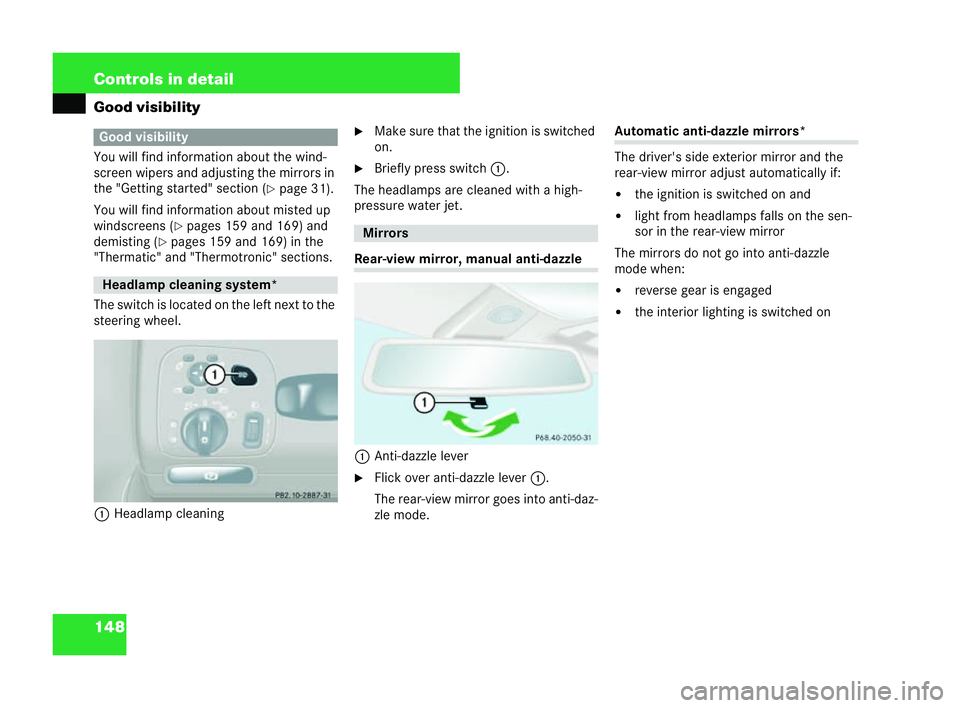

Good visibility
You will find information about the wind-
screen wipers and adj
usting the mirrors in
the "Getting started" section ( =page 31).
You will find information about mist edup
windscreens (= pages 159 and 169) and
demisting ( =pa ges 159 and 169) in the
"Thermatic" and "Thermotronic" sections.
The switch is located on the left next to the
steering wheel.
1 Headlamp cleaning 6
Make sure that the ignition isswitched
on.
6 Briefly press switch 1.
The headlamps are cleaned with a high-
pressur ewater jet. Rear-view mirror,
manual anti-da zzle
1 Anti-dazzle lever
6 Flick over anti-dazzl elever 1.
The rear-view mirror goes into anti-daz-
zle mode. Automatic anti-da
zzle mirrors*
The driver's side exterior mirror and the
rear-view mirror adjust automatically if:
! the ign ition is swi tched on and
! light from headlamps falls onthe sen-
sor in the rea r-view mirror
The mirrors do not go into anti-da zzle
mode when:
! reverse gear is engaged
! the interior lighting is switched on Good visi
bility Headlamp cleaning system*
P
82.10-2887-31 neu Mirrors
P68.40-2050-31 209en_d2.boo Seite
148 Dienstag, 25. Mai 2004 7:26 19

149
Controls in detail

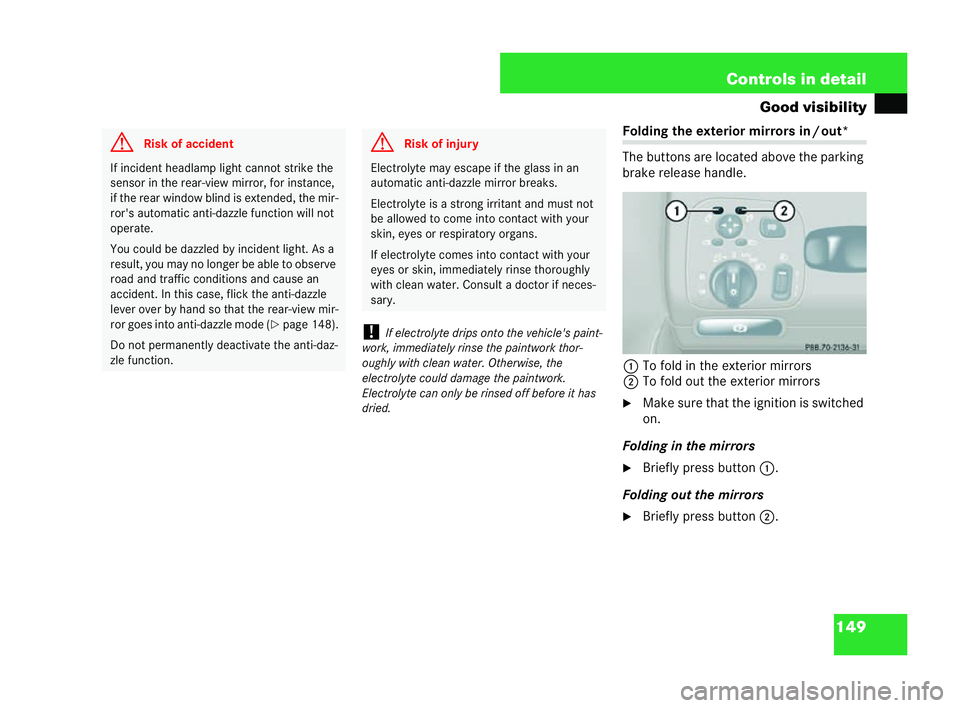

Good visi bility
! If electrolyte drips onto the vehicle 'spai nt-
work, immediately rinse the pai ntworkthor-
oughly with clean wa ter. Oth erwise, the
el ectrolyte could damage the paintwork.
Electrol yte can only be ri nsed off before it has
dried. Foldin
gthe exteri ormirro rsin/o ut*
The buttons are located above the parking
brake release handle.
1 To fold in the exterior mirrors
2 To fold out the exterior mirrors
6 Make sure that the ignition is switched
on.
Folding in the mirrors 6 Briefly press button 1.
Folding out the mirrors 6 Briefly press button 2.G
Risk of accident If incident headlamp ligh
tcannot strike the
sensor in the rear-view mirror, for instance,
if the rear window blind is extended, the mir-
ror's automatic anti-dazzle function will not
operate.
You could be dazzled byincident light. As a
result, you may nolon ger be able to observe
road and tra ffic condition sand cau sean
accid ent.In this case , flick theanti-dazzle
lever over by hand so that the rear-view mir-
ror goes into anti-dazzle mode ( =
page 148).
Do not permanently dea ctivate the anti-daz-
zle function. G
Risk of injury Electrolyte
may escapeif the glass in an
automatic anti-dazzl emirror brea ks.
El ectrolyte is a strong irritant and must not
be allowed to come into contact with your
skin, ey esor respiratory organ s.
If electrolyte comes into contact with your
eyes or skin, immediately rinse thoroughly
with clean water. Cons ult a do ctor ifnec es-
sary. P88.70-2136-31209en
_d2.boo Seite 149 Dienstag, 25. Mai 2004 7:26 19

235
Controls in detail
Features
The remote control integrated in the rear-
vi ew mirror allows you to operate up to
three different door and gate systems.
You can program the transmitter buttons.
i The garage door opener is only available for
certain countries. Observe the legal require-
ment sinall cou ntrie sc oncerned.
Some garage door ope ning systems cannot be
operated using the remote control. You may
ob tain more detailed information from a
Mercedes-Benz Service Centre. Remote contro
lin the rear-view mirror
1 Indicator lamp
2 Tran smitter button
3 Transmitter button
4 Transmitter button Programming the remote control
i
Youmust clear the remote control memory
be fore using the remote control for the first time
(= page 236).
6 Switch on the ignition.
6 Press and hold one of transmitt erbut-
tons 2to4 on the integrated remote
contro l.
Indicator lamp 1starts to fl ash after a
short while. It flashes about once a sec-
ond.
i Indicat or lamp1 flashes the first time the
transmitter button is programmed. If this trans-
mitt er bu tton has already been programmed,
indi cator lamp 1only starts flashing onceevery
sec ond after 20 seconds.
6 Continue to keep the transmitter but-
ton pressed.
6 Point the portable garage door remote
control and transmitt erat the left-hand
side of the rear-view mirror, from a dis-
tance of 5 to 20 cm. Garage door opener*
G
Risk of accident Only press th
etransmitter button on the
in tegrated remote control if there are no
persons or objects present within the sweep
of the garage door. Pers ons could otherwise
be injured as the door moves.
P68.05-2046-31
==209en_d2.boo Seite
235 Dienstag, 25. Mai 2004 7:26 19

236 Controls in detail

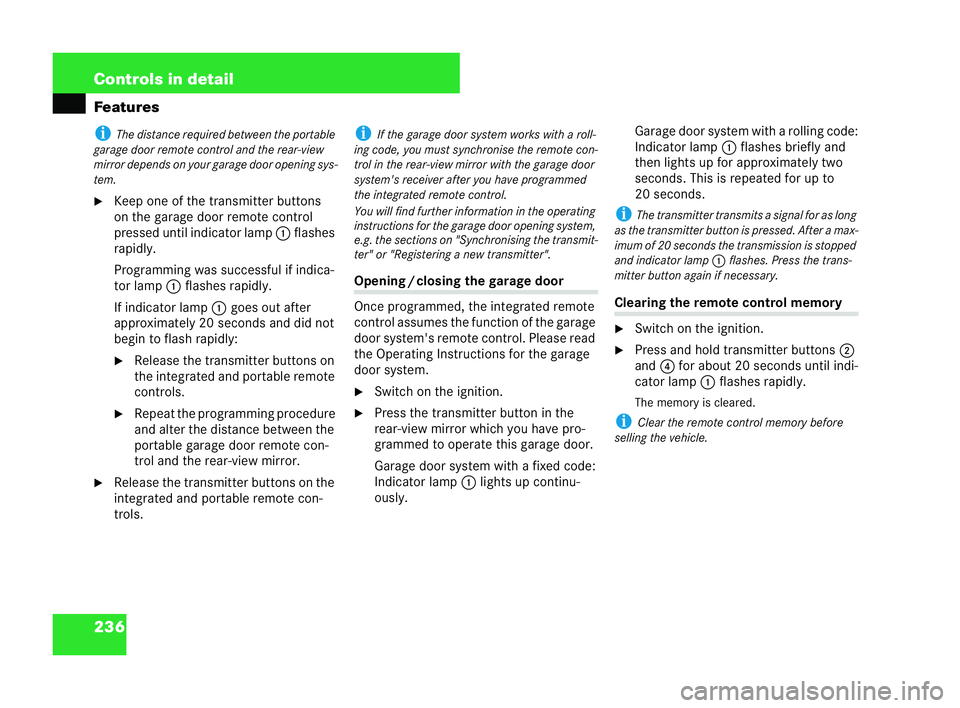

Featuresi
The distanc erequire dbe tween theportab le
garage door remot econtrol and the rear-view
mi rror depends on your garage door opening sys-
tem.
6 Keep one of the transmitter buttons
on the garage door remote control
pressed until indicator lamp 1flashes
rapi dly.
Pro gramming was successful ifindica-
to rla mp 1flashes rapidly.
If indicator lamp 1goes out after
approximately 20 seconds and did not
begin to flash rapidly:
6 Release the transmitter buttons on
the int egrate d and por tablere mote
controls.
6 Repeat the programming procedure
and alter the distance between the
po rtable garage doo rre mote con-
trol and the rear-view mirror.
6 Release the transm itter buttons on the
int egrated and portable remote con-
trols. i
If the garage door syst emworks with a roll-
ing code , youmust synchronise the remote con-
trol in the rear-view mirror with the garage door
syste m'sreceiver after you have programm ed
th ei ntegrated remote control.
You will find further information inthe operati ng
instructions for the garage door opening system,
e.g. the sections on "Sy nchronising the transmit-
ter" or "Regis tering a new transmitter". Opening
/closing the garage door
Once programmed, the integrated remote
control assumes the function of the garage
do or syste m's remote control. Please read
the Operating Instructions for the garage
doo rsystem.
6 Switch on the ignition.
6 Press the transmitter button in the
rear-view mirro rwhich you have pro-
grammed to operate this garage door.
Garage door system with a fixed code:
Indicator lamp 1lights up continu-
ously. Garage door system with a rolling code:
Indicator lamp
1flashes briefly and
then lights up for approximately two
seconds. This is repeated for up to
20 seconds.
i The transm itter transmits a signal for as long
as thetran sm itter button is pres sed.After ama x-
imum of 20 seconds the transmission is stopped
and indicator lamp 1flash es. Press the tra ns-
mitter button again if necessary. Cl
earing the re mote contr olmemory
6 Switch on the ignition.
6 Press and hold transmitter buttons 2
and 4for about 20 seconds until indi-
cator lamp 1flashes rapidly.
The memory is cleared.
i Clear the remote control memory before
selling the vehi cle. 209en_d2.boo Seite
236 Dienstag, 25. Mai 2004 7:26 19
