2004 MERCEDES-BENZ C CLASS COUPE technical data

ContentsPractical hints.................................. 257
What to do if … .................................. 258 Lamps in instrument cluster ......... 258
Lamp in center console ................ 263
Messages in the display ............... 264
Where will I find ...?............................ 284 First aid kit ................................... 284
Spare wheel ................................. 285
Vehicle tool kit ............................. 285
Unlocking/locking in an emergency .. 288 Unlocking the vehicle ................... 288
Locking the vehicle ...................... 289
Changing batteries in
the SmartKey ............................... 290
Fuel filler flap ............................... 291
Manually unlocking the
gear selector lever........................ 291
Opening/closing in an emergency ..... 292 Panorama sliding/pop-up roof ..... 292
Replacing bulbs ................................. 293 Bulbs ............................................ 293
Replacing bulbs for front lamps.... 295
Side marker lamp bulb ................. 298
Replacing bulbs for rear lamps ..... 298
Replacing wiper blades ...................... 300 Removing ..................................... 300
Installing ...................................... 300
Flat tire .............................................. 301 Preparing the vehicle ................... 301
Mounting the spare wheel ............ 301
Battery ............................................... 307 Disconnecting the battery ............ 308
Removing the batteries ................ 308
Charging and reinstalling
batteries....................................... 308
Reconnecting the batteries .......... 308
Jump starting ..................................... 310
Towing the vehicle ............................. 313 Installing towing eye bolt ............. 316
Fuses ................................................. 317 Fuse box in
passenger compartment .............. 317
Fuse box in engine compartment . 317
Auxiliary fuse box in trunk ............ 318
Technical data ................................. 319
Spare parts service ............................ 320
Warranty coverage............................. 321 Loss of Service and Warranty
Information Booklet ..................... 321 Identification labels ........................... 322
Layout of poly-V-belt drive ................. 323
C 230 Kompressor ....................... 323
C 320 ........................................... 323
Engine ............................................... 324
Rims and Tires ................................... 325 Same size tires............................. 326
Spare wheel ................................. 326
Electrical system ............................... 327
Main Dimensions ............................... 328
Weights ............................................. 329
Fuels, coolants, lubricants, etc. ......... 330 Capacities .................................... 330
Engine oils ................................... 332
Engine oil additives ...................... 332
Air conditioning refrigerant .......... 332
Brake fluid.................................... 332
Premium unleaded gasoline ......... 333
Fuel requirements ........................ 333
Gasoline additives ........................ 334
Flexible Fuel Vehicles................... 334
Coolants ...................................... 336
Windshield washer system and
headlamp cleaning system........... 338
Consumer information ....................... 339
Uniform tire quality grading ......... 339

14 IntroductionWhere to find it
Where to find itThis Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color so you can find
information quickly.At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
H e r e y o u w i l l f i n d d e s c r i p t i o n s o f t h e s a f e t y
features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual


the Service Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.

16 IntroductionOperating safety
Operating safety
Proper use of the vehicle
Proper use of the vehicle requires that you
are familiar with the following information
and rules:

the safety precautions in this manual


the “Technical data” section in this
manual


traffic rules and regulations


motor vehicle laws and safety stan-
dards
Warning!
G
Work improperly carried out on electronic
components and associated software could
cause them to cease functioning. Because
the vehicle’s electronic components are in-
terconnected, any modification made may
produce an undesired effect on other sys-
tems. Electronic malfunctions could seri-
ously impair the operating safety of your
vehicle.
See your authorized Mercedes-Benz Center
for repairs or modifications to electronic
components.
Other improper work or modifications on the
vehicle could also have a negative impact on
the operating safety of the vehicle.
Some safety systems only function while the
engine is running. You should therefore nev-
er turn off the engine while driving.
Warning!
G
Heavy blows against the vehicle underbody
or tires/wheels, for example when running
over an obstacle, road debris or a pothole,
may cause serious damage and impair the
operating safety of your vehicle. If you feel a
sudden significant vibration or ride distur-
bance, or you suspect that damage to your
vehicle has occured, you should turn on your
hazard warning flashers, carefully slow
down, and drive with caution to an area
which is a safe distance from the road.
Inspect the vehicle underbody and
tires/wheels for possible damage. If the ve-
hicle appears unsafe, have it towed to the
nearest authorized Mercedes-Benz Center
or other qualified maintenance or repair fa-
cility for further inspection or repairs.
Warning!
G
Various warning labels are attached to your
vehicle. These warning labels are intended
to make you and others aware of various
risks. You should not remove any of these
warning labels unless explicitly instructed to
do so by information on the label itself.
Removal of any of these labels may cause
you and others to be unaware of certain
risks which may result in an accident and/or
personal injury.

238 OperationEngine compartmentChecking engine oil level with the
control system
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
To check the engine oil level via the
multifunction display, do the following:

Turn the SmartKey in the starter switch
to position 2.
The standard display (
page 109) should
appear in the multifunction display.

Press button k orj on the
steering wheel until the following
message is seen in the multifunction
display:ENGINE OIL LEVEL
MEASURING NOW
MEASURE. CORRECT
ONLY IF VEH. LEVEL
One of the following messages will
subsequently appear in the indicator:

ENGINE OIL LEVEL
OK


ADD 1.0 Qt. TO
REACH MAX. OIL LEVEL!(Canada:
1.0 LITER
)


ADD 1.5 Qts. TO
REACH MAX. OIL LEVEL!(Canada:
1.5 LITERS
)


ADD 2.0 Qts. TO
REACH MAX. OIL LEVEL!(Canada:
2.0 LITERS
)

If necessary, add engine oil.
For adding engine oil, see (
page 239).
For more information on engine oil, see
“Technical data” section (
page 330).
Other display messages
If the SmartKey is not turned to position 2
in the starter switch, the following
message will appear:
FOR ENGINE OIL LEVEL
SWITCH ON IGNITION!
Switch on the ignition.iIf you want to interrupt the checking
procedure, press the k orj
button on the multifunction steering
wheel.

240 OperationEngine compartmentC 230 Kompressor1Oil filler cap
Unscrew oil filler cap 1 from filler
neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw oil filler cap 1 back on filler
neck.
C 3201 Oil filler cap
Unscrew oil filler cap 1 from filler
neck.

Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw oil filler cap 1 back on filler
neck.
For more information on engine oil, see
“Technical data” section (
page 330).
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

287
Practical hints
Where will I find ...?
Spare wheel bolts
1 Wheel bolt for light alloy rims
2 Wheel bolt for light alloy spare wheel
rim size 4
1/2B x15 H2 For more information on model and spare
wheel rim size, see “Technical data” sec-
tion (
page 326).
!Wheel bolts
2 must be used when
mounting spare wheel rim
size 4
1/2Bx15 H2 (
page 326).
The use of any wheel bolts other than
wheel bolts 2 for spare wheel rim
size 4
1/2B x15 H2 can cause physical
damage to the vehicle.
Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel af-
ter it has been repaired.

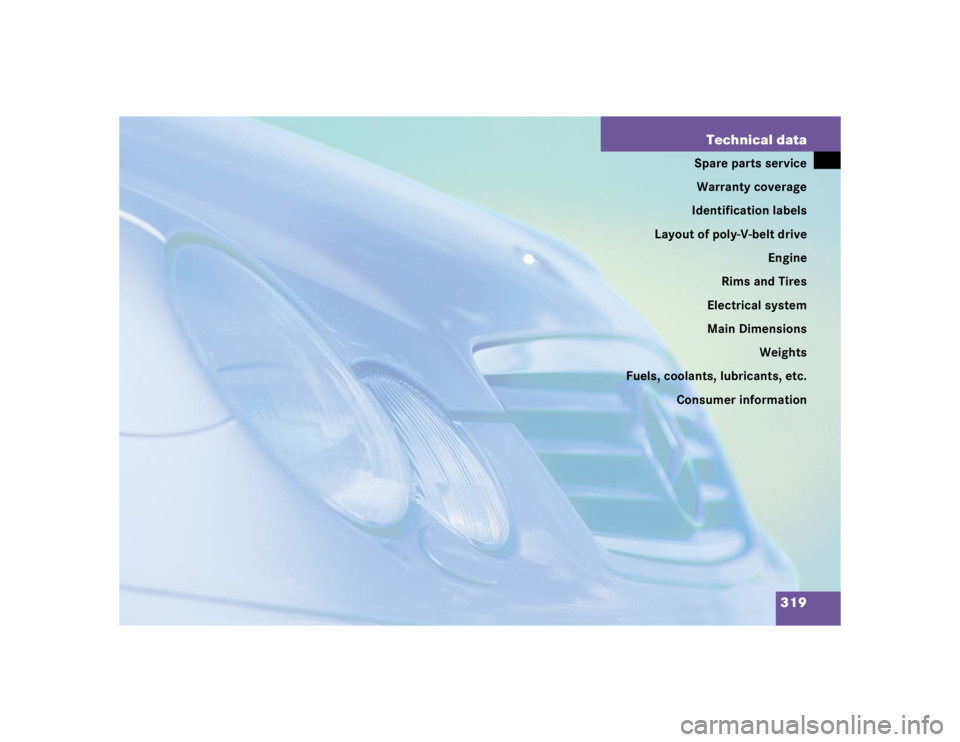

319
Technical data
Spare parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive Engine
Rims and Tires
Electrical system
Main Dimensions Weights
Fuels, coolants, lubricants, etc.
Consumer information

320 Technical dataSpare parts serviceThe “Technical data” section provides the
necessary technical data for your vehicle.
Spare parts service
All authorized Mercedes-Benz Centers
maintain a stock of genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different spare parts
for Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject
to stringent quality inspections. Each part
has been specifically developed, manufac-
tured or selected for and adapted to Mer-
cedes-Benz vehicles.
Therefore, genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.
