2004 MAZDA MODEL SPEED MX-5 MIATA program

6-26
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L

Operating the Cassette Tape Player*
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When is lit, the cassette tape’
s top
side is playing. When is lit, the
bottom side is on. PlayingPress the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn
’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"No TAPE" will flash on and off in
sequence.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Display
APC button:
(next program) (one being
played) Cassette tape play button
Cassette tape eject button Fast-forward button
Program button
Dolby NR button Rewind
button
Repeat button
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it.
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 26 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-27
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Ejecting the cassette tape
Press the cassette tape eject button ( ) to
eject the cassette tape.
Fast-forward/Rewind
Press the fast-forward button ( ) to
fast-forward.
Press the rewind button ( ) to rewind.
To stop this operation and play the
cassette tape, press the button again.
Reversing
Press the program button ( ) to
change cassette tape-playing direction.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button ( ) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.If APC detects 4 seconds of blank space it
will automatically advance the tape to the
next selection.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button ( ) during play.
The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
NOTE
When the cassette tape ends during
fast-forward or rewind, it
automatically stops and starts playing.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
NOTE
APC may not operate properly if
•
A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of
less than 3 seconds.
NOTE
RPT may not operate properly if
•A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of
less than 3 seconds.
J07S_8T02-EA-03L_Edition1.book Page 27 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-29
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Track search
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.Changing the display
Display
To change the display during MD play,
press the display button ( ) to advance
through each of the following displays:
Track number/Elapsed play back
time
→Song title→Disc title.
When long disc or song titles cannot be
completely displayed, rotate the display
feed dial ( ) to the right.
The remainder of the title will proceed and
appear on the display to the end of the title.
MD display
To change the MD display during MD
play, press and hold the MD display
button ( ) for about half a second to
advance through each of the following
displays:
Song title
→Disc title→No display.
When long disc or song titles cannot be
completely displayed, press the MD
display button ( ) to display the
remaining part of the title.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
NOTE
• If there is no song or disc title
recorded on the MD, "No TITLE"
will be displayed.
• The display can only display
English (including numerals) one-
byte characters. If any other
character is included "No TITLE"
will be displayed.
NOTE
If there is no song or disc title recorded
on the MD, "No TITLE" will be
displayed.
J07S_8T02-EA-03L_Edition1.book Page 29 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-31
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Track search
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J07S_8T02-EA-03L_Edition1.book Page 31 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-35
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once again
to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J07S_8T02-EA-03L_Edition1.book Page 35 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-48
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L

Operating the Cassette Tape Player*
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When is lit, the cassette tape’
s top side
is playing. When is lit, the bottom side
is on. PlayingPress the cassette tape play button
( ) to start playing when a
cassette tape is in the unit. If there isn
’t a
cassette tape in the unit when the cassette
tape play button ( ) is pressed,
"NO TAPE" will flash on and off in
sequence.
Dolby noise reduction
When using a tape with Dolby NR*, push
the Dolby NR button ( ). The symbol
will be displayed. To play a tape without
Dolby NR, push the button once again.
* Noise reduction system manufactured under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
Display
APC button:
(next program)(one being
played)
Cassette tape play button
Cassette tape eject button Fast-forward button
Program button
Dolby NR button Rewind
button
Repeat button
NOTE
When a metal tape is inserted, the
player will automatically compensate
for it and "MTL" will be displayed.
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 48 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

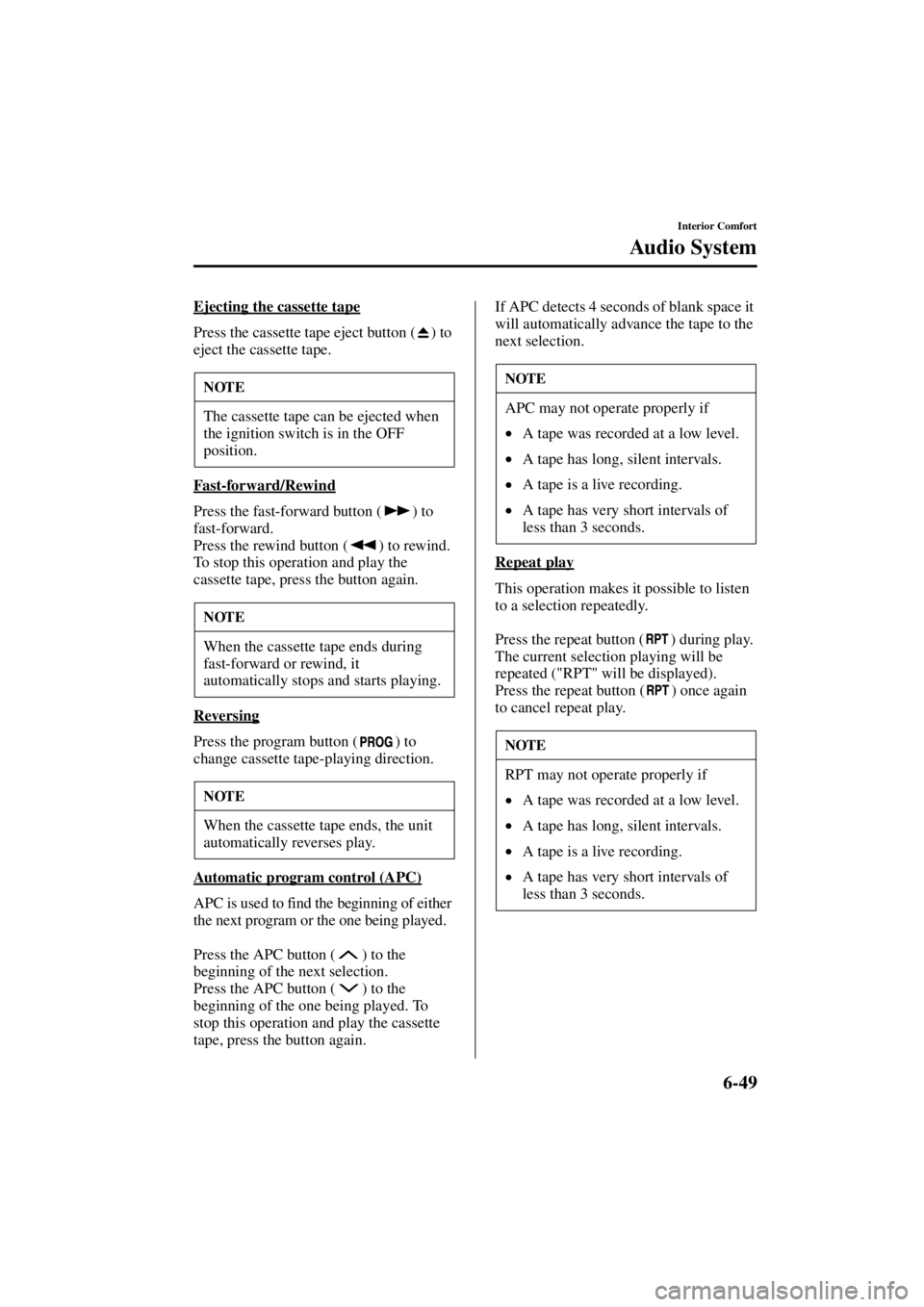

6-49
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Ejecting the cassette tape
Press the cassette tape eject button ( ) to
eject the cassette tape.
Fast-forward/Rewind
Press the fast-forward button ( ) to
fast-forward.
Press the rewind button ( ) to rewind.
To stop this operation and play the
cassette tape, press the button again.
Reversing
Press the program button ( ) to
change cassette tape-playing direction.
Automatic program control (APC)
APC is used to find the beginning of either
the next program or the one being played.
Press the APC button ( ) to the
beginning of the next selection.
Press the APC button ( ) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.If APC detects 4 seconds of blank space it
will automatically advance the tape to the
next selection.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.
Press the repeat button ( ) during play.
The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
NOTE
The cassette tape can be ejected when
the ignition switch is in the OFF
position.
NOTE
When the cassette tape ends during
fast-forward or rewind, it
automatically stops and starts playing.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
NOTE
APC may not operate properly if
•
A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of
less than 3 seconds.
NOTE
RPT may not operate properly if
•A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of
less than 3 seconds.
J07S_8T02-EA-03L_Edition1.book Page 49 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

6-51
Interior Comfort
Au di o S ys t em
Form No. 8T02-EA-03L
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once
again to cancel random play.Changing the MD display
To change the MD display during MD
play, press and hold the display button
( ) for about half a second to advance
through each of the following displays:
Song title
→Disc title
→No display.
When disc or song titles cannot be
completely displayed, press the display
button ( ) to display the remaining
part of the title.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
NOTE
If there is no song or disc title recorded
on the MD, "NO TITLE" will be
displayed.
J07S_8T02-EA-03L_Edition1.book Page 51 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
