2004 MAZDA MODEL RX 8 engine coolant

7-19

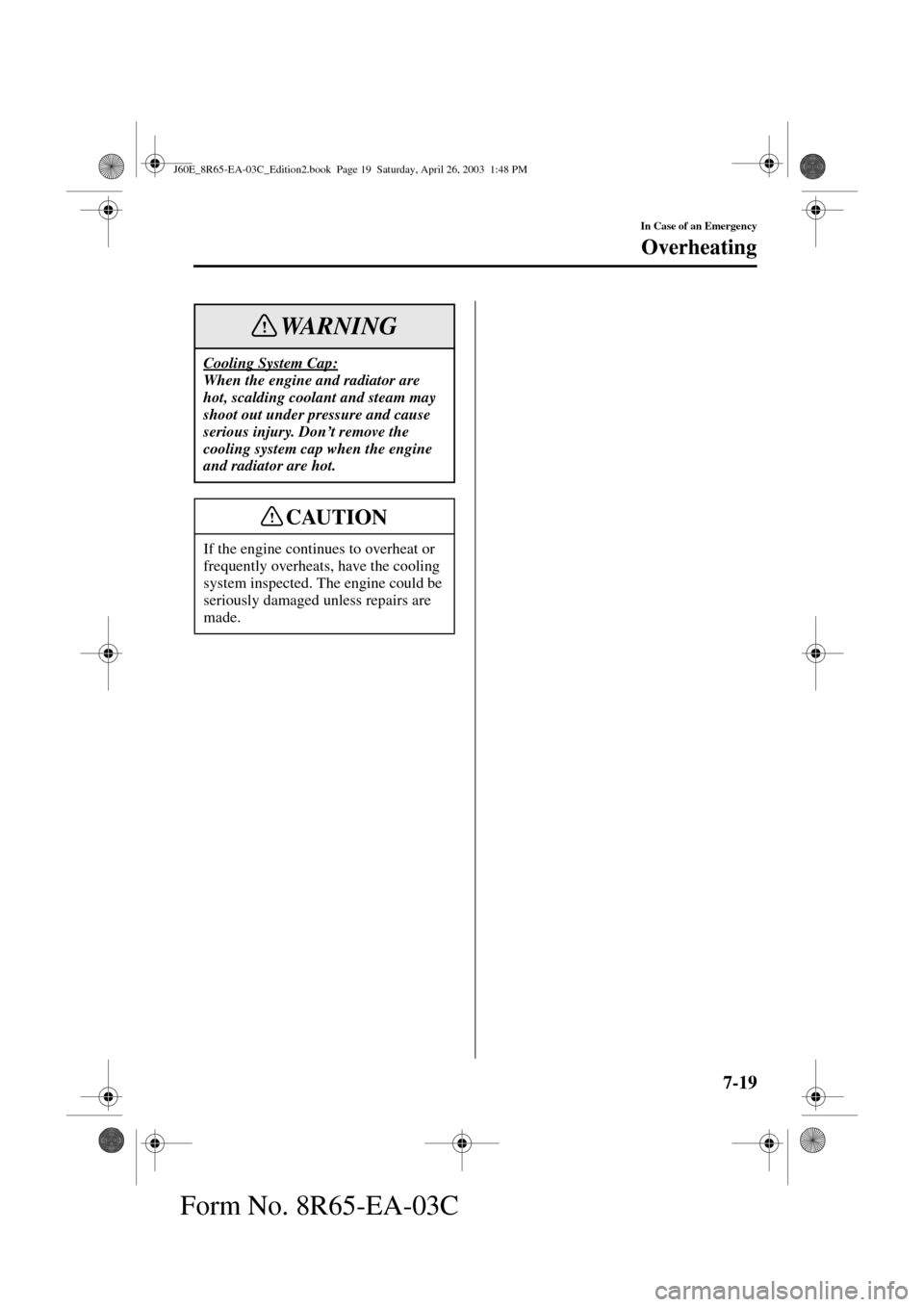

In Case of an Emergency
Overheating
Form No. 8R65-EA-03C
Cooling System Cap:
When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury. Don’t remove the
cooling system cap when the engine
and radiator are hot.
If the engine continues to overheat or
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made.
WARNING
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 19 Saturday, April 26, 2003 1:48 PM

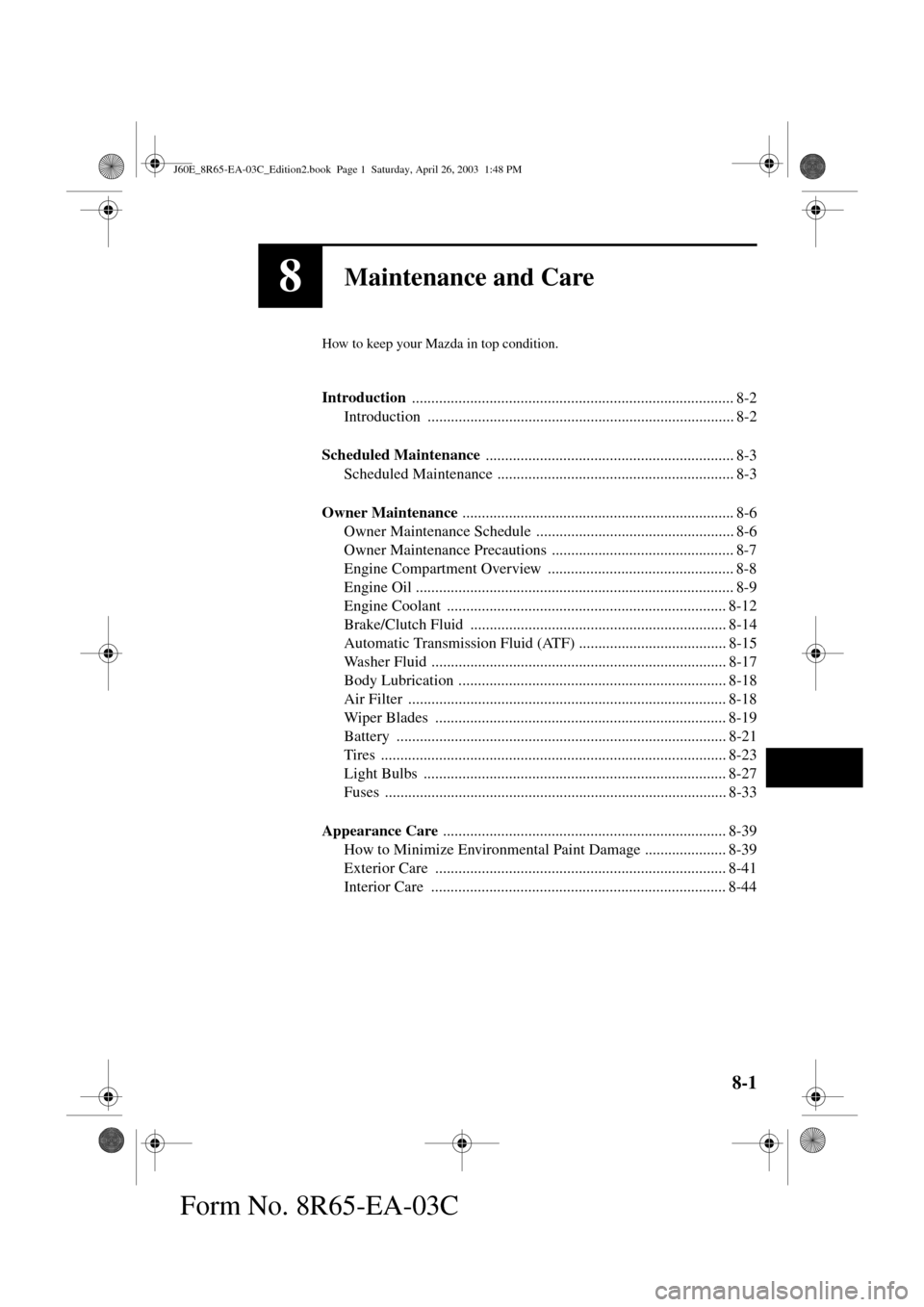

8-1
Form No. 8R65-EA-03C
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................... 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance
................................................................ 8-3
Scheduled Maintenance ............................................................. 8-3
Owner Maintenance
...................................................................... 8-6
Owner Maintenance Schedule ................................................... 8-6
Owner Maintenance Precautions ............................................... 8-7
Engine Compartment Overview ................................................ 8-8
Engine Oil .................................................................................. 8-9
Engine Coolant ........................................................................ 8-12
Brake/Clutch Fluid .................................................................. 8-14
Automatic Transmission Fluid (ATF) ...................................... 8-15
Washer Fluid ............................................................................ 8-17
Body Lubrication ..................................................................... 8-18
Air Filter .................................................................................. 8-18
Wiper Blades ........................................................................... 8-19
Battery ..................................................................................... 8-21
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-39
How to Minimize Environmental Paint Damage ..................... 8-39
Exterior Care ........................................................................... 8-41
Interior Care ............................................................................ 8-44
J60E_8R65-EA-03C_Edition2.book Page 1 Saturday, April 26, 2003 1:48 PM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8R65-EA-03C

Schedule 1
I
: Inspect and repair, clean, adjust, or replace if necessary.
R
: Replace
L
: Lubricate
C
:Clean
ENGINE
AIR CLEANER
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS & BODY
AIR CONDITIONER SYSTEM
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
*2 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance Interval
(Number of months or kilometers
(miles), whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive beltII
Air filterCCRC
Spark plugsR
Fuel filterReplace every 160,000km (100,000miles)
Fuel lines, hoses and connections
*1II
Cooling systemII
Engine coolantR e p l a c e a t f i r s t 9 6 , 0 0 0 k m ( 6 0 , 0 0 0 m i l e s ) o r 4 8 m o n t h s ;
after that, every 24 months
Brake line, hoses and connectionII
Disk brakesIIII
Steering operation and linkagesII
Front and rear suspension and ball jointsII
Manual transmission oilR
Rear differential oilR
Driveshaft dust bootsII
Bolts and nut on seatsII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Flat tire repair kit
*2Inspect every year
Cabin air filter (If installed)Replace every 40,000km (25,000miles) or 24 months
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8R65-EA-03C

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
R
: Replace
L
:Lubricate
C
:Clean
ENGINE
AIR CLEANER
IGNITION SYSTEM
FUEL SYSTEM
COOLING SYSTEM
CHASSIS & BODY
AIR CONDITIONER SYSTEM
*1 According to state / provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage / kilometer period to ensure long-term reliability.
*2 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Maintenance Interval
(Number of months or kilometers
(miles), whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 1624324048566472808896
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000km (3,000miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive beltII
Air filterCCRC
Spark plugsR
Fuel filterReplace every 160,000km (100,000miles)
Fuel lines, hoses and connections
*1II
Cooling systemII
Engine coolantReplace at first 96,000km (60,000miles) or 48 months ;
after that, every 24 months
Brake line, hoses and connectionII
Brake fluidRR
Disk brakesIIII
Steering operation and linkagesII
Front and rear suspension and ball jointsII
Manual transmission oilRR
Rear differential oilRR
Driveshaft dust bootsII
Bolts and nut on seatsII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Flat tire repair kit
*2Inspect every year
Cabin air filter (If installed)Replace every 40,000km (25,000miles) or 24 months
J60E_8R65-EA-03C_Edition2.book Page 5 Saturday, April 26, 2003 1:48 PM

8-6
Maintenance and Care
Form No. 8R65-EA-03C
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•Brake and clutch fluid level (page 8-14)
•Engine coolant level (page 8-12)
•Engine oil level (page 8-10)
•Washer fluid level (page 8-17)

At Least Monthly
•Tire inflation pressures (page 8-23)

At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transmission fluid level (page 8-15)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•Air filter (page 8-18)
•Engine coolant (page 8-12)
•Engine oil (page 8-10)
Owner Maintenance Schedule
J60E_8R65-EA-03C_Edition2.book Page 6 Saturday, April 26, 2003 1:48 PM

8-7
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
Improper or incomplete service may result in problems. This section gives instructions
only for items that are easy to perform.
As explained in the Introduction (page 8-2), several procedure can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedures. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan which may turn on unexpectedly.
Electrical Fan and Engine Inspection:
Working near the electrical cooling fan when it is running is dangerous. You could be
hit by the fan and seriously injured. Turn off the ignition switch and make sure the
fan is not running before attempting to work near the electrical cooling fan.
NOTE
Once the engine coolant exceeds a preset temperature, an electrical cooling fan turns on.
It will continue running for about 10 minutes after the ignition switch is turned to off.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

8-8
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C
Engine Compartment Overview
Automatic transmission fluid-level dipstick
(only for automatic transmission)
Windshield washer
fluid reservoir
Fuse block
(next to air filter)
BatteryBrake/Clutch fluid
reservoir Engine oil dipstick Engine oil-filler cap
Air filter Engine coolant reservoir Cooling system cap
Fuse block
(near battery)
J60E_8R65-EA-03C_Edition2.book Page 8 Saturday, April 26, 2003 1:48 PM

8-12
Maintenance and Care
Owner Maintenance
Form No. 8R65-EA-03C

Inspecting Coolant Level
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year—at the beginning of the
winter season—and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it’s at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Do not overfill.

If new coolant is required frequently,
consult an Authorized Mazda Dealer.Engine Coolant
Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in
the engine compartment. DO NOT
ADD COOLANT WHEN THE
ENGINE IS HOT.
WARNING
Radiator coolant will damage paint.
Rinse it off quickly.
CAUTION
J60E_8R65-EA-03C_Edition2.book Page 12 Saturday, April 26, 2003 1:48 PM
