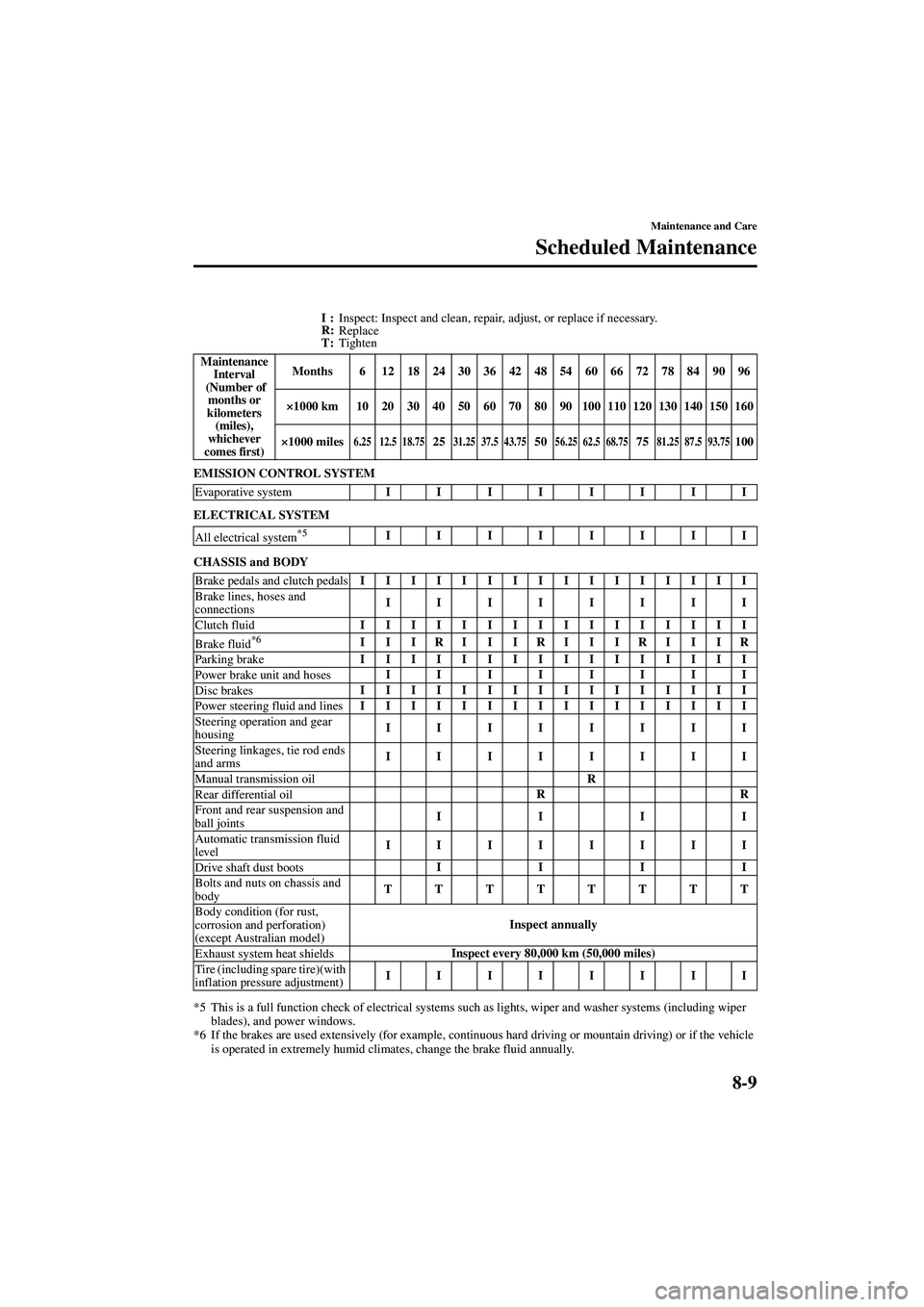

8-9
Maintenance and Care
Scheduled Maintenance
Form No. 8S15-EA-03G
I:Inspect: Inspect and clean, repair, adjust, or replace if necessary.
R: Replace
T: Tighten
EMISSION CONTROL SYSTEM
ELECTRICAL SYSTEM
CHASSIS and BODY
*5 This is a full function check of electrical systems such as lights, wiper and washer systems (including wiper blades), and power windows.
*6 If the brakes are used extensively (for example, continuous hard driving or mountain driving) or if the vehicle is operated in extremely humid climates, change the brake fluid annually.
Maintenance
Interval
(Number of
months or
kilometers (miles),
whichever
comes first) Months 6 121824303642485460667278849096
× 1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
× 1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
Evaporative system IIIIIIII
All electrical system
*5IIIIIIII
Brake pedals and clutch pedals IIIIIIIIIIIIIIII
Brake lines, hoses and
connections IIIIIIII
Clutch fluid IIIIIIIIIIIIIIII
Brake fluid
*6IIIRIIIRIIIRIIIR
Parking brake IIIIIIIIIIIIIIII
Power brake unit and hoses IIIIIIII
Disc brakes IIIIIIIIIIIIIIII
Power steering fluid and lines IIIIIIIIIIIIIIII
Steering operation and gear
housing IIIIIIII
Steering linkages, tie rod ends
and arms IIIIIIII
Manual transmission oil R
Rear differential oil RR
Front and rear suspension and
ball joints IIII
Automatic transmission fluid
level IIIIIIII
Drive shaft dust boots IIII
Bolts and nuts on chassis and
body TTTTTTTT
Body condition (for rust,
corrosion and perforation)
(except Australian model) Inspect annually
Exhaust system heat shields Inspect every 80,000 km (50,000 miles)
Tire (including spare tire)(with
inflation pressure adjustment) IIIIIIII
J07S_8S15-EA-03G_Edition2.book Page 9 Thursday, August 21, 2003 10:04 AM
8-21
Maintenance and Care
Owner Maintenance
Form No. 8S15-EA-03G
Inspecting Automatic
Transmission Fluid Level
The automatic transmission fluid level
should be inspected regularly. Measure it
as described below.
The volume of fluid changes with the
temperature. For that reason, it is best to
examine the level after having driven the
vehicle for 15 minutes. If necessary,
however, it can also be inspected without
driving when the outside temperature is
above 20
°C (70 °F).
1. Park on a level surface and set the parking brake firmly.
2. Idle the engine. Push down on the brake pedal.
3. Move the shift lever through all ranges and set it at P. 4. With the engine still idling, pull out the
dipstick, wipe it clean.
5. Put the dipstick back into the filler tube and make sure it is fully seated.
6. Pull the dipstick out and read the fluid level.
The proper fluid level is marked on the
dipstick as follows.
Fluid hot scale
When checking the fluid level at normal
operating temperature, the fluid level
should be within the FULL and LOW
marks on the dipstick.
Automatic Transmission
Fluid (ATF)
• Low fluid level causes transmission
slippage. Overfilling can cause
foaming, loss of fluid, and
transmission malfunction.
• Use specified fluid (page 10-4). A
nonspecified fluid could result in
transmission malfunction and
failure.
• The vehicle should not be driven if
the fluid level is below the bottom
of the dipstick and the outside
temperature is above 20
°C (70° F),
or if evident automatic transmission
fluid leaks are found.
CAUTION
Sudden Vehicle Movement:
Shifting the shift lever without first
depressing the brake pedal is
dangerous. The vehicle could move
suddenly and cause an accident.
Make sure the brake pedal is applied
before shifting the shift lever.
WARNING
FULL
LOW Fluid
cold
scale
